Technical Specification
Material: | 304 stainless steel for body and door |
Mounting plate: | Galvanized sheet or 304 stainless steel |
Thickness: | Body and Door 1.2mm, mounted plate:1.5mm; Height greater than 700mm, Body and Door 1.5mm, mounted plate:2.0mm |
Surface Treatment: | Brushed or powder coated |
Protection Grade: | IP65 |
Against Mechanical Impacts: | IK10 |
Color: | RAL7032, RAL7035 or custom |
Standard Configuration: | Housing, door, mounting plate, lock, seal strip, grounding set |

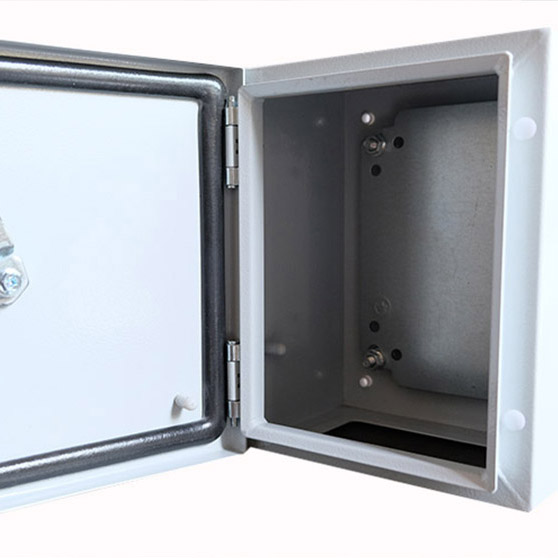

Full welding process, solid work

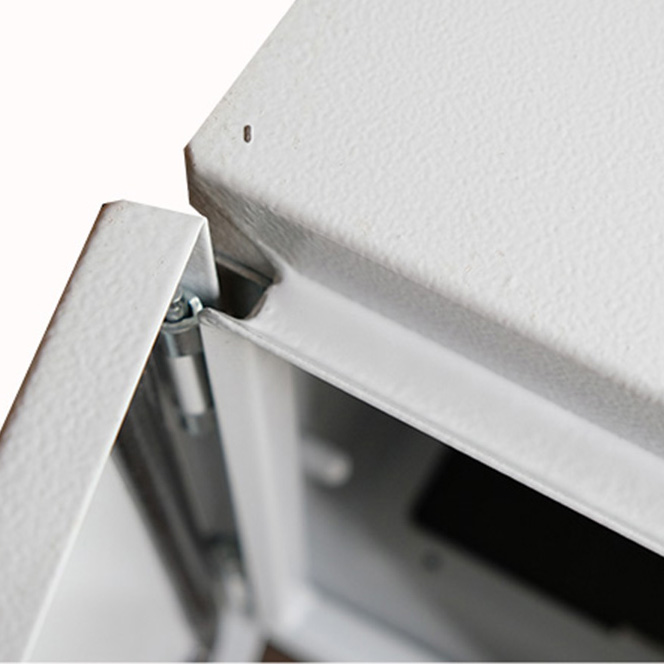

The opening has a curled lip around all sides to increase rigidity and prevent dripping water from entering the enclosure when the door is open

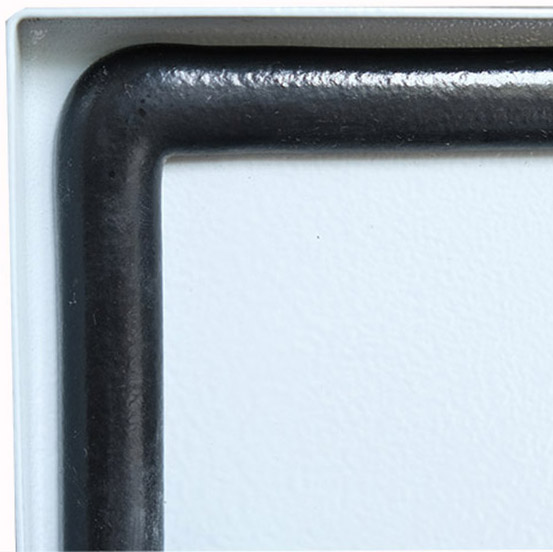

PU foam, seal is good

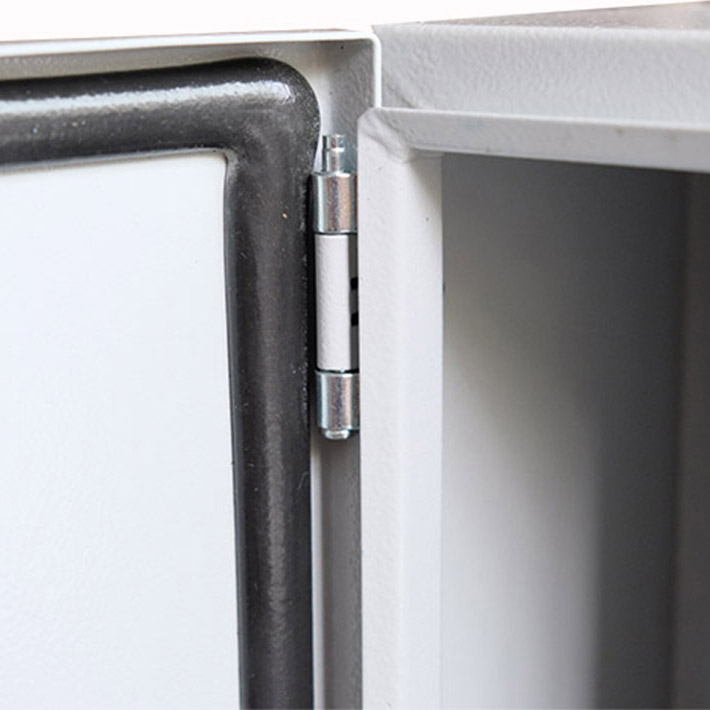

High Quality Hinges Ensure Easy Opening and Closing

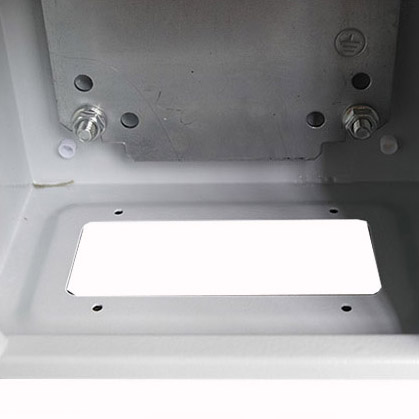

The Bottom Gland Plate Is Equipped with a Sealing Ring to Ensure Ip Rating

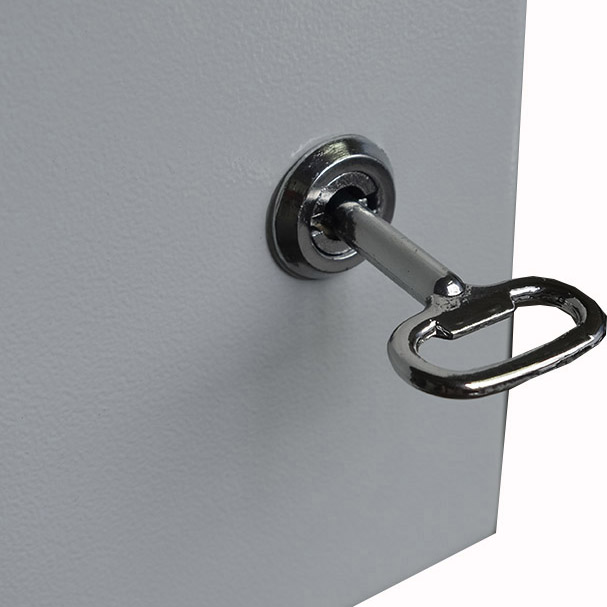

High Quality Locks Are More Durable
Dimensions
More dimensions and Nonstandard products are customizable
| No | Type no | Height (mm) | Width | Depth | Enclosure&door | Mounting plate（mm) |
| (mm) | (mm) | (mm） | ||||
| 1 | HSS020201 | 200 | 200 | 100 | 1.2 | 1.5 |
| 2 | HSS02502015 | 250 | 200 | 150 | 1.2 | 1.5 |
| 3 | HSS0302015 | 300 | 200 | 150 | 1.2 | 1.5 |
| 4 | HSS0302502 | 300 | 250 | 200 | 1.2 | 1.5 |
| 5 | HSS040302 | 400 | 300 | 200 | 1.2 | 1.5 |
| 6 | HSS050302 | 500 | 300 | 200 | 1.2 | 1.5 |
| 7 | HSS050402 | 500 | 400 | 200 | 1.2 | 1.5 |
| 8 | HSS0505025 | 500 | 500 | 250 | 1.2 | 1.5 |
| 9 | HSS060402 | 600 | 400 | 200 | 1.2 | 1.5 |
| 10 | HSS0604025 | 600 | 400 | 250 | 1.2 | 1.5 |
| 11 | HSS060502 | 600 | 500 | 200 | 1.2 | 1.5 |
| 12 | HSS0605025 | 600 | 500 | 250 | 1.2 | 1.5 |
| 13 | HSS070502 | 700 | 500 | 200 | 1.5 | 2 |
| 14 | HSS0705025 | 700 | 500 | 250 | 1.5 | 2 |
| 15 | HSS0806022 | 800 | 600 | 220 | 1.5 | 2 |
| 16 | HSS0806025 | 800 | 600 | 250 | 1.5 | 2 |
| 17 | HSS0807025 | 800 | 700 | 250 | 1.5 | 2 |
| 18 | HSS080603 | 800 | 600 | 300 | 1.5 | 2 |
| 19 | HSS100603 | 1000 | 600 | 300 | 1.5 | 2 |
| 20 | HSS100803 | 1000 | 800 | 300 | 1.5 | 2 |
| 21 | HSS101002 | 1000 | 1000 | 200 | 1.5 | 2 |
| 22 | HSS120802 | 1200 | 800 | 200 | 1.5 | 2 |
| 23 | HSS121003 | 1200 | 1000 | 300 | 1.5 | 2 |
| 24 | HSS121004 | 1200 | 1000 | 400 | 1.5 | 2 |
| 25 | HSS121204 | 1200 | 1200 | 400 | 1.5 | 2 |
