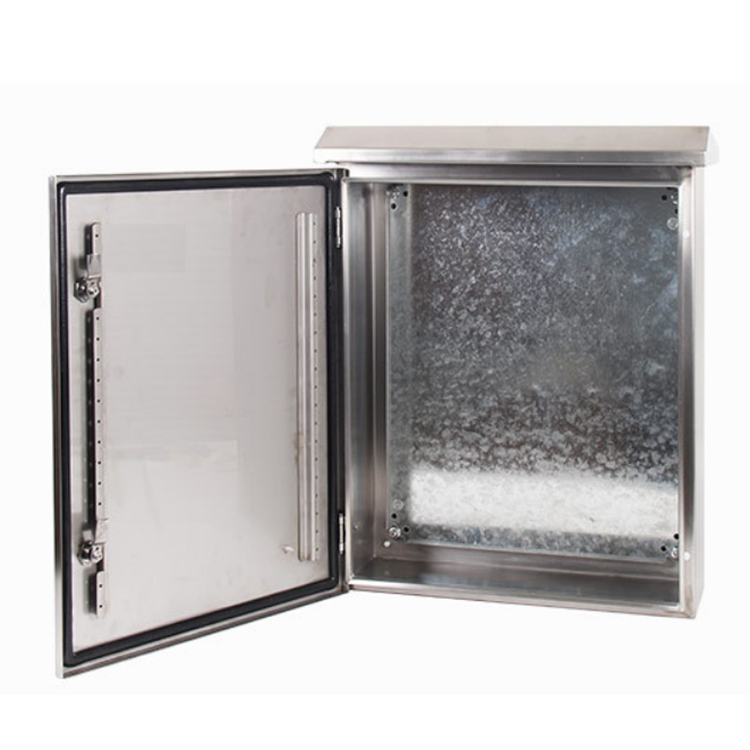

Stainless Steel Outdoor Rainproof Box

Product Feature
1. The body and door are made of high quality 304 stainless steel, with continuously welded corner seams.
2. The opening has a curled lip around all sides to increase rigidity and prevent dripping water from entering the enclosure when the door is open.
3. The use of polyurethane foam sealing strips for the sealing rings can effectively guarantee the IP rating.
4. The bottom gland plate is equipped with a sealing ring to ensure IP rating.
5. Each enclosure comes complete with a mounting plate.
6. Professional lock system with double tooth lock core is extremely convenient for opening and closing.
Availability:
Inquire Add to Basket

Advantages

The box is sturdy and durable

Waterproof and dustproof

Long lifespan

Source factory

Customization supported

Worry-free after-sales service

Technical Specification

Material:

304 stainless steel

Mounting plate:

Galvanized sheet or 304 stainless steel

Thickness:

Body and Door 1.2mm, mounted plate:1.5mm; Height greater than 600mm, Body and Door 1.5mm, mounted plate:2.0mm

Surface Treatment:

Brushed or powder coated

Protection Grade:

IP65

Against Mechanical Impacts:

IK10

Color:

RAL7032, RAL7035 or customized

Standard Configuration:

Housing, door, mounting plate, lock, seal strip, grounding set

Dimensions

More dimensions and Nonstandard products are customizable

No Type no Height (mm) Width Depth Enclosure&door Mounting plate（mm)
(mm) (mm) (mm）
1 HSSLC02502015 250 200 150 1.2 1.5
2 HSSLC0302015 300 400 250 1.2 1.5
3 HSSLC0302502 300 250 200 1.2 1.5
4 HSSLC040302 400 300 200 1.2 1.5
5 HSSLC050302 500 300 200 1.2 1.5
6 HSSLC050402 500 400 200 1.2 1.5
7 HSSLC0505025 500 500 250 1.2 1.5
8 HSSLC060402 600 400 200 1.2 1.5
9 HSSLC0604025 600 400 250 1.2 1.5
10 HSSLC060502 600 500 200 1.2 1.5
11 HSSLC0605025 600 500 250 1.2 1.5
12 HSSLC070502 700 500 200 1.5 2
13 HSSLC0705025 700 500 250 1.5 2
14 HSSLC0806022 800 600 220 1.5 2
15 HSSLC0807025 800 700 250 1.5 2
16 HSSLC100603 1000 600 300 1.5 2
17 HSSLC100803 1000 800 300 1.5 2
18 HSSLC120802 1200 800 200 1.5 2
19 HSSLC121004 1200 1000 400 1.5 2
20 HSSLC121204 1200 1200 400 1.5 2
