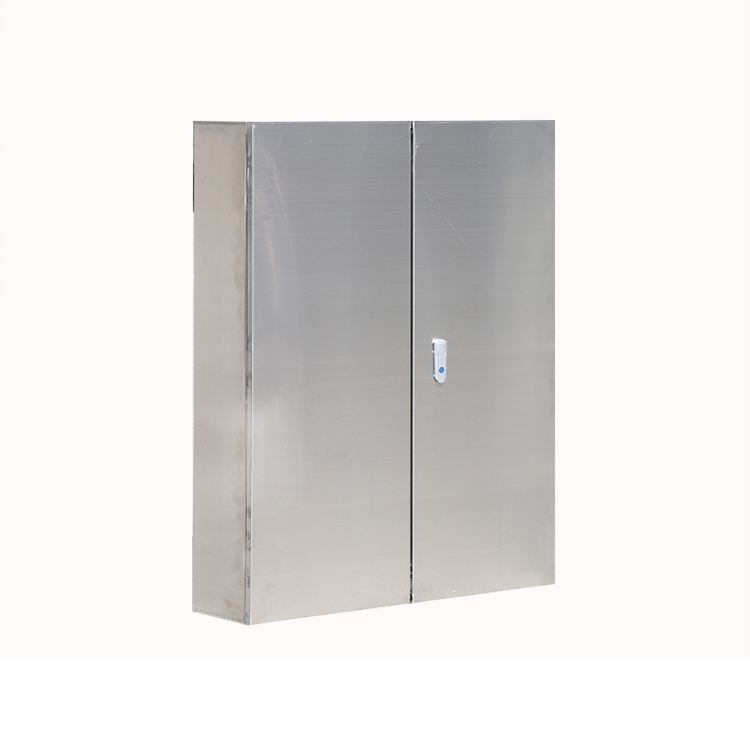

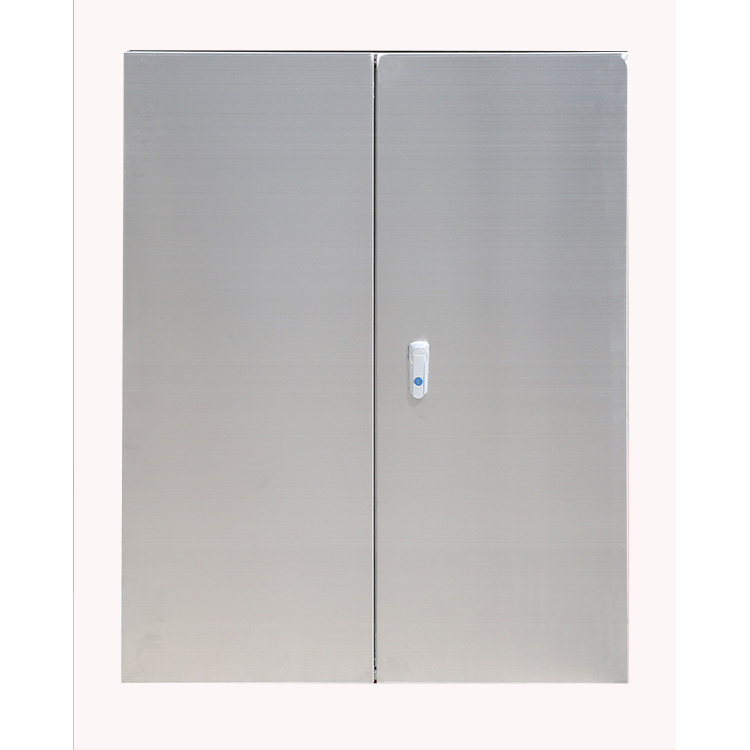

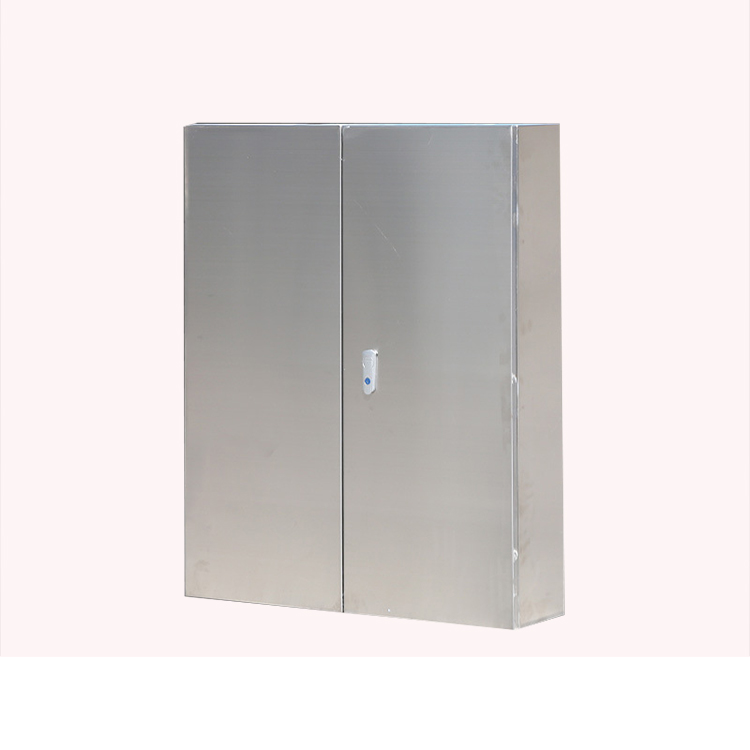

Stainless Steel Mounted Electrical Enclosure Double Door

Product Feature
1. The body and door are made of high quality 304 stainless steel, with continuously welded corner seams.
2. The opening has a curled lip around all sides to increase rigidity and prevent dripping water from entering the enclosure when the door is open.
3. The use of polyurethane foam sealing strips for the sealing rings can effectively guarantee the IP rating.
4. The bottom gland plate is equipped with a sealing ring to ensure IP rating.

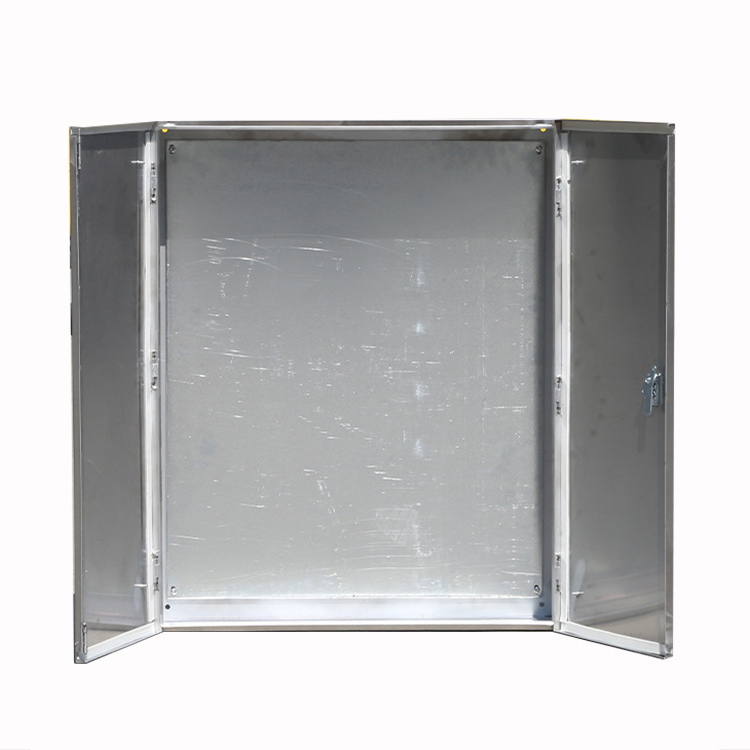

5. Each enclosure comes complete with a mounting plate.
6. Professional lock system with double tooth lock core is extremely convenient for opening and closing.
Availability:
Inquire Add to Basket

Technical Specification

Material:

304 stainless steel for body and door

Mounting plate:

Galvanized sheet or 304 stainless steel

Thickness:

Body and Door 1.2mm, mounted plate:1.5mm; Height greater than 600mm, Body and Door 1.5mm, mounted plate:2.0mm

Surface Treatment:

Brushed or powder coated

Protection Grade:

IP55

Against Mechanical Impacts:

IK10

Color:

RAL7032, RAL7035 or custom

Standard Configuration:

Housing, door, mounting plate, lock, seal strip, grounding set

Dimensions

More dimensions and Nonstandard products are customizable

No Type no Height (mm) Width Depth Enclosure&door Mounting plate（mm)
(mm) (mm) (mm）
1 HSSD060402 600 400 200 1.5 2
2 HSS0604025 600 400 250 1.5 2
3 HSSD060502 600 500 200 1.5 2
4 HSSD0605025 600 400 250 1.5 2
5 HSSD061002 600 1000 200 1.5 2
6 HSSD0610025 600 1000 250 1.5 2
7 HSSD070502 700 500 200 1.5 2
8 HSSD0705025 700 500 250 1.5 2
9 HSSD0807025 800 700 250 1.5 2
10 HSSD081003 800 1000 300 1.5 2
11 HSSD100603 1000 600 300 1.5 2
12 HSSD100803 1000 800 300 1.5 2
13 HSSD101002 1000 1000 200 1.5 2
14 HSSD120802 1200 800 200 1.5 2
15 HSSD121003 1200 1000 300 1.5 2
16 HSSD121004 1200 1000 400 1.5 2
17 HSSD121204 1200 1200 400 1.5 2
