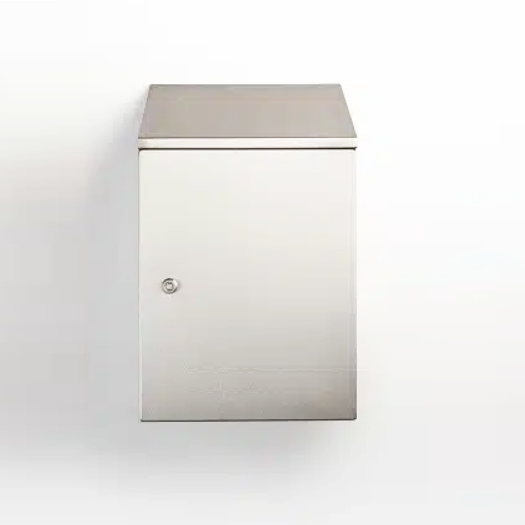

Single Door Console With Sloped Top

Product Feature
1. Made of high quality SPCC cold roll steel
2. Continuously welded corner seams
4. Seamless gasket ensures a durable seal
5. Mounting holes are provided on the back face of the enclosure
6. The body’s construction is designed to prevent dripping water from entering the enclosure
7. Paint color: RAL7035, RAL7032 or customized
Availability:
Inquire Add to Basket

Advantages

  • The box is sturdy and durable

  • Waterproof and dustproof

  • Long lifespan

  • Source factory

  • Customization supported

  • Worry-free after-sales service

Dimensions

More dimensions and Nonstandard products are customizable

No Type no Height (mm) Width Depth Enclosure&door Mounting plate（mm)
(mm) (mm) (mm）
1 HSMXD0603015 600 300 150 1.5 2
2 HSMXD 060302 600 300 200 1.5 2
3 HSMXD 0603025 600 300 250 1.5 2
4 HSMXD 0604015 600 400 150 1.5 2
5 HSMXD 060402 600 400 200 1.5 2
6 HSMXD 060403 600 400 300 1.5 2
7 HSMXD 060503 600 500 300 1.5 2
8 HSMXD060403 600 500 300 1.5 2
9 HSMXD060602 600 600 200 1.5 2
10 HSMXD0606025 600 600 250 1.5 2
11 HSMXD060604 600 600 400 1.5 2
12 HSMXD090602 900 600 200 1.5 2
13 HSMXD090603 900 600 300 1.5 2
14 HSMXD090604 900 600 400 1.5 2
15 HSMXD0907602 900 760 200 1.5 2
16 HSMXD0907603 900 760 300 1.5 2
17 HSMXD0907604 900 760 400 1.5 2
18 HSMXD100602 1000 600 200 1.5 2
19 HSMXD100603 1000 600 300 1.5 2
20 HSMXD1007602 1000 760 200 1.5 2
21 HSMXD10007603 1000 760 300 1.5 2
