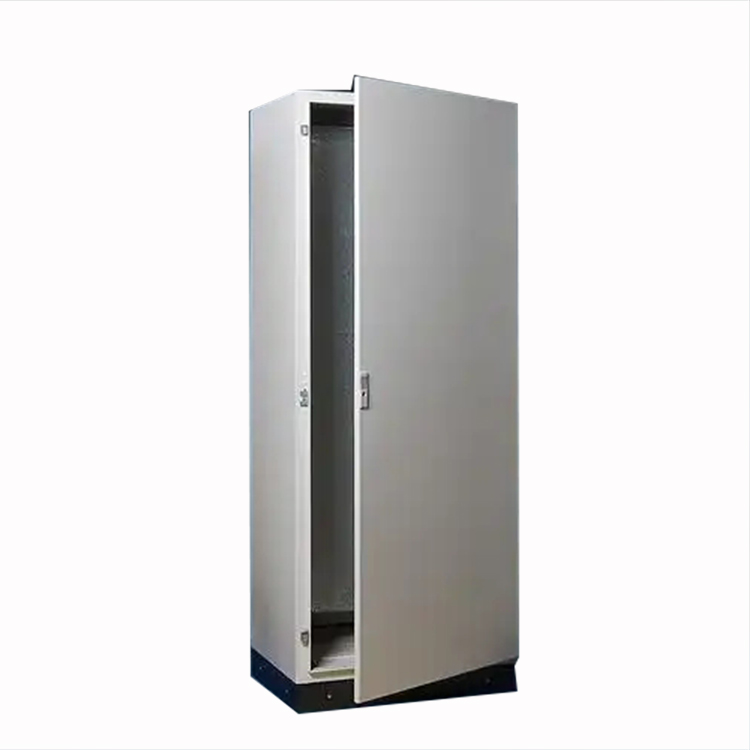

Single Door Cabinet With Adjustable Interior Panel

Product Feature
1. Door height 25mm from the ground.
2. 2.5mm mounting plate with 22mm wide U-shaped bends on both sides for increased strength and ease of handling.
3. Removable cable guide covers at the bottom of the cabinet; interchangeable for easy movement, cable insertion, and easy cable entry through opening holes.
4. Load-bearing hinges; easy installation and door replacement; cabinet door can open 130 degrees.
5. Using plastic sliding guides along the rails, the mounting plate can be pushed into the cabinet from the front.
6. Rear mounting secured with screws.
7. Polyurethane foam sealing strips; waterproof edges added to the cabinet door frame and door sealing ring to ensure a high level of protection.
8. The door can open to the left or right.
Availability:

Technical Specification

Material:

High quality SPCC cold roll steel

Mounting plate:

Galvanized sheet

Thickness:

Body and door 2.0mm; mounting plate 2.5mm

Surface Treatment:

Phosphating and powder coating, corrugated finish

Protection Grade:

IP5

Color:

RAL7032, RAL7035 or customized

Dimensions

More dimensions and Nonstandard products are customizable

No Type no Height (mm) Width Depth Enclosure&door Mounting plate(mm)
(mm) (mm) (mm)
1 HSMFSC140604 1400 600 400 2 2.5
2 HSMFSC140606 1400 600 600 2 2.5
3 HSMFSC140806 1400 800 600 2 2.5
4 HSMFSC140610 1400 600 1000 2 2.5
5 HSMFSC140804 1400 800 400 2 2.5
6 HSMFSC140806 1400 800 600 2 2.5
7 HSMFSC140808 1400 800 800 2 2.5
8 HSMFSC140810 1400 800 1000 2 2.5
9 HSMFSC141004 1400 1000 400 2 2.5
10 HSMFSC141010 1400 1000 1000 2 2.5
11 HSMFSC140405 1600 400 500 2 2.5
12 HSMFSC160606 1600 600 600 2 2.5
13 HSMFSC160608 1600 600 800 2 2.5
14 HSMFSC160804 1600 800 400 2 2.5
15 HSMFSC160806 1600 800 600 2 2.5
16 HSMFSC160808 1600 800 800 2 2.5
17 HSMFSC160810 1600 800 1000 2 2.5
18 HSMFSC161004 1600 1000 400 2 2.5
19 HSMFSC161010 1600 1000 1000 2 2.5
20 HSMFSC180604 1800 600 400 2 2.5
21 HSMFSC180606 1800 600 600 2 2.5
22 HSMFSC180608 1800 600 800 2 2.5
23 HSMFSC180610 1800 600 1000 2 2.5
24 HSMFSC180804 1800 800 400 2 2.5
25 HSMFSC200604 2000 600 400 2 2.5
26 HSMFSC200606 2000 600 600 2 2.5
27 HSMFSC200608 2000 600 800 2 2.5
28 HSMFSC200610 2000 600 1000 2 2.5
29 HSMFSC200807 2000 800 700 2 2.5
30 HSMFSC200810 2000 800 1000 2 2.5
31 HSMFSC201004 2000 1000 400 2 2.5
32 HSMFSC201206 2000 1200 600 2 2.5
33 HSMFSC220604 2200 600 400 2 2.5
34 HSMFSC220608 2200 600 800 2 2.5
35 HSMFSC220806 2200 800 600 2 2.5
36 HSMFSC220810 2200 800 1000 2 2.5
37 HSMFSC221004 2200 1000 400 2 2.5
38 HSMFSC221010 2200 1000 1000 2 2.5
