As someone who has spent years working with OEMs, panel builders, and project engineers across power, telecom, and industrial automation, I can tell you this: most wiring headaches don't come from the cable – they come from the wrong box in the wrong place. Choosing correctly between a pull box and a junction box is one of those small decisions that quietly determines whether your system stays safe, code‑compliant, and easy to maintain for 15–20 years. [eabel]
In this guide, I'll walk you through the real‑world differences between pull boxes and junction boxes, how we advise our global clients at Ningbo Bohui Electric to choose between them, and the practical design details that often get missed in generic articles. [reddit]
In day‑to‑day projects, I treat a junction box as the protected "meeting room" where conductors are allowed to connect, branch, and terminate. [eabel]
Key characteristics:
- Contains permanent splices, terminations, or device connections
- Protects conductors from dust, moisture, and mechanical damage
- Keeps people away from live parts and reduces fire risk
- Provides a structured point for troubleshooting and modifications [reddit]
Typical applications:
- Lighting circuits in commercial buildings and warehouses
- Outlet and switch wiring in residential or light commercial projects
- Control and signal wiring inside equipment or small machinery panels [eabel]
From an engineering standpoint, junction boxes are sized so they can safely accommodate box fill and bending radius while still leaving enough working space for future maintenance. Under‑sizing here is one of the fastest ways to create overheating, messy splices, and inspection failures. [reddit]
By contrast, a pull box is not where wires "meet"; it is where they pass through and change direction without splicing. [eabel]
Core functions:
- Provides access points to pull conductors through long or complex conduit runs
- Reduces tension and mechanical stress during installation
- Allows changes in direction (90°, 180°, offsets) without damaging insulation
- Simplifies future wire replacement or upgrades in long runs [eabel]
In properly designed systems, pull boxes:
- Do not contain splices or devices
- Are deliberately placed for installer ergonomics and code‑compliant bending space
- Are more common in industrial plants, infrastructure, and large commercial facilities than in small residential projects [eabel]
A quick mental test I use on site:
If the primary purpose of the box is access and wire movement, you are thinking pull box; if its purpose is connection and protection, you are in junction‑box territory. [reddit]
The table below captures the practical differences I walk through with project teams during design reviews. [eabel]
| Aspect | Junction Box | Pull Box |
|---|---|---|
| Primary purpose | Splicing, branching, terminating conductors (eabel) | Pulling and routing conductors through conduits (eabel) |
| Inside the box | Wire splices, terminations, sometimes devices | No splices in compliant designs; conductors pass through (reddit) |
| Typical size | More compact, optimized for connections | Larger, sized for bending radius and wire movement (eabel) |
| Typical locations | At load points, branch points, equipment | Along long runs, at direction changes, between distant panels (eabel) |
| Code focus | Box fill, accessibility, enclosure of all splices | Wire bending space, dimensions vs. conduit size and angle (eabel) |
| Common materials | Steel, stainless steel, plastic, fiberglass | Similar materials, often more rugged for harsh runs (eabel) |
| Cost band (typical) | Approx. US$5–30 for standard models (eabel) | Often US$50–500+ for larger or custom sizes (eabel) |
| Installation time | Roughly 30–60 minutes in many cases (eabel) | Often 2–4 hours including layout and pulling (eabel) |
| Maintenance role | Service and troubleshooting for circuits | Access point for replacement, upgrades, and re‑pulls (eabel) |
Electricians often summarize the distinction simply: "Pull boxes: no splices. Junction boxes: splices allowed." That basic idea is reinforced by major electrical codes and standards. [forums.mikeholt]
Key compliance themes you should consider in design and procurement:
- Junction boxes
- Governed by box‑fill rules and accessibility requirements (for example, NEC 314.16 in North America). [eabel]
- Every splice must be inside an appropriate enclosure; covers must remain accessible for inspection and service.
- Outdoor or washdown applications need proper sealing, gasketing, and corrosion‑resistant materials. [reddit]
- Pull boxes
- Sizing in many markets follows rules similar to NEC 314.28, which focus on wire‑bending space and conductor size. [lianjer]
- Boxes must be installed in readily accessible locations to support pulling, testing, and future work. [reddit]
- Labels describing function and circuit references are considered good practice and, in complex systems, close to essential. [reddit]
If you work across regions, always align with your local standard (IEC‑based, NEC‑based, or national codes), but the underlying design logic—protect connections, protect conductors, and protect people—does not change. [lianjer]
From a project‑planning perspective, the decision usually comes down to what the system needs at that point in the route. [eabel]
Use a junction box when:
1. You need permanent splices or terminations
2. You are branching a feeder to multiple loads (e.g., multiple lighting rows)
3. Devices or terminal blocks will be mounted in the box
4. The location will be a key service and troubleshooting node
5. You are working in tight or finished spaces where a compact enclosure is an advantage [eabel]
Use a pull box when:
1. Conduit runs are long (for example, 100+ ft / 30+ m) or have multiple bends
2. You expect future cable upgrades or replacements along that run
3. Cable size, bend radius, or route complexity make direct pulls risky
4. You need to relieve strain on insulation and terminations
5. Multiple conduits converge and you want a controlled, accessible transition point [eabel]
A real‑world example from industrial facilities:
- Between a main LV switchboard and a far‑end process line, we often specify one or more steel pull boxes along the cable tray or conduit run, especially where routes change direction around structural columns.
- At the process line itself, we use multiple junction boxes and terminal boxes to distribute power and I/O cleanly to drives, sensors, and local control panels. [simcona]
When we consult on enclosure selection for power, telecom, networking, or smart‑manufacturing lines, we work through a simple checklist that goes beyond "pull vs junction." [alliedmoulded]

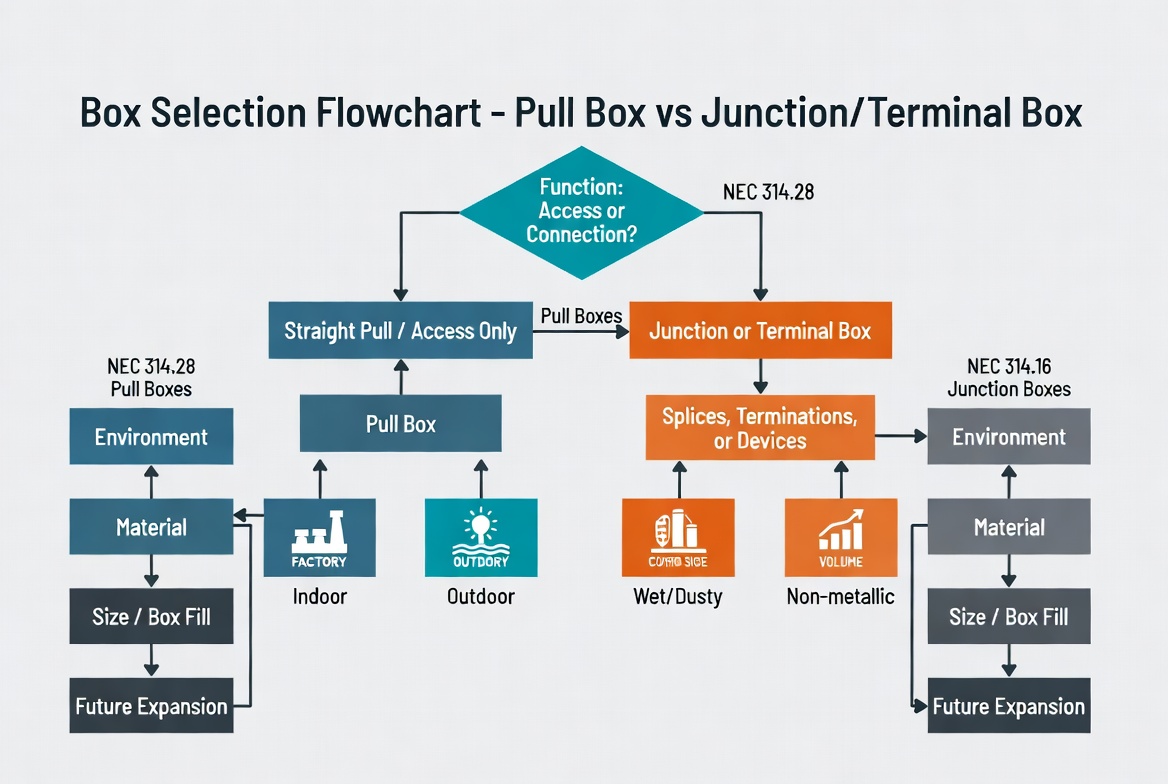

1. Function first: access or connection?
- If the purpose is pulling and rerouting, we start with a pull box concept.
- If the purpose is splicing, branching, terminating, or mounting terminals, we plan a junction or terminal box. [eabel]
2. Environment and material
- Indoor dry areas may use powder‑coated steel for cost‑effectiveness.
- Corrosive, outdoor, or coastal locations often justify stainless steel or fiberglass‑reinforced solutions.
- For telecom, battery energy storage, and EV infrastructure, UV resistance, condensation management, and EMC behavior also come into play. [alliedmoulded]
3. Space, heat, and future expansion
- Leave reserve space for additional conductors or devices rather than designing to the bare minimum.
- Check that internal spacing supports heat dissipation, cable management, and safe working clearances. [simcona]
- In smart factories and data‑rich applications, we favor slightly oversized terminal boxes because additional I/O is almost inevitable. [simcona]
4. Cost of ownership, not just initial price
- Lower‑cost small junction boxes may look attractive, but if technicians struggle to work inside them, the long‑term maintenance cost climbs quickly. [eabel]
- A well‑placed pull box that saves three hours of pulling time often pays for itself on day one of installation. [eabel]
5. Integration with the wider system
- Consider how the box interface works with cable glands, conduits, trunking, DIN rails, and mounting structures.
- Ensure labelling, documentation, and 3D models are integrated into your design workflow so clashes are resolved before installation. [info.panelshop]
Even with the right box selected, many problems show up during installation rather than on paper. [reddit]
Practical tips we consistently see pay off:
- Size up, not down
- Choose the next size up when you are close to the limit of box fill or bending space, especially with stiff cables or thick insulation. [eabel]
- Plan pull‑box locations early
- Mark planned pull‑box positions in your 3D model or routing drawings at each significant direction change or at intervals appropriate to cable size and pulling method. [lianjer]
- Protect entries properly
- Use the right cable glands, sealing grommets, and threaded hubs to maintain IP rating and mechanical strain relief; this is especially critical for outdoor and washdown installations. [alliedmoulded]
- Keep accessibility realistic
- On paper, a ceiling‑mounted box may look accessible; in reality, ducting, pipes, or future equipment may block it. Walk the route and think like a maintenance technician. [simcona]
- Standardize where possible
- Using a limited set of standard sizes and materials simplifies spare‑parts management and speeds up installation across multiple sites. [tiecas]
These habits not only support safety and compliance but also align well with inspection expectations and long‑term life‑cycle planning.
Because our company specializes in terminal boxes and electrical sheet‑metal enclosures, clients often ask where terminal boxes sit relative to pull and junction boxes. [eabel]
Conceptually:

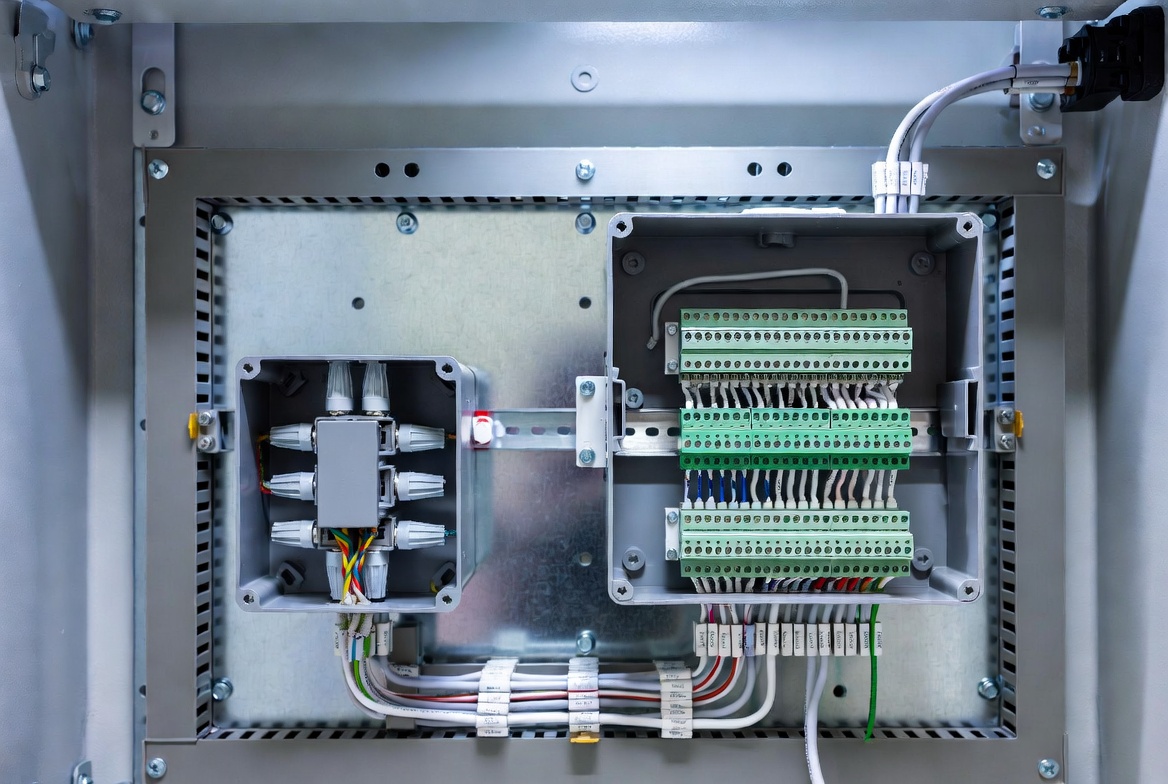

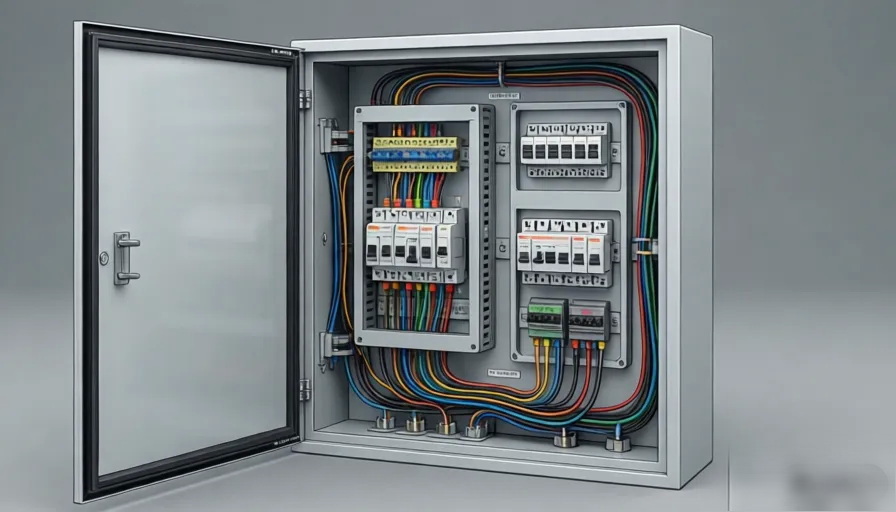

- A terminal box is a specialized junction box that is built around terminal blocks and structured wiring, often with DIN rails and labeling systems.
- In modern industrial and smart‑manufacturing projects, terminal boxes become the local nerve centers: they receive power and signals and redistribute them cleanly to equipment. [simcona]
Where a basic junction box might simply protect a few splices, a terminal box is designed for:
- Repeatable, documented wiring layouts
- Clear channel separation (power vs control vs communication)
- Easy I/O expansion and troubleshooting
- Integration with higher‑level control panels and field devices [tiecas]
For engineers designing energy storage systems, EV charging infrastructure, or large pump and water‑treatment skids, combining correctly placed pull boxes along the power paths with well‑engineered terminal boxes near field devices gives you both maintainability and scalability.
1. Can I use a pull box as a junction box?
In a compliant design, a pull box should not contain splices; once you start making permanent connections, you are functionally turning it into a junction box and must meet all requirements for that use, including spacing, box fill, and accessibility. [eabel]
2. How far apart should pull boxes be placed in long runs?
Many designers add pull boxes at major direction changes and at intervals aligned with conductor size, pulling method, and friction limits; long, straight runs above roughly 30–40 m often benefit from intermediate pull points for large cables. [lianjer]
3. Which material should I choose for outdoor enclosures?
For outdoor or corrosive environments, stainless steel, coated steel, or high‑grade plastic/fiberglass enclosures with appropriate gaskets are common choices, selected based on corrosion risk, impact exposure, and UV conditions. [alliedmoulded]
4. Are junction boxes only for low‑voltage applications?
No; junction boxes are used across low‑, medium‑, and some high‑voltage systems, provided they are correctly rated for voltage, creepage and clearance distances, insulation level, and environmental conditions. [reddit]
5. How do I future‑proof my junction and terminal boxes?
Allow spare space for extra conductors and devices, choose materials and IP ratings that match long‑term environmental exposure, standardize sizes where possible, and keep documentation and labeling consistent across projects. [tiecas]
