NEMA 4 and NEMA 4X enclosures offer similar protection against water and dust, but NEMA 4X adds a critical layer of corrosion resistance that makes it the safer choice for harsh, chemical or marine environments. For a wall mount enclosure manufacturer like Ningbo Bohui Electric, understanding and clearly explaining this difference is key to helping engineers, panel builders and EPCs choose the right box the first time. [linkedin]
As a manufacturer and as someone who has spent years specifying wall mount enclosures for power, telecom and industrial OEM projects, I look at NEMA 4 vs NEMA 4X from three angles: protection, lifecycle cost, and application risk. This article will: [eabel]
- Explain NEMA 4 and NEMA 4X ratings in practical engineering language
- Compare performance in real-world conditions: rain, washdown, dust, chemicals and salt spray [vartechsystems]
- Show how material choice (carbon steel, stainless steel, aluminum, polycarbonate) interacts with the "X" corrosion requirement [budind]
- Provide selection checklists and a quick comparison table you can share with your team
Throughout this guide, "NEMA 4 vs NEMA 4X" and related long-tail phrases such as NEMA 4 wall mount enclosure, NEMA 4X stainless steel enclosure, and corrosion‑resistant outdoor electrical box will appear naturally so you can rank and simultaneously deliver real value.
From a standards perspective, NEMA (National Electrical Manufacturers Association) type ratings define how well an electrical enclosure resists environmental hazards like dust, rain, sleet, and hose‑directed water. Both NEMA 4 and NEMA 4X are designed for indoor and outdoor use, with robust gasketing and sealed doors to keep contaminants out. [linkedin]
- NEMA 4
- Indoor/outdoor use
- Dust‑tight, protects against rain, splashing water, and hose‑directed water [eabel]
- Provides a degree of protection against ice formation on the enclosure [vartechsystems]
- NEMA 4X
- Includes everything in NEMA 4
- Adds corrosion resistance to the enclosure material or finish [linkedin]
- Typically associated with stainless steel, fiberglass, polycarbonate or specially coated metals [budind]
In the field, both NEMA 4 and NEMA 4X are commonly comparable to an IP66 level of ingress protection (dust‑tight, protected against powerful water jets), although NEMA and IP are different systems and not strictly interchangeable. [eabel]
| Aspect | NEMA 4 | NEMA 4X |
|---|---|---|
| Ingress protection | Dust‑tight; rain, splashing water, hose‑down [linkedin] | Same as NEMA 4 [linkedin] |
| Corrosion resistance | Not specifically corrosion‑resistant [eabel] | Enhanced corrosion resistance ("X") [linkedin] |
| Typical materials | Painted steel, aluminum, fiberglass [budind] | Stainless steel, polycarbonate, fiberglass [budind] |
| Typical environments | General outdoor, machine rooms, utilities [linkedin] | Marine, food & beverage, chemical, coastal areas [linkedin] |
| Relative cost | Lower initial cost [eabel] | Higher initial cost, lower long‑term risk [eabel] |
| Ideal when… | Water and dust are main threats | Chemicals, salt or aggressive cleaning present [linkedin] |
In simple terms: NEMA 4 keeps water and dust out; NEMA 4X keeps water, dust, *and corrosion* out. [vartechsystems]
From a design engineer's standpoint, the first question is: "Will this enclosure keep my controls alive during a storm or washdown?" Both NEMA 4 and NEMA 4X are built to survive this scenario. [linkedin]
- Dust and particles
- Both ratings are dust‑tight and prevent entry of wind‑blown dust or airborne particles that can cause tracking, arcing or sensor drift. [vartechsystems]
- Rain, splashing, and hose‑directed water
- NEMA 4 and NEMA 4X enclosures are tested to withstand rain, sleet, snow and hose‑directed water jets. [eabel]
- This is critical for outdoor pump controls, rooftop HVAC VFDs, or factory equipment that undergoes periodic washdown.
- Ice formation
- Both types are intended to provide protection against damage from ice formation on the enclosure. [vartechsystems]
From my experience on OEM projects, once you confirm that an application needs hose‑down capable protection, you are typically in NEMA 4 or higher territory. Whether you step up to NEMA 4X depends on corrosion risk, not water alone.
Suggested image: outdoor wall‑mounted enclosure being sprayed with water while remaining sealed.
AI prompt idea: "Realistic photo of a gray wall mount electrical enclosure on a factory wall, being sprayed with a high‑pressure water hose, no water entering, industrial background, dramatic lighting."
The "X" in NEMA 4X signals that the enclosure offers additional resistance to rust and corrosion. This is not just marketing language; it is about how the material and coating survive prolonged exposure to aggressive environments. [linkedin]
Typical corrosion‑prone environments include:
- Coastal sites with salt fog and sea spray
- Chemical dosing skids, wastewater treatment, plating shops
- Food & beverage processing with caustic cleaning agents
- Offshore platforms and harbors where chloride stress is high [eabel]
In these locations, a standard painted steel NEMA 4 box can start to show rust at hinges, gland plates and cut edges within a few seasons, while a properly specified NEMA 4X stainless steel or polycarbonate enclosure remains intact far longer. That difference directly affects maintenance cost and safety. [budind]
Suggested image: close‑up comparison of corroded painted steel vs clean stainless enclosure in a coastal/industrial scene.
AI prompt idea: "Split image comparing a rusty painted steel electrical box and a clean stainless steel NEMA 4X enclosure in a coastal industrial environment, detailed, photorealistic."
As a wall mount enclosure manufacturer, we rarely talk about the rating without talking about material. The rating defines performance; the material defines how reliably you achieve that performance over time. [budind]
- Painted carbon steel (often NEMA 4)
- Good mechanical strength and cost‑effective for general outdoor use.
- Vulnerable at cutouts, scratches and edges if protective coating is damaged.
- Aluminum (NEMA 4 or 4X, depending on finish)
- Lightweight, good strength‑to‑weight ratio, naturally forms an oxide layer that helps resist corrosion. [budind]
- Not as corrosion‑proof as high‑grade stainless in extremely aggressive environments.
- Stainless steel (commonly NEMA 4X)
- Excellent corrosion resistance and mechanical strength, ideal for food, chemical and marine applications. [budind]
- Higher initial cost but often lower total cost when downtime and replacement are considered.
- Polycarbonate / fiberglass reinforced polyester (often NEMA 4X)
- High corrosion resistance, no rust, good for outdoor and washdown environments. [groundedin]
- Very popular for junction boxes and control panels in wastewater and chemical dosing systems.
For Ningbo Bohui Electric, aligning the right NEMA 4 vs NEMA 4X rating with the right material allows you to provide project‑specific wall mount solutions that meet both performance and budget targets.
When we help customers in power distribution, telecom, EV charging, building automation and water treatment select enclosures, we typically walk through real‑world use cases. [linkedin]
- Outdoor power distribution panels away from coastal or chemical exposure
- Building management and HVAC control cabinets on rooftops in non‑corrosive climates
- General industrial machine control panels that see washdown but not harsh chemicals
In these situations, the main risks are rain, dust and occasional hose‑down. A properly coated NEMA 4 carbon steel or aluminum wall mount enclosure balances performance and cost. [eabel]
- Marine and coastal: pump stations, harbor control, desalination plants [vartechsystems]
- Food & beverage: frequent hot water, steam and caustic chemical washdown
- Chemical & pharmaceutical: fumes, splashes and vapor from aggressive chemicals
- Wastewater & water treatment: hydrogen sulfide, chlorination and outdoor exposure [linkedin]
In these environments, the higher purchase price of a NEMA 4X stainless or polycarbonate enclosure typically pays back quickly through reduced corrosion‑related failures and service calls. [budind]
Suggested image: grid of four photos showing marine, food factory washdown, chemical plant and wastewater facility each with visible enclosures.
AI prompt idea: "Four‑panel collage showing electrical enclosures in marine dock, food processing washdown, chemical plant, and wastewater treatment plant, high detail, realistic."
Very often, the NEMA 4 vs NEMA 4X discussion is mistakenly framed only around initial price. As someone who has seen panels fail prematurely in coastal and chemical sites, I recommend looking at lifecycle cost instead: [eabel]
1. Initial hardware cost
- NEMA 4 painted steel is usually cheaper than NEMA 4X stainless or polycarbonate. [eabel]
2. Maintenance and replacement
- Corrosion can force early enclosure replacement, drive repeated repainting, or require frequent hinge and latch changes. [vartechsystems]
3. Downtime and safety risk
- Failure of a corroded enclosure can expose live parts, trigger unexpected trips, or halt production lines.
4. Total cost of ownership
- In harsh environments, NEMA 4X often yields a lower total cost over 10–15 years, even if the upfront quote is higher. [vartechsystems]
For project managers, this means that specifying NEMA 4X from day one for corrosive sites is usually a risk‑reduction strategy, not just an upsell.

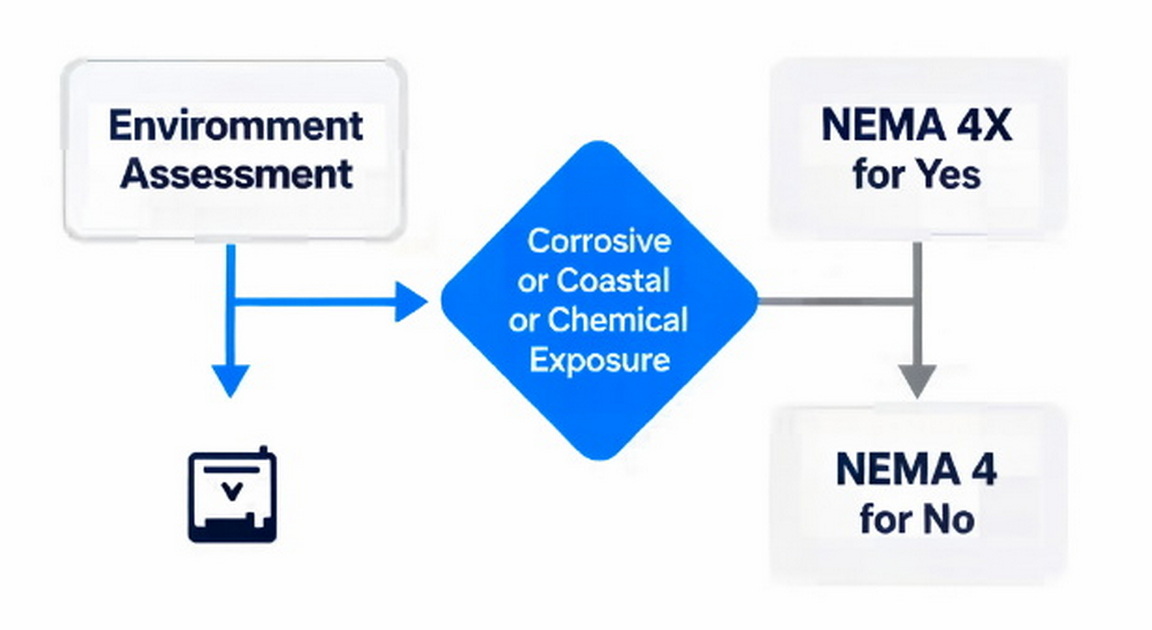

When you are reviewing specification documents or creating the BOM for a new panel, use a simple, repeatable checklist:
- If yes, start with NEMA 4 or higher. [linkedin]
- If yes, strongly consider NEMA 4X with stainless steel or polycarbonate. [linkedin]
- For long‑life infrastructure (EV charging, utility, building automation), corrosion resistance becomes more important.
- For critical infrastructure, a modest premium for NEMA 4X may be negligible compared to outage costs.
- Many global food & beverage, chemical and water treatment operators now specify NEMA 4X as a minimum for outdoor or washdown equipment.
By applying this checklist, engineers and procurement teams at utilities, OEMs, EPCs and integrators can align on a clear, documented decision.
As a specialized manufacturer of wall mount enclosures for power, communication, networking, industrial automation, construction, energy storage, new energy vehicles and pump systems, we build around these principles:
- Application‑driven design
- We start from the application: grid connection cabinets, outdoor pump controls, inverter boxes or PLC panels.
- Rating‑material matching
- For standard industrial environments, we offer NEMA 4 wall mount enclosures in coated steel and aluminum.
- For coastal, chemical and food applications, we design NEMA 4X wall mount enclosures in stainless steel and polycarbonate.
- Detail‑driven sealing
- Gasket selection, door design, locking mechanisms and cable gland interfaces are engineered to maintain NEMA 4 / 4X performance in real installations. [budind]
From a user's viewpoint, this means you can specify one partner for both NEMA 4 and NEMA 4X projects, while ensuring enclosure design is aligned with your risk level instead of just a catalog code.
If your project involves outdoor power, communication, industrial automation, building infrastructure, energy storage, EV charging or pump systems, choosing between NEMA 4 and NEMA 4X is not a minor detail; it's a core risk decision. [eabel]
To reduce long‑term maintenance and protect your equipment:
- Review your environment using the checklist above
- Decide whether corrosion is a realistic risk
- Then select a NEMA 4 or NEMA 4X wall mount enclosure that matches your project's lifecycle and safety requirements
You can consult with Ningbo Bohui Electric's engineering team to match enclosure ratings, materials, mounting options and customization (cutouts, accessories, locking systems) to your specific application.
NEMA 4X includes all the protection of NEMA 4 plus enhanced corrosion resistance, so in harsh or corrosive environments it is the better choice. In mild, non‑corrosive locations, NEMA 4 may be sufficient and more economical. [vartechsystems]
Both NEMA 4 and NEMA 4X are designed to keep out rain, splashing water and hose‑directed water when properly installed and maintained. They are not intended for continuous submersion. [linkedin]
NEMA 4X enclosures are commonly made from stainless steel, fiberglass reinforced polyester and polycarbonate, or from metals with corrosion‑resistant coatings. These materials help the enclosure withstand salt, chemicals and aggressive cleaners. [budind]
Yes, in most cases you can upgrade to a NEMA 4X enclosure with the same form factor and mounting pattern, gaining corrosion resistance without sacrificing ingress protection. Always verify dimensions and mounting constraints. [eabel]
Many NEMA 4 and 4X enclosures provide ingress protection roughly similar to IP66 (dust‑tight and protected against powerful water jets), but IP codes do not address corrosion. For corrosive environments, the NEMA 4X designation is more informative. [vartechsystems]
