No, a standard NEMA 12 enclosure is not sprinkler-proof, and relying on it in a sprinklered or washdown environment can create hidden failure risks for your electrical system. For environments with overhead sprinklers, hose-down cleaning, or outdoor exposure, you should be looking at NEMA 4 or 4X wall mount enclosures instead. [lianjer]
Many engineers and facility managers casually assume that "indoor, light moisture" protection is enough for rooms with fire sprinklers. In reality, sprinkler-proof protection requires an enclosure to withstand:
- Overhead sprinkler discharge (gravity-driven but sustained spray)
- Potential interaction with hose streams during firefighting
- Water running down conduits, walls, and mounting surfaces toward the box
NEMA 12 focuses on drips and light splashes, not sustained or pressurized spray. That difference is critical when a sprinkler head opens directly above your control cabinet. [polycase]
> Practical example: In a manufacturing plant, a localized fire triggers the ceiling sprinklers above a motor control center. A NEMA 12 cabinet may keep out dust and random drips, but under continuous sprinkler spray, water can be forced through seams, gaskets, hinges, and knockouts—shorting out VFDs, PLCs, or safety relays at the worst possible moment. [lianjer]
According to NEMA 250 and manufacturer guidance, Type 12 enclosures are designed for indoor industrial use and provide protection against: [nemaenclosures]
- Falling dirt, lint, and fibers
- Settling airborne dust and circulating dust
- Dripping or light splashing of non-corrosive liquids (oil, coolant, water)
- Oil and coolant seepage in machining and process environments
In other words, NEMA 12 is a robust choice for dry or mildly damp indoor areas where the main threats are dust and accidental drips—not high‑energy water exposure. [kdmsteel]
Common NEMA 12 applications include: [iscsales]
- Factory automation panels and MCCs in general production halls
- Machine tool control boxes near oil mist and chips, but away from washdown
- Packaging equipment controls in non‑washdown zones
- Indoor pump control panels in dry mechanical rooms
If you are protecting PLCs, drives, or terminal blocks in a dry, non‑corrosive, non‑washdown environment, NEMA 12 is usually enough—and more economical than higher ratings. [processsolutions]
Independent FAQs and enclosure rating guidance are very clear: NEMA 12 does not provide adequate protection against: [polycase]
- Hose-directed water
- Intense splashing or washdown jets
- Prolonged sprinkler discharge
Even within the NEMA 250 standard, Type 12 is defined around dripping and light splashing, not water jets or continuous spray. Under sprinkler operation, water can: [nema]
- Force itself through door gaskets that were never tested for sustained spray
- Track along conduits and knockouts into the box interior
- Collect on horizontal tops and seep through cover interfaces over time
That is why experienced panel builders and OEMs will not sign off on NEMA 12 for rooms where sprinkler activation is a realistic risk. [lianjer]
Fire sprinkler systems in industrial and commercial buildings are typically designed to NFPA 13, with inspection and maintenance under NFPA 25. While NFPA does not specify NEMA ratings directly, local building codes and inspectors often expect: [industrialproperty]
- NEMA 4 or 4X in sprinklered rooms where panels could be exposed to spray
- Wet-location ratings (NEMA 3R, 4, 4X or IP65/IP66) for equipment in direct water exposure zones [emergencylights]
If you install a NEMA 12 enclosure directly under sprinkler heads or near washdown, you may fail inspection or face costly retrofit demands later. [emergencylights]
| Rating | Water protection in practice | Dust protection | Corrosion resistance | Typical environments |
|---|---|---|---|---|
| NEMA 12 | Drips, light splashes only; not tested for hose or sprinkler spray nemaenclosures | Dust‑tight for indoor industrial dust nemaenclosures | Limited; standard painted or coated steel | Dry or mildly damp indoor industrial rooms |
| NEMA 4 | Hose‑directed water, rain, splashing, sprinkler spray lianjer | Dust‑tight processsolutions | Standard; usually painted steel or equivalent | Indoor/outdoor wet or washdown‑adjacent areas |
| NEMA 4X | Same as NEMA 4 plus better protection in corrosive or chemical environments lianjer | Dust‑tight processsolutions | Enhanced; stainless steel or non‑metallic | Food & beverage, marine, chemical, wastewater |
| NEMA 6P | Temporary submersion, severe spray, and dust lianjer | Dust‑tight lianjer | High; often for harsh or submerged areas | Pits, sumps, aggressive washdown zones |
This is why "higher number" does not always mean "more waterproof": NEMA 12 has less water protection than NEMA 4, even though 12 is numerically greater. [processsolutions]
From an engineering and UX perspective, the most painful failures happen not because of daily operation, but during rare events.
A mid‑sized factory installs NEMA 12 wall‑mount enclosures for a process line because the environment is dusty but otherwise dry. Years later, a small fire at a nearby machine triggers the sprinkler zone.
- Water hits the top and front of the NEMA 12 box for 10–20 minutes.
- Gasketed doors and seams that never saw this kind of spray start to weep water.
- Low‑voltage control circuits inside short out, causing wider line stoppages.
The fire is contained—but production is down for days while electrical components are replaced and the panel is rebuilt. An originally small fire becomes a major business interruption, largely due to under‑specified enclosures. [polycase]
A water treatment facility assumes that a certain room is only "damp location" and installs NEMA 12. Later, process changes introduce frequent washdown and occasional spray from maintenance activities.
- Condensation and atomized spray start to accumulate on enclosure surfaces.
- Over time, gaskets age and micro‑leaks form.
- Unplanned trips and intermittent faults start to appear in critical control circuits.
Had the original specification called for NEMA 4X, these issues could have been avoided entirely. [processsolutions]

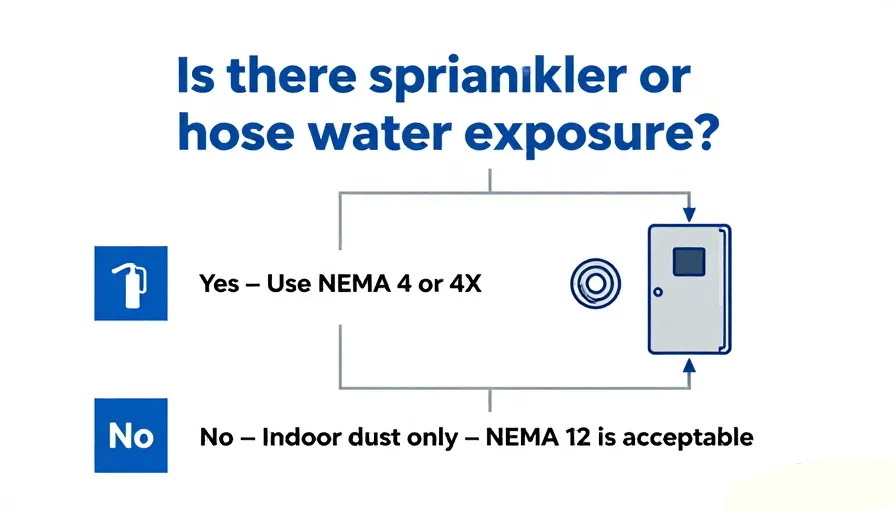

1. Confirm the water exposure category.
Work with your safety engineer to classify areas as dry, damp, wet, or washdown, referencing NFPA 13 and local codes. [woodworks]
2. Map sprinkler zones and head positions.
If an enclosure is under or near sprinkler heads, assume it will see direct spray during an event.
3. Ask: Will hoses ever be used nearby?
Firefighting or maintenance hose streams dramatically increase the pressure and angle of water impact. [emergencylights]
4. Select NEMA rating accordingly.
- Dry, non‑sprinklered areas: NEMA 1 or 12
- Sprinklered or wet areas: NEMA 4 or 4X (or 3R outdoors) [lianjer]
- Submerged or severe washdown: NEMA 6 or 6P [polycase]
5. Consider corrosion and hygiene requirements.
For food, chemical, marine, or coastal environments, prioritize stainless steel NEMA 4X. [processsolutions]
6. Document the rationale.
Clear documentation supports easier code review, internal audits, and future expansion.

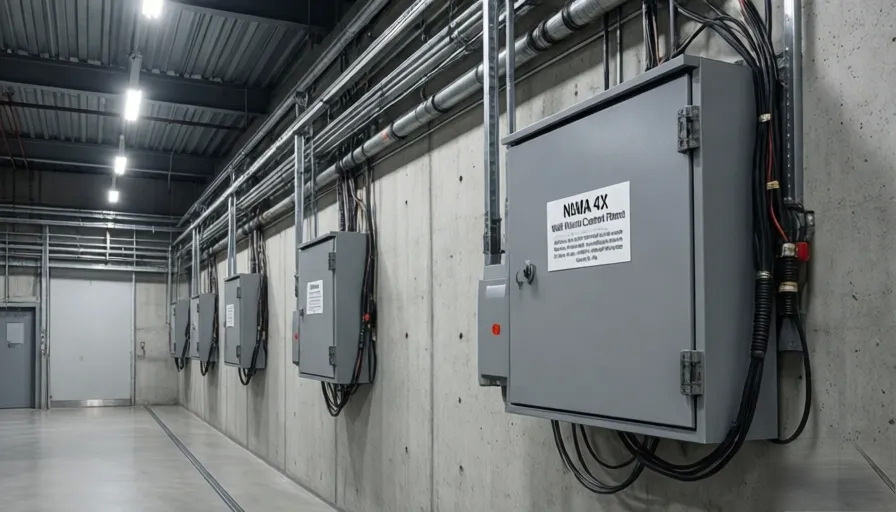

As a manufacturer of wall‑mount electrical enclosures serving power distribution, telecommunications, networking, smart manufacturing, building systems, energy storage, new energy vehicles, and water pump controls, we see the same pattern in site audits:
- Over‑reliance on NEMA 12 in high‑value control panels placed directly under sprinkler piping
- Little consideration of water paths along conduits and cable entries
- Missed opportunities to specify NEMA 4/4X early, when the cost difference is minor compared to lifecycle risk
From a lifecycle cost standpoint, the price delta between NEMA 12 and NEMA 4/4X is trivial compared to the cost of unplanned downtime, field failures, and safety investigations.
When we design wall‑mount enclosures for sprinklered or washdown environments, we focus on:
- Deep, formed doors with continuous gaskets to resist spray intrusion
- Carefully engineered drip edges and top overhangs
- Sealed knockouts, gland plates, and cable entry systems
- Structural rigidity so the door and frame stay aligned even under thermal cycling or minor impacts
Those seemingly small design details make the difference between "survives a datasheet test" and "survives a real sprinkler event."
| Industry / application | Typical environment | Recommended rating for wall‑mount panels |
|---|---|---|
| Power distribution rooms (indoor, dry) | Dry, no washdown, sprinklered corridor nearby only | NEMA 12 or better, depending on sprinkler head layout nemaenclosures |
| Industrial automation cells | Dust, oil mist, no direct water spray | NEMA 12, upgraded to 4 if washdown is added nemaenclosures |
| Food & beverage process areas | Frequent washdown, detergents, overhead spray | NEMA 4X stainless steel lianjer |
| Energy storage (battery rooms) | Ventilated rooms, possible sprinkler activation | NEMA 4 or 4X for critical controls lianjer |
| Water & wastewater pump stations | High humidity, possible spray, outdoor locations | NEMA 4 or 4X, NEMA 6P in severe cases polycase |
| EV charging infrastructure | Outdoor, rain, washdown, roadside environments | NEMA 3R or 4/4X per design and region processsolutions |
To improve both reliability and UX for maintenance teams, consider these best practices when specifying wall‑mount enclosures:
- Avoid mounting directly under sprinkler heads where possible. Even with NEMA 4/4X, relocating enclosures to less exposed areas reduces risk. [industrialproperty]
- Use top-entry conduits with drip loops to stop water tracking into the box along cables.
- Specify locking doors with compression latches to maintain gasket compression over time.
- Choose light‑colored (e.g., RAL7035) finishes to improve visibility for maintenance and thermal management.
- Standardize on NEMA 4/4X for all panels in "wet" rooms to simplify spare parts and training.
From both a regulatory and real‑world reliability standpoint:
- NEMA 12 is excellent for dry indoor industrial environments with dust and drips.
- NEMA 12 is not designed to withstand sprinkler spray, hose‑directed water, or aggressive washdown. [lianjer]
- For sprinklered, wet, or washdown environments, NEMA 4 or 4X should be your default choice to protect critical controls and meet inspection expectations. [emergencylights]
When in doubt, treat sprinklered spaces as wet locations and select enclosures accordingly.
No. NEMA 12 is rated for dust, falling dirt, and dripping or light splashing of non‑corrosive liquids, but not for sprinkler or hose‑directed water. [nemaenclosures]
In most cases, you should use NEMA 4 or 4X for enclosures that may be exposed to sprinkler discharge or hose streams in industrial facilities. [processsolutions]
Ad‑hoc sealing may reduce leakage risk but does not convert the box into a tested NEMA 4 or 4X enclosure, and may not satisfy inspectors or insurers. [nema]
There is no one‑to‑one mapping, but NEMA 12 roughly aligns with enclosures that resist dust and limited water ingress, not with IP65/IP66‑level hose‑down protection typical for wet locations. [blog.interpower]
Food and beverage, pharmaceuticals, marine and coastal installations, chemical processing, and outdoor or washdown environments typically require NEMA 4X for both spray and corrosion protection. [emergencylights]
