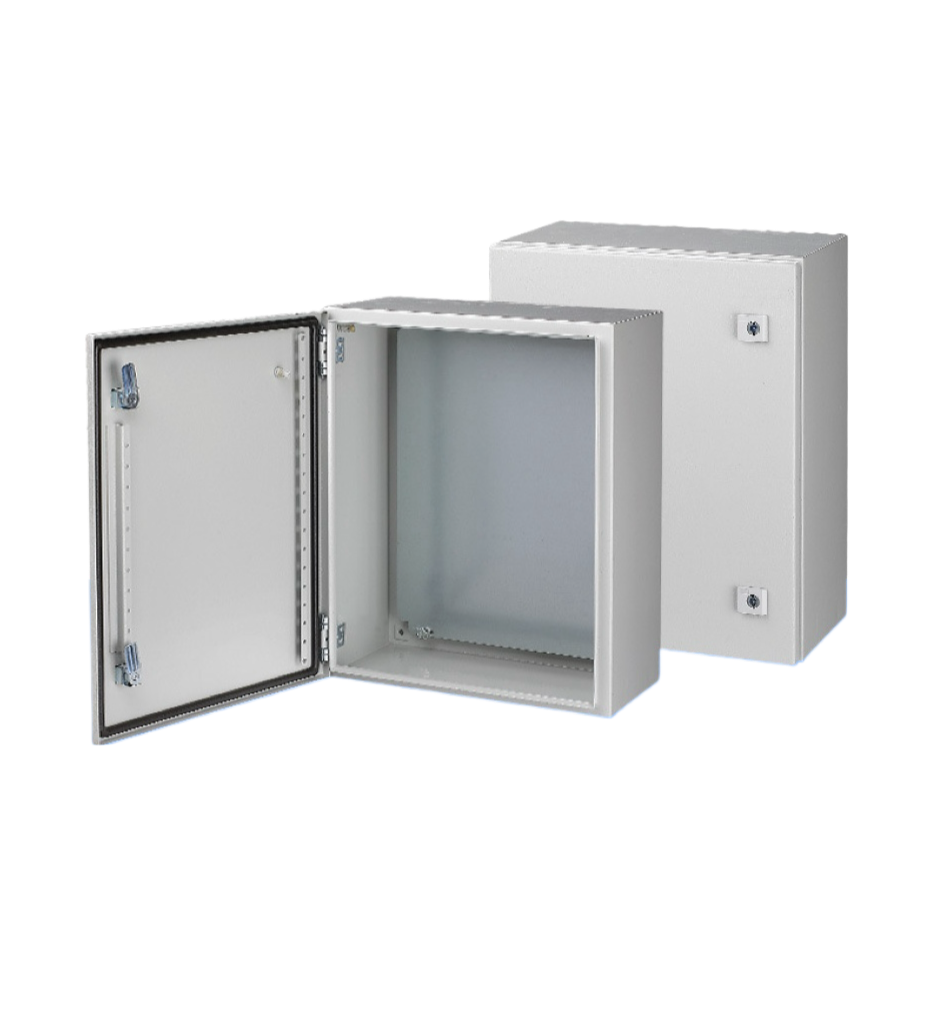

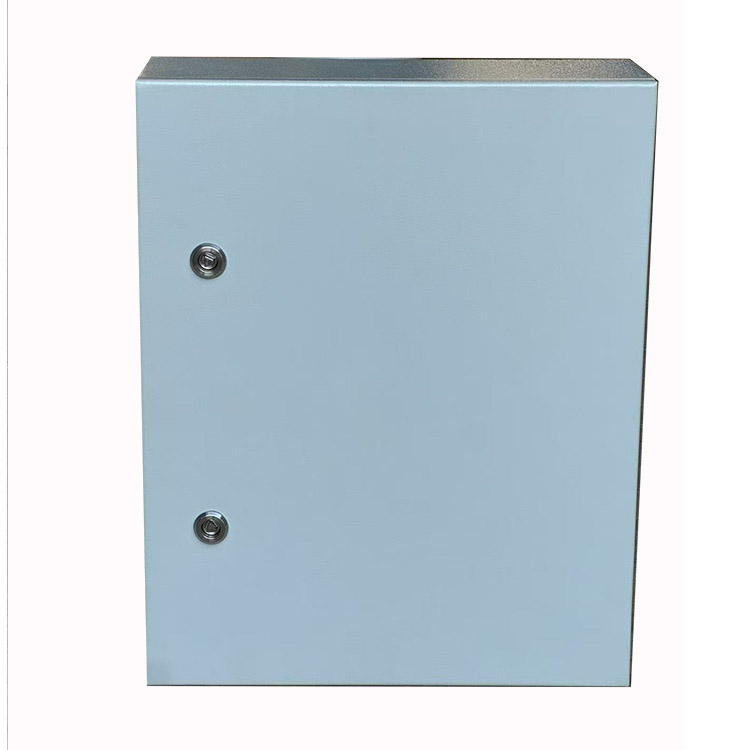

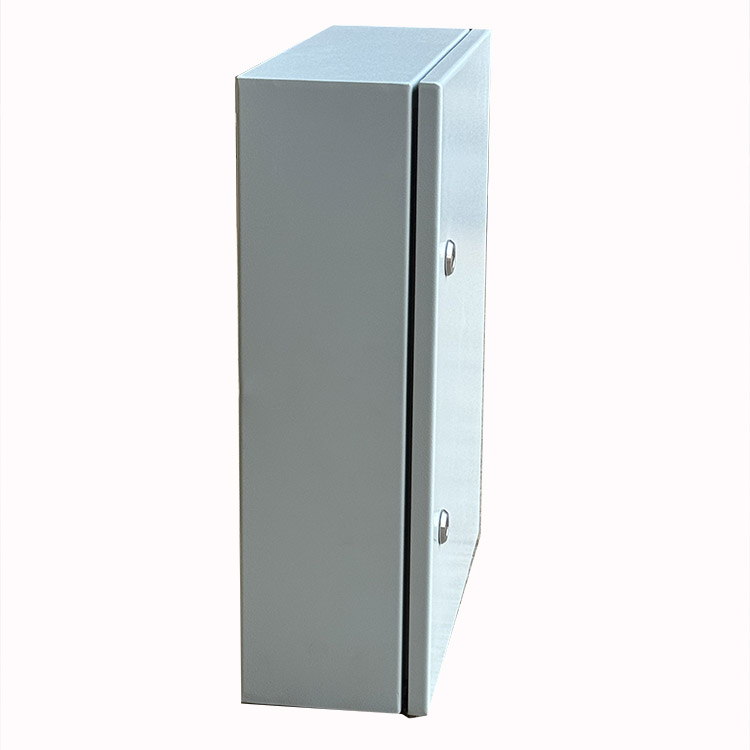

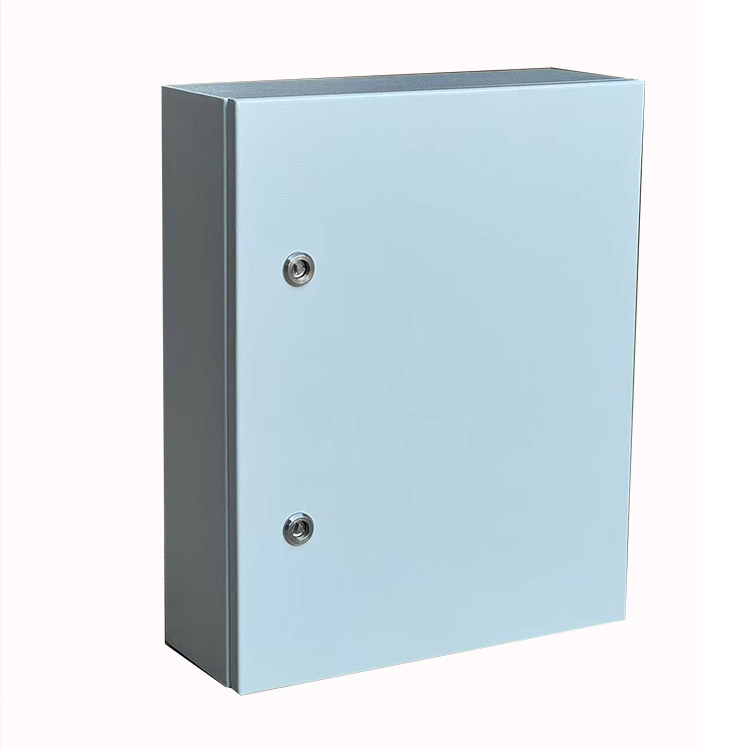

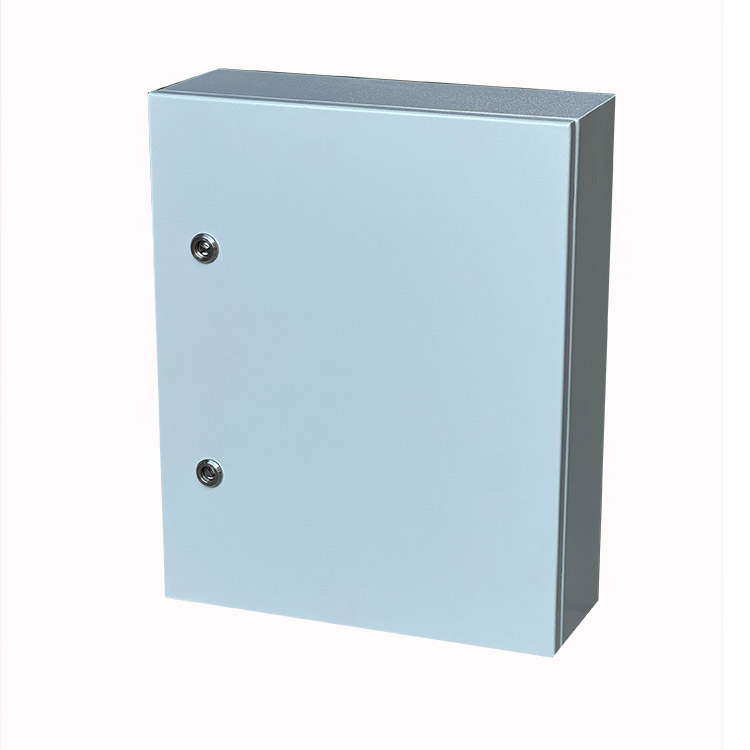

IP65 Steel Enclosure with Two Locks

Product Feature
1. The body and door are made of high quality SPCC cold roll steel, with continuously welded corner seams.
2. The opening has a curled lip around all sides to increase rigidity and prevent dripping water from entering the enclosure when the door is open.
3. The use of polyurethane foam sealing strips for the sealing rings can effectively guarantee the IP rating.
4. The bottom gland plate is equipped with a sealing ring to ensure IP rating.

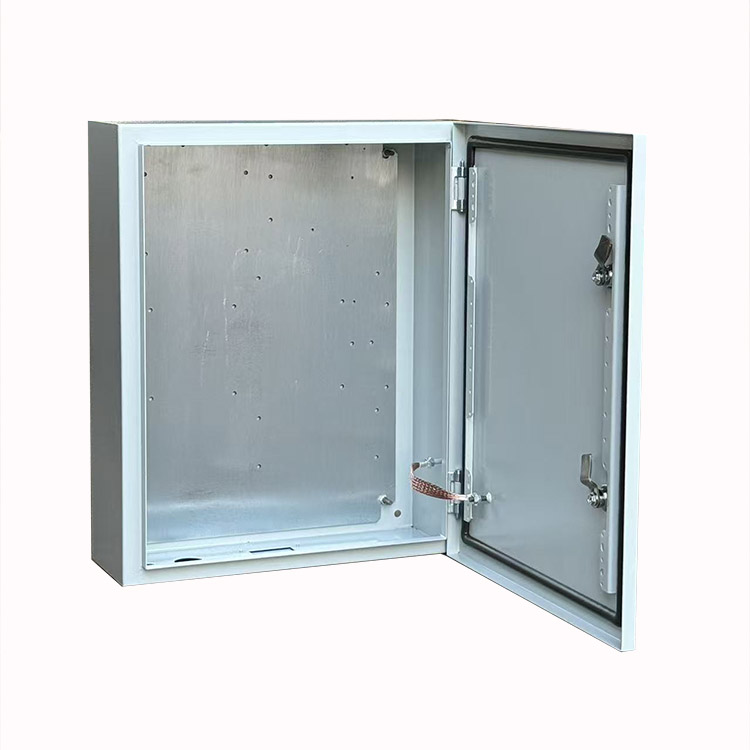

5. Each enclosure comes complete with a mounting plate.
6. (Single door) The door can be installed on the left or right sides interchangeably.
7. Professional lock system with double tooth lock core is extremely convenient for opening and closing.

Availability:



Inquire Add to Basket

Product Description

Technical specification

Material:	SPCC cold roll steel for body and door
Mounting plate:	Galvanized sheet or painted bottom plate
Thickness:	Body and Door 1.2mm, mounted plate:1.5mm; Height greater than 700mm, Body and Door 1.5mm, mounted plate:2.0mm
Surface Treatment:	Thermosetting powder coating,corrugated finish
Protection Grade:	IP65
Against Mechanical Impacts:	IK10
Color:	RAL7032 or RAL7035
Standard Configuration:	Housing, door, mounting plate, lock, seal strip, grounding set

Dimensions

More dimensions and Nonstandard products are customizable

No	Type no	Height (mm)	Width	Depth	Enclosure&door	Mounting plate（mm)
No	Type no	Height (mm)	(mm)	(mm)	(mm）	Mounting plate（mm)
1	HSML020201	200	200	100	1.2	1.5
2	HSML0252015	250	200	150	1.2	1.5
3	HSML0302015	300	200	150	1.2	1.5
4	HSML0302502	300	250	200	1.2	1.5
5	HSML040302	400	300	200	1.2	1.5
6	HSML050302	500	300	200	1.2	1.5
7	HSML050402	500	400	200	1.2	1.5
8	HSML0505025	500	500	250	1.2	1.5
9	HSML060402	600	400	200	1.2	1.5
10	HSML0604025	600	400	250	1.2	1.5
11	HSML060502	600	500	200	1.2	1.5
12	HSML0605025	600	500	250	1.2	1.5
13	HSML070502	700	500	200	1.5	2
14	HSML0705025	700	500	250	1.5	2
15	HSML0806022	800	600	220	1.5	2
16	HSML0806025	800	600	250	1.5	2
17	HSML0807025	800	700	250	1.5	2
18	HSML080603	800	600	300	1.5	2
19	HSML100603	1000	600	300	1.5	2
20	HSML100803	1000	800	300	1.5	2
21	HSML101002	1000	1000	200	1.5	2
22	HSML120802	1200	800	200	1.5	2
23	HSML121003	1200	1000	300	1.5	2
24	HSML121004	1200	1000	400	1.5	2
25	HSML121204	1200	1200	400	1.5	2
