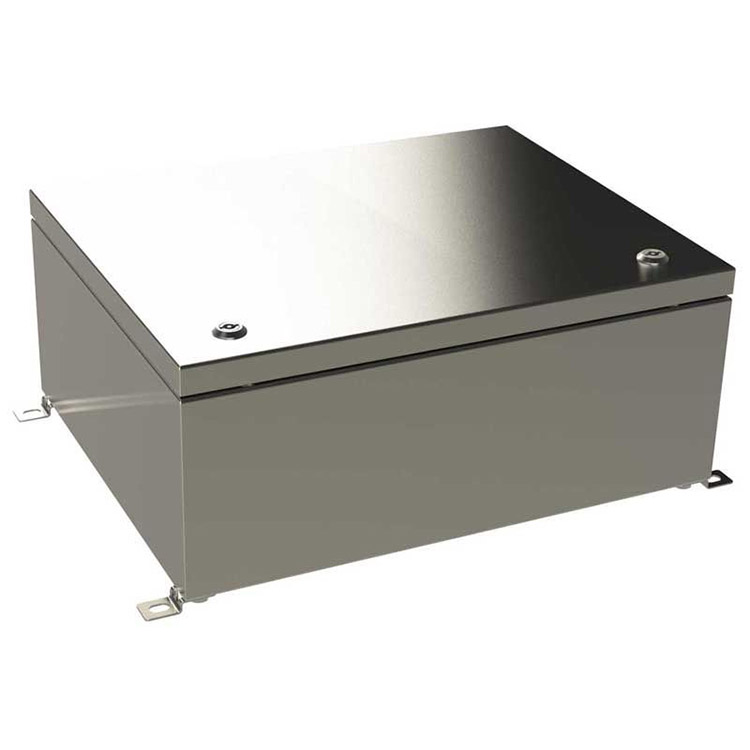

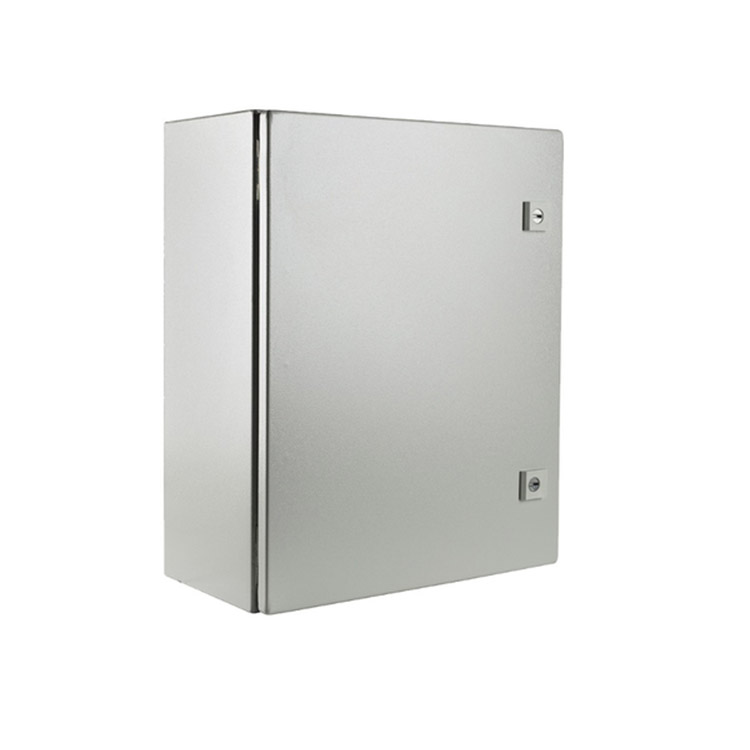

IP65 Stainless Steel Enclosure

Product Feature
1. The body and door are made of high quality 304 stainless steel, with continuously welded corner seams.
2. The opening has a curled lip around all sides to increase rigidity and prevent dripping water from entering the enclosure when the door is open.
3. The use of polyurethane foam sealing strips for the sealing rings can effectively guarantee the IP rating.
4. The bottom gland plate is equipped with a sealing ring to ensure IP rating.
5. Each enclosure comes complete with a mounting plate.
6. (Single door) The door can be installed on the left or right sides interchangeably.
7. Professional lock system with double tooth lock core is extremely convenient for opening and closing.

Availability:



Inquire Add to Basket

Product Description

Technical Specification

Material:	304 stainless steel for body and door
Mounting plate:	Galvanized sheet or 304 stainless steel
Thickness:	Body and Door 1.2mm, mounted plate:1.5mm; Height greater than 700mm, Body and Door 1.5mm, mounted plate:2.0mm
Surface Treatment:	Brushed or powder coated
Protection Grade:	IP65
Against Mechanical Impacts:	IK10
Color:	RAL7032 , RAL7035 or custom
Standard Configuration:	Housing, door, mounting plate, lock, seal strip, grounding set

Dimensions

More dimensions and Nonstandard products are customizable

No	Type no	Height (mm)	Width	Depth	Enclosure&door	Mounting plate（mm)
No	Type no	Height (mm)	(mm)	(mm)	(mm）	Mounting plate（mm)
1	HSSL020201	200	200	100	1.2	1.5
2	HSSL0252015	250	200	150	1.2	1.5
3	HSSL0302015	300	200	150	1.2	1.5
4	HSSL0302502	300	250	200	1.2	1.5
5	HSSL040302	400	300	200	1.2	1.5
6	HSSL050302	500	300	200	1.2	1.5
7	HSSL050402	500	400	200	1.2	1.5
8	HSSL0505025	500	500	250	1.2	1.5
9	HSSL060402	600	400	200	1.2	1.5
10	HSSL0604025	600	400	250	1.2	1.5
11	HSSL060502	600	500	200	1.2	1.5
12	HSSL0605025	600	500	250	1.2	1.5
13	HSSL070502	700	500	200	1.5	2
14	HSSL0705025	700	500	250	1.5	2
15	HSSL0806022	800	600	220	1.5	2
16	HSSL0806025	800	600	250	1.5	2
17	HSSL0807025	800	700	250	1.5	2
18	HSSL080603	800	600	300	1.5	2
19	HSSL100603	1000	600	300	1.5	2
20	HSSL100803	1000	800	300	1.5	2
21	HSSL101002	1000	1000	200	1.5	2
22	HSSL120802	1200	800	200	1.5	2
23	HSSL121003	1200	1000	300	1.5	2
24	HSSL121004	1200	1000	400	1.5	2
25	HSSL121204	1200	1200	400	1.5	2
