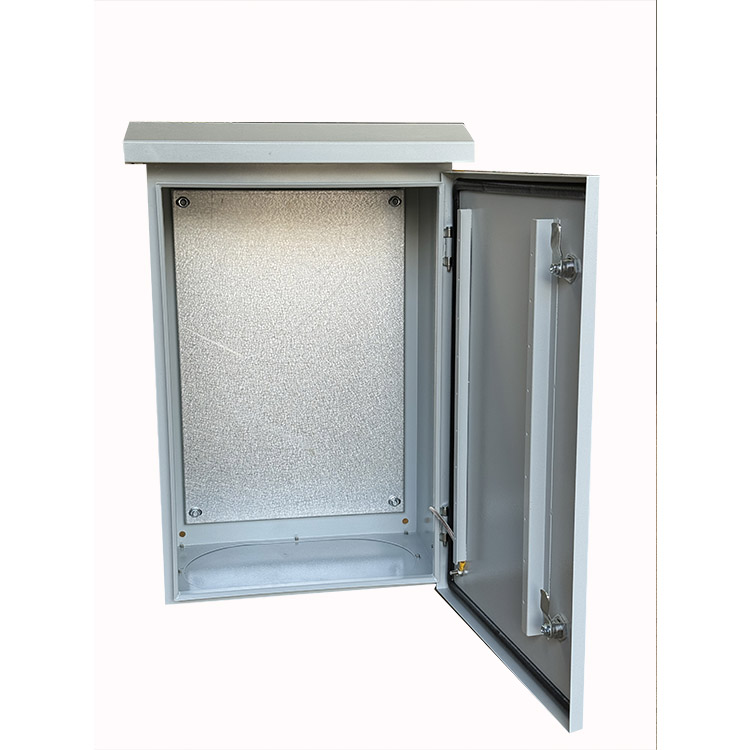

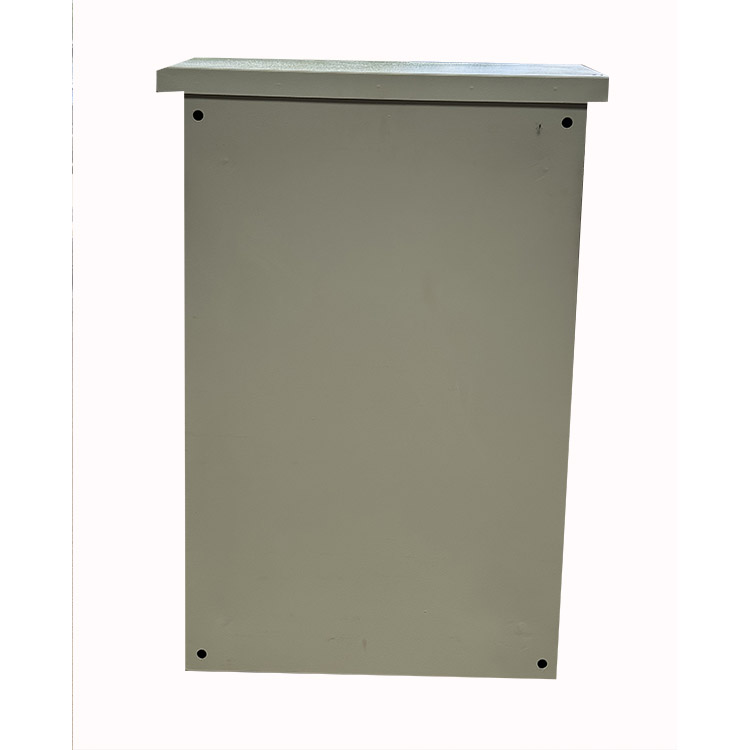

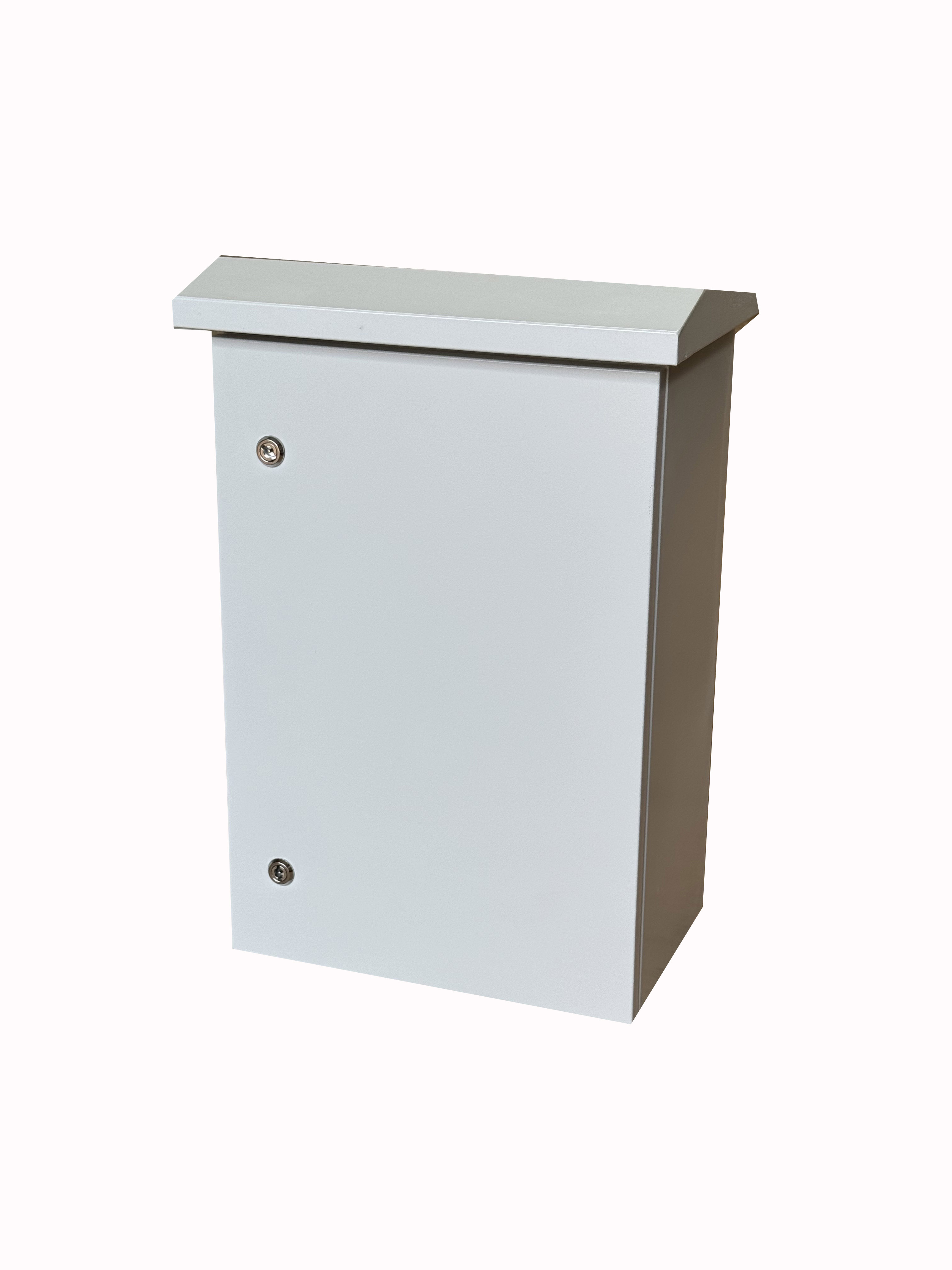

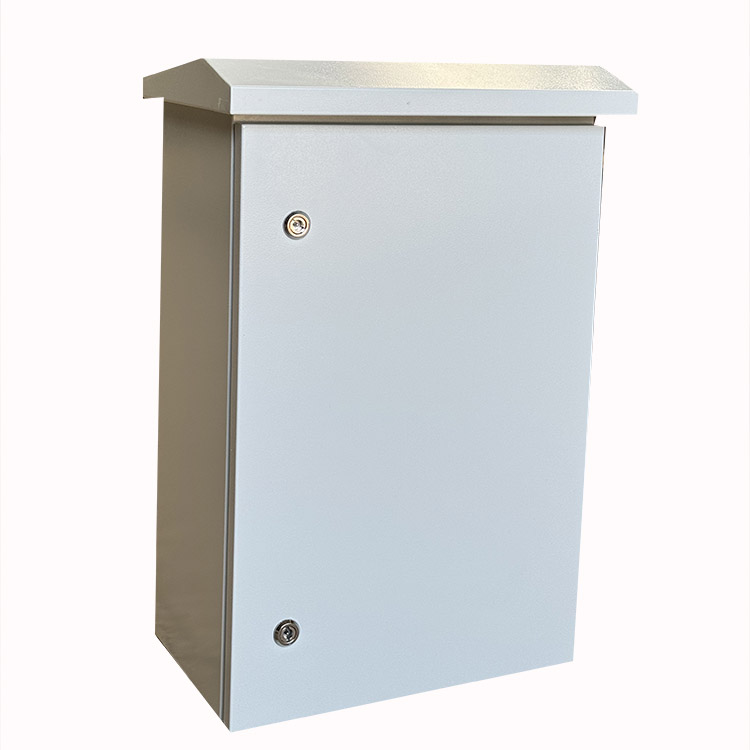

IP65 Electrical Enclosure Outdoor Rainproof Box

Product Feature
1. The body and door are made of high quality SPCC cold roll steel, with continuously welded corner seams
2. The opening has a curled lip around all sides to increase rigidity and prevent dripping water from entering the enclosure when the door is open
3. The use of polyurethane foam sealing strips for the sealing rings can effectively guarantee the IP rating.
4. The bottom gland plate is equipped with a sealing ring to ensure IP rating.
5. Each enclosure comes complete with a mounting plate
6.Professional lock system with double tooth lock core is extremely convenient for opening and closing.
Availability:
Inquire Add to Basket

Advantages

  • The box is sturdy and durable

  • Waterproof and dustproof

  • Long lifespan

  • Source factory

  • Customization supported

  • Worry-free after-sales service

Technical Specification

Material:

SPCC cold roll steel for body and door

Mounting plate:

Galvanized sheet or painted bottom plate

Thickness:

Body and Door 1.2mm, mounted plate:1.5mm; Height greater than 600mm, Body and Door 1.5mm, mounted plate:2.0mm

Surface Treatment:

Thermosetting powder coating, corrugated finish

Protection Grade:

IP65

Against Mechanical Impacts:

IK10

Color:

RAL7032, RAL7035 or customized

Standard Configuration:

Housing, door, mounting plate, lock, seal strip, grounding set

Dimensions

More dimensions and Nonstandard products are customizable

No Type no Height (mm) Width Depth Enclosure&door Mounting plate（mm)
(mm) (mm) (mm）
1 HSMLC02502015 250 200 150 1.2 1.5
2 HSMLC0302015 300 400 250 1.2 1.5
3 HSMLC0302502 300 250 200 1.2 1.5
4 HSMLC040302 400 300 200 1.2 1.5
5 HSMLC050302 500 300 200 1.2 1.5
6 HSMLC050402 500 400 200 1.2 1.5
7 HSMLC0505025 500 500 250 1.2 1.5
8 HSMLC060402 600 400 200 1.2 1.5
9 HSMLC0604025 600 400 250 1.2 1.5
10 HSMLC060502 600 500 200 1.2 1.5
11 HSMLC0605025 600 500 250 1.2 1.5
12 HSMLC070502 700 500 200 1.5 2
13 HSMLC0705025 700 500 250 1.5 2
14 HSMLC0806022 800 600 220 1.5 2
15 HSMLC0807025 800 700 250 1.5 2
16 HSMLC100603 1000 600 300 1.5 2
17 HSMLC100803 1000 800 300 1.5 2
18 HSMLC120802 1200 800 200 1.5 2
19 HSMLC121004 1200 1000 400 1.5 2
20 HSMLC121204 1200 1200 400 1.5 2
