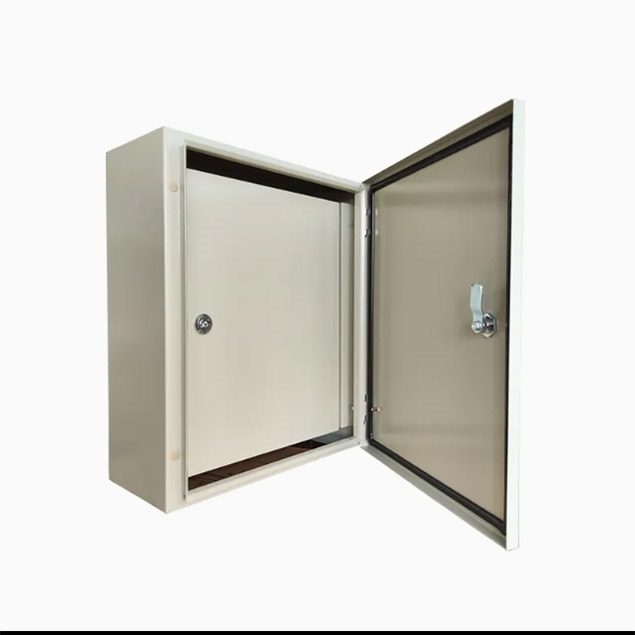

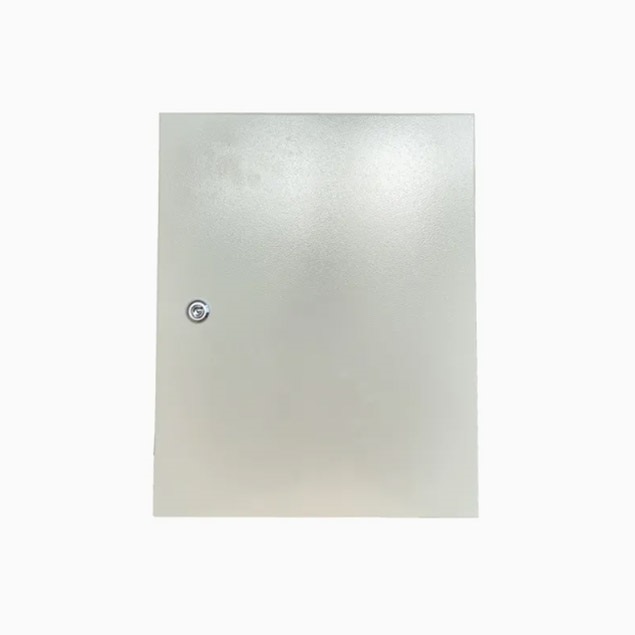

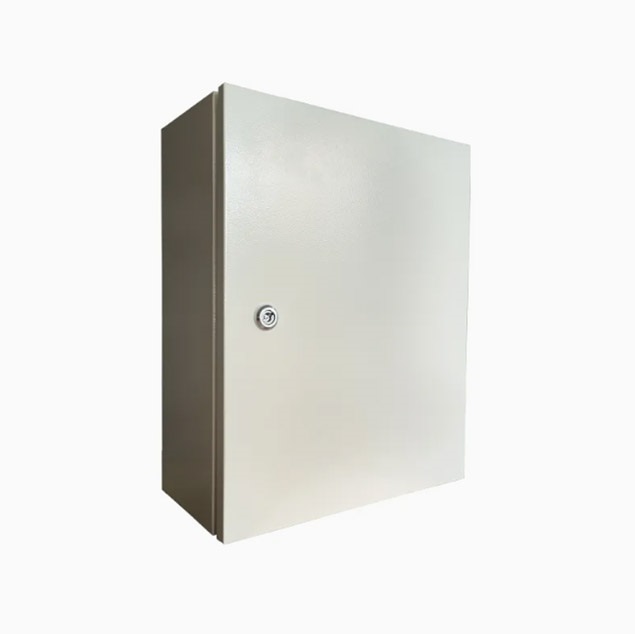

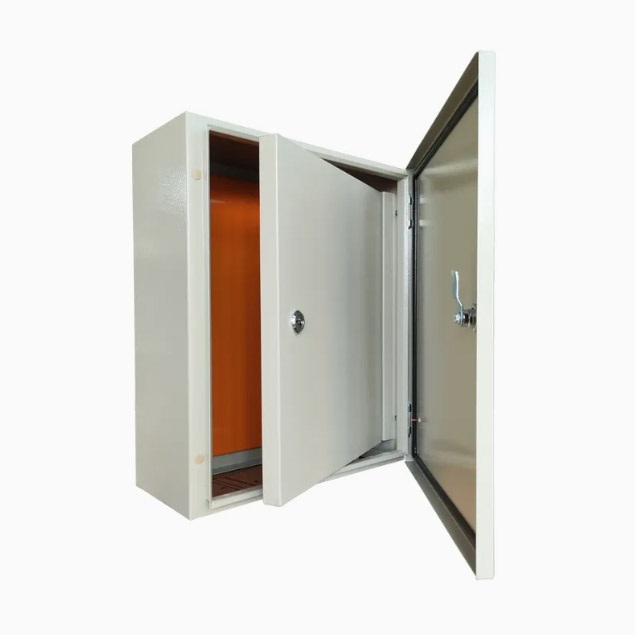

Inner Door Wall Mount Enclosure

Product Feature
1. Made of high quality SPCC cold roll steel.
2. The bottom removable pressure cover plate.
3. Canopies can be fixed as optional.
4. It also has double insulation; Excellent outdoor performance.

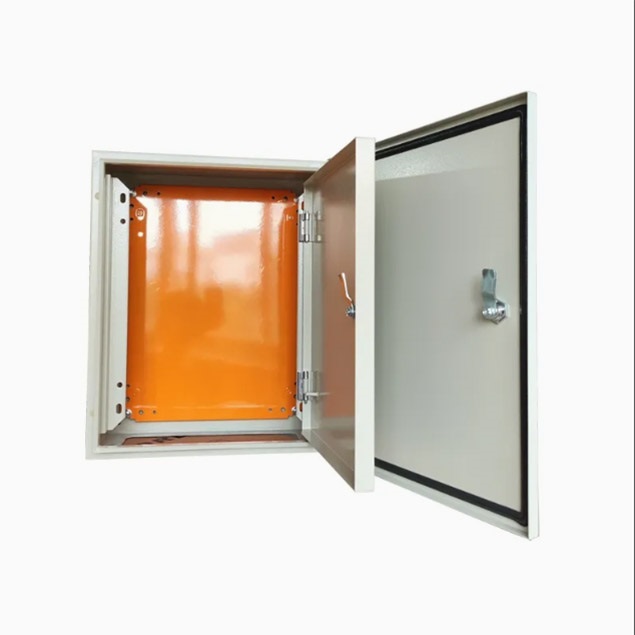

5. The mounting plate is made of SPCC
6. Orange powder coating.
7. Conforms to IEC standards.
8. Angular Cover Ensures Better Rain Protection and Beautiful Appearance.
9. Point cam locks for higher dimensions ensure uniform locking over the entire length.
Availability:
Inquire Add to Basket

Advantages

  • The box is sturdy and durable

  • Waterproof and dustproof

  • Long lifespan

  • Source factory

  • Customization supported

  • Worry-free after-sales service

Technical Specification

Material:

SPCC cold roll steel for body and door

Mounting plate:

Galvanized sheet or painted bottom plate

Thickness:

Body and Door 1.2mm, mounted plate:1.5mm; Height greater than 600mm, Body and Door 1.5mm, mounted plate:2.0mm

Surface Treatment:

Thermosetting powder coating, corrugated finish

Protection Grade:

IP65

Against Mechanical Impacts:

IK10

Color:

RAL7032, RAL7035 or customized

Standard Configuration:

Housing, door, mounting plate, lock, seal strip, grounding set

Dimensions

More dimensions and Nonstandard products are customizable

No Type no Height (mm) Width Depth Enclosure&door Mounting plate（mm)
(mm) (mm) (mm）
1 HSMID040302 400 300 200 1.2 1.5
2 HSMID0403025 400 300 250 1.2 1.5
3 HSMID050302 500 300 200 1.2 1.5
4 HSMID0503025 500 300 250 1.2 1.5
5 HSMID050402 500 400 200 1.2 1.5
6 HSMID0504025 500 400 250 1.2 1.5
7 HSMID060402 600 400 200 1.2 1.5
8 HSMID0604025 600 400 250 1.2 1.5
9 HSMID070502 700 500 200 1.5 2
10 HSMID0705025 700 500 250 1.5 2
11 HSMID070602 700 600 200 1.5 2
12 HSMID0706025 700 600 250 1.5 2
13 HSMID080602 800 600 200 1.5 2
14 HSMID0806025 800 600 250 1.5 2
15 HSMID080802 800 800 200 1.5 2
16 HSMID0808025 800 800 250 1.5 2
17 HSMID100802 1000 800 200 1.5 2
18 HSMID1008025 1000 800 250 1.5 2
