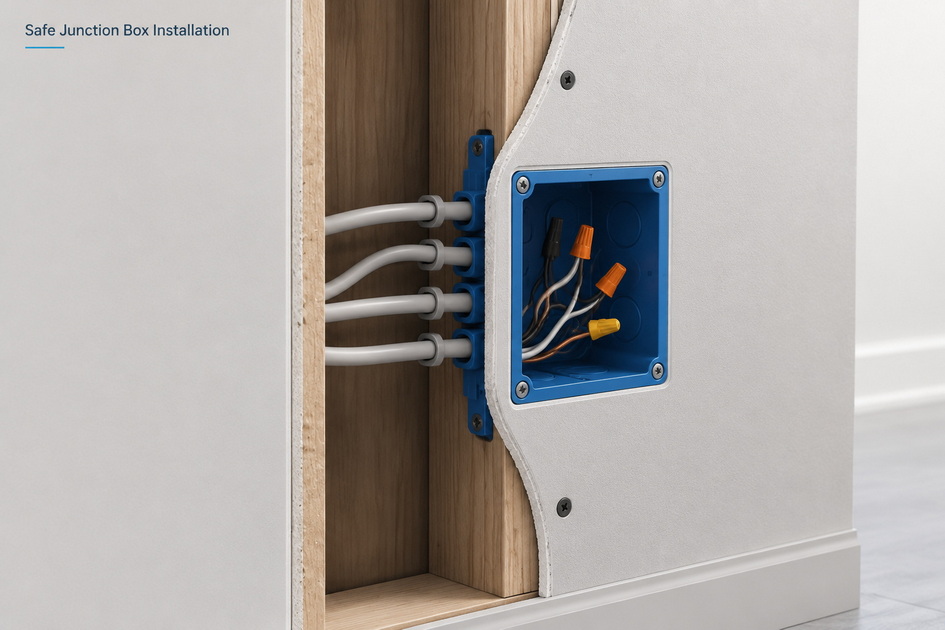

In this guide, we will focus on in‑wall installation of junction boxes in drywall, using typical "old work/remodel" junction boxes, and metal or sheet‑metal enclosures where a cut‑out is made in existing gypsum board walls. The principles apply whether you are adding a new lighting splice point, extending a circuit for smart home devices, or integrating control wiring for industrial or EV equipment branching inside a drywall partition. [fixupblueprint]
A junction box houses electrical splices and terminations so that conductors are mechanically protected, insulated, and accessible for future inspection and maintenance. In drywall, these boxes typically sit flush with the finished surface, with a cover or device plate visible in the room. [polycase]
Key functions of a junction box in drywall include:
- Protecting wire connections from physical damage, dust, and moisture. [wikihow]
- Containing sparks and heat if a connection fails, reducing fire risk. [wikihow]
- Providing a code‑approved access point for splices, extensions, or device feeds. [viox]
From an OEM manufacturing standpoint, precision‑stamped sheet‑metal enclosures with well‑designed knockouts, grounding studs, and mounting holes help installers achieve code compliance faster and more repeatably in drywall installations. [pureedgelighting]
Before we get into tools and steps, it's important to understand where DIY should stop.
- Always de‑energize the circuit at the service panel and verify with a non‑contact voltage tester or multimeter before touching any conductor. [polycase]
- In the U.S., installations must comply with the National Electrical Code (NEC), which requires that junction boxes remain accessible and not buried behind drywall or insulation. [magnifyelectric]
- Boxes must be properly sized for the number and gauge of conductors (box fill), and installed with an approved cover. [polycase]
As a manufacturer working with licensed contractors, our practical rule is simple:
- If you're modifying service equipment, main feeders, or complex multi‑circuit junctions, hire a licensed electrician.
- DIY skills are usually limited to simple branch‑circuit extensions (for example, adding a junction box to extend a lighting run), and even then only if your local code allows. [thisoldhouse]
- Voltage tester or multimeter. [wikihow]
- Stud finder.
- Pencil and template (often the box itself).
- Drywall saw or keyhole saw; a sharp utility knife for fine trimming. [youtube]
- Screwdrivers (flat and Phillips).
- Wire strippers and lineman's pliers. [polycase]
- Cable staples or approved cable clamps.
- Safety glasses and insulated gloves. [wikihow]
For existing drywall, you typically use an "old work" or "remodel" junction box with built‑in flip‑up clamps or side ears that grip the back of the drywall. For metal sheet‑metal junction box enclosures, additional mounting brackets or screws into framing may be used. [youtube]
Key selection criteria:
- Box type:
- Plastic "old work" box with integral clamps is common in residential drywall. [youtube]
- Metal junction box or sheet‑metal enclosure is often preferred in industrial, telecom, EV charging, or commercial environments because of better grounding, EMC, and durability. [pureedgelighting]
- Box size and fill capacity:
- Determine the box volume in cubic inches and ensure it meets or exceeds the required conductor fill per NEC guidelines. [polycase]
- As a rule of thumb, count each conductor and apply the volume allowance based on wire gauge, then choose a box larger than the minimum to avoid overcrowding. [wikihow]
- Environment and rating:
- For areas prone to humidity (e.g., pump rooms, some building service areas), use properly sealed and corrosion‑resistant enclosures, ideally with IP‑rated designs. [pureedgelighting]
From a manufacturer's perspective, we design junction box enclosures with clear labeling of volume, gauge compatibility, and knockout patterns to let electricians select the correct model quickly on site.
Good planning saves time and prevents patching later.
1. Identify the purpose
- Are you splicing a circuit, adding a branch to new loads (lighting, smart devices, control panels), or relocating an outlet/switch? [fixupblueprint]
- Ensure the box will remain permanently accessible once finished—no covering with cabinets, panels, or fixed furniture. [viox]
2. Confirm stud locations and obstacles
- Use a stud finder and knock test to locate studs and avoid them, or intentionally land your box on a stud if using a stud‑mounted metal enclosure. [youtube]
- Be mindful of plumbing, HVAC, and low‑voltage cabling behind the wall, especially in multi‑service industrial and telecom environments.
3. Check mounting height and alignment
- For residential work, match the height of nearby switches/outlets.
- In industrial or equipment rooms, align junction boxes with cable trays, trunking, or panel rows for a clean and maintainable installation.
This is the core process most installers follow in existing drywall situations.
1. Turn off the correct circuit breaker at the service panel for the circuit you will work on. [polycase]
2. Use a voltage tester at the existing outlet, switch, or cable to confirm power is off. [wikihow]
3. Label the breaker or panel for clarity for future work.
Never rely only on labels; always test for voltage. [polycase]
1. Hold the junction box against the drywall in the desired position.
2. Use a pencil to trace around the box or use the template provided by the manufacturer. [fixupblueprint]
3. Make sure the outline is level and aligned with adjacent devices using a small torpedo level.
For sheet‑metal junction box enclosures, use the manufacturer's cut‑out dimensions rather than eyeballing from the enclosure body to ensure a tight, professional fit.
1. Pierce the drywall inside one corner of the outline with a utility knife or the tip of a drywall saw. [youtube]
2. Cut carefully along the outline, supporting the piece of drywall as it comes free. [youtube]
3. Test‑fit the box and trim any tight spots with a utility knife until the box slides in snugly without forcing.
For larger sheet‑metal enclosures, neat cutting is even more critical, especially in visible areas of commercial interiors; installers often score with a utility knife and finish the cut with a drywall saw for a cleaner edge.
1. From the existing junction or device box, route the cable through the stud bay to the new junction box opening. [wikihow]
2. Use a drill to create through‑stud holes where necessary, respecting minimum edge distances and code requirements. [thisoldhouse]
3. Secure the cable within 12 inches (about 30 cm) of the junction box using approved staples or straps, without crushing the jacket. [wikihow]
In industrial or telecom applications, branch conductors may be routed through conduit, trunking, or raceways before entering the drywall cavity; ensure the transition into the junction box uses proper connectors and bushings to protect insulation. [pureedgelighting]
For plastic old‑work boxes:
- Open the built‑in cable clamps or knockouts at the rear/side of the box.
- Ensure the internal clamping tabs are undamaged and move freely. [fixupblueprint]
For metal junction boxes or sheet‑metal enclosures:
- Use a screwdriver and hammer to knock out only the required knockouts. [pureedgelighting]
- Install approved cable connectors and plastic bushings on metal edges to prevent conductor damage. [pureedgelighting]
- If using a metal box, prepare a grounding pigtail to the box ground screw. [wikihow]
From our manufacturing view, we engineer knockouts and edges to minimize burrs, but installers should still check all edges and add bushings where required.
1. Pull enough cable into the box opening to allow at least 6 inches of free conductor inside the box (or your local code requirement). [thisoldhouse]
2. Feed the cable(s) through the box's clamp or connector, leaving sufficient slack inside.
3. Insert the box into the drywall opening.
For old‑work boxes:
- Tighten the box screws so the flip‑up ears or clamps swing out and grip the backside of the drywall, pulling the box flange snug to the wall surface. [youtube]
For metal boxes mounted to a stud or bracket:
- Align the box front flush with the finished wall plane, then fasten with screws into framing or dedicated mounting brackets. [pureedgelighting]
The box should feel solid, with no wobble when you gently pull or push on it.
1. Use wire strippers to remove about 19 mm (3/4 inch) of insulation from each conductor end. [wikihow]
2. Group conductors of the same color and function (hot, neutral, ground) together.
3. Twist conductors with lineman's pliers and secure each group with properly sized wire nuts, following the nut manufacturer's size chart. [wikihow]
4. For metal enclosures, attach the grounding conductor to the box via a ground screw and pigtail, and then continue to the circuit ground. [wikihow]
As a best practice we see with professional electricians:
- Avoid over‑stuffing a wire nut; step up to a larger size if needed. [wikihow]
- Arrange splices so they fold neatly to the back and sides of the box, leaving space for the cover and future access.
1. Carefully push the spliced wires into the box, ensuring no sharp bends or pinched insulation.
2. Install the box cover plate or device, tightening screws snugly but not so tight that you crack plastic or distort metal. [thisoldhouse]
3. Restore power at the breaker and test your circuit or device.
A cleanly installed junction box in drywall should be:
- Flush with the wall, with no gaps around the cover.
- Solidly mounted, with no movement when you plug or unplug a device.
- Clearly labeled if multiple junctions are in the same area (especially in industrial or telecom rooms).
From field feedback and user comments on electrical installation videos and guides, the same errors appear again and again:
- Burying junction boxes behind drywall or cabinets – this is against NEC requirements and creates serious maintenance and fire risks. [magnifyelectric]
- Using an undersized box so conductors and wire nuts are crammed inside, which can lead to overheating and insulation damage. [polycase]
- Failing to protect cables where they enter metal boxes, skipping proper connectors and bushings. [pureedgelighting]
- Not securing the box properly, leading to wobble when devices are used or cords are unplugged. [youtube]
- Mixing wire gauges or mis‑matching conductor types in the same splice without proper sizing and overcurrent protection. [wikihow]
On the manufacturing side, we see fewer issues when installers choose well‑designed sheet‑metal enclosures that clearly specify box volume, include pre‑threaded grounding points, and are dimensioned to sit flush with standard drywall thickness (e.g., 12.5 mm / 1/2 in boards).

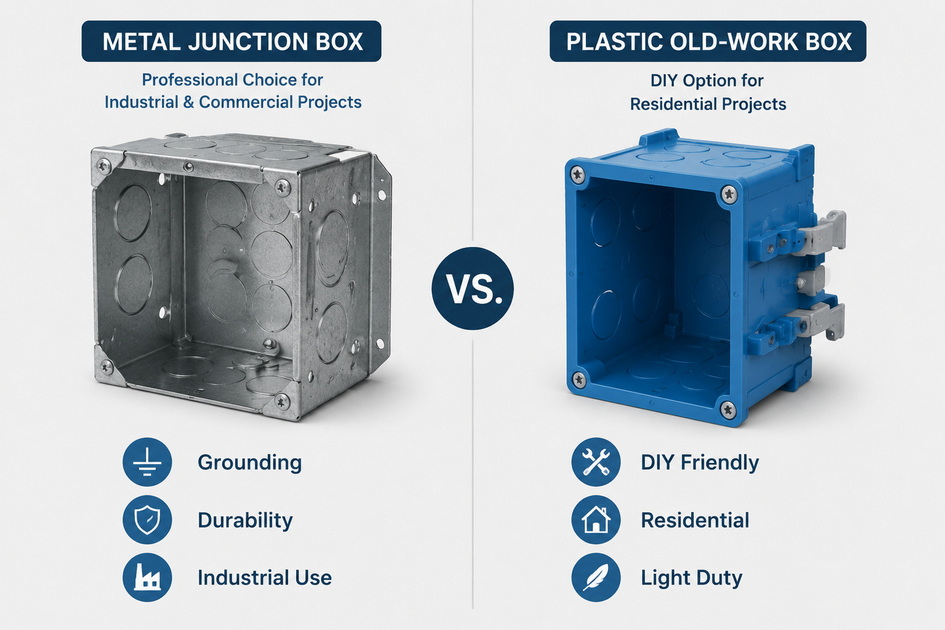

While plastic old‑work boxes are common in light residential projects, metal or sheet‑metal junction box enclosures are preferred in many of the sectors we serve:
- Industrial smart manufacturing: Higher mechanical strength, better grounding, and often compatibility with DIN‑rail accessories and terminal blocks. [pureedgelighting]
- Telecom and network: Robust enclosure for low‑voltage power and structured cabling, often combined with cable management hardware. [pureedgelighting]
- EV charging and energy storage: Coordinated grounding, heat dissipation, and support for heavier cable diameters. [polycase]
- Pump controls and building services: Reliable protection in utility rooms, pump stations, and technical spaces with elevated humidity or vibration. [pureedgelighting]
When installing these enclosures in drywall:
- Use proper brackets or stud mounting, not just drywall clamps.
- Confirm that the front flange or frame is designed to sit flush with the wall and accept a cover or door that blends with the interior.
- Choose powder‑coated or corrosion‑resistant finishes suited to the environment.
From both an installer and manufacturer standpoint, small decisions make a big difference over the lifetime of an electrical system:
- Label your circuits and boxes: Use printed labels or engraved markers to note circuit numbers, load descriptions, and dates. This is especially valuable in industrial and telecom rooms.
- Standardize box sizes and mounting heights in a project to create a consistent, professional look and make future upgrades easier.
- Leave spare capacity: Choosing a slightly larger enclosure and leaving space for future conductors can reduce rework when systems expand (for example, adding new smart loads or sensors).
- Document your work: Take a quick photo of the open box before closing it. This visual record is extremely helpful during future maintenance or troubleshooting.
As a dedicated manufacturer of junction box electrical sheet‑metal enclosures, Ningbo Bohui Electric Co., Ltd. designs products to support safe, efficient installations across:
- Power distribution and control
- Telecommunications and networking
- Industrial intelligent manufacturing systems
- Building electrical and low‑voltage systems
- New energy storage and EV infrastructure
- Pump and HVAC control circuits
Our enclosures are engineered with:
- Precision sheet‑metal fabrication for accurate fit with standard drywall and framing dimensions.
- Optimized knockouts and mounting patterns for quick installation and flexible cable routing.
- Consistent quality finishes and grounding provisions suitable for demanding industrial and commercial environments. [polycase]
If you are a contractor, system integrator, or OEM planning large‑scale installations through drywall partitions, we can support you with custom enclosure designs, volume manufacturing, and technical documentation tailored to your application.
If you're planning to install junction boxes in drywall for residential upgrades, industrial automation, telecom rollouts, or energy projects, choosing the right junction box enclosure is just as important as following correct installation steps.
- For engineers and project managers, consult with us early in the design phase to select enclosure types, sizes, and mounting options that streamline on‑site work.
- For electrical contractors and integrators, standardize your projects around high‑quality junction box sheet‑metal enclosures to reduce install time and improve inspection outcomes.
Contact Ningbo Bohui Electric Co., Ltd. to discuss your specific junction box and enclosure requirements and get technical support for your next drywall installation project.
No. Electrical codes such as the NEC require that junction boxes remain accessible and must not be concealed behind drywall, insulation, or permanent fixtures. You must be able to remove a cover and access the splices without demolishing the wall. [viox]
For typical residential branch circuits in drywall, plastic old‑work boxes are common and code‑compliant when used correctly. In industrial, commercial, and new energy applications, metal sheet‑metal enclosures are often preferred for grounding, durability, and integration with other equipment. [fixupblueprint]
You must calculate box fill based on the number and gauge of conductors and devices inside the box. Each conductor, device, and internal clamp counts toward a required volume; choose a box whose rated volume meets or exceeds this value, and when in doubt, size up. [polycase]
Yes. Most old‑work boxes are designed to fit between studs and clamp directly to drywall. Use a stud finder to position the box so it does not interfere with framing, plumbing, or existing wiring. [youtube]
You should hire a professional when working on service equipment, multi‑circuit junctions, or critical systems (e.g., EV chargers, industrial machinery, life‑safety circuits), or if you are unsure about code requirements. An electrician can ensure that the box type, fill, grounding, and installation method all comply with local regulations. [thisoldhouse]
