Installing a junction box for a light fixture is not just a DIY task—it is a critical safety step that protects wiring, prevents fires, and ensures your lighting system complies with electrical codes. As a manufacturer of professional junction box and electrical sheet‑metal enclosures serving power, telecom, networking, industrial automation, construction, and new energy sectors, Ningbo Bohui Electric Co., Ltd. has seen both best‑practice installations and serious mistakes in the field. This guide combines hands‑on experience with industry standards to show you how to install a junction box for a light fixture safely and efficiently, from planning and box selection to wiring, testing, and long‑term reliability. [paclights]
A junction box is an enclosed housing where electrical conductors are spliced, terminated, or connected to a device such as a light fixture. It shields live connections from mechanical damage, helps prevent accidental contact, and reduces the risk that a spark could ignite nearby combustible materials. [hwlok]
In residential and commercial lighting, junction boxes serve three main roles: [paclights]
- Provide a secure mounting point for the light fixture.
- Contain wire splices and connectors in a fire‑resistant enclosure.
- Offer an accessible location for inspection, maintenance, and future upgrades.
Electrical codes such as the National Electrical Code (NEC) require almost all wire splices and branching connections to be inside an approved junction box with a cover. For ceiling lights, wall sconces, and exterior luminaires, the light fixture attaches directly to this box using screws or a mounting bracket. [homedepot]
Before you drill a single hole, planning the installation saves time and prevents expensive rework. From an enclosure manufacturer's perspective, most field issues come from poor planning, not poor products. [hwlok]
Key planning steps include: [dgfloors]
- Identify the circuit and breaker that will feed the new light.
- Confirm the load and wiring method (e.g., 120 V branch circuit with non‑metallic sheathed cable).
- Check local building and electrical codes or consult a licensed electrician.
- Decide the exact fixture location relative to studs or joists.
- Choose a junction box rated for the environment (indoor vs outdoor, damp vs dry location).
Always plan for future access: junction boxes must remain visible or accessible behind a removable cover, not buried permanently behind drywall or insulation. [kenclozer]
> Safety rule: Turn off power at the circuit breaker and verify the circuit is dead with a non‑contact voltage tester before touching any wires. [wikihow]
Selecting the correct junction box is where manufacturer expertise matters most. Bohui designs and produces sheet‑metal and modular electrical enclosures, junction boxes, and custom housings used in demanding industrial and power environments, and many of the same principles apply in homes and small commercial projects. [bohuielectric]
When choosing a junction box for a light fixture, consider: [dgfloors]
- Box material: Metal (steel) for robust mechanical strength and grounding; plastic for corrosion resistance and ease of installation.
- Environment: Standard indoor boxes for dry areas; weatherproof or IP‑rated enclosures for outdoor or damp locations. [kenclozer]
- Volume / fill capacity: Box must have adequate cubic‑inch capacity for the number and size of conductors, based on code fill calculations. [wikihow]
- Mounting style: Ceiling fan or light fixture boxes with integrated brackets, wall‑mounted boxes, or surface‑mounted industrial enclosures.
- Ingress protection: For industrial settings or exterior walls, IP65 or higher metal enclosures help protect against dust and water, a typical offering from Bohui. [bohuielectric]
For most residential ceiling lights, a UL‑listed metal or non‑metallic junction box rated for fixture support and properly sized for the conductors is appropriate. For areas exposed to moisture, choose a weatherproof or sealed junction box rated for outdoor use. [magnifyelectric]
A well‑prepared installer works faster and more safely. Gather the following before you start: [homedepot]
- Approved junction box (metal or non‑metallic) rated for your light fixture.
- Mounting hardware: screws, anchors, or brackets.
- Cable clamps and appropriate connectors.
- Wire nuts or push‑in connectors rated for your wire gauge. [dgfloors]
- Wire stripper and lineman's pliers.
- Non‑contact voltage tester and multimeter.
- Screwdrivers and drill with suitable bits.
- Personal protective equipment: safety glasses and insulated gloves. [wikihow]
> Pro tip from the field: Many installation problems trace back to using the wrong connectors or undersized boxes; experienced installers routinely choose a slightly larger box to make wiring easier and safer. [kenclozer]
This section walks through the installation in practical steps similar to professional guides and manufacturing best practices. If you are not comfortable working with electrical systems, consult a licensed electrician. [paclights]
1. Locate the correct circuit breaker for the existing or planned light circuit.
2. Switch the breaker off.
3. Use a non‑contact voltage tester at the existing fixture wires or junction point to confirm there is no live voltage. [homedepot]
Never rely solely on the breaker label; circuits are often mislabeled. Always test before touching wires. [wikihow]
Determine the exact location for your light fixture and corresponding junction box. [paclights]
- For ceiling fixtures, center the box where the light should hang, aligned with a joist or use a bar hanger designed for fixtures.
- For wall sconces, mark the box so the fixture height aligns with your room design. [homedepot]
Use a template or the box itself to outline the cut in drywall. Ensure the front edge of the box will sit flush with the finished surface or slightly proud, as recommended by code and manufacturer instructions. [dgfloors]
Cut the opening in drywall, plaster, or other finish material using a keyhole saw or appropriate tool. [homedepot]
- For drywall, use old‑work boxes with built‑in clamps or Madison clips, or new‑work boxes attached directly to framing members. [wikihow]
- For masonry or concrete, use anchors suitable for the substrate. [wikihow]
- For exposed industrial installations, you may mount a surface‑mounted junction box or steel enclosure directly to the wall or overhead tray, as is common in Bohui's industrial applications. [bohuielectric]

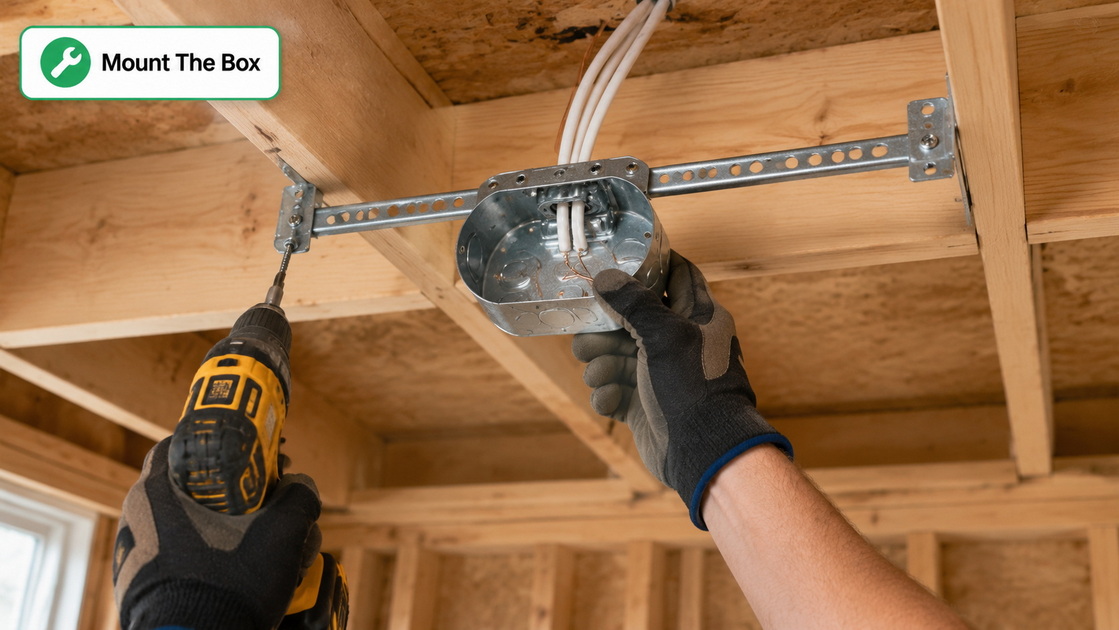

Mount the box securely using screws or manufacturer‑approved hardware. A light fixture box must be able to support the weight and any movement of the fixture. [dgfloors]
Feed the incoming and outgoing cables (line feed, switch leg, and any other required conductors) into the junction box through knockouts. [hwlok]
- Use cable clamps or connectors suitable for the cable type (e.g., NM cable, armored cable). [dgfloors]
- Avoid sharp edges and ensure cables are not pinched.
- Secure the cable with staples within a short distance of the box as required by code. [wikihow]
In industrial sheet‑metal enclosures, we see many failures caused by improper cable entry—sharp edges, missing bushings, or unsupported cables—so proper strain relief and edge protection is critical. [hwlok]

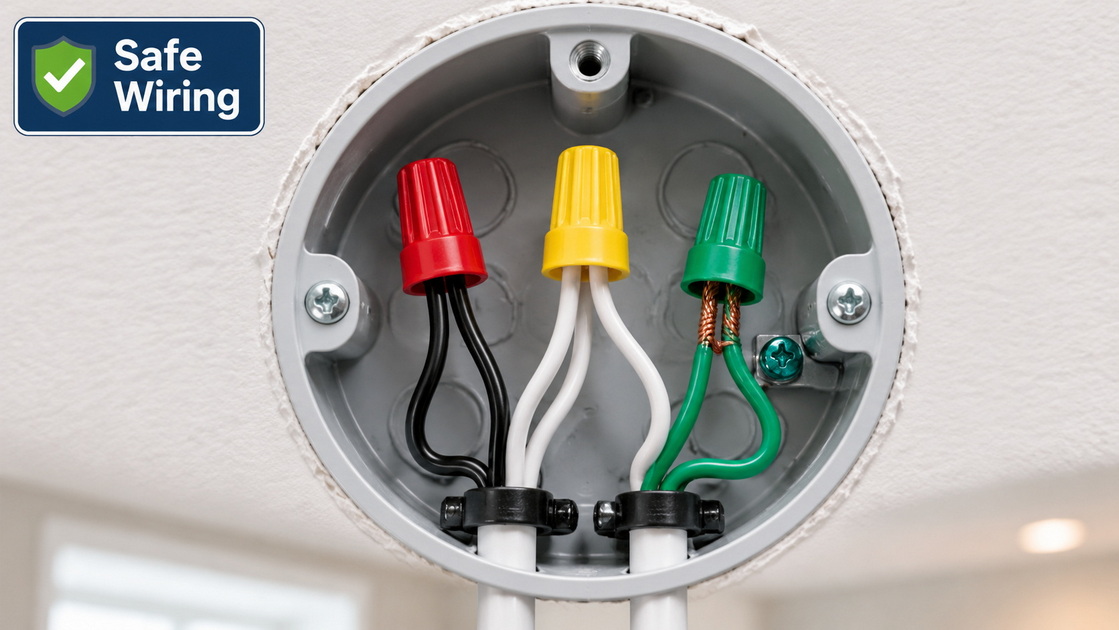

Inside the box, carefully prepare and connect the conductors. [paclights]
- Strip 6–8 inches of cable sheathing and about 3/4 inch of insulation from each conductor, as recommended by connector manufacturers. [dgfloors]
- Group and connect matching colors: black to black (hot), white to white (neutral), and bare or green to bare/green (ground). [dgfloors]
- Use approved wire nuts or push‑in connectors rated for the wire gauge and type. [wikihow]
- Twist conductors smoothly without over‑twisting, then install connectors and tug lightly to verify secure connections. [wikihow]
For metal junction boxes, connect the grounding conductor to the box's grounding screw and bond the fixture ground to the same grounding path. This is standard practice in industrial enclosures from companies like Bohui and helps maintain a continuous, safe ground. [paclights]
Arrange wires neatly inside the box instead of stuffing them randomly. Neat wiring makes inspection and future troubleshooting much easier and reduces the chance of damaged insulation. [kenclozer]
Once you have secure, correctly matched connections and the box is closed with a cover or fixture canopy, you can mount the light fixture. [paclights]
- Attach the fixture bracket to the junction box using machine screws provided.
- Connect fixture leads to the corresponding box conductors using connectors, following the manufacturer's wiring diagram. [homedepot]
- Tuck wires carefully into the box and secure the fixture base or canopy.
Professional guides emphasize following the fixture manufacturer's instructions for torque on screws, spacing, and any special mounting hardware, especially for heavier fixtures. [magnifyelectric]
After installation, restore power at the breaker and test the fixture. [paclights]
- Turn the circuit breaker on.
- Use the wall switch to confirm the fixture operates correctly.
- If the light flickers, does not turn on, or the breaker trips, turn power back off and recheck connections.
From both homeowner feedback and professional installers, several recurring mistakes cause safety issues and callbacks. [kenclozer]
- Using junction boxes that are too small, leading to overcrowded conductors and potential overheating. [kenclozer]
- Installing boxes in locations that are not accessible for inspection or future maintenance. [hwlok]
- Failing to use proper cable clamps or bushings, which can damage insulation and conductors. [kenclozer]
- Mixing wire types with incompatible connectors instead of using connectors rated for that combination. [kenclozer]
- Skipping the ground connections in metal boxes or industrial enclosures, compromising safety. [paclights]
A simple rule that many electricians and manufacturers follow: choose the correct type of junction box for the environment, and err slightly on the larger side to allow safe conductor fill and easier wiring. [kenclozer]

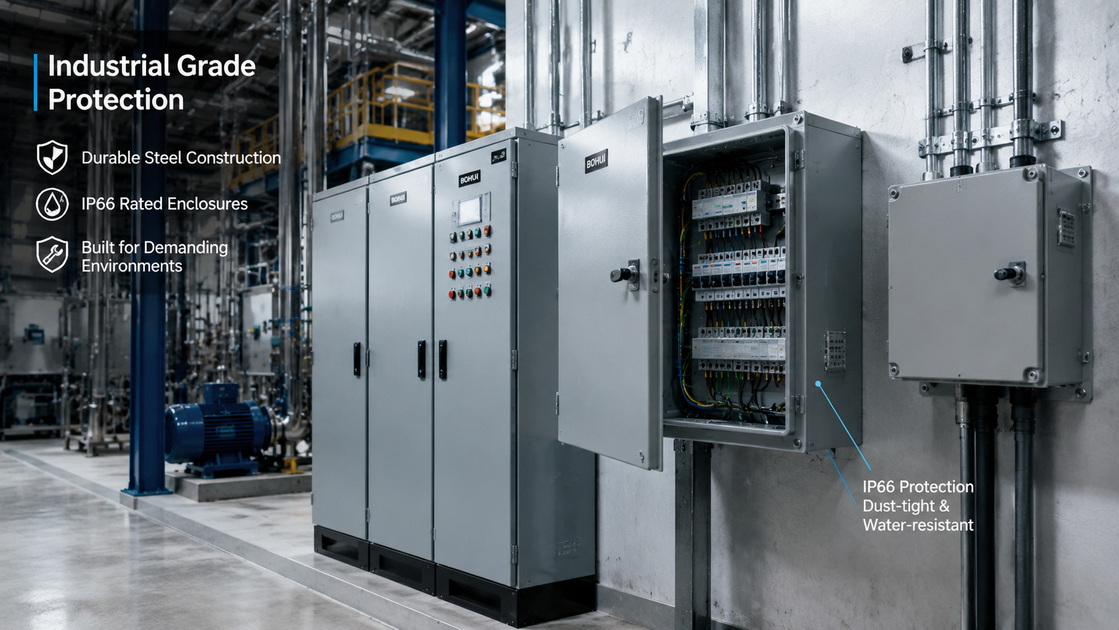

While many residential light fixtures use standard plastic or metal junction boxes, there are situations where a professional sheet‑metal enclosure such as those manufactured by Ningbo Bohui is more appropriate. [bohuitechnology]
Examples include:
- Industrial smart manufacturing lines needing robust protection against dust, vibration, and mechanical impact. [bohuielectric]
- New energy storage or EV charging installations where control electronics and wiring must live inside IP‑rated metal enclosures. [bohuielectric]
- Telecom and networking projects where junction boxes integrate with modular cabinets and data racks. [bohuitechnology]
In these cases, the junction box is part of a larger enclosure system. The installation principles—correct box sizing, proper cable entry, grounding, neat conductor arrangement, and accessibility—remain the same, but the mechanical and environmental requirements are higher. [bohuielectric]
| Junction box type | Typical use case | Key advantages | Considerations |
|---|---|---|---|
| Plastic indoor box | Standard residential ceilings and walls | Lightweight, non‑corroding, easy to install. homedepot | Not suitable for high‑impact or very hot environments. kenclozer |
| Metal box / steel enclosure | Robust residential, commercial, and industrial installations | Strong, easily grounded, compatible with steel conduits; core Bohui product. bohuielectric | Requires correct grounding and may need rust protection in humid areas. paclights |
| Weatherproof outdoor box | Exterior wall lights and damp locations | Sealed against moisture, often IP‑rated. kenclozer | Must match fixture and cable entry method; sometimes larger footprint. kenclozer |
As a long‑term enclosure manufacturer, Bohui regularly supports projects across power, telecom, industrial automation, construction, and new energy sectors, which gives us a unique view on junction box performance in real‑world conditions. [bohuielectric]
Three practical lessons:
- Design for maintenance: Boxes that are easy to open, inspect, and upgrade significantly reduce lifetime costs and downtime. [paclights]
- Respect conductor fill limits: Oversized steel enclosures with correct fill capacity improve thermal performance and safety. [hwlok]
- Standardize on quality hardware: Using certified connectors, cable glands, and grounded metal enclosures across a facility simplifies training and reduces failure rates. [bohuielectric]
For homeowners, applying these industrial lessons means choosing certified junction boxes, investing in proper connectors, and thinking about how future electricians will service the installation.
If you're planning a light fixture project that goes beyond a simple indoor ceiling light—for example, integrating smart controls, outdoor luminaires, or industrial lighting—consider specifying professional junction boxes and sheet‑metal enclosures from experienced manufacturers like Ningbo Bohui Electric Co., Ltd. Reach out to your electrical supplier or enclosure partner to ensure that your next project is built on safe, properly sized, and environment‑rated junction boxes from the start. [bohuielectric]
Yes. Electrical codes require splices and connections to be inside an approved box or enclosure, and most fixtures mount directly to a junction box. [hwlok]
You can reuse an existing box if it is undamaged, properly sized for the wires and new fixture, and remains accessible after installation. [homedepot]
Check the cubic‑inch capacity and compare it to code requirements for the number and gauge of conductors; if in doubt, choose a slightly larger box. [dgfloors]
Use weatherproof or IP‑rated boxes for exterior walls, damp basements, or any location exposed to moisture or wind‑driven rain. [magnifyelectric]
Steel enclosures provide higher mechanical strength, easy grounding, and better protection for complex or industrial wiring, especially in power, telecom, and new energy applications. [bohuitechnology]
