Technical specification

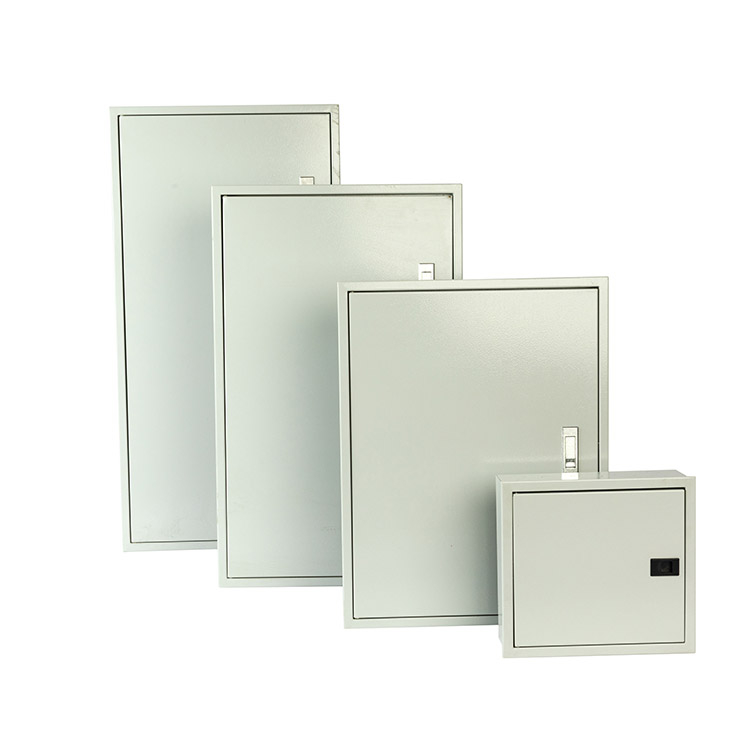

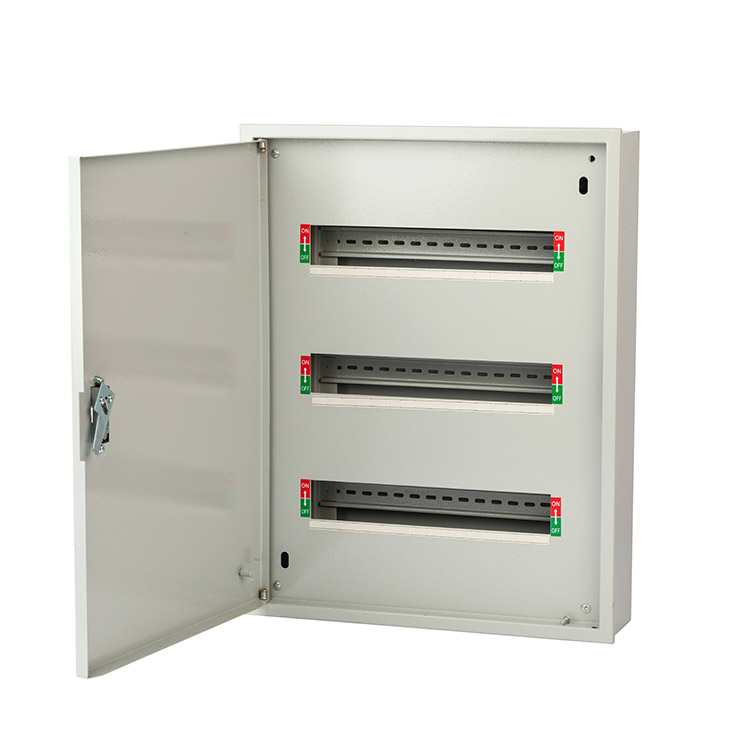

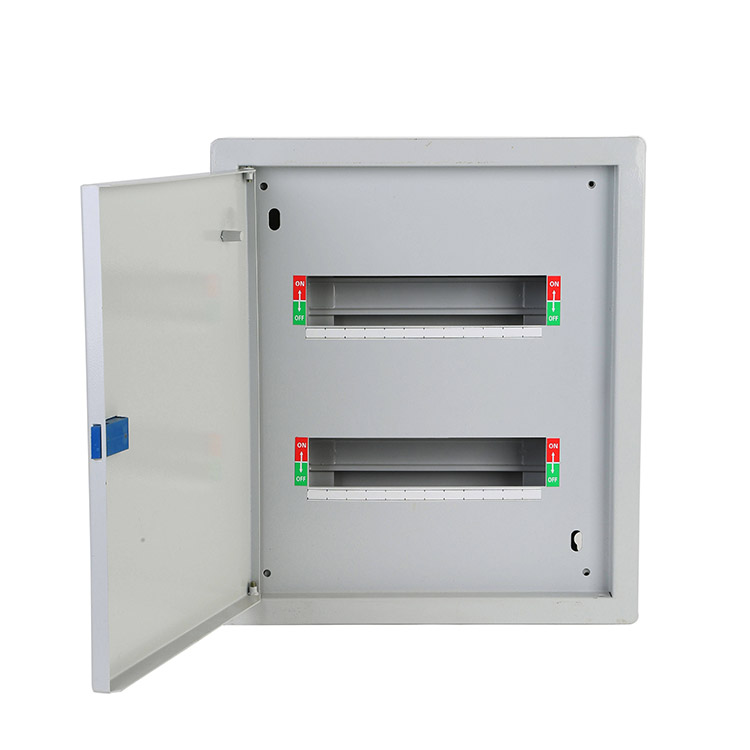

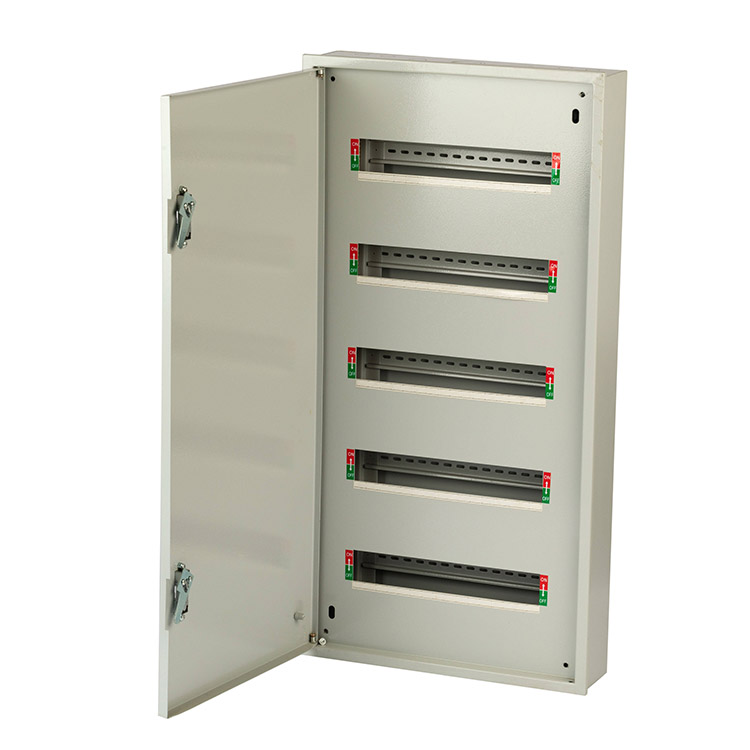

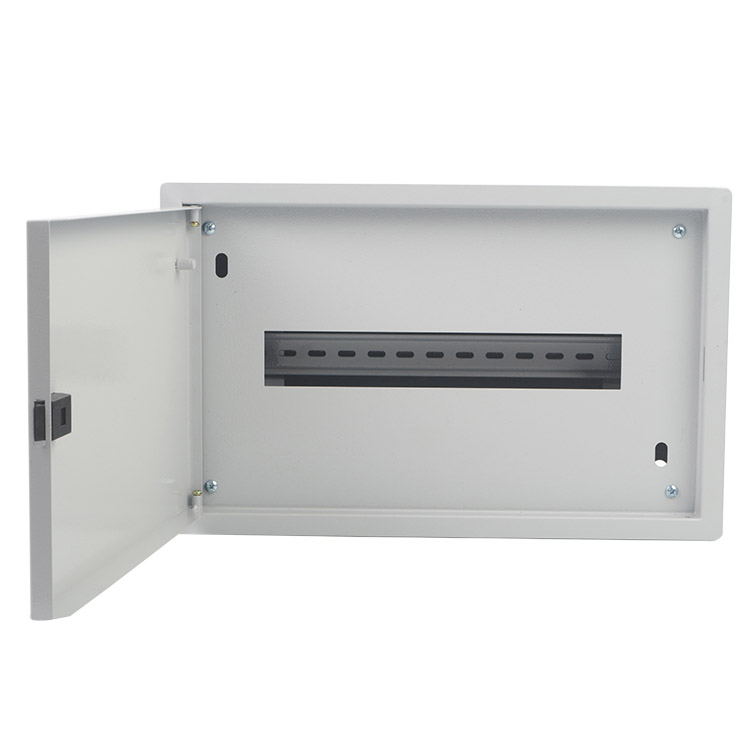

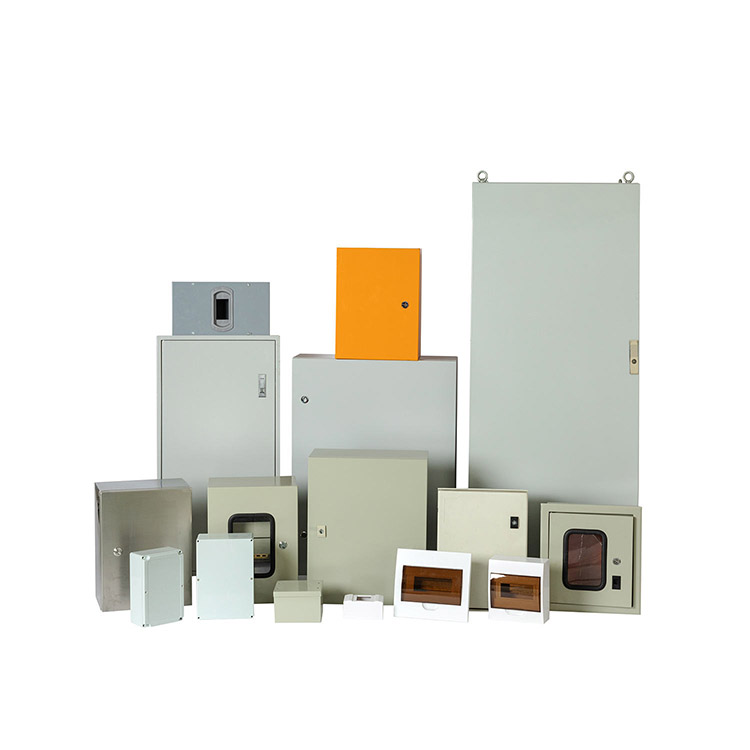

DGEX The guide rail box is used for installation in switch box devices. The external cover plate size is 40~85mm. It features standard 35mm mounting rails and corresponding symmetrical adjustment distances. The guide rail box frame steel plate thickness is 1.2mm, and the front cover plate thickness is 1.2mm.
Configuration
Guide rail chassis frame, Mounting base plate, Lock, Incoming line blanking plate, Sealing rings and installation accessories, Front cover with pre-drilled holes and mounting fasteners, Galvanized mounting rails
Color: RAL7032 or RAL7035
Material: High quality SPCC cold roll steel
Thickness: Door 1.2mm, housing 1.2mm and mounted plate 1.5mm; height above 800mm, the housing and door 1.5mm, mounted plate 2.0mm
Surface treatment: pickling, phosphating, powder coating, corrugated finish
Protection rating: Depends on the external chassis; internal rail IP20
MDST Selection Table for External Cover Plate of Guide Rail Box
| Model | Door | Door | No of breakers Breakers qty pcs | No of rows |
| Width(mm) | Height(mm) | |||
| DGEX34 | 300 | 400 | 2rows X 9P | 2 |
| 18 | ||||
| DGEX35 | 300 | 500 | 3rows X 15P | 3 |
| 45 | ||||
| DGEX46 | 400 | 600 | 3rows X 15P | 3 |
| 45 | ||||
| DGEX66 | 600 | 600 | 3rows X 26P | 3 |
| 78 | ||||
| DGEX75 | 500 | 700 | 3rows X 21P | 3 |
| 60 | ||||
| DGEX75R | 500 | 700 | 4rows X 21P | 4 |
| 80 | ||||
| DGEX86 | 600 | 800 | 3rows X 26P | 3 |
| 78 | ||||
| DGEX86R | 600 | 800 | 4rows X 26P | 4 |
| 104 | ||||
| DGEX106 | 600 | 1000 | 6rows X 26P | 6 |
| 158 | ||||
| DGEX108 | 800 | 1000 | 6rows X 38P | 6 |
| 222 |
