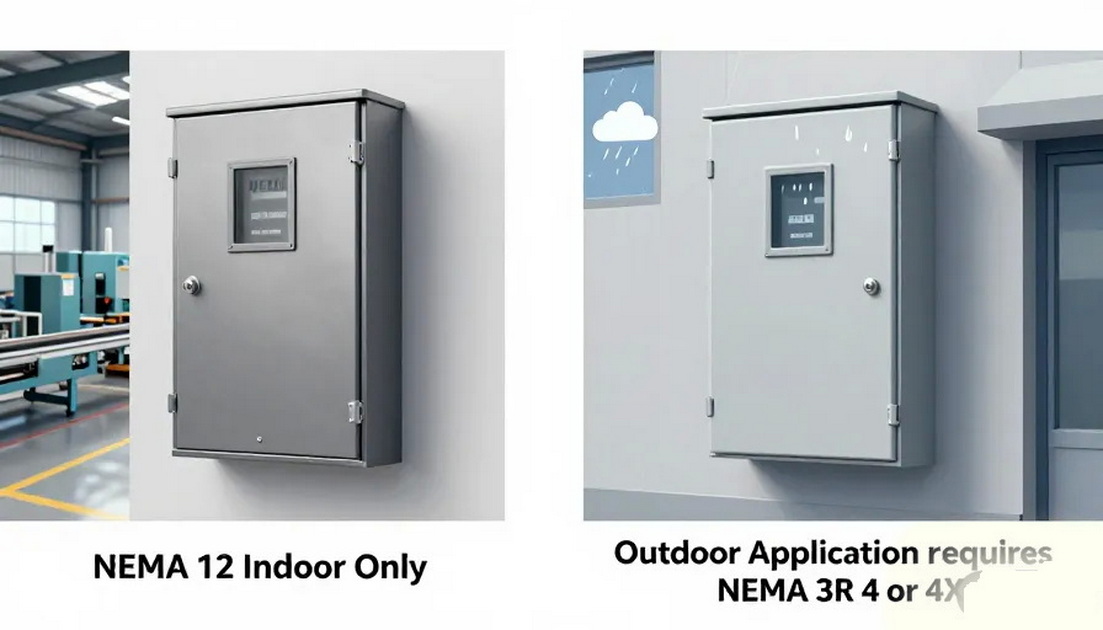

NEMA 12 enclosures are designed for indoor industrial environments, so using them outdoors is rarely a safe or code-compliant choice; in most real projects, I recommend stepping up to NEMA 3R, 4, or 4X depending on exposure and corrosion risk. In our own work manufacturing wall mount enclosures for global OEMs and integrators, we almost always reserve NEMA 12 for controlled indoor spaces and specify higher ratings once the enclosure leaves the building envelope. [lianjer]
Most confusion around NEMA 12 starts with a partial understanding of what it does well: indoor dust‑ and drip‑protection, not weatherproofing. As an engineer who has reviewed hundreds of panel failures in factories, I've seen NEMA 12 perform extremely well indoors and fail quickly once someone "just puts it outside under a roof." [eabel]
- Designed for:
- Light‑to‑moderate industrial environments
- Packaging and assembly lines, warehouses, workshops, indoor MCC and control rooms
- Typical protection:
- Falling dirt and circulating dust
- Dripping water, light splashes
- Non‑corrosive oil or coolant mist [polycase]
From a code compliance standpoint, NEMA 12 is listed as an indoor rating; it is not tested for rain, snow, or UV exposure, so any outdoor use is essentially an engineering gamble. [nemaenclosures]
> Expert note: When I audit an industrial site, the fastest way to spot future trouble is to walk the perimeter and look for painted steel NEMA 12 boxes mounted on exterior walls.
Even when a NEMA 12 wall mount enclosure "looks sealed," it lacks the features required for outdoor weather exposure. Over time, this gap shows up as gasket failure, moisture ingress, and internal corrosion. [lianjer]
| Outdoor risk | NEMA 12 behavior | Better NEMA choice |
|---|---|---|
| Rain or sleet | Not sealed against precipitation | NEMA 3R, 4, or 4X eabel |
| Wind‑driven rain | Only indoor dust sealing polycase | NEMA 4, 4X, or 6P polycase |
| UV and sunlight | No UV‑resistant design | NEMA 4X or coated outdoor metal budind |
| Freeze–thaw cycles | Gasket not tested for freezing | NEMA 4/4X with outdoor gasket budind |
| Corrosive environment | No corrosion rating eabel | NEMA 4X stainless or non‑metallic budind |
In practice, users often try to compensate by adding silicone sealant, drip edges, or extra paint. These measures may delay problems but cannot "upgrade" the rating; the box is still tested and certified as NEMA 12 only. [nemaenclosures]
From a safety and liability angle, that matters: UL 508A, NEC, and OSHA expect the enclosure type to match the real environment, so using NEMA 12 outdoors can lead to failed inspections or rejected insurance claims after an incident. [polycase]

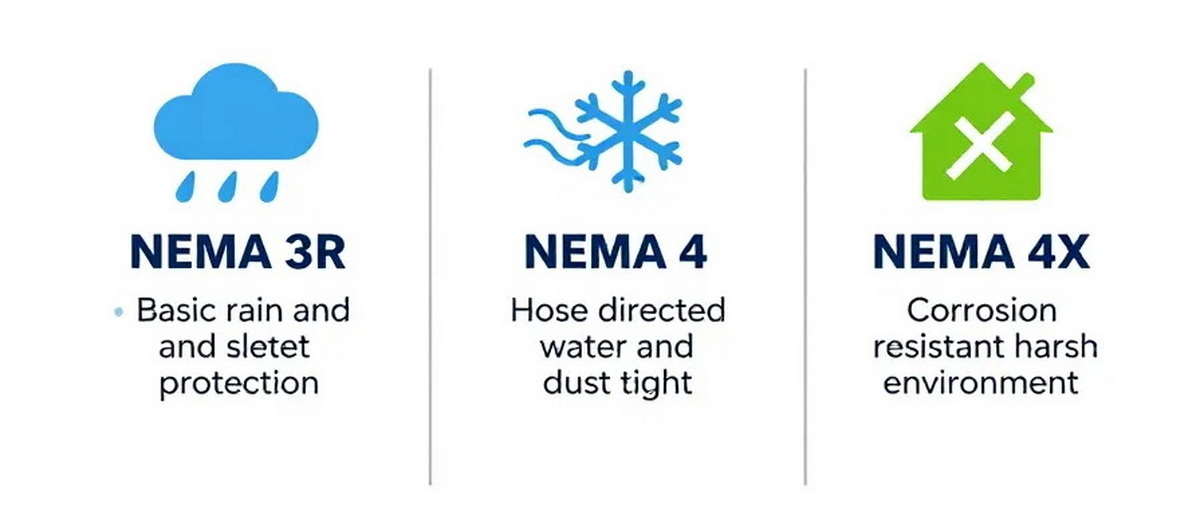

When you move from an indoor panel room to an external wall, fence, or skid, the conversation should shift from "Can I make NEMA 12 work?" to "Which outdoor rating is appropriate?" [eabel]
| NEMA type | Indoor/outdoor | Water protection | Dust protection | Corrosion resistance | Typical use cases |
|---|---|---|---|---|---|
| NEMA 3R | Indoor/outdoor | Rain and sleet, basic weather budind | Limited dust | Optional (coated steel) budind | Utility disconnects, pumps, wall‑mounted meters under eaves |
| NEMA 4 | Indoor/outdoor | Hose‑directed water, wind‑driven rain budind | Dust‑tight polycase | Standard metal, no special rating | Wash‑down areas, outdoor process controls, marine docks |
| NEMA 4X | Indoor/outdoor | Harsh weather and wash‑down budind | Dust‑tight | Corrosion‑resistant (SS/plastic) budind | Food & beverage, chemical plants, coastal sites |
| NEMA 6/6P | Indoor/outdoor | Temporary or prolonged submersion nemaenclosures | Dust‑tight | 6P adds corrosion resistance nemaenclosures | Pits, tunnels, flood‑prone areas, special projects |
| NEMA 12 | Indoor only | Dripping water, oil mist polycase | Dust‑resistant | None | Factory floors, panel rooms, indoor automation lines |
A practical rule from field projects:
- For basic outdoor gear on walls or poles in mild climates, NEMA 3R is usually the cost‑effective minimum. [budind]
- For wash‑down, offshore, or coastal environments, NEMA 4X is the default starting point. [kdmsteel]

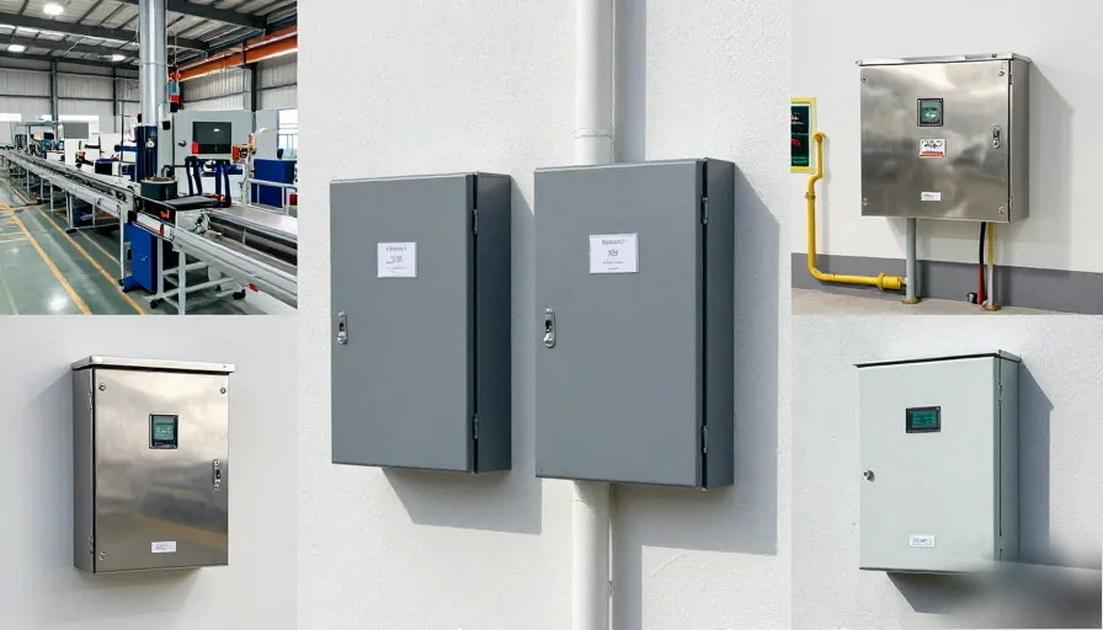

Wall mount steel and stainless enclosures are widely used in harsh environments to protect electrical and electronic equipment when floor space is limited. Selecting the correct NEMA rating on a wall‑mounted box directly affects uptime for: [designworldonline]
- Power distribution and motor starters
- PLC and I/O cabinets
- Telecom, network, and IIoT gateways
- Pump controls and HVAC units [chintglobal]
At Ningbo Bohui Electric Co., Ltd., we design wall mount enclosures for exactly these conditions, with options spanning NEMA 3R, 4, 4X, and 12 to match indoor lines, external substations, industrial buildings, and emerging energy‑storage projects. [designworldonline]
Looking at actual projects makes the limitations of NEMA 12 much clearer than any rating table. Here are three scenarios I frequently see when supporting OEM and EPC teams.
A food packaging plant in a dry indoor hall needs control cabinets for conveyors and check‑weighers. There is dust and occasional oil mist, but no direct wash‑down on the enclosures.
- Chosen rating: NEMA 12 wall mount enclosure with powder‑coated steel.
- Why it works: Dust‑resistant, sealed against dripping liquids, no UV or rain. [polycase]
- Result: Stable performance with minimal corrosion risk and lower cost than NEMA 4X.
A water utility mounts a steel NEMA 12 box on a concrete pedestal beside an outdoor pump station "under a canopy." After two winters, the door gasket cracks, condensation forms, and breakers begin to rust.
- What went wrong:
- The box saw wind‑blown rain and freeze–thaw cycles that NEMA 12 is not tested for. [eabel]
- Correct alternative: NEMA 3R at minimum, NEMA 4X if frequent storms or coastal atmosphere are expected. [budind]
In a battery energy‑storage system (BESS) or EV charging skid, wall mount enclosures sit directly on outdoor skids exposed to UV, rain, and sometimes chemical fumes.
- Typical solution: NEMA 4X stainless steel or non‑metallic wall mount enclosures for PLCs, network switches, and safety relays. [kdmsteel]
- Reasoning: These systems must operate continuously in harsh outdoor environments; corrosion or water ingress is not acceptable.
These examples illustrate a simple pattern: the moment your enclosure regularly "sees the sky," NEMA 12 becomes the wrong tool. [eabel]
Many engineers and electricians ask if they can modify a NEMA 12 enclosure to "make it good enough outdoors." Technically, you can improve its behavior, but you cannot change its certified rating. [nemaenclosures]
Common field modifications include:
1. Mounting under roof overhangs or inside protective kiosks.
2. Adding sealant to seams and cable entries.
3. Painting or recoating steel for corrosion resistance.
4. Using outdoor‑rated conduit hubs and cable glands.
These steps may:
- Reduce short‑term water ingress.
- Delay visible rust or paint peeling.
But they do not:
- Turn a NEMA 12 into NEMA 3R or 4.
- Provide validated performance against rain, sleet, or UV.
- Satisfy strict reading of UL 508A and NEC environmental requirements. [nemaenclosures]
As a best practice, I only accept such modifications in low‑risk, non‑critical applications, and I document the variance clearly in design notes and as‑built drawings. When uptime or safety is critical, I always specify a properly rated outdoor enclosure from the start. [polycase]

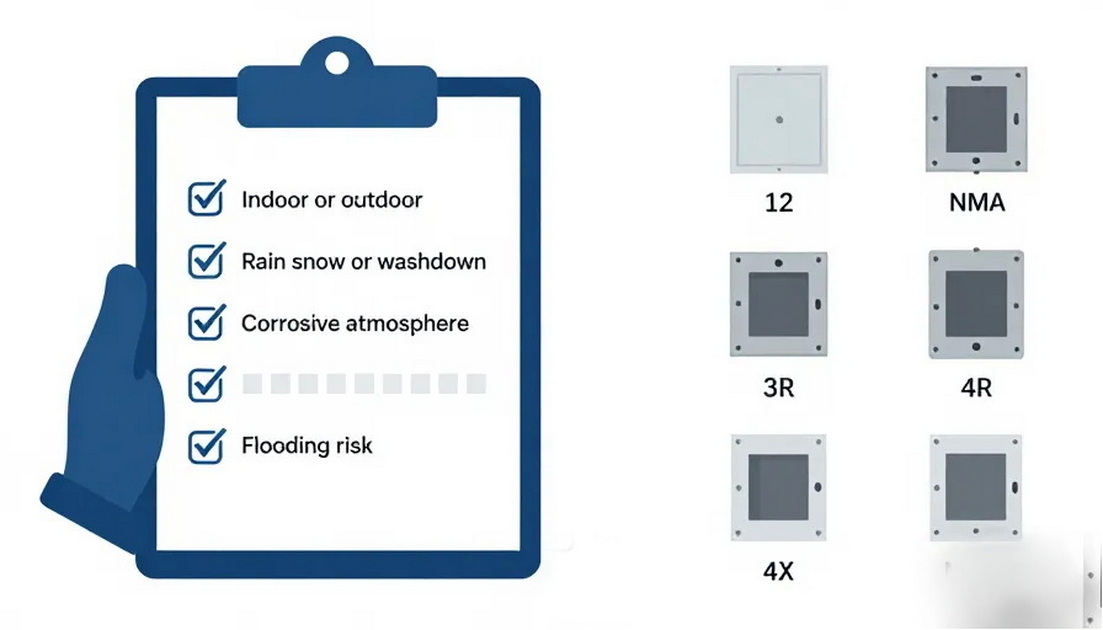

To simplify enclosure selection, I use a short checklist before deciding if NEMA 12 is appropriate.
1. Is this installation fully indoors, in a controlled space?
- If not, NEMA 12 is off the table. Go straight to 3R/4/4X/6P. [eabel]
2. Will the enclosure ever see rain, snow, or wash‑down water?
- Yes → minimum NEMA 3R, usually NEMA 4 or 4X for industrial plants. [budind]
3. Is there corrosive atmosphere (chemicals, salt, exhaust)?
- Yes → default to NEMA 4X stainless or non‑metallic. [kdmsteel]
4. Is dust, oil mist, or lint significant?
- Indoors → NEMA 12 often ideal.
- Outdoors → favor 4X for all‑around protection.
5. What about submersion or flooding risk?
- Consider NEMA 6/6P if temporary or prolonged submersion is possible. [nemaenclosures]
Documenting these answers in your design files not only improves safety but also supports your E‑E‑A‑T as a responsible engineer or specifier in front of clients and auditors.

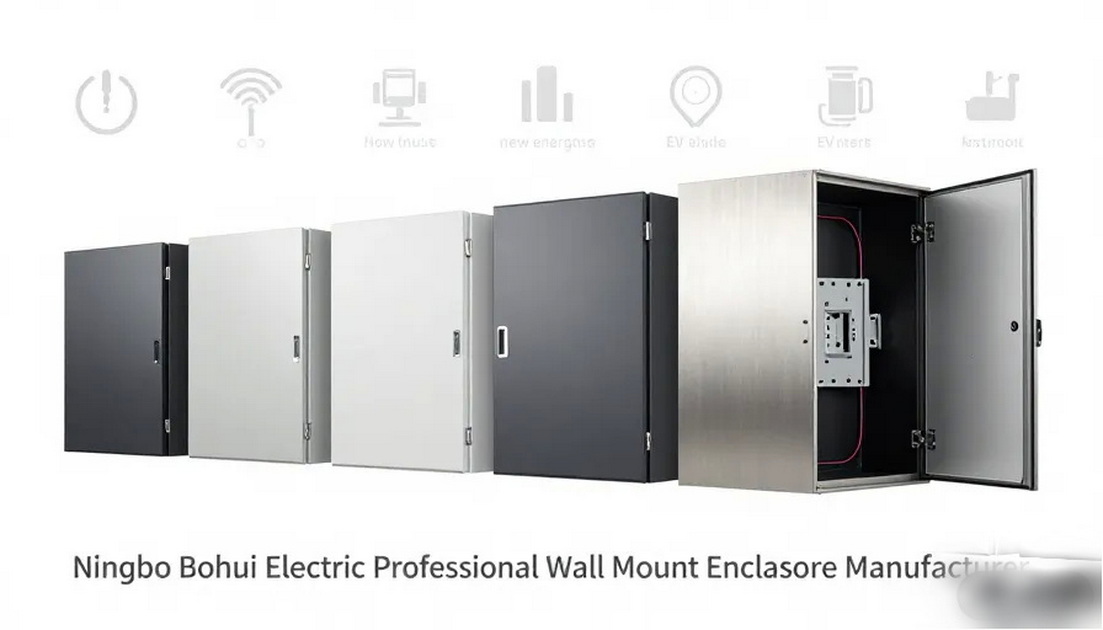

We are Ningbo Bohui Electric Co., Ltd., a specialist manufacturer of wall mount enclosure electrical sheet‑metal housings serving power distribution, telecom, networking, industrial automation, construction, new energy storage, EV charging, and pump systems worldwide. Drawing from thousands of deployed projects, we design and supply enclosures that are optimized for both rating compliance and real‑world maintenance. [chintglobal]
Key ways we support your enclosure decisions:
- Offering NEMA 12, 3R, 4, and 4X wall mount designs to fit both indoor machine rooms and outdoor infrastructure.
- Custom cut‑outs, mounting plates, and cooling solutions tailored to PLCs, VFDs, communication hardware, and IIoT devices.
- Material options including mild steel with industrial coatings, stainless steel for corrosive sites, and non‑metallic for lightweight anti‑corrosion needs. [designworldonline]
When customers ask, "Can I just use NEMA 12 outside?", our engineering team typically reviews the full system conditions and proposes a rated outdoor enclosure with minimal redesign of internal components, keeping both compliance and budget in balance. [eabel]
No. NEMA 12 is designed and tested only for indoor environments and does not provide certified protection against rain, snow, or UV exposure. [lianjer]
Even under a canopy or eave, the enclosure can still see wind‑driven rain, condensation, and temperature swings, so it is not considered a compliant outdoor solution. [polycase]
In most applications, NEMA 3R is the practical minimum for outdoor installations, with NEMA 4 or 4X preferred where heavy rain, wash‑down, or harsh climates are present. [budind]
NEMA 12 is an excellent choice for indoor industrial sites with dust, lint, or oil mist, such as factory floors, warehouses, and indoor pump rooms. [polycase]
Use NEMA 4 for robust outdoor water and dust protection in non‑corrosive environments, and choose NEMA 4X when corrosion resistance is required, such as coastal, chemical, or food‑processing plants. [kdmsteel]
