When you are specifying or installing a junction box today, getting the rating wrong is one of the fastest ways to create long‑term failures, inspection headaches, or even safety incidents. As a manufacturer of terminal boxes and electrical enclosures serving power, telecom, industrial automation, buildings, new energy storage, EVs, and water pumps, I see the same rating mistakes repeated in projects all over the world.
In this guide, I'll walk through junction box ratings (NEMA, IP, UL, and amperage) from a practitioner's point of view, and show you how we actually select and test enclosures in real projects.
A junction box rating tells you how well the enclosure protects people and equipment in real operating conditions—not just in a catalog. It combines three big ideas: environmental protection (dust, water, corrosion), electrical safety (current, insulation, grounding), and regulatory compliance (codes and certification). [ul]
When I review drawings or RFQs from EPCs and panel builders, I always look for at least these rating dimensions:
- Ingress protection (IP or NEMA) for dust, water, and weather exposure. [eabel]
- Material and corrosion resistance for the actual environment (indoor, outdoor, chemical, coastal, etc.). [rapidonline]
- UL or equivalent safety certification where required by code or end customer. [ul]
- Current (ampere) rating aligned with circuit design and cable sizing.
If any one of these is mismatched, you may pass FAT today but inherit a future failure.
NEMA ratings are widely used in North America to describe enclosure protection against environmental conditions, including rain, hose‑down, ice, and sometimes corrosion. Unlike a simple "1–10" scale, higher NEMA numbers do not automatically include lower protections—each type is defined for specific use cases. [eabel]
- NEMA Types 1–13 define indoor/outdoor use, dust and water resistance, and sometimes corrosion protection.
- Letters (such as X, S, R) add special protections, for example extra corrosion resistance.
- NEMA testing also covers aspects that IP does not, such as icing conditions. [eabel]
From a specifier's perspective:
- NEMA 1 – Basic indoor use, limited dust protection; not acceptable in damp or outdoor areas.
- NEMA 3 / 3R – Outdoor capable; protection against rain and sleet. [eabel]
- NEMA 4 / 4X – Indoor or outdoor, hose‑down ready; 4X adds corrosion resistance and is a common choice for food, marine, and chemical plants. [eabel]
When our OEM or industrial clients send us North American projects, NEMA 4X is often the "default safe choice" for outdoor or washdown environments, especially when stainless steel or coated aluminum is used.
IP (Ingress Protection) ratings are a global standard that use two digits to describe protection against solids and liquids. They are simple to read, but they only cover dust and water—not corrosion, impact, or ice. [eabel]
Common junction box ratings include:
- IP54 – Limited dust protection, resistant to splashing water.
- IP65 – Dust‑tight, protected against water jets.
- IP66 – Dust‑tight, protected against powerful water jets.
- IP67 – Dust‑tight, protected against temporary immersion up to 1 m.
- IP68 – Dust‑tight, suitable for long‑term immersion under specified conditions.
The first digit is solids (0–6); the second digit is water (0–9).
In practice:
- Outdoor boxes should be at least IPx4 to cope with rain, but we typically recommend IP65–IP66 for industrial sites where wind‑driven rain or cleaning may be present. [rapidonline]
- Dusty environments (cement plants, grain handling, machining, etc.) should be IP6x, fully dust‑tight, often IP65 or higher. [rapidonline]
- Immersion or buried installations (pits, some pump or irrigation systems) call for IP67–IP68, combined with careful sealing and cable gland selection. [rapidonline]

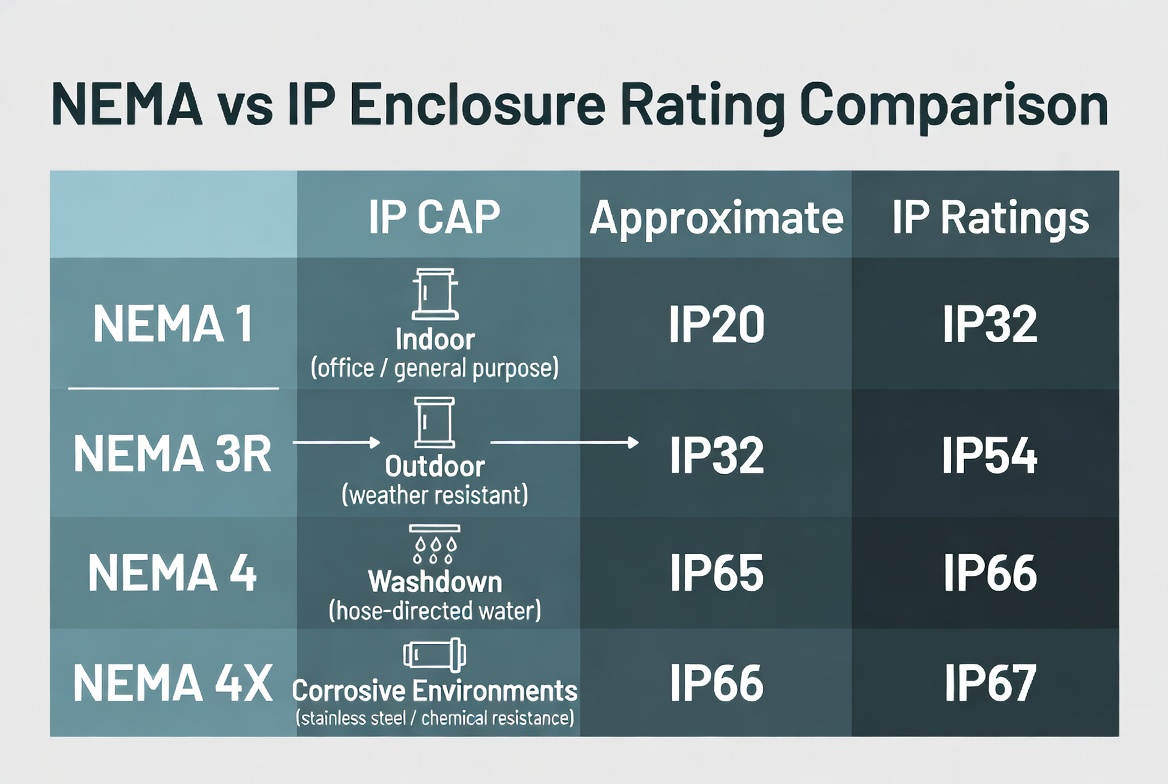

Engineers often ask if a certain NEMA type equals a particular IP rating. The honest answer: there is no one‑to‑one conversion, but some rough equivalences are widely recognized. [eabel]
Typical mapping used in specs:
- NEMA 1 ≈ IP10–IP20 (basic indoor, limited dust). [eabel]
- NEMA 3R ≈ IP24–IP34 (outdoor rain and sleet). [eabel]
- NEMA 4 / 4X ≈ roughly IP66 (dust‑tight, hose‑down). [eabel]
Key differences:
- NEMA focuses on use‑case scenarios (indoor, outdoor, corrosion, ice, hose‑down). [eabel]
- IP focuses only on solid and liquid ingress, not corrosion or ice. [eabel]
- NEMA ratings are often self‑declared by manufacturers, while IP ratings usually involve third‑party or lab testing to relevant IEC standards. [eabel]
When we design a terminal box for export, we usually certify to IP for global customers and may also align with NEMA type expectations for North America, especially if the end client is an American EPC or OEM.
UL (Underwriters Laboratories) is a third‑party safety organization. A UL Listed or UL Recognized junction box has passed independent testing according to specific standards, which is crucial where local codes or customers mandate UL. [ul]
UL‑rated enclosures are evaluated for: [ul]
- Construction from non‑combustible materials such as metal or suitable plastics.
- Adequate corrosion resistance, often using stainless steel or aluminum in harsh environments. [eaton]
- Sufficient internal volume per number and size of conductors, to avoid overheating and overcrowding.
- Proper grounding and bonding, providing a safe fault‑current path. [ul]
- Clear markings for hazardous locations, temperature ratings, and any specific installation limits. [ul]
UL standards differ depending on the application—general enclosures, industrial control panels, explosion‑proof equipment, and so on. [eaton]
From a purchasing standpoint, if your specification says "UL junction box," verify:
- The exact UL standard (e.g., enclosures, explosion‑proof, industrial control).
- That the rating on the label matches your site (indoor, outdoor, hazardous location class and division). [ul]
As a manufacturer, we routinely design and test boxes to meet UL, IP, and NEMA expectations simultaneously for global deployments.
The ampere rating of a junction box defines the maximum current it is designed to safely carry, in line with conductor sizes, terminals, and heat dissipation. For most projects, designers align box ratings with branch‑circuit ratings and cable cross‑sections. [njsullivan]
Typical current ranges you'll see in junction boxes and terminal boxes include: [njsullivan]
- Around 20–24 A – Common for lighting and small‑load circuits. [njsullivan]
- Around 30–32 A – General multi‑purpose circuits and small power loads. [njsullivan]
- Around 40 A and above – High‑power loads such as showers, cookers, pumps, EV charging sub‑circuits, or industrial motors. [njsullivan]
In our experience, 40 A and above should always be installed and inspected by a qualified electrician, because the thermal and fault behavior becomes much more critical. When you select a box, always ensure: [cnhuntec]
1. The amp rating of the box ≥ circuit rating.
2. Terminals and cable cross‑section are correctly matched.
3. There is enough internal volume to avoid overheating and facilitate heat dissipation. [njsullivan]
Even with the "right" IP or NEMA code on paper, a poor material choice will still fail early under UV, chemicals, or mechanical abuse. [njsullivan]
- Metal (steel, aluminum, stainless) – High impact resistance and fire performance; excellent for industrial and outdoor environments. Stainless or well‑coated steel/aluminum is preferred in corrosive or coastal locations. [casview]
- PVC / plastic (PVC, ABS, polycarbonate) – Lightweight, non‑conductive, corrosion‑resistant, and cost‑effective; well suited for indoor use and many outdoor environments when coupled with a robust IP rating. [smartshop.lk-ea]
- Fiberglass – Strong, non‑conductive, and highly resistant to corrosion, moisture, and chemicals, ideal for aggressive industrial and chemical environments. [casview]
For outdoor use, we typically aim for at least IPx4, but in real‑world industrial or coastal installations we prefer IP65–IP66 with UV‑stable materials. In dusty or high‑moisture environments (car washes, certain factory lines), the minimum recommended is IP6x for dust and a high second digit for water such as IP65 or higher. [rapidonline]
On paper, you can select a rating by reading tables. In practice, experienced specifiers follow a structured checklist based on the environment, application, and regulations. [maidatechenclosure]

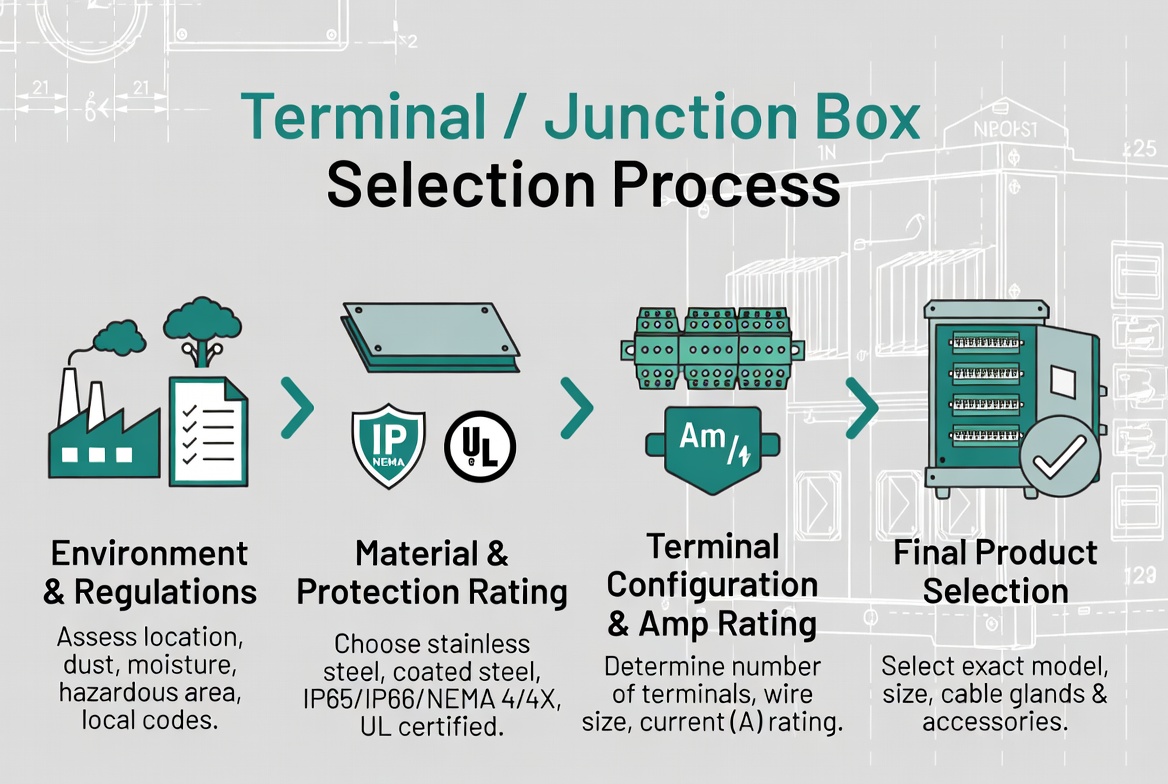

When we support clients on a new line or project, we walk through at least these questions:
1. Where will the box be installed? Indoor panel room, exposed outdoor wall, underground pit, rooftop, or near the sea. [rapidonline]
2. What are the environmental stresses? Dust, salt spray, chemicals, UV, wash‑down, vibration, or temperature extremes. [eaton]
3. What are the electrical and regulatory requirements? Circuit amperage, local code (e.g., NEC), UL or CE, hazardous location classification if any. [ul]
4. How many cables and terminations? This drives box size, number of terminals, and gland/knock‑out layout. [rapidonline]
Then we translate that into:
- IP or NEMA rating (e.g., IP66 or NEMA 4X for outdoor wash‑down). [eabel]
- Material (e.g., stainless steel near the sea, coated steel indoors, polycarbonate for light weight and visibility). [casview]
- UL or equivalent certificate where mandated. [ul]
- Terminal configuration and amp rating in line with the load and cable sizes. [njsullivan]
This structured approach dramatically reduces rework and site modifications during commissioning.

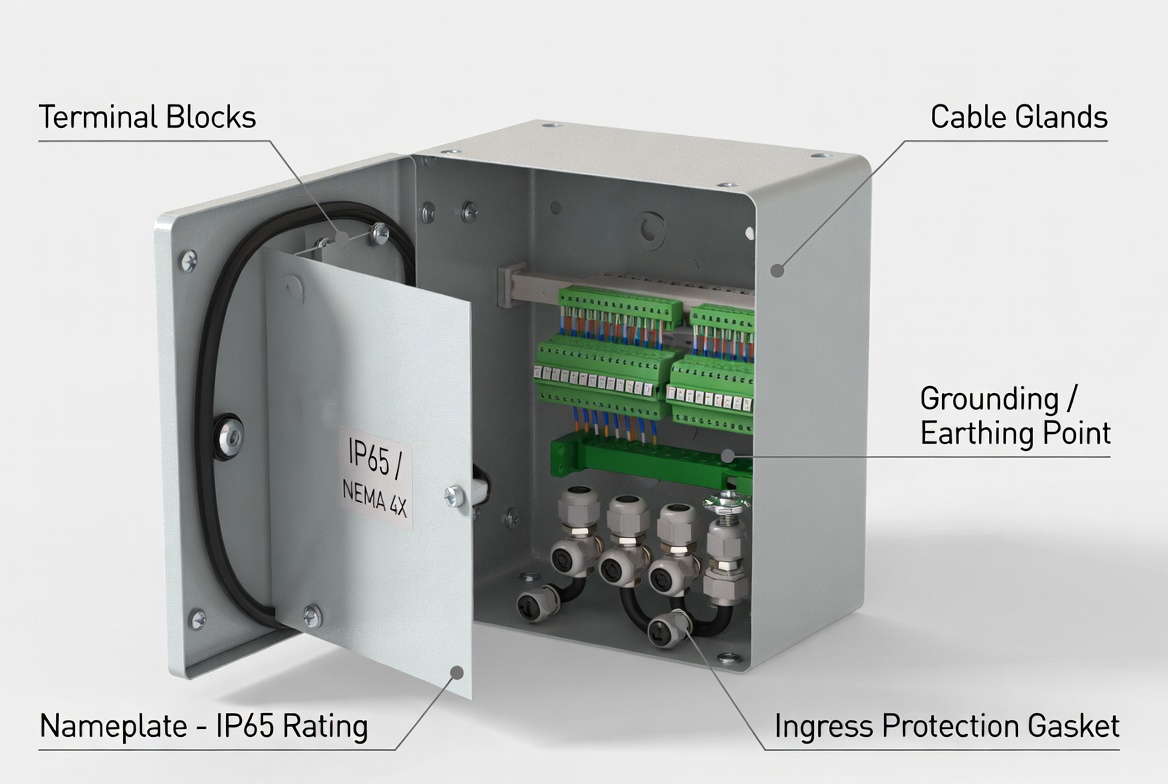

Many modern installations use junction boxes with integrated terminals to simplify wiring and maintenance. These are especially common in industrial automation, sensors, pumps, and modular equipment. [viox]
Typical terminal boxes include 3–6 terminals, allowing multiple cable cores to be joined neatly within one enclosure. Some industrial boxes use main terminal blocks that support combinations like 2 × 25 mm² + 2 × 16 mm² per pole, offering flexibility for incoming and outgoing cables. [njsullivan]
When specifying these boxes, make sure that:
- The number of terminals matches the number of circuits and splices you plan.
- The terminal cross‑section range matches your cable sizes.
- The box amp rating is not exceeded by the load and diversity factor. [cnhuntec]
Combining the right internal terminal layout with appropriate IP/NEMA and UL ratings is what makes a terminal box reliable for the lifetime of the equipment.
Working with projects in energy storage, EV charging, industrial IoT, and smart factories, we see some recurring rating issues that cause avoidable failures: [rapidonline]

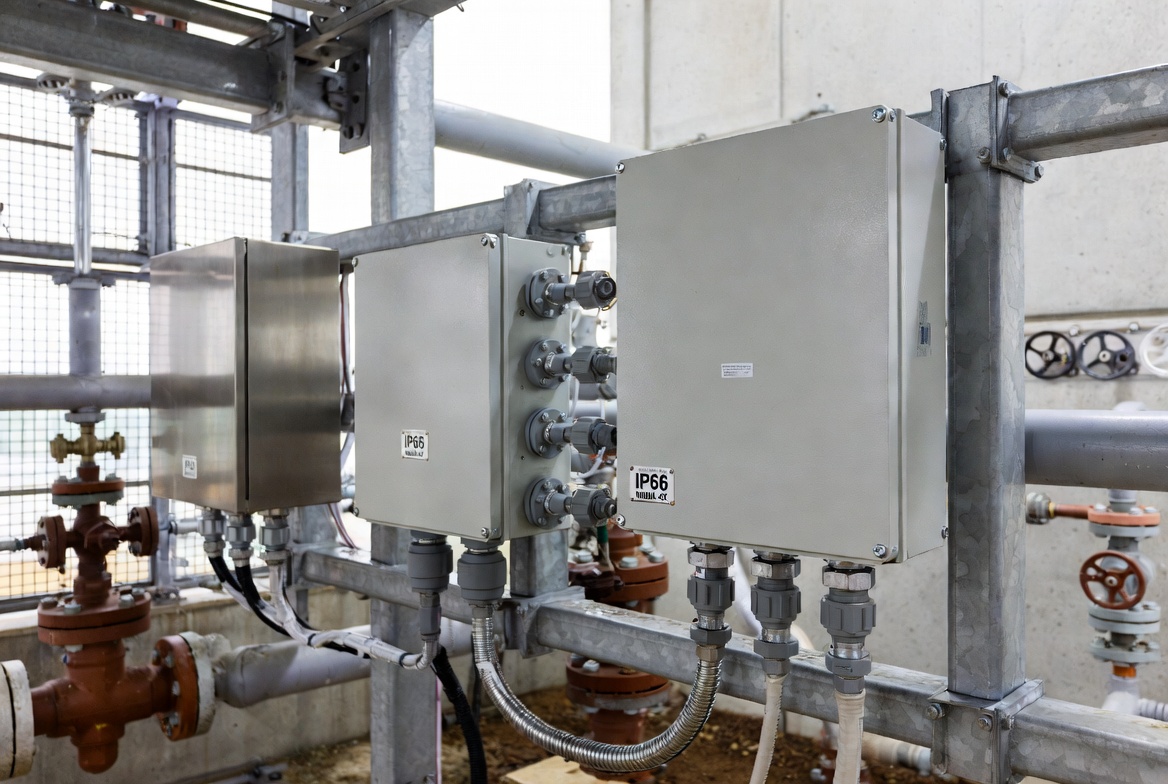

- Underestimating UV and weather in rooftop ESS and solar projects: plastic boxes without UV‑stable materials or adequate IP rating become brittle or leak within a few years. [rapidonline]
- Ignoring condensation inside outdoor or partially conditioned enclosures, leading to corrosion and tracking across terminals. [eaton]
- Mixing "indoor grade" terminal boxes with outdoor pump or EV applications, where spray, road salt, and vibration demand more robust IP/NEMA levels and materials. [rapidonline]
For these sectors, we strongly recommend:
- At least IP65–IP66, or NEMA 4/4X, for exposed locations. [eabel]
- Corrosion‑resistant materials (stainless steel or well‑coated aluminum/steel). [eaton]
- Verified third‑party test reports for IP/NEMA and, where relevant, UL or equivalent. [ul]
The table below summarizes practical rating choices we often recommend to industrial and OEM clients.
| Scenario / environment | Recommended IP / NEMA rating | Preferred materials |
|---|---|---|
| Indoor dry panel room | IP20–IP54, NEMA 1 | Coated steel, aluminum, PVC/ABS (njsullivan) |
| Light indoor industrial, occasional dust | IP54–IP65, NEMA 12 | Coated steel, polycarbonate (rapidonline) |
| Outdoor general (no wash‑down) | IP65–IP66, NEMA 3/3R/4 | Coated steel, aluminum, UV‑stable plastic (eabel) |
| Outdoor wash‑down / food / marine | IP66, NEMA 4X | Stainless steel, high‑grade coated aluminum (eaton) |
| Dust‑heavy industrial (cement, grain, mining) | IP65–IP66 or higher (IP6x), NEMA 4/4X or 12/13 | Coated steel, stainless, fiberglass (casview) |
| Immersion / pits / pumps | IP67–IP68 (plus correct cable glands) | Coated metal or high‑grade plastic (rapidonline) |
| New energy, EV, rooftop ESS | IP65–IP66, NEMA 4/4X, UV‑resistant materials | Stainless, coated aluminum, polycarbonate (eabel) |
This table is not a replacement for local codes, but it reflects what works reliably on real projects.
If you are designing or sourcing junction boxes or terminal boxes for power systems, telecom networks, industrial machines, buildings, new energy storage, EV infrastructure, or water pumps, aligning NEMA/IP/UL ratings, amp capacity, and material is critical for long‑term reliability and compliance. [njsullivan]
As a specialized manufacturer of electrical enclosures and terminal boxes, our engineering team can help you:
- Review your drawings or BOM and match appropriate junction box ratings.
- Optimize material and layout for your environment and export markets.
- Provide documentation and test reports that satisfy inspectors and end users. [maidatechenclosure]
If you have a current project, share your key requirements (environment, voltage, current, standards), and we'll recommend a junction box solution that fits—before issues appear on site.
1. What is the difference between NEMA and IP ratings for junction boxes?
NEMA ratings describe enclosure performance against environmental conditions such as dust, water, ice, and in some cases corrosion, mostly in North American markets. IP ratings describe protection against solid objects and water ingress using a two‑digit code and are used internationally; they do not cover corrosion or icing. [eabel]
2. How do I know what IP rating my project needs?
Start with the installation environment and exposure: indoor dry, outdoor weather, wash‑down, dust, or immersion. Then select an IP rating that covers dust (first digit) and water (second digit) with margin—e.g., IP65–IP66 for most outdoor industrial applications. [rapidonline]
3. Do I always need a UL‑rated junction box?
You need UL or equivalent certification where local codes, inspectors, or end customers require it, particularly in North America and some regulated industries. In other regions, IP and NEMA ratings plus CE or other regional approvals may be sufficient, but you should confirm with local regulations and project specifications. [ul]
4. Can I convert a NEMA rating directly to an IP rating?
There is no exact one‑to‑one conversion because NEMA and IP measure different things, but approximate equivalences can guide initial selection, such as NEMA 4X being broadly comparable to IP66 for dust and water resistance. Always check the specific environmental conditions instead of relying on conversion tables alone. [eabel]
5. How do terminal configurations affect junction box selection?
Terminal count and cross‑section dictate the internal layout, minimum box volume, and heat dissipation, especially at higher currents. Ensure the terminal configuration, ampere rating, and IP/NEMA rating all align with the circuit design and environment to avoid overheating and maintenance problems. [cnhuntec]
