When you choose between different electrical junction box types, you are not just picking a metal or plastic box—you are deciding how safe, scalable, and maintainable your entire electrical system will be over the next 10–20 years. As a manufacturer of sheet‑metal junction and terminal boxes serving power, communication, industrial automation, building, and new energy projects, I see every day how the right enclosure design prevents failures that never make it into the news. [eandisales]
An electrical junction box is an enclosure designed to protect and organize wire splices, terminations, and branching connections. It keeps live conductors away from people, shields connections from dust and moisture, and helps prevent short circuits and fire hazards. [topcabinet]
From a designer or maintenance engineer's point of view, a good junction box should:
- Match the environmental protection level needed (NEMA or IP rating). [cdn.automationdirect]
- Offer enough internal volume for conductors, terminals, and future spare capacity. [eandisales]
- Be mechanically robust enough for the installation environment (indoor panel, outdoor wall, moving equipment, etc.). [eaton]
- Make inspection, troubleshooting, and replacement fast and predictable over the full lifecycle. [cdn.automationdirect]
You can imagine a typical example: a rooftop PV combiner box that must survive UV, rain, salt spray, and thermal cycling for 20 years while keeping DC connections safe. If you choose the wrong enclosure material or IP rating at the beginning, no amount of "good wiring practice" can fully compensate later.

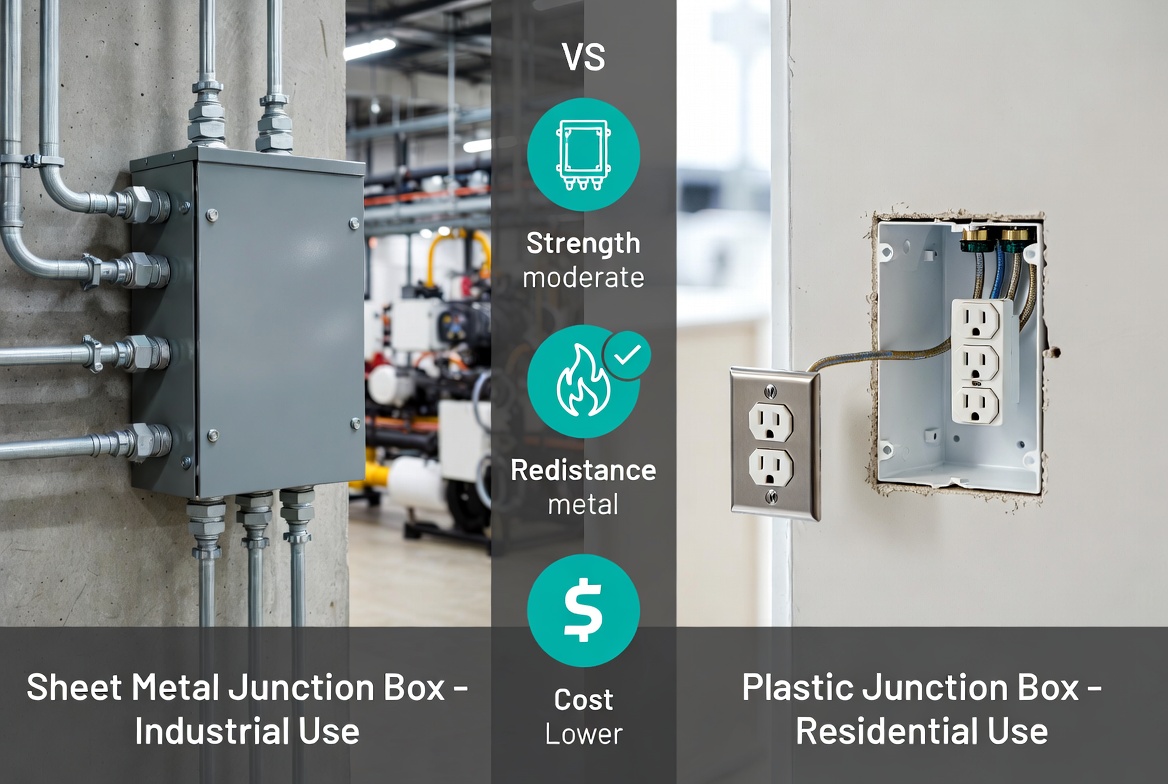

Choosing the right junction box material is usually the first decision engineers make. [topcabinet]
Metal junction boxes are commonly made from galvanized steel, stainless steel, or aluminum, and they dominate industrial, commercial, and high‑risk environments. [bohuitechnology]
Key advantages:
- High mechanical strength for factories, workshops, and exposed installations where impact or vibration is common. [eaton]
- Better fire resistance compared with plastic boxes, which is critical in power distribution and industrial automation panels. [eandisales]
- Excellent EMI shielding, important for sensitive control circuits, communication devices, and VFD environments. [eaton]
- Available in a wide range of NEMA and IP ratings (for example NEMA 4/4X or IP65/IP66/IP67 with proper gaskets and sealing hardware). [fiboxusa]
Typical use cases:
- LV/MV power distribution cabinets and terminal boxes in plants. [bohuitechnology]
- Industrial automation systems, PLC I/O junctions, and machine control. [bartakkeenclosures]
- Outdoor power, water treatment, and pump control where robust enclosures are mandatory. [cdn.automationdirect]
Plastic junction boxes are usually made from PVC or other thermoplastic materials and remain the default in many residential and light commercial projects. [topcabinet]
Main characteristics:
- Lightweight and easy to cut or drill on site. [eandisales]
- Naturally corrosion‑resistant, useful in humid or chemically aggressive atmospheres when loads are modest. [eabel]
- Often more cost‑effective for small installations and non‑critical environments. [topcabinet]
- Available in IP‑rated versions for basic outdoor and damp‑location use. [eabel]
Limitations:
- Lower impact and heat resistance compared with sheet‑metal boxes. [cdn.automationdirect]
- Less suitable for high‑fault‑current systems or locations where fire load and risk are high. [eandisales]
In practice, many facilities mix materials: plastic junction boxes for low‑risk indoor circuits, and metal terminal boxes for power, control, and communication backbones.
Beyond material, the geometry and mounting style of a junction box strongly affect wiring convenience and compliance. [topcabinet]
| Junction box design | Typical use in the field | Notes on selection |
|---|---|---|
| Rectangular box | Wall outlets, switches, small control points | Versatile, standard cut‑outs, good for residential/light commercial. (eandisales) |
| Round / octagonal box | Ceiling lights, smoke detectors, light fans | Centered mounting on ceilings; check load rating. (eandisales) |
| Square box | Larger conductor volume, fan connections, industrial junctions | Often used where multiple cables converge. (eandisales) |
| Weatherproof box | Outdoor outlets, lighting, equipment feeds | Needs proper gaskets and IP/NEMA rating. (eandisales) |
| Surface‑mounted box | Retrofits, exposed conduits, industrial machines | Easier to inspect and modify later. (eandisales) |
| Flush‑mounted box | New construction walls and ceilings | Clean aesthetics; plan routing early in design. (eandisales) |
Engineers should match design to:
- Conductor count and size.
- Device type (outlet, breaker, terminal strip, sensor).
- Available mounting surface and accessibility for future maintenance.
As systems move outdoors, into hazardous zones, or into networked and intelligent applications, general‑purpose boxes are not enough. [bartakkeenclosures]

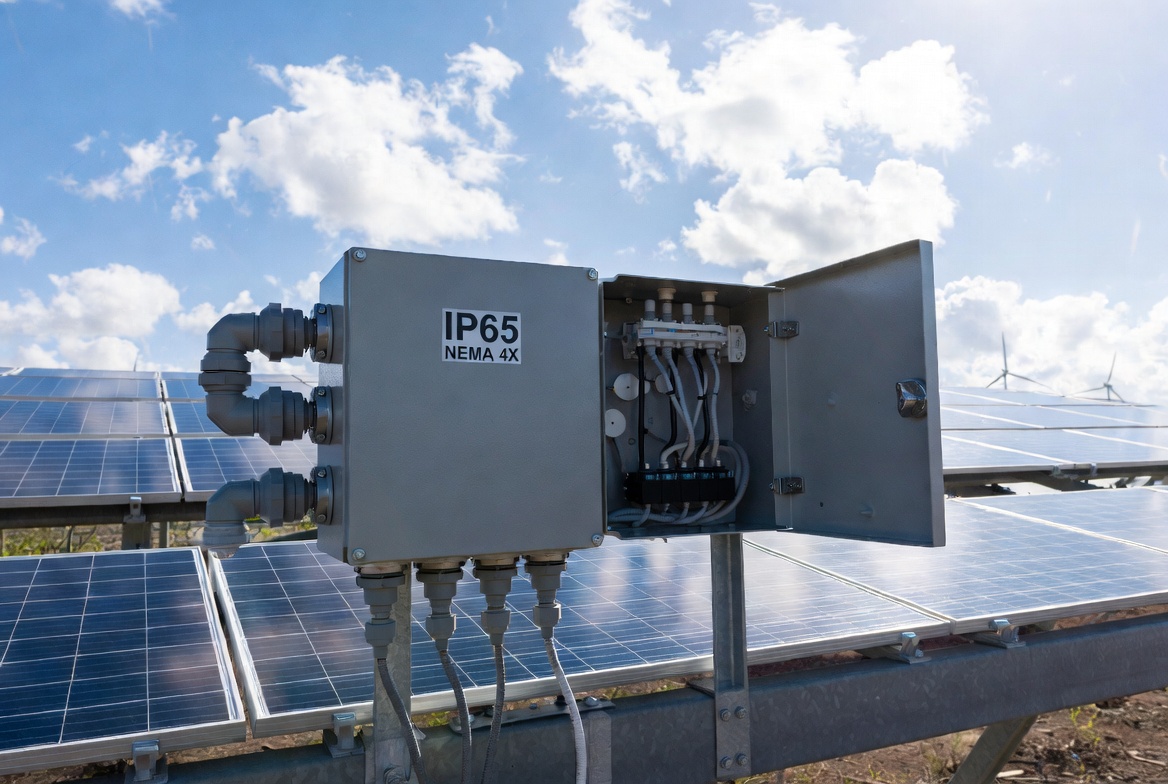

Outdoor and waterproof junction boxes (often rated IP65, IP66, or IP67, or NEMA 4/4X) are built to keep out dust and water jets or temporary immersion. Typical features include: [nemaenclosures]
- Gasketed doors or covers with uniform compression. [nemaenclosures]
- Corrosion‑resistant materials and coatings (stainless steel, powder‑coated steel, or UV‑stabilized polymers). [eabel]
- Cable glands or sealed conduit entries that maintain IP integrity. [fiboxusa]
Use cases:
- Outdoor lighting, CCTV, and access control terminations. [bartakkeenclosures]
- Rooftop solar string junction boxes and combiner boxes. [eabel]
- Water and wastewater pumps, irrigation, and remote telemetry panels. [eaton]
In oil, gas, chemical, and dust‑hazard environments, explosion‑proof or hazardous‑location junction boxes prevent ignition of flammable atmospheres. [budind]
Typical characteristics:
- Heavy‑duty cast or thick‑gauge metallic construction. [bartakkeenclosures]
- Certified to hazardous‑location standards (e.g., NEMA 7/8/9 or related IECEx/ATEX categories). [budind]
- Carefully designed joints and flame paths to contain internal explosions. [bartakkeenclosures]
These boxes are expensive and heavy, but from a safety standpoint they are non‑negotiable whenever regulations require them.
Modern systems increasingly use junction boxes tailored to specific devices or wiring philosophies. [eabel]
- CCTV junction boxes integrate mounting points and cable management for cameras, simplifying installation and service. [bartakkeenclosures]
- Conduit boxes and bodies provide pull points and directional changes in conduit systems, improving cable pulling and inspection. [cdn.automationdirect]
- Maintenance‑free junction boxes are sealed to prevent tampering and are used where periodic re‑termination is not desired, for example in certain building wiring schemes. [eabel]
For OEM designers, selecting these special‑purpose enclosures early in the design reduces field modification and warranty issues later.
When multiple switches, outlets, or terminal strips must share one location, multi‑gang junction boxes are the logical choice. [eandisales]
Common formats:
- 2‑gang: dual switches or outlet plus control point.
- 3‑gang: lighting scenes, grouped controls, or three‑device combinations.
- 4‑gang and above: complex control stations, industrial HMI plus emergency stops, or dense terminal blocks. [eandisales]
Design considerations:
- Allow enough depth for device bodies and conductor bending radius.
- Respect volume fill rules in your local electrical code. [homedepot]
- Plan labeling and internal layout so that future technicians instantly understand each circuit.
In industrial cabinets, the same logic applies to sheet‑metal terminal boxes with multiple DIN‑rail rows and layered terminal blocks: they are essentially "multi‑gang" enclosures at a higher scale.
From an engineer's and manufacturer's viewpoint, the real skill is not knowing all the box names, but making repeatable, defensible selections for each project. [cdn.automationdirect]
Here is a simple field‑tested checklist:
1. Define the environment clearly
- Indoor, sheltered outdoor, fully exposed outdoor, or hazardous location. [eaton]
- Temperature range, presence of dust, chemicals, or wash‑down. [eaton]

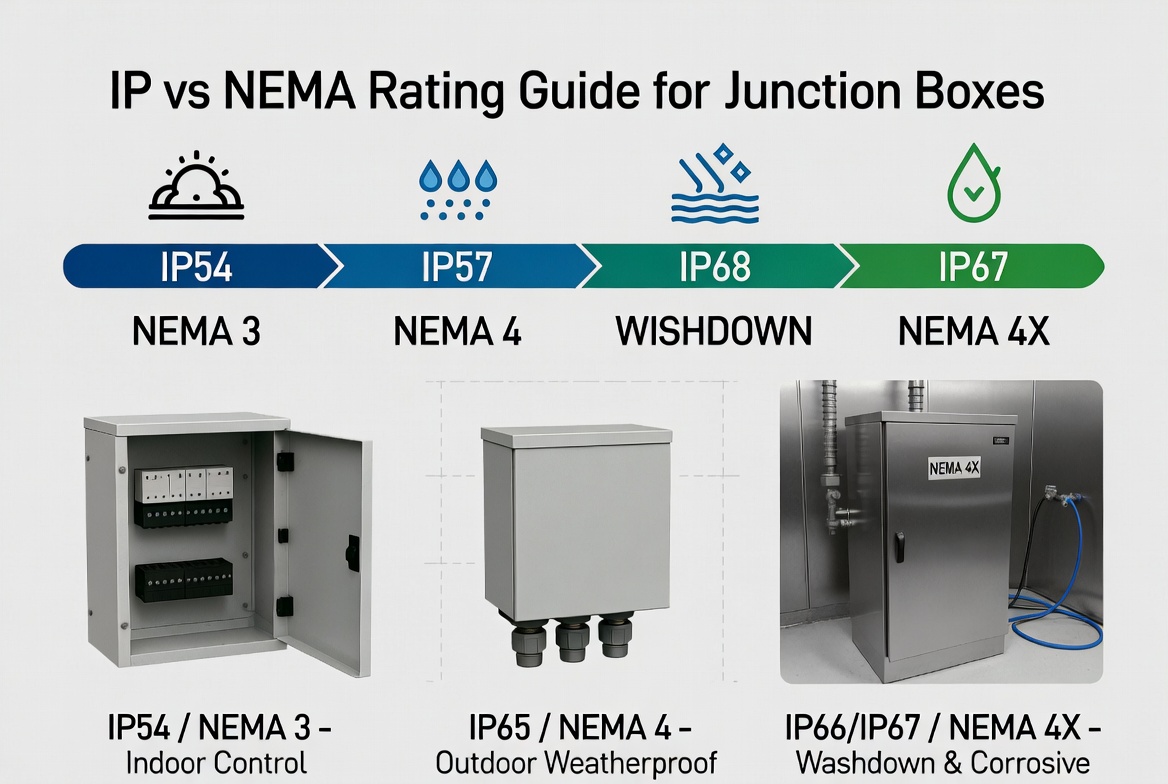

2. Select required protection ratings
- Pick the appropriate NEMA or IP rating according to environment and regulations. [budind]
- Use rating tables to avoid over‑ or under‑specifying protection. [fiboxusa]
3. Determine conductor and device density
- Count circuits, cable sizes, and terminals, then add margin for future expansion. [topcabinet]
- Verify box volume and layout against code requirements. [homedepot]
4. Choose material and form factor
- Metal vs plastic, surface vs flush, rectangular vs square vs special format. [topcabinet]
- For industrial automation and energy storage, sheet‑metal boxes with modular mounting options usually offer the best lifecycle value. [bohuitechnology]
5. Plan for installation and maintenance
- Ensure access for testing, tightening, and replacing components. [cdn.automationdirect]
- Consider door opening direction, hinge robustness, and internal wiring space when doors are open. [eaton]
6. Align with project documentation
- Make junction box choices visible in drawings, BOMs, and specifications so purchasing and installers do not "value‑engineer" them down without understanding the risk. [gorilla76]
If you consistently follow this process, the variety of electrical junction box types becomes an advantage instead of a source of confusion.
Across the projects we support in power, new energy, and intelligent manufacturing, several trends are reshaping how engineers think about enclosures and terminal boxes. [bohuitechnology]
- Higher integration: More electronics, communication modules, and sensors are packed into each box, which increases heat density and EMC concerns. [bartakkeenclosures]
- Stricter environmental requirements: Outdoor and field equipment increasingly demands IP65–IP67 or equivalent NEMA ratings due to harsher climates and longer design lifetimes. [nemaenclosures]
- Customization at scale: Standard boxes seldom fit complex industrial or energy‑storage layouts, so OEMs want configurable sheet‑metal enclosures with tailored cut‑outs and mounting patterns. [bohuitechnology]
- Faster project cycles: Shorter lead times mean you need suppliers who can combine CNC sheet‑metal production with engineering support to deliver reliable junction boxes quickly. [bohuitechnology]
For buyers and project managers, partnering with a manufacturer experienced in terminal boxes, distribution boxes, and custom sheet‑metal enclosures can significantly reduce total project risk, not just component costs. [bohuitechnology]
Consider a real‑world scenario from industrial water treatment: an OEM originally used small plastic junction boxes (basic splash‑resistant models) on exposed outdoor pump skids. Within two rainy seasons, several boxes filled with condensation, corroded terminals, and caused intermittent faults.
When the system was redesigned using stainless‑steel IP66 sheet‑metal junction boxes with proper cable glands and drain/breather fittings, the failure rate dropped dramatically and on‑site troubleshooting time was cut in half. The box cost per unit was higher, but the total cost of ownership fell once unplanned downtime and emergency visits were considered. [eaton]
This pattern is common: what looks like a "small box decision" at design time becomes a major reliability lever once the system is operating in the real environment.
If you are planning a new power, communication, industrial automation, building, or new‑energy project, the best time to optimize your electrical junction box types is right now—at the specification stage. Our team at Ningbo Bohui combines more than two decades of sheet‑metal enclosure experience with modern CNC production and application know‑how, so we can help you translate real‑world conditions into robust, cost‑effective junction and terminal box designs. [bohuitechnology]
Share your single‑line diagrams, environmental requirements, and target standards with us, and we will work with your engineering and procurement teams to specify junction and terminal boxes that reduce lifecycle risk instead of adding to it. [bohuitechnology]
1. What is the difference between a junction box and a terminal box?
A junction box is any enclosure that houses wire splices, while a terminal box specifically includes terminal blocks for organized, frequently serviceable connections in power or control circuits. [eandisales]
2. How do I choose between metal and plastic junction boxes?
Use metal boxes in industrial, high‑risk, or high‑current environments where mechanical strength, fire resistance, and EMC shielding are important; use plastic boxes for lighter‑duty indoor or residential applications where cost and corrosion resistance are priorities. [topcabinet]
3. Why are IP and NEMA ratings important when selecting electrical junction box types?
IP and NEMA ratings define how well an enclosure protects against dust, water, and other environmental factors; choosing the right rating ensures long‑term safety and reduces field failures. [fiboxusa]
4. Can one junction box type work for both indoor and outdoor installations?
Some enclosures are rated for both indoor and outdoor use, but only if they meet the appropriate NEMA or IP standard and use proper seals and cable entries; never assume an indoor box is outdoor‑ready without checking its rating. [cdn.automationdirect]
5. When should I consider explosion-proof junction boxes?
You should specify explosion‑proof or hazardous‑location junction boxes whenever your installation is in an area classified for flammable gases, vapors, or combustible dusts according to relevant electrical codes and industry standards. [budind]
