As a manufacturer who has spent years designing and supplying underground electrical junction boxes and terminal boxes for power, telecom, industrial automation, and new energy projects, I have seen one simple truth: the quality of your enclosure determines the reliability of your entire underground wiring system. [parashifttech]
In this guide, I'll walk you through how underground electrical junction boxes really work in the field, how to choose the right enclosure material and protection level, how to install for decades of trouble‑free operation, and what I've learned from real customer feedback and job‑site failures. [parashifttech]
An underground electrical junction box is a sealed enclosure installed below ground to protect cable splices, terminations, and branching connections in power, communication, or control circuits.
These boxes act as secure access points along underground cable runs, so technicians can safely connect, extend, or maintain circuits without exposing live conductors to soil, water, or accidental contact.
From smart factories to EV charging, more systems are moving cables underground for safety and aesthetics. Underground junction boxes are now standard in: [parashifttech]
- Power distribution for residential, commercial, and industrial sites.
- Telecom and network backbone infrastructure.
- Building management and industrial automation systems.
- New energy storage, PV arrays, and EV charging corridors. [parashifttech]
- Water pumps, irrigation fields, and municipal utilities.
When properly specified, these boxes deliver:
- Higher safety by reducing exposure to live components and vandalism.
- Better reliability through protection from moisture, chemicals, and impact.
- Cleaner site appearance with cables and connections buried out of sight.
- Easier maintenance thanks to organized, accessible underground connection points.
From a design and manufacturing standpoint, a professional underground junction box must do much more than simply "house cables."
- Provide a protected chamber for splicing, terminating, and branching underground cables.
- Offer organized cable routing with glands, knockouts, DIN rails, or terminal blocks as needed.
- Maintain an effective barrier against water, dust, and soil over the entire service life.
- Withstand mechanical load from soil pressure and occasional surface traffic.
- Remain serviceable and accessible, even years after installation.
- Waterproof and dustproof construction with gaskets, seals, and tight‑fitting lids.
- Impact‑resistant plastic, stainless steel, or composite materials.
- Chemical and corrosion resistance for aggressive soils or industrial areas.
- Clear access points for cable entry and future inspection.
From our factory experience, failures rarely come from the box "breaking." They typically come from poor sealing, wrong material choice, or bad drainage design, which this article will help you avoid. [parashifttech]

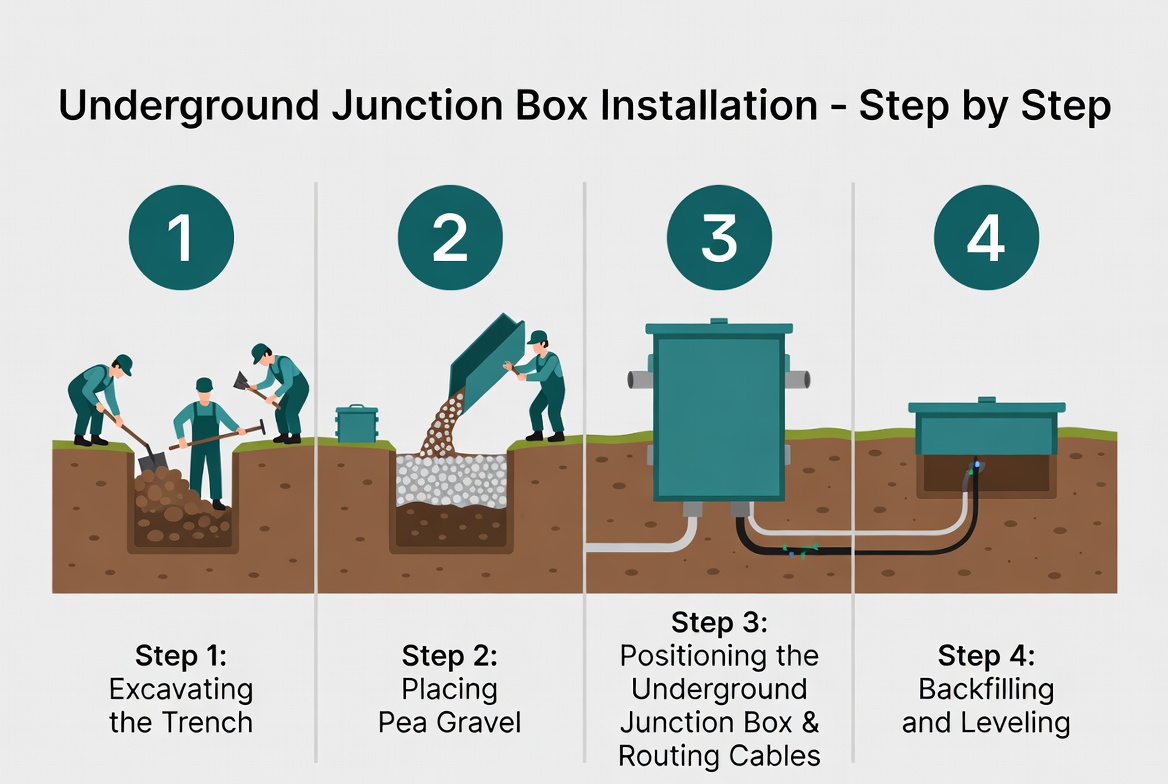

Even the best box will fail if installed incorrectly. Here's how professionals typically approach underground junction box installation.
- Avoid low spots prone to standing water or flooding.
- Keep clear of heavy vehicular traffic unless the box and cover are rated accordingly.
- Plan routes so technicians can access boxes later without demolition.
- Many underground junction boxes are buried at around 18 inches or more, depending on local code, frost line, and application.
- Sidewalks or covers are usually kept close to level (often within about 2% slope) to manage surface water runoff.
- Boxes should be marked on as‑built drawings and, ideally, identified above ground with markers or labels.
- Water accumulation inside boxes due to poor drainage or fully sealed bottoms.
- Condensation in conduits slowly filling the box with water.
- Soil movement or heavy loads deforming non‑rated enclosures.
Experienced contractors address these issues using open‑bottom designs, drainage layers, and proper sealing practices, which we'll cover next.

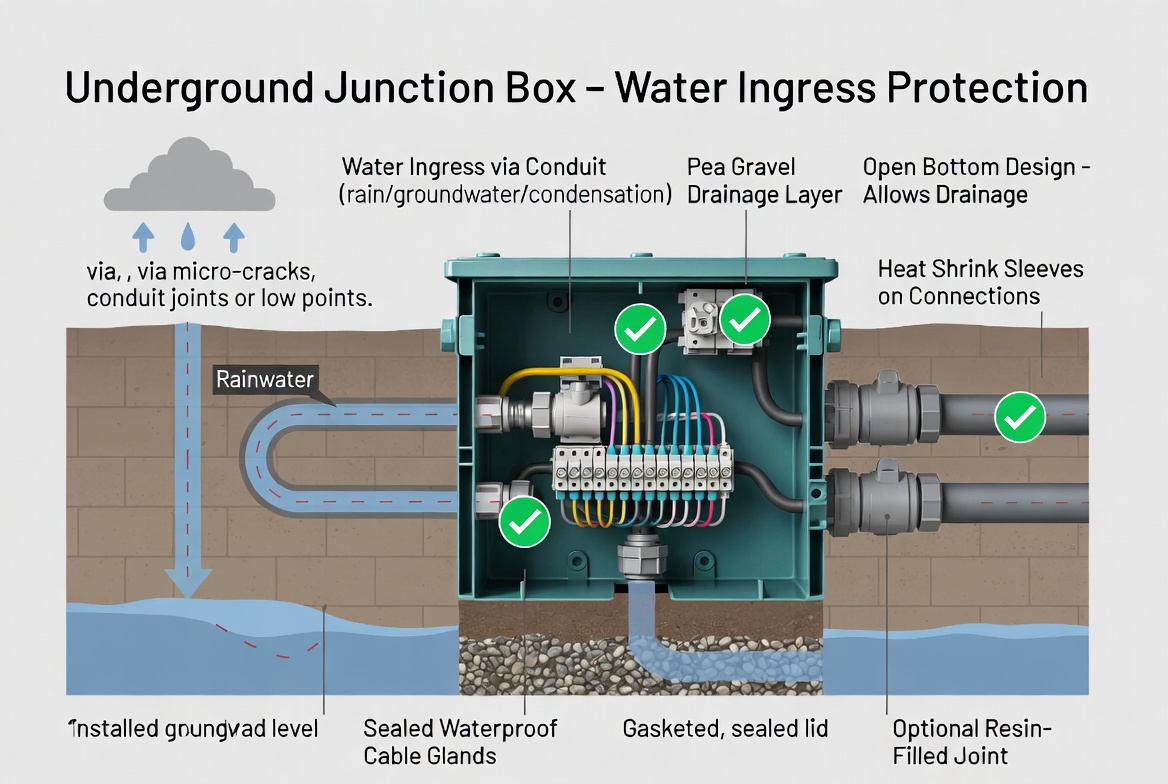

Water is the number one enemy of underground electrical connections. In our projects, the most reliable installations combine waterproofing, drainage, and smart sealing rather than relying on a single layer of protection.
- Use open‑bottom splice boxes so water can naturally drain into the prepared base layer.
- Install a bed of pea gravel or other permeable material under the box to disperse and drain water.
- Avoid installing directly in clay or compacted soil without a drainage layer.
- Use waterproof connectors, heat‑shrink sleeves, and sealing kits at all splices.
- For critical circuits, some project owners specify cast resin joint packages with 2‑component PUR cast resin, fully encapsulating the joint.
- Carefully seal all cable entries with glands or stuffing boxes rated for the required IP or NEMA level.
This combination of drainage plus robust sealing is far more effective than over‑relying on "IP68" labels while ignoring soil and condensation behavior.
Compliance is a core part of E‑E‑A‑T and real‑world reliability. While local requirements vary, some common principles apply. [wildcatdigital.co]
- Junction boxes must be properly sized for conductor fill, bending radius, and future expansion.
- Boxes must be grounded and bonded following applicable national or regional electrical codes.
- Working clearances are typically required around junction boxes; for example, NEC Section 110.26(A) specifies common minimum working spaces for safe access around electrical equipment.
- Many jurisdictions require that junction boxes remain accessible, not permanently buried with no means of access.
- In hazardous or classified locations, boxes must be clearly marked and built to relevant explosion‑proof or flameproof standards.
As a manufacturer, we recommend engineers always cross‑check NEC (or local equivalent), utility specifications, and project standards when selecting box sizes, ratings, and access provisions for underground applications. [parashifttech]
Outdoor and underground environments are harsh on enclosures. Real protection is a combination of materials, design, and testing.
- Watertight seals: Gaskets or rubber seals around the lid to block water and dust ingress.
- Durable materials: Heavy‑duty plastics, aluminum, or stainless steel resist UV, temperature swings, and impact.
- IP or NEMA ratings: These standards define resistance to dust and water; for underground use, project specs often call for high IP (for example, IP65–IP68) or robust NEMA outdoor types.
- Condensation control: Internal design and optional breathers help minimize condensation that could otherwise compromise insulation resistance.
In our own product line, we see that customers who pay attention to both material and sealing design significantly reduce unplanned outages and service calls. [parashifttech]

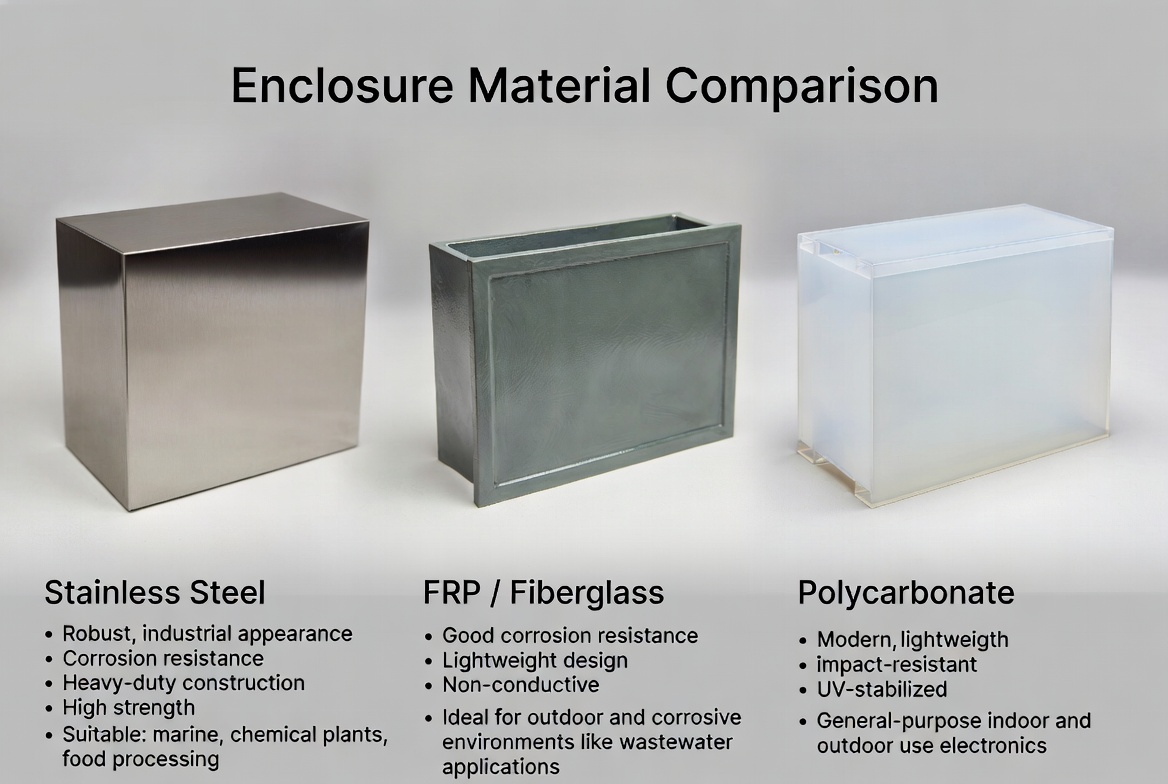

One of the most common questions we get from engineers is: "Which enclosure material should I choose for underground junction boxes?" The answer depends on the environment and mechanical requirements.
| Material | Key advantages | Typical use cases |
|---|---|---|
| Stainless steel | Excellent corrosion resistance, high mechanical strength, long life in harsh or coastal environments. | Industrial plants, chemical zones, coastal or marine projects, critical power. |
| Fiberglass reinforced polyester (FRP) | High chemical resistance, non‑corrosive, lightweight, good electrical insulation. | Corrosive soil, wastewater plants, chemical processing sites. |
| Polycarbonate / engineered plastics | Good impact resistance, lightweight, strong insulation, often cost‑effective. | Light‑industrial, commercial, or utility projects with lower chemical exposure. |
| Advanced composites (e.g., TRUE‑type enclosures) | High strength‑to‑weight ratio, strong chemical resistance, high performance under Tier 15 or Tier 22 loading. | Heavy traffic zones, telecom vaults, large infrastructure corridors. |
Recent material innovations, including advanced composite enclosures and high‑temperature plastics such as specialized polyamides, have significantly improved heat resistance and strength in underground conditions.
Drawing on feedback from project owners, installers, and our own QA testing, three patterns appear again and again. [parashifttech]
1. Water ingress through cable entries
- Low‑quality or incorrectly tightened glands allow gradual water entry.
- Solution: use rated glands, follow torque specs, and select IP / NEMA levels appropriate for the installation.
2. Condensation and long‑term moisture
- Even sealed conduits can slowly fill with water due to temperature cycles.
- Solution: ensure drainage provisions, consider open‑bottom boxes with gravel, and use sealed joints or resins for critical circuits.
3. Material mismatch with the environment
- For example, using light plastic boxes in chemically aggressive soil or where heavy wheel loads are present.
- Solution: match enclosure material and mechanical rating to soil chemistry, external loads, and service life expectations.
From an E‑E‑A‑T perspective, openly discussing these failure modes builds trust, because it reflects real experience instead of generic marketing claims. [wildcatdigital.co]
Sustainability is becoming a serious selection factor in large tenders and infrastructure projects. The good news is that enclosure technology is evolving. [parashifttech]
- Some junction boxes now use post‑consumer recyclate (PCR) plastics, with bases and covers made from recycled LDPE or PP while still meeting performance requirements.
- Fiberglass enclosures can incorporate high percentages of recycled glass, reducing energy usage in production compared with some metals.
- Aluminum enclosures remain attractive due to high recyclability and significantly lower energy consumption when recycling compared to primary smelting.
When discussing underground electrical junction boxes with specifiers, we increasingly see sustainability checklists alongside traditional IP, load, and corrosion requirements. [parashifttech]
To help engineers, EPC contractors, and buyers, here is a practical, repeatable approach you can apply when specifying junction boxes.
1. Define the application and environment
- Power vs. signal vs. mixed circuits, expected load, voltage level, and presence of chemicals, salt, or heavy surface traffic.
2. Select material and protection level
- Choose between stainless steel, FRP, or high‑grade plastics based on corrosion, impact, and cost.
- Confirm required IP / NEMA rating and any special approvals.
3. Check mechanical and load requirements
- Identify whether the installation is in greenfield areas, sidewalks, or roadways that require certified load ratings (for example, Tier 15 or Tier 22 style performance for high loads).
4. Define connection and layout details
- Number and size of cable entries, terminal blocks, grounding requirements, and space for future circuits.
5. Plan drainage and condensation control
- Decide on open‑bottom vs. closed‑bottom design, gravel bedding, drains, and use of resins or sealed splices where needed.
6. Verify code and utility compliance
- Align with NEC or local electrical code, utility standards, and project specifications for accessibility, labeling, and safety clearances.
Following this checklist dramatically reduces the risk of choosing a box that looks right on paper but fails in the ground.

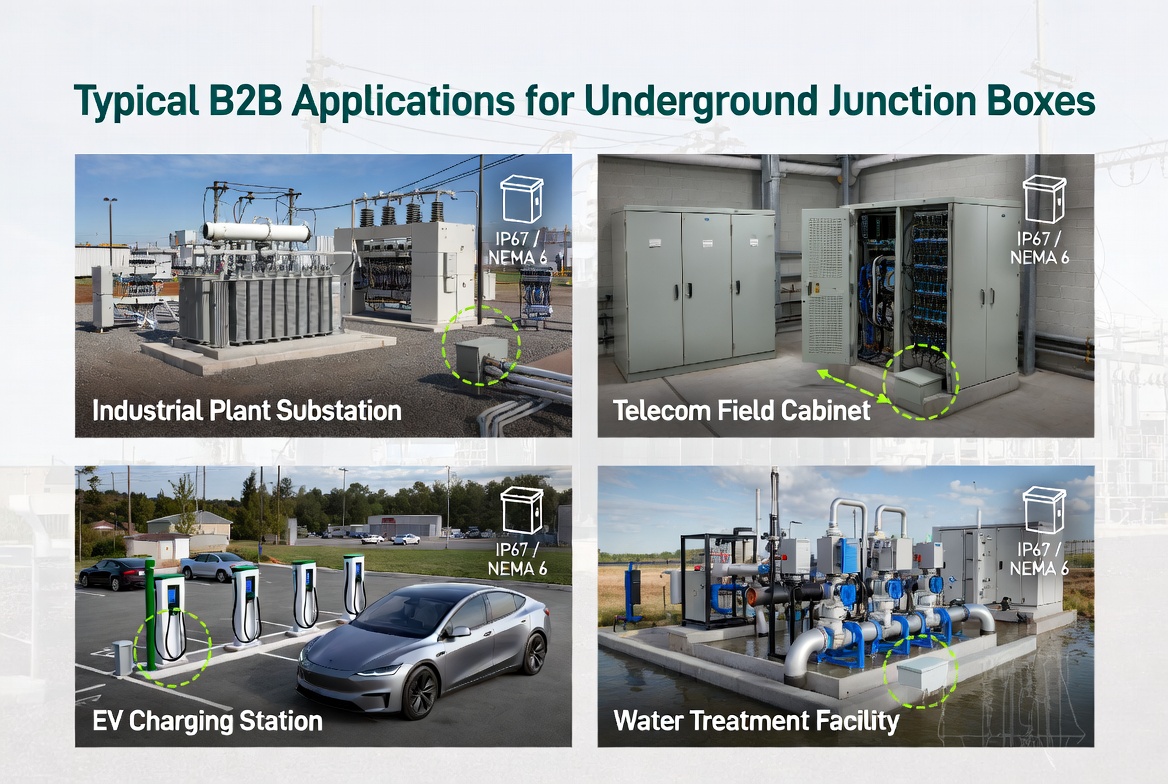

Based on our manufacturing and project support experience, underground junction boxes play a critical role in:
- Power distribution and substations
Connecting transformers, distribution feeders, and street lighting circuits with protected underground splices.
- Telecommunications and data networks
Housing fiber and copper connections in composite or polymer concrete enclosures with Tier‑rated load performance.
- Industrial smart manufacturing lines
Protecting sensor, actuator, and communication cables that run underground to avoid overhead clutter and improve safety. [parashifttech]
- New energy storage and EV infrastructure
Managing complex cable routing for battery energy storage systems and EV chargers where underground routing is preferred for safety and aesthetics.
- Water and wastewater facilities
Providing corrosion‑resistant, often FRP‑based boxes in highly aggressive moisture and chemical environments.
Each of these settings has its own requirements, but the underlying principles—robust enclosure, proper sealing, correct material, and code‑compliant installation—are consistent.
In the manufacturing sector, how you present your real‑world experience, technical expertise, and project reliability is important. [wildcatdigital.co]
Manufacturers can strengthen trust by:
- Publishing clear technical guides and selection tools for junction boxes and enclosures. [parashifttech]
- Sharing project case studies in sectors like power, telecom, new energy, and building automation. [parashifttech]
- Highlighting design capabilities such as OEM/ODM services, custom cut‑outs, and tailored terminal arrangements for specific applications. [tonyhoo]
- Providing certifications, IP / NEMA test reports, and material data sheets openly.
For a company that focuses on terminal boxes and electrical enclosures across multiple industries, turning field feedback into better product design is one of the most powerful ways to demonstrate true expertise online and offline. [parashifttech]
If you are planning or upgrading underground power, telecom, or control systems, the junction box is not the place to cut corners.
Partnering with a specialized enclosure manufacturer allows you to:
- Customize box size, material, and sealing options for your specific environment.
- Integrate terminal blocks, grounding bars, and cable glands at the factory.
- Align your solution with industry standards, utility requirements, and long‑term maintenance needs.
Talk to our engineering team with your project drawings, cable schedules, and environmental conditions, and we can recommend an optimized underground junction box solution that balances cost, safety, and durability over the full life cycle of your installation. [tonyhoo]
1. What IP rating should an underground electrical junction box have?
The required IP rating depends on your environment and installation method, but many underground projects specify IP65 or higher to protect against dust and water jets, and in some critical cases, IP68 for temporary submersion resistance. Always confirm with local code and project specifications.
2. Can I completely seal an underground junction box to keep water out?
Completely sealing the box is rarely enough on its own, because water can enter through conduits or condensation. A better strategy combines proper sealing, open‑bottom or drained bases, and protected splices using resin or waterproof connectors.
3. Which material is best for corrosive soil conditions?
In corrosive or chemically aggressive soils, stainless steel or FRP (fiberglass reinforced polyester) is typically preferred for their strong corrosion resistance and long service life. The final choice depends on specific chemicals, temperature, and mechanical load requirements.
4. How deep should underground junction boxes be installed?
Typical installations place boxes at roughly 18 inches or more below grade, but the exact depth must follow local electrical codes, frost line requirements, and utility or project standards. Deeper installations may be needed in colder climates or for specific voltage levels.
5. How do I ensure long‑term reliability of underground junction boxes?
Focus on correct material selection, robust sealing and drainage design, code‑compliant installation, and accurate as‑built documentation. Working with an experienced enclosure manufacturer and qualified electrical contractor greatly reduces long‑term failure risk. [parashifttech]
