● Understanding the Reality: Why No Universal Size Chart Exists
>> Critical Distinction: Nominal vs. Usable Space
● Size Families by Mounting Configuration
>> Wall-Mount and JIC-Style Enclosures
>> Freestanding and Floor-Mounted Cabinets
>> Small Junction and Electrical Boxes
● Regulatory Requirements Impacting Size Selection
>> NEC Working Clearance Standards
>> UL 508A Industrial Control Panel Standards
>> International Protection Standards: IEC 62208

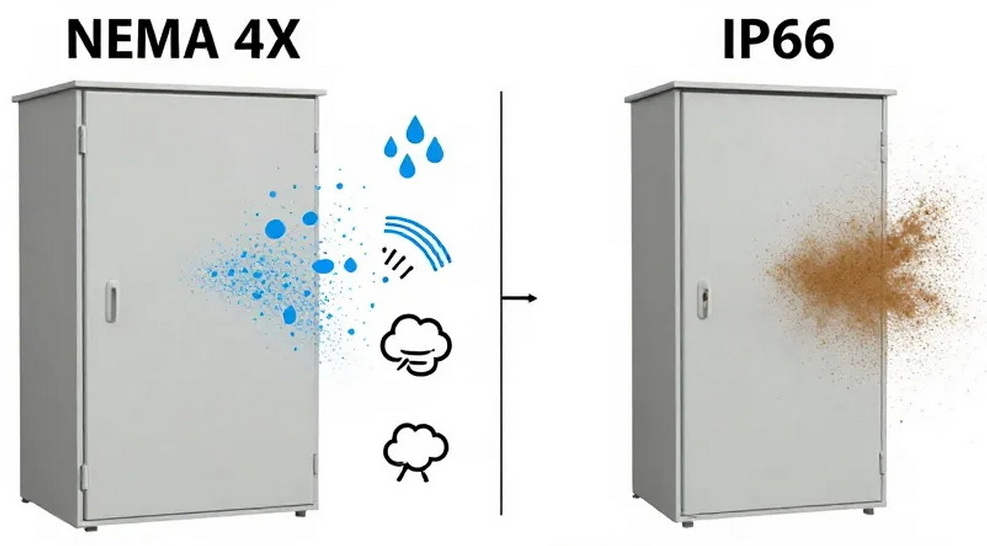

● NEMA and IP Rating Systems: Protection Level Impact on Sizing

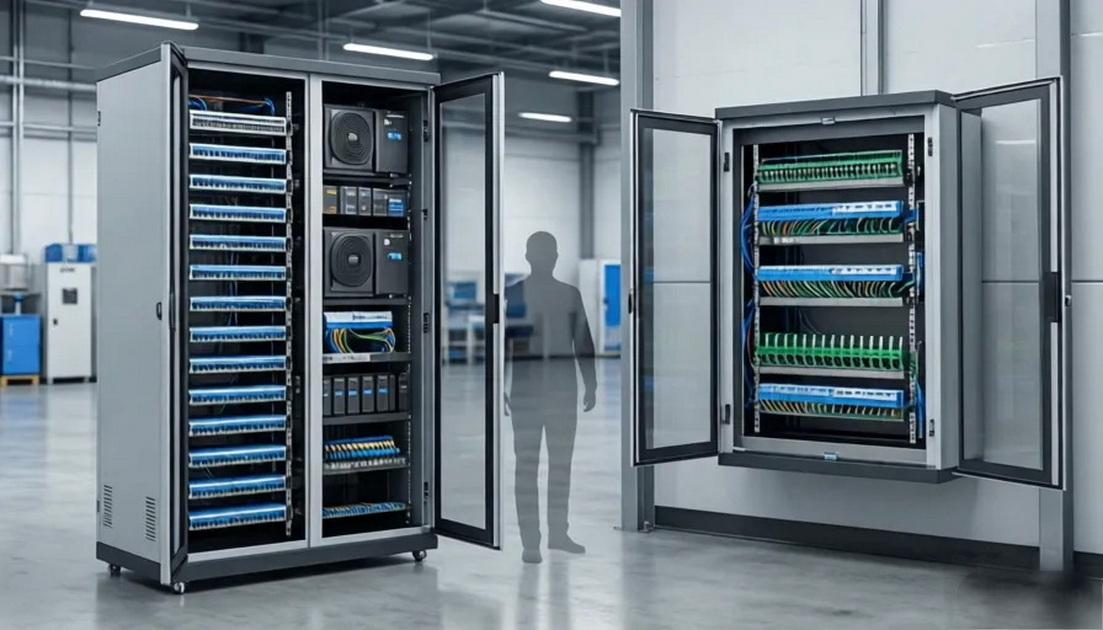

● Internal Layout Considerations That Drive External Size
>> DIN Rail Standards and Mounting Systems
>> Cable Entry Planning and Gland Sizing
>> Cable Bend Radius and Routing Depth
>> Door Swing, Mullions, and HMI Access
● Capacity Planning: The 10-20% Spare Space Rule
● Decision Framework: Standard vs. Custom Enclosures
>> When Standard Sizes Suffice
>> When Custom Fabrication Becomes Necessary
● Practical Size Selection Tables
>> Wall-Mount Enclosure Quick Reference
>> Floor Cabinet Quick Reference
● Expert Procurement Checklist
● Industry Application Insights
>> Power Distribution and Electrical Infrastructure
>> Industrial Automation and Smart Manufacturing
>> New Energy Storage and EV Charging Infrastructure
● Emerging Trends in Enclosure Design
>> Q1. What is the most common wall-mount electrical enclosure size for general industrial automation?
>> Q2. How do I calculate the correct enclosure size for my electrical components?
>> Q3. What's the difference between NEMA 4 and IP66 ratings, and does it affect enclosure size?
>> Q4. When should I choose a custom enclosure instead of a standard catalog size?
>> Q5. How much spare space should I plan for future expansion in an electrical enclosure?
After over two decades of engineering wall-mount enclosures for diverse industrial sectors—from power distribution to new energy storage systems—I've learned that choosing the right enclosure size isn't simply about matching dimensions to equipment. It's a strategic decision that impacts system safety, maintenance efficiency, thermal management, and long-term scalability. This comprehensive guide synthesizes industry standards, real-world installation experience, and regulatory requirements to help engineers, procurement specialists, and facility managers navigate the complex landscape of electrical enclosure sizing. [lianjer]
Many engineers expect a single standardized sizing chart applicable across all enclosure manufacturers, but this fundamental misunderstanding often leads to specification delays. The truth is that "standard sizes" refer to manufacturer-specific size families, not universal dimensions mandated by regulatory bodies. [lianjer]
International standards like IEC 62208 establish performance requirements, testing protocols, and construction specifications for empty enclosures used in low-voltage switchgear assemblies. However, these standards deliberately avoid prescribing specific dimensional grids, allowing manufacturers to innovate and adapt to regional market needs. This approach explains why a 600×400×200 mm enclosure from one European manufacturer might have slightly different internal dimensions than a nominally identical size from a North American supplier. [scribd]
The practical implication for specifiers is clear: always verify actual dimensions from technical drawings rather than relying solely on catalog nomenclature. What vendors call "standard" simply means those sizes are readily available from their product families, ensuring shorter lead times and lower costs compared to fully custom fabrication. [lianjer]
One of the most common sizing errors I encounter involves confusing external (nominal) dimensions with internal (usable) space. Catalog specifications typically list Height × Width × Depth (H×W×D) as outside measurements, which include door thickness, gasket compression zones, mounting flanges, and structural reinforcements. [lianjer]
The actual space available for component mounting is reduced by several factors: gasket sealing surfaces that consume 5-15 mm around the perimeter, formed flanges and wall returns that add structural rigidity, hinge mechanisms and locking hardware protrusions, and cable entry plates that reduce back-wall accessibility. A 400×300×200 mm wall-mount enclosure might provide only 340×240×165 mm of usable mounting area after accounting for these intrusions. [lianjer]
Professional practice requires designing from mounting plate dimensions, not overall enclosure dimensions. Technical drawings should clearly indicate both measurements, along with usable depth zones measured from the inside door surface to mounting plate and from mounting plate to back wall. [lianjer]
Wall-mounted electrical enclosures represent the most common configuration for distributed control systems, motor starters, and local control panels across industrial facilities. These units typically range from 200×200×120 mm for compact junction applications up to 800×600×300 mm for complex automation systems. [chintglobal]
Based on field installations across power distribution, telecommunications networks, and industrial automation projects, the following size categories align with specific application profiles: [lianjer]
Compact Control (200-300 mm class): 200×200×120 mm configurations suit terminal junction boxes, small relay clusters, and sensor interface modules. The 300×300×150 mm footprint accommodates compact PLCs with integrated I/O, single power supplies, and basic terminal blocks. [lianjer]
Standard Automation (400-500 mm class): The 400×300×200 mm format provides adequate space for modular PLCs with separate power supplies and terminal arrangements. Expanding to 500×400×210 mm enables multi-rail layouts with relay banks, circuit breakers, and service loops while maintaining wall-space efficiency. [lianjer]
Advanced Systems (600-800 mm class): The 600×600×210 mm configuration supports expanded I/O systems, HMI interfaces, and communication modules with planned growth capacity. For variable frequency drives, EMI filters, and multi-controller systems, the 800×600×300 mm deep-body design accommodates device depth requirements and complex cable routing. [lianjer]
Critical specification note: Always verify internal mounting plate dimensions on manufacturer technical drawings before finalizing component layouts. A 600×400 mm nominal enclosure typically provides approximately 540×340 mm of actual mounting surface after accounting for structural elements. [lianjer]
Floor-standing enclosures serve as the backbone of centralized control systems, power distribution centers, and process automation hubs where equipment density and accessibility drive sizing decisions. Standard configurations typically span 1600-2200 mm in height, 600-1800 mm in width, and 300-600 mm in depth. [lianjer]
Height selection generally follows equipment requirements and ergonomic access patterns. The 1600 mm height works for compact installations with limited vertical space, while 1800-2000 mm cabinets represent the industrial standard for balanced capacity and serviceability. Taller 2200 mm configurations maximize vertical space utilization in facilities with adequate ceiling clearance. [lianjer]
Width progression enables modular scaling: 600 mm widths suit tight mechanical rooms and corridor installations, 800-1000 mm cabinets provide balanced proportions for general industrial control, 1200-1600 mm wide units support two-column component layouts with central cable routing channels, and some modern single-body series extend up to 1800 mm width, potentially replacing traditional multi-bay suites. [lianjer]
Depth specifications directly impact device compatibility and thermal management. Shallow 300-400 mm depths accommodate terminal marshalling and standard circuit breaker panels, standard 500-600 mm depths fit most industrial drives, controllers, and power supplies with adequate cable bend radius, and deep 800 mm configurations provide clearance for oversized filters, transformers, and extensive cable management systems. [lianjer]
Industry example: Rittal's VX SE series demonstrates advanced single-piece body construction where roof and sidewalls form one continuous unit, improving both IP rating integrity and structural rigidity for heavy-duty applications. [lianjer]
For distributed sensing, field instrumentation, and branch circuit applications, compact plastic or fiberglass-reinforced polymer (FRP) enclosures offer cost-effective environmental protection. These units typically range from hand-portable sizes up to approximately the 300 mm class. [kdmsteel]
Common catalog sizes include 120×160×75 mm for sensor connection boxes, 160×240×90 mm for small terminal assemblies, 200×120×60 mm for outdoor junction applications, and 230×300×85 mm for multi-circuit distribution points. Many models feature optional clear polycarbonate lids for visual inspection without opening, and IP55 to IP66 protection ratings suitable for outdoor or washdown environments. [lianjer]
These enclosures excel in light-duty control panels, remote sensor hubs and network nodes, branch circuit junction points, and temporary or portable electrical installations. [lianjer]
The National Electrical Code (NEC) Article 110.26 establishes mandatory working space requirements around electrical equipment operating at 1000 volts or less. These clearances directly impact enclosure placement and, by extension, size selection decisions. [lianjer]
Minimum working space dimensions require at least 30 inches (762 mm) in width—or the equipment width if greater—and 36 inches (914 mm) in depth for equipment rated 600 V or less under normal conditions. Vertical clearance must extend to 6.5 feet (1.98 m) or to the equipment height, whichever is greater. [lianjer]
Door operation requirements mandate that enclosure doors must open to a minimum 90-degree angle without obstruction. This seemingly simple requirement often forces relocation of adjacent equipment or selection of smaller enclosures in constrained spaces. [lianjer]
Understanding these clearances during initial sizing prevents costly rework when installation reveals insufficient service access. [lianjer]
UL 508A provides comprehensive requirements for industrial control panels operating from supply voltages of 1000 volts or less in general industrial environments. This standard directly influences enclosure sizing through its specifications for component spacing, wiring methods, and short-circuit current rating (SCCR) calculations. [enerconpower]
Component selection and spacing requirements address power circuit segregation from control circuits, minimum conductor spacing based on voltage levels, short-circuit protective device coordination, and thermal derating factors for enclosed equipment. These requirements often add 15-30% to preliminary space calculations based purely on component footprints. [processsolutions]
Practical application: UL 508A-listed panel shops routinely reference manufacturer spacing guidelines and thermal management charts when selecting enclosure sizes. These resources provide proven layouts that satisfy both safety standards and thermal performance requirements. [enerconpower]
Recent revisions to UL 508A have aligned control circuit voltage limits with NFPA 79, now specifying maximum values of 120 VAC or 250 VDC. This harmonization simplifies compliance for manufacturers serving both machinery and general industrial markets. [gt-engineering]
IEC 62208 establishes requirements and testing protocols for empty enclosures intended for low-voltage switchgear and controlgear assemblies. While this standard doesn't prescribe specific dimensions, it significantly impacts sizing decisions through its performance criteria. [lisungroup]
Temperature rise testing requires manufacturers to document internal temperature increases at specified power dissipation levels. These thermal performance characteristics often drive selections toward larger enclosures or models with enhanced ventilation to maintain component operating temperatures within acceptable limits. [scribd]
Mechanical strength requirements ensure enclosures can withstand installation stresses, equipment weight, and operational vibration. Larger enclosures or those housing heavy equipment may require reinforced construction that affects internal space allocation. [webstore.iec]
The standard's test procedures for IP rating verification also influence practical size selection, as maintaining higher IP ratings (IP65, IP66) with larger enclosures becomes progressively more challenging due to increased gasket lengths and sealing surface requirements. [budind]
Environmental protection requirements directly affect both enclosure construction and available internal space. Understanding the relationship between NEMA ratings (prevalent in North America) and IP codes (international standard) enables informed size selection across global projects. [cdn.automationdirect]
NEMA rating fundamentals classify enclosures based on environmental conditions: NEMA 1 provides basic indoor protection against dust and incidental contact, NEMA 12 offers dust-tight construction for industrial environments with oil and coolant exposure, NEMA 4 and 4X deliver outdoor protection against water intrusion and corrosion, and NEMA 6P ensures submersion protection for specific depth and time periods. [spep]
IP code structure uses two digits where the first indicates solid particle protection (0-6 scale) and the second indicates liquid ingress protection (0-8 scale). Common equivalencies include NEMA 1 ≈ IP20, NEMA 12 ≈ IP54, NEMA 4/4X ≈ IP66, and NEMA 6P ≈ IP68. [generaldigital]
Sizing implications: Higher protection ratings require thicker gasket seals, more robust door latching mechanisms, and enhanced sealing around cable entries—all of which reduce usable internal space. A NEMA 4X enclosure of identical external dimensions to a NEMA 1 unit may provide 10-15% less usable mounting area due to sealing requirements. [budind]
IEC 60715 defines standardized mounting rail profiles used throughout industrial control systems. The two primary configurations—TH35-7.5 (35×7.5 mm) and TH35-15 (35×15 mm)—accommodate the vast majority of circuit breakers, power supplies, terminal blocks, and control relays. [lianjer]
Vertical spacing requirements extend beyond simple device height. Proper installations include label clearance above and below devices (typically 10-15 mm), service loop accommodation for wire routing (20-30 mm minimum), and access clearance for device removal and maintenance (manufacturer-specific, often 25-50 mm). [lianjer]
Deep devices such as multi-pole circuit breakers, power supplies with rear connectors, or industrial Ethernet switches may necessitate TH35-15 rails for adequate rear clearance. This seemingly minor detail can force selection of deeper enclosure depths (from 200 mm to 250-300 mm) to maintain proper spacing. [lianjer]
Inadequate cable entry planning represents one of the most common reasons for emergency enclosure upsizing during installation. Gland plate sizing should occur early in the design process using these steps: inventory all incoming and outgoing cables with accurate outer diameter measurements, select appropriate gland thread standards (metric M sizes, European PG sizes, or North American NPT) based on regional availability, calculate total gland plate area including wrench clearance (typically 1.5-2× the gland hex diameter), and verify gland IP/NEMA ratings match or exceed enclosure requirements. [lianjer]
Critical specification: A single undersized or improperly rated cable gland downgrades the entire enclosure's environmental protection. A NEMA 4X enclosure with one NEMA 1-rated gland effectively becomes NEMA 1 for overall system protection. [lianjer]
Gland manufacturers provide detailed sizing charts matching cable outer diameter ranges to specific gland models. Maintaining a 1-2 mm margin accounts for cable jacket tolerance and armor configurations. [lianjer]
Cable manufacturer specifications typically mandate minimum bend radius values, commonly expressed as multiples of cable outer diameter. A conservative guideline suggests minimum bend radius ≥ 6× cable OD for general-purpose cables, though shielded, armored, or fiber-optic cables may require 8-12× OD or greater. [lianjer]
Practical impact on enclosure depth: For a 20 mm OD power cable requiring 6× bend radius (120 mm radius), effective routing within the enclosure requires approximately 250-300 mm of depth to accommodate the bend plus termination hardware and service clearance. This calculation often drives selection from 200 mm depth enclosures to 250-300 mm configurations. [lianjer]
Large conductor cross-sections, multiple cable layers, and shielded control cables all demand additional depth allocation for cable guides, strain relief hardware, and thermal separation from power circuits. [lianjer]
Hinged door operation consumes lateral space that must be verified against installation site constraints. Minimum 90-degree door opening satisfies basic code requirements, but 120-150 degree swing greatly improves maintenance access. [lianjer]
For double-door cabinets, center mullions reduce effective mounting width by 40-80 mm depending on construction style. Technical drawings should clearly indicate usable width between mullions for accurate component layout. [lianjer]
HMI window frames similarly reduce mounting area. A 300×200 mm HMI cutout with mounting frame may consume 350×250 mm of mounting plate area, including clearance for internal mounting brackets and wire routing. [lianjer]
Experienced panel designers consistently recommend reserving 10-20% spare mounting space beyond initial component requirements, with many practitioners targeting the higher 20% value as standard practice. This seemingly excessive margin provides critical benefits including future I/O expansion capacity without panel replacement, accommodation of engineering changes during construction, thermal relief through improved air circulation, and service loop routing without cable congestion. [lianjer]
Cost-benefit analysis consistently demonstrates that the marginal cost of one size increment (typically 10-15% price increase) is dramatically lower than the cost of discovering inadequate space during installation (often requiring complete panel reconstruction and project delays). [lianjer]
The spare space rule becomes particularly critical in automated manufacturing, where production uptime depends on rapid troubleshooting and component replacement. Cramped panels significantly extend service time and increase error rates during maintenance. [lianjer]
Catalog enclosures from established manufacturers offer compelling advantages for mainstream applications: immediate or short lead times (1-4 weeks vs. 8-16 weeks for custom), lower unit costs due to production scale, proven design with established IP/NEMA ratings and certifications, and replacement part availability for doors, locks, and mounting hardware. [lianjer]
Standard selections work well when available catalog sizes accommodate components plus 10-20% margin, cable entry requirements fit standard gland plate configurations, environmental protection matches catalog IP/NEMA ratings, and door swing and mounting orientation align with site constraints. [lianjer]
Certain application requirements exceed the flexibility of standard product lines and justify custom enclosure engineering. Primary drivers for custom solutions include excessive cable density requiring oversized or multiple gland plates, device depth exceeding standard door-to-plate dimensions (common with large VFDs, filters, or specialized HMIs), thermal management demanding integrated fans, heat exchangers, or air conditioning systems, access requirements necessitating dual-door configurations, oversized windows, or unusual hinge arrangements, enhanced protection specifications such as IP68 submersion ratings, Type 4X certification, or conductive EMC gaskets, and specialized materials like 316 stainless steel, fiberglass-reinforced polyester, or custom powder coat colors. [lianjer]
Strategic approach: Engage enclosure manufacturers early during design phases to explore cost-optimized solutions. Many apparent "custom" requirements can be satisfied through standard base enclosures with catalog modification options (custom cutouts, paint colors, or mounting configurations) at substantially lower cost than fully custom fabrication. [lianjer]
| Dimensions H×W×D (mm) | Typical Application Profile | Key Considerations |
|---|---|---|
| 200×200×120 | Junction boxes, small terminal blocks | Minimal accessory space; compact gland requirements |
| 300×300×150 | Small PLC + power supply + basic terminals | Entry-level automation control |
| 300×400×210 | PLC + PSU + extended terminal blocks | Common depth for standard DIN-rail layouts |
| 400×300×200 | PLC + contactor bank | Narrow footprint, vertical rail stacking |
| 400×400×210 | PLC + I/O modules + small HMI | Balanced proportions for cable routing |
| 500×400×210 | Expanded I/O, relay banks, breakers | Adequate space for labels and service loops |
| 500×400×300 | VFD + line reactor + filters | Increased depth for device clearance |
| 600×400×200 | PLC + large PSU + communication modules | Efficient wall space utilization |
| 600×600×210 | Multi-rail layout with expansion capacity | Plan cable bend radius at corners |
| 800×600×300 | VFD + EMI filter + multi-PLC systems | Deep devices and complex cable entry requirements |
| Dimensions H×W×D (mm) | Typical Application Profile | Key Considerations |
|---|---|---|
| 1600×600×400 | Compact process controls | Space-constrained mechanical rooms |
| 1800×800×400 | General control + distributed I/O | Verify device depth specifications |
| 1800×1200×500 | Large PLC, HMI, marshalling terminals | Two-column rail configuration |
| 2000×600×600 | Tall, narrow installations | Deep component clearance, small floor footprint |
| 2000×800×600 | Standard plant control cabinet | Balanced width/depth proportions |
| 2000×1000×600 | Drive systems + control integration | Enhanced cable routing capacity |
| 2000×1200×600 | Two-column layout + accessories | Plan door swing and lateral clearances |
| 2200×1000×800 | Heavy cable density, deep equipment | Maximum bend radius accommodation |
| 2200×1600×600 | Wide process control panels | Consider dual-door center mullion |
Before finalizing enclosure specifications, verify these critical parameters to avoid costly change orders: [lianjer]
Dimensional verification: Confirm external H×W×D dimensions for site clearances and code compliance, verify mounting plate dimensions for component layout accuracy, check usable depth zones (door-to-plate and plate-to-back), and validate door swing clearance including full open angle. [lianjer]
Environmental protection: Specify required NEMA type or IP code for installation environment, confirm gasket material compatibility with temperature and chemical exposure, verify cable gland IP/NEMA ratings match enclosure specification, and document any special coating or material requirements. [lianjer]
Access and hardware: Define door configuration (single, double, removable), specify hinge side and locking hardware type, identify HMI window sizes and locations, and plan for removable sub-panels or swing-out mounting plates. [lianjer]
Cable management: Calculate total cable entries with sizes and thread types, verify gland plate dimensions accommodate all entries with wrench clearance, specify conduit hubs or cable entry frames if required, and plan strain relief and cable routing accessories. [lianjer]
Thermal considerations: Calculate total internal power dissipation, determine if natural convection suffices or forced ventilation required, specify fan locations and filter requirements, and verify temperature rise data for enclosure selection. [lianjer]
Compliance documentation: Confirm UL/cUL listing requirements for panel shop or field installation, specify required certifications (UL 508A, CSA, CE marking), document code compliance requirements (NEC, IEC, local codes), and plan for proper labeling and documentation packages. [lianjer]
Power distribution applications from Ningbo Bohui Electric Co., Ltd.'s experience serving utility and commercial sectors demonstrate specific sizing patterns. Metering and protection panels typically utilize 600×800×300 mm wall-mount or 2000×800×600 mm floor cabinets to accommodate circuit breakers, metering devices, and communication equipment with adequate service clearance. Transformer secondary distribution requires 2000×1200×600 mm or larger cabinets to house main breakers, feeder protection, and monitoring systems with thermal management provisions. [lianjer]
Modern industrial automation systems increasingly integrate PLCs, industrial Ethernet switches, I/O modules, and HMI interfaces within single enclosures. Machine control panels frequently specify 600×600×210 mm to 800×600×300 mm wall-mount configurations that balance component density with maintenance accessibility. Process control rooms typically deploy 2000×1000×600 mm floor cabinets arranged in rows, with careful attention to front and rear access clearances per NEC requirements. [lianjer]
Battery energy storage systems (BESS) and electric vehicle charging stations present unique enclosure requirements combining power electronics, communication systems, and safety interlocks. Charging station control enclosures often specify NEMA 4X or IP66 outdoor ratings in 800×600×300 mm wall-mount configurations to protect power conversion electronics and communication modules. BESS applications may require custom floor cabinets exceeding 2200 mm height to accommodate battery management systems, inverters, and extensive cable marshalling. [lianjer]
Modular architectures enable width expansion by coupling standardized sections, particularly in floor cabinet designs extending to 1800 mm or wider through single-body construction. This approach maintains IP rating integrity while providing scalability traditionally requiring multi-bay assemblies. [lianjer]
Integrated thermal management increasingly appears in standard product lines, with manufacturer-designed fan packages, vented roofs with filter frames, and air conditioning mounting provisions specified during initial enclosure selection rather than as afterthought modifications. [scribd]
Smart enclosure monitoring through embedded temperature sensors, door position switches, and condensation detection systems influences sizing by requiring space allocation for monitoring hardware and communication modules. [scribd]
The 400×300×200 mm and 600×400×200 mm sizes represent the most frequently specified wall-mount configurations for general industrial automation applications. These dimensions accommodate typical PLC systems with integrated I/O, power supplies, terminal blocks, and modest expansion capacity while maintaining reasonable wall space requirements. The actual "most common" size for any specific facility depends heavily on application requirements, component selections, and standardization preferences. [lianjer]
Begin by creating a scaled layout drawing of all components on DIN rail or mounting plate at their actual dimensions. Add minimum spacing requirements from UL 508A or applicable standards (typically 12-50 mm depending on voltage and component type). Include cable routing space equal to approximately 20-30% of component area for bend radius and service loops. Calculate gland plate area separately based on actual cable count and sizes. Finally, add 10-20% margin to the total for future expansion and thermal management. This sum represents the minimum mounting plate area required—then select an enclosure catalog size providing at least this usable (not nominal) space. [enerconpower]
NEMA 4 and IP66 ratings provide similar levels of protection against solid objects and water ingress, though they originate from different standards organizations and use different test methods. NEMA 4 (North American standard) protects against windblown dust, rain, hose-directed water, and external ice formation, while IP66 (international standard) ensures dust-tight construction and protection against powerful water jets. The protection levels are functionally equivalent for most industrial applications, though test procedures differ slightly in water pressure, flow rate, and duration. Both ratings require robust gasketing and sealing that reduces usable internal space by approximately 10-15% compared to basic NEMA 1/IP20 enclosures of identical external dimensions. [generaldigital]
Custom enclosures become cost-effective when standard sizes cannot accommodate your requirements even after exploring the next larger catalog option. Specific indicators include cable entry requirements exceeding standard gland plate capacity (typically more than 15-20 penetrations), component depths exceeding 80% of standard enclosure depth options, thermal loads requiring integrated cooling systems beyond catalog accessory options, specialized materials needed for corrosive environments (316 SS, FRP) beyond standard offerings, and unique access requirements such as dual-door configurations or oversized HMI windows. For borderline cases, request quotations for both the next-larger standard size and a right-sized custom enclosure—the price difference often favors standard despite the size inefficiency. [lianjer]
Industry best practice recommends reserving 10-20% spare mounting space beyond your initial component layout, with experienced designers typically targeting 20% as a standard margin. This allocation serves multiple purposes: accommodates engineering changes during construction without panel redesign, provides capacity for future I/O additions or system upgrades, improves thermal performance through enhanced air circulation, and enables proper service loop routing without cable congestion. The marginal cost of selecting one size larger (typically 10-15% price premium) is dramatically lower than the cost of discovering inadequate space during installation, which often requires complete panel reconstruction and project delays. For critical systems with anticipated technology upgrades or process expansion, consider 25-30% spare capacity as a strategic investment. [lianjer]
