IP66 and NEMA 4X are not fully equivalent: both offer strong dust and water protection, but NEMA 4X adds corrosion resistance and broader environmental performance, which is critical when you design or select wall mount enclosures for harsh industrial and outdoor sites. For a manufacturer like Ningbo Bohui Electric that serves power, telecom, industrial automation, building and new energy sectors, understanding this nuance is the difference between a safe, long‑lasting installation and a premature failure in the field. [eabel]
From an enclosure engineer's perspective, IP and NEMA are two different "languages" describing protection levels. [kdmfab]
- IP66 (IEC 60529)
- First digit 6: enclosure is dust‑tight; no ingress of dust. [kdmfab]
- Second digit 6: protection against powerful water jets from any direction. [nemaenclosures]
- Focus: solids and liquids only (dust, water), nothing explicit about corrosion, chemicals or ice. [maidatechenclosure]
- NEMA 4X (NEMA 250)
- Protection against windblown dust, rain, splashing water and hose‑directed water. [maidatechenclosure]
- Adds mandatory corrosion resistance; the "X" specifically denotes enhanced resistance to corrosive agents such as salt spray or industrial chemicals. [vartechsystems]
- Also considers ice formation and operation in outdoor environments. [kdmfab]
In practice, many NEMA 4X enclosures achieve an ingress performance roughly comparable to IP66, but NEMA 4X goes further by formally requiring corrosion resistance and broader environmental robustness. [eabel]

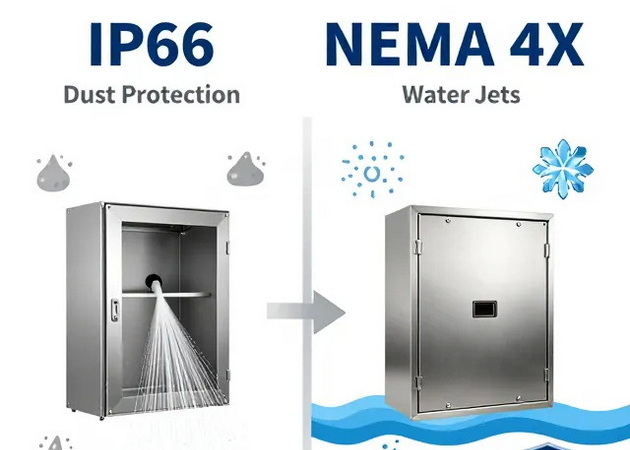

Recommended image placement:
Insert here an explanatory infographic comparing the two rating systems (IP vs NEMA) as parallel "languages."
AI prompt suggestion:
"Flat infographic, IP66 vs NEMA 4X enclosure protection, two columns, icons for dust, water jets, corrosion, ice, chemicals, clean minimalist industrial design, white background, blue and gray color scheme"
As a practitioner, I always tell clients: IP66 is close to NEMA 4X on water and dust – but not on corrosion and environmental scope. [nemaenclosures]
- IP66 and NEMA 4X both provide:
- Dust‑tight protection.
- Protection against strong water jets or hose‑directed water. [eabel]
- NEMA 4X additionally assures:
- Tested corrosion resistance (typically in salt spray or similar tests). [vartechsystems]
- Performance in ice/sleet and other outdoor conditions beyond just water jets. [maidatechenclosure]
Some manufacturers market NEMA 4X as "equivalent to IP66," meaning that the ingress protection is similar, but this does not mean a pure IP66 enclosure automatically meets all NEMA 4X criteria. For engineers specifying wall mount enclosures in high‑value installations, treating them as identical is a risk. [budind]
| Aspect | IP66 Enclosure | NEMA 4X Enclosure |
|---|---|---|
| Standard | IEC 60529 kdmfab | NEMA 250 eabel |
| Dust protection | Dust‑tight (6) kdmfab | Dust, windblown dust, falling dirt maidatechenclosure |
| Water protection | Powerful water jets (6) eabel | Hose‑directed water, rain, splashing, sleet/snow maidatechenclosure |
| Corrosion resistance | Not defined maidatechenclosure | Required ("X" = corrosion resistant) vartechsystems |
| Ice / frost | Not addressed maidatechenclosure | Must withstand ice formation maidatechenclosure |
| Typical materials | Painted steel, aluminum, plastics kdmfab | Stainless steel, polycarbonate, fiberglass, coated steel kdmfab |
| Typical use | General outdoor/industrial, non‑corrosive areas eabel | Marine, chemical, food, cleaning‑intensive areas eabel |
| Cost level | Generally more economical eabel | Higher due to material and testing eabel |
When you walk into a serious enclosure factory, you see how differently IP66 and NEMA 4X are validated.
- Conducted under IEC 60529. [kdmfab]
- Samples are exposed to:
- Dust chamber tests for several hours (fine dust circulation). [kdmfab]
- High‑flow water jets, often with a specific nozzle (e.g., 12.5 mm) and defined flow and distance. [nemaenclosures]
- Pass criteria: no harmful dust ingress and no water ingress that affects operation. [kdmfab]
- Conducted to NEMA 250. [eabel]
- Includes:
- Hose‑down tests with pressurized water. [kdmfab]
- Outdoor conditions like rain, sleet and ice formation. [maidatechenclosure]
- Corrosion tests (such as salt spray), to confirm the enclosure does not rust prematurely. [vartechsystems]
From an OEM point of view, qualifying a wall mount enclosure to NEMA 4X often requires more rigorous material selection (for example stainless steel or fiberglass) and process control than achieving a pure IP66 label. [kdmfab]
As a manufacturer serving power distribution, building and general industrial users, we often recommend IP66 when:
- The environment is outdoor but not strongly corrosive (e.g., typical building facades, standard industrial zones). [eabel]
- The main risk is rain, dust and high‑pressure cleaning, but not constant salt spray or harsh chemicals. [maidatechenclosure]
- The project is cost‑sensitive, and lifecycle exposure to corrosive media is limited. [eabel]

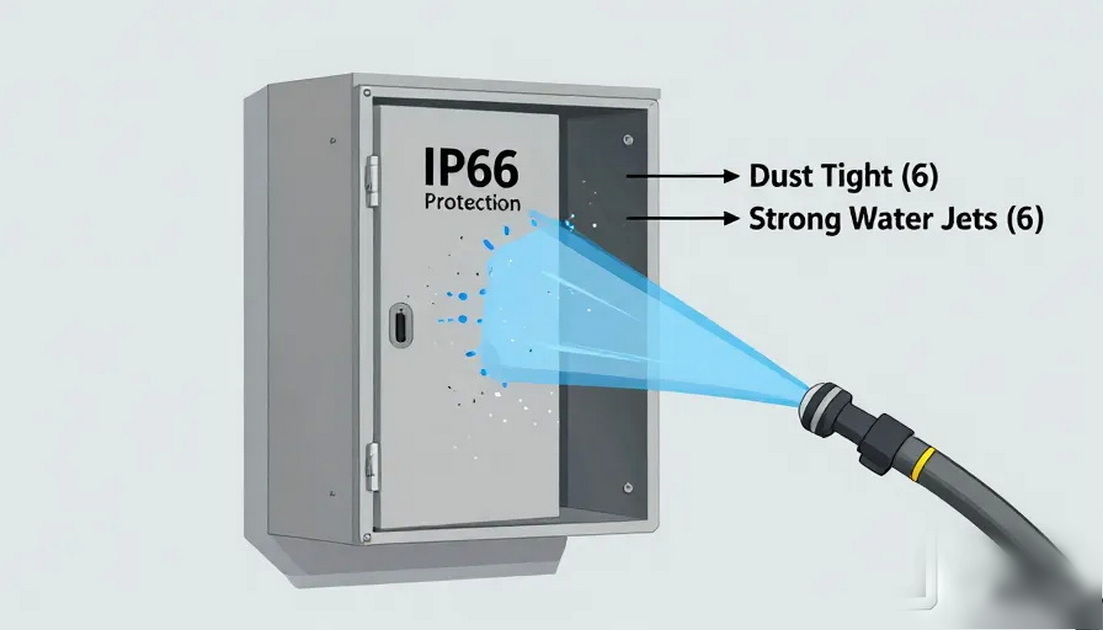

Typical IP66 wall mount enclosure applications include:
- Power distribution boxes in urban areas.
- Industrial automation cabinets in non‑chemical plants.
- Building management and security control panels.
- Water pump control panels in standard municipal or commercial facilities. [kdmfab]
In these scenarios, an IP66 wall mount enclosure from a professional sheet‑metal manufacturer gives robust protection with a better price‑performance balance.
Recommended image placement:
Insert here a real‑scene rendering of an IP66 wall mount enclosure on an industrial workshop wall.
AI prompt suggestion:
"Realistic 3D render, gray IP66 wall mount electrical enclosure on factory workshop wall, dust and water jet icons overlay, clean lighting, modern industrial background"
From field experience, NEMA 4X is non‑negotiable when corrosion and aggressive cleaning are part of daily life. [vartechsystems]
Typical NEMA 4X use cases:
- Marine and coastal environments
- Port cranes, dock pump control, coastal solar inverters or switchgear. [kdmfab]
- Persistent salt spray and humidity quickly attack painted mild steel; NEMA 4X stainless or fiberglass enclosures significantly extend service life. [vartechsystems]
- Food & beverage and pharmaceuticals
- Production lines that undergo high‑pressure, chemical wash‑down. [maidatechenclosure]
- Stainless NEMA 4X cabinets withstand caustic cleaners and reduce hygiene risks. [eabel]
- Chemical processing and wastewater plants
- Fumes, splashes and aerosols can be corrosive; NEMA 4X materials and coatings are selected with chemicals in mind. [maidatechenclosure]
- Harsh outdoor utilities
- Offshore wind, coastal substations, desalination plants, and some new‑energy storage systems near the sea. [kdmfab]
In these projects, replacing IP66 with NEMA 4X is not a luxury upgrade; it is an engineering risk control exercise that protects both uptime and safety.
From a fabrication standpoint, the rating is not just a test result; it is rooted in material and design.
- Common materials for IP66 wall mount enclosures:
- Powder‑coated mild steel.
- Aluminum sheet or die‑cast aluminum.
- Engineering plastics (ABS, polycarbonate) in lighter duty applications. [kdmfab]
- Typical materials for NEMA 4X wall mount enclosures:
- Stainless steel (e.g., 304/316) with welded construction. [eabel]
- Fiberglass‑reinforced polyester (FRP).
- Polycarbonate with UV‑stable and corrosion‑resistant properties. [maidatechenclosure]
A manufacturer like Ningbo Bohui Electric can tune wall thickness, gasket design, coating systems and mounting arrangements to match either IP66 or NEMA 4X requirements for different customer segments, from smart manufacturing to new energy vehicles and pump control.
Recommended image placement:
Insert here a cut‑away drawing showing cross‑section of stainless vs painted steel wall mount enclosures with seals highlighted.
AI prompt suggestion:
"Technical illustration, cross‑section of wall mount electrical enclosure, comparison of stainless steel NEMA 4X and painted steel IP66, gaskets highlighted, clean vector style, white background"

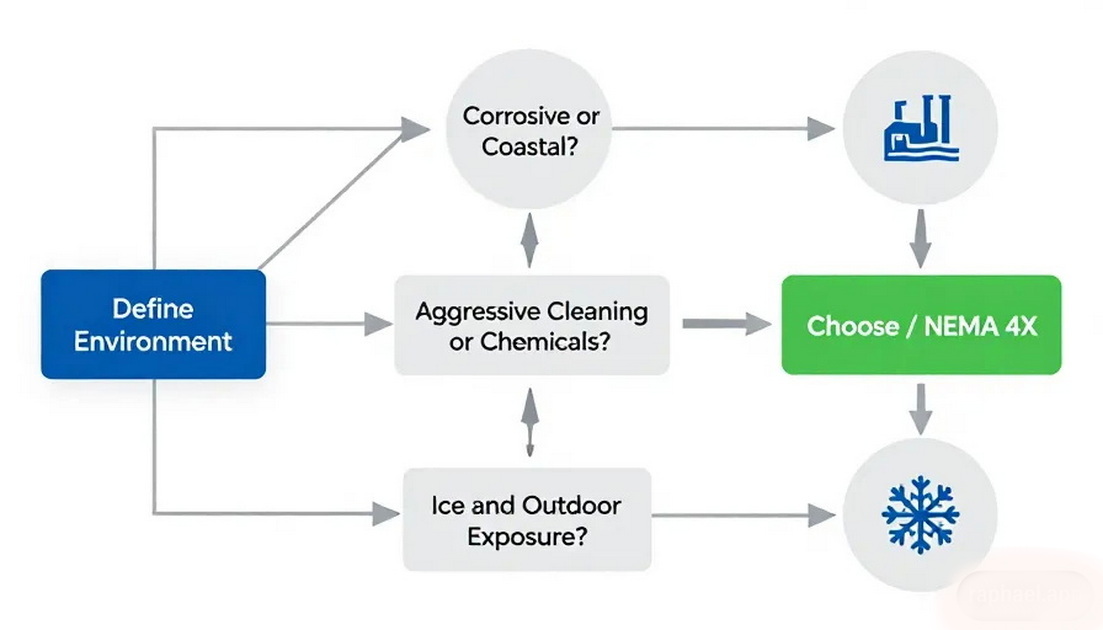

When we work with system integrators and EPCs, we usually guide them through a simple decision path:
1. Is the environment corrosive?
- Strong salt, chemicals, or aggressive cleaners → choose NEMA 4X. [eabel]
- Ordinary urban/industrial atmosphere → IP66 usually sufficient.
2. What kind of water exposure exists?
- High‑pressure wash‑down, frequent hose cleaning → NEMA 4X is safer. [maidatechenclosure]
- Rain, occasional splash, or dust storms → IP66 performs very well. [nemaenclosures]
3. What is the design lifetime and maintenance strategy?
- Long design life with minimal maintenance in remote locations (offshore, coastal substations) → NEMA 4X for reduced corrosion risk. [vartechsystems]
- Easy access and regular maintenance teams → IP66 may be more economical. [eabel]
4. What is inside the enclosure?
- Critical controls for power, telecom or safety systems where downtime is costly → lean toward higher protection, often NEMA 4X in corrosive zones. [kdmfab]
- Auxiliary equipment with lower risk and easier replacement → IP66 is often adequate.
This structured approach helps project owners balance risk, cost and lifecycle performance instead of choosing a rating based on label alone.
Drawing on typical projects in power, industrial automation, new energy storage and water treatment, three practical recommendations stand out:
- Do not over‑specify without cause.
- In non‑corrosive outdoor locations, a well‑designed IP66 wall mount enclosure with quality gaskets and coating gives robust performance at a lower cost. [eabel]
- Design for real‑world installation.
- Consider cable entry, mounting brackets, door opening direction, and maintenance space; these impact sealing and long‑term protection as much as the rating itself.
- Align accessories with the rating.
- Choose cable glands, hinges, locks, viewing windows and cooling components that match the enclosure rating (IP66 or NEMA 4X) to avoid weak points. [eaton]
A manufacturer with strong sheet‑metal capability and enclosure engineering experience can support custom cut‑outs, integrated mounting plates and multi‑door designs without compromising rating performance.
As a wall mount enclosure manufacturer serving electric power, communication, industrial automation, building, new‑energy storage, NEVs and pump systems, a company like Ningbo Bohui Electric can offer:
- Custom IP66 and NEMA 4X enclosure designs optimized for each industry's load, cabling and maintenance style.
- Material and coating selection support (e.g., stainless vs coated steel vs aluminum) aligned to actual environmental exposure.
- Flexible production of small batches for engineering pilots and large runs for standardized product lines.
If your project is in early design, sharing environment photos, corrosion expectations and cleaning methods with the enclosure supplier allows them to recommend the right rating, material and structural design instead of simply quoting a catalog model.
Recommended image placement:
Insert here a branded photo or render of multiple wall mount enclosures installed across different industries (factory, building, energy storage container).
AI prompt suggestion:
"Wide banner image, multiple gray wall mount electrical enclosures installed in power substation, factory wall, and energy storage container, modern industrial style, realistic lighting"
If you are currently choosing between IP66 and NEMA 4X wall mount enclosures for a power, telecom, industrial, building or new‑energy project, share your environment conditions and lifetime expectations with us. We can help you define a right‑sized specification, select the most suitable enclosure rating and material, and provide tailored wall mount enclosure solutions that balance protection, cost and long‑term reliability.
Not always. NEMA 4X provides similar dust and water protection plus corrosion resistance, but if your environment is not corrosive, a well‑designed IP66 enclosure can be the more cost‑effective choice. [maidatechenclosure]
In many cases, yes, but you must check dimensions, mounting patterns, cable entries and internal space. NEMA 4X enclosures may use different materials and construction, which can change weight and installation details. [maidatechenclosure]
No. Stainless steel helps with corrosion resistance, but enclosures must still meet the full NEMA 4X test criteria for water ingress and environmental performance to claim the rating. [vartechsystems]
Only if the manufacturer has actually tested and certified to both IEC 60529 (for IP66) and NEMA 250 (for NEMA 4X). Reputable suppliers clearly state the applicable standards and test reports. [budind]
For coastal, salt‑laden air and frequent outdoor exposure, NEMA 4X with stainless steel or properly selected corrosion‑resistant material is generally the safer option to prevent premature rust and failure. [vartechsystems]
