As a manufacturer serving diverse industrial sectors for over two decades, I've witnessed firsthand how proper ingress protection can make or break critical electrical installations. The IP66 rating has become one of the most requested specifications for wall mount enclosures across power distribution, telecommunications, industrial automation, and renewable energy applications. Yet despite its popularity, IP66 remains widely misunderstood—leading to costly specification errors, premature equipment failure, and safety risks that could have been avoided with proper guidance. [keystonecompliance]
This guide draws from our direct manufacturing experience at Ningbo Bohui Electric Co., Ltd., where we've produced thousands of IP66-rated wall mount enclosures for applications ranging from outdoor telecom installations to food processing control systems. I'll explain what IP66 actually means, how it's tested, where it excels, and—critically—where it falls short, so you can make informed decisions for your specific environmental challenges.
The Ingress Protection (IP) rating system, defined by the international standard IEC 60529, provides a standardized way to describe how effectively an enclosure protects against solid particles and liquids. Unlike vague terms like "weather-resistant" or "waterproof," IP ratings offer specific, testable performance criteria that apply consistently across manufacturers and countries. [intertek]
The IP66 designation breaks down into two distinct protection levels. The first digit "6" indicates complete dust-tight protection—no ingress of dust particles whatsoever, even under vacuum conditions during testing. This represents the highest level of solid particle protection available in the standard IP rating scale. The second digit "6" specifies protection against powerful water jets delivered through a 12.5 mm nozzle at approximately 100 liters per minute and 100 kPa pressure from any direction. [almcorp]
From our manufacturing perspective, IP66 enclosures excel in three specific scenarios. First, they withstand sustained outdoor exposure to rain, sleet, wind-driven moisture, and blowing dust—conditions typical of rooftop installations, utility poles, and building exteriors. Second, they survive industrial washdown environments where equipment faces regular cleaning with high-pressure hoses, common in food processing, packaging lines, and manufacturing facilities. Third, they maintain protection in dusty industrial atmospheres like cement plants, mining operations, or agricultural settings where airborne particles would quickly compromise lesser enclosures. [mnpelectrical.com]
What IP66 does not protect against is equally important. IP66 enclosures are not designed for immersion or submersion. If your installation faces flooding risk, sits below grade, or could be temporarily submerged, IP67 or IP68 ratings are required. The IP66 water jet test involves spray from above and the sides—it does not simulate being underwater where hydrostatic pressure can force water through seals designed only for jet resistance. [almcorp]
IP66 also doesn't address high-temperature, high-pressure sanitation washdowns common in pharmaceutical and food processing cleanrooms. These applications typically require IP69 or IP69K ratings, which test against close-range jets of 80°C water at 80-100 bar pressure. We regularly advise customers in dairy processing and beverage production to upgrade from IP66 to IP69K specifications, even though it increases enclosure cost by 15-20%, because the IP66 gaskets and seals won't survive daily hot caustic washdowns. [firgelliauto]
Finally, IP ratings say nothing about corrosion resistance, chemical compatibility, or material durability. An IP66-rated carbon steel enclosure with poor powder coating will rust in coastal environments, while an IP66 stainless steel enclosure thrives in the same conditions. The IP rating only measures ingress protection at the time of testing—not long-term performance in aggressive atmospheres. [keystonecompliance]
At our facility, IP66 testing follows strict IEC 60529 protocols administered by certified third-party laboratories. Understanding this process helps buyers recognize what they're actually purchasing. [keystonecompliance]
The dust-tight test places the enclosure in a vacuum chamber filled with talcum powder or similar fine particles. Negative pressure is applied to simulate worst-case conditions where external dust is actively drawn toward any potential openings. After eight hours of exposure, the enclosure is opened and inspected internally. To achieve a "6" rating, absolutely no dust ingress is permitted—not even a trace coating on internal surfaces. This is a pass/fail test with zero tolerance. [intertek]
The water jet test uses a 12.5 mm diameter nozzle positioned 2.5-3 meters from the enclosure. Water flows at 100 liters per minute at approximately 100 kPa pressure (roughly 14.5 psi)—equivalent to a heavy-duty garden hose or industrial cleaning spray. The test runs for at least three minutes total, or one minute per square meter of enclosure surface area, whichever duration is longer. [firgelliauto]
During testing, the nozzle is aimed at the enclosure from multiple angles—top, sides, and oblique positions—to ensure protection from all directions. The test does not involve spray from below, which is why IP66 enclosures should always be mounted with drainage pathways that prevent water pooling at gasket interfaces. [almcorp]
After testing, the enclosure is opened for inspection. To pass, no water ingress that could impair equipment function is permitted. Small amounts of condensation or trace moisture that doesn't reach electrical components may be acceptable depending on the specific test protocol, but any water pooling or direct ingress results in failure. [intertek]
One critical point buyers often miss: IP testing occurs on new enclosures with fresh gaskets, properly torqued fasteners, and unused seals. Real-world performance degrades over time as gaskets compress, fasteners vibrate loose, and seals age from UV exposure and temperature cycling. We recommend field verification of IP performance every 2-3 years for critical installations, especially after gasket replacement or any maintenance that disturbs sealed interfaces. [almcorp]
In our customer consultations, we've found that IP66 is often specified by default without consideration of whether higher or lower ratings would better match actual environmental conditions. Here's how IP66 compares to neighboring ratings and when each makes sense.

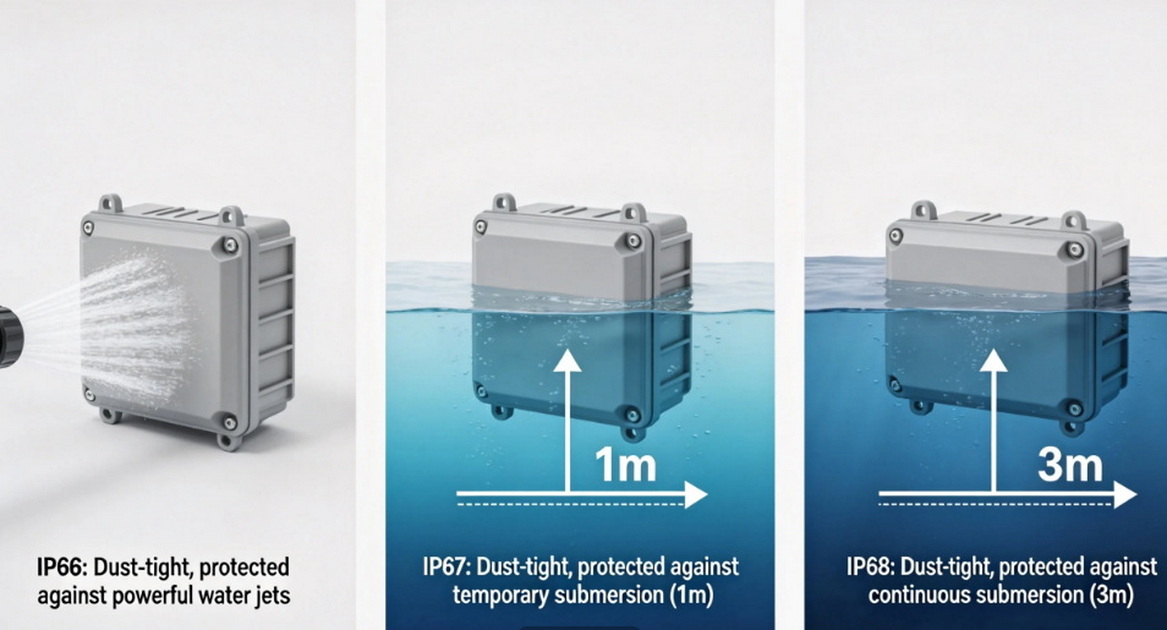

IP65 uses the same dust-tight first digit (6) but a lower water protection level (5), which tests against low-pressure water jets from a 6.3 mm nozzle at 12.5 liters per minute. This is appropriate for sheltered outdoor locations—like building overhangs or covered equipment rooms—where direct rain contact is minimal and hose cleaning is gentle. IP65 enclosures cost 10-15% less than IP66 equivalents and may use simpler gasket designs, making them attractive for budget-sensitive projects where heavy water exposure isn't expected. [firgelliauto]
IP67 maintains the dust-tight first digit (6) but changes the water protection approach entirely. Rather than testing jet resistance, IP67 tests temporary immersion at 1 meter depth for 30 minutes. This makes IP67 ideal for underground vaults, flood-prone areas, or equipment that might be accidentally submerged during maintenance. [mnpelectrical.com]
Here's a critical nuance: IP67 doesn't necessarily withstand powerful jets as well as IP66. The immersion test creates static water pressure at seals, while the jet test creates dynamic impact forces. Some manufacturers offer dual-rated enclosures (IP66/IP67) that pass both tests, ensuring protection against both jets and immersion. For applications like outdoor pump controls or lift station panels, we typically recommend dual-rated designs. [lianjer]
IP68 provides dust-tight protection plus continuous immersion beyond 1 meter depth. Unlike IP67, which has standardized test parameters, IP68 allows manufacturers to define the specific depth and duration. An enclosure might be rated "IP68: 3m continuous" or "IP68: 5m for 72 hours"—always check the datasheet for exact specifications. [mnpelectrical.com]
IP68 is essential for permanently submerged installations like underwater sensor housings, submersible pump controls, or marine applications. However, IP68 enclosures often use different seal designs optimized for static pressure rather than dynamic jet impact, so they may not perform as well as IP66 in washdown scenarios. For customers operating wastewater treatment facilities, we often specify IP68 for below-grade installations and IP66 for above-grade control panels that face hose cleaning. [mnpelectrical.com]
For food processing, pharmaceutical manufacturing, and other sanitary environments requiring daily high-temperature, high-pressure washdowns, IP69 or IP69K ratings are necessary. These test against close-range jets (10-15 cm distance) of 80°C water at 80-100 bar pressure (1160-1450 psi)—far beyond IP66 capabilities. [firgelliauto]
IP69K adds additional test angles and closer spray distances than IP69. Both require specialized seals, drainage designs, and mounting orientations that prevent water intrusion even under extreme conditions. We manufacture IP69K enclosures exclusively in stainless steel with continuous-weld seams and FDA-compliant gaskets for customers in dairy, brewing, and meat processing. [things-embedded]
Drawing from our project portfolio, here are the application categories where IP66 wall mount enclosures deliver optimal cost-performance balance.
Utilities, municipalities, and industrial facilities rely on IP66 wall mount junction boxes for outdoor electrical distribution, circuit protection, and cable terminations. These installations face rain, snow, wind-driven moisture, and accumulated dust, but rarely encounter immersion. Typical applications include street lighting controls, traffic signal controllers, outdoor CCTV power supplies, and building exterior junction points. [lianjer]
We produce thousands of IP66 stainless steel and powder-coated carbon steel wall mount boxes annually for these applications, with sizes ranging from compact 200×300×150mm units for simple circuit protection up to 1200×800×300mm multi-compartment distribution boxes. The key design consideration is mounting orientation—we always recommend slight forward tilt (5-10 degrees) to prevent water pooling at the bottom gasket interface. [almcorp]

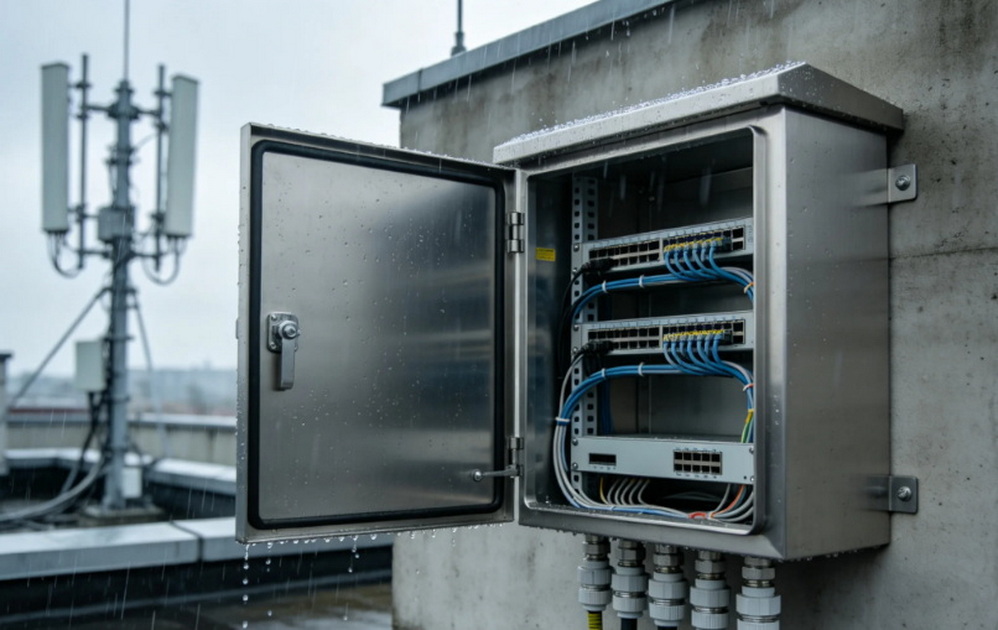

Telecom equipment rooms, fiber distribution hubs, and wireless access points mounted on building exteriors or utility poles require IP66 protection against storms and maintenance cleaning. These installations often house sensitive electronics with active cooling systems, making proper ingress protection critical to avoiding costly downtime. [lianjer]
For telecom applications, we typically add IP66-rated cable glands, ventilation fans with sealed motors, and pressure-equalization breathers to maintain internal climate control while preserving ingress protection. One common failure mode we've observed: customers specify IP66 enclosures but use standard cable glands rated only IP54, which creates a vulnerability path for moisture ingress. Every accessory must match or exceed the enclosure's base IP rating. [almcorp]
Manufacturing environments present unique challenges—accumulated process dust, occasional water from cleaning or coolant spray, temperature extremes from nearby equipment, and vibration from machinery. IP66 wall mount enclosures protect programmable logic controllers (PLCs), variable frequency drives (VFDs), industrial PCs, and motor control centers in these harsh conditions. [almcorp]
We've supplied IP66 enclosures for automotive assembly lines, packaging machinery, CNC machine tool installations, and industrial robot controllers. A common design request is integrated heat management—active cooling fans, heat exchangers, or thermoelectric cooling systems—all sealed to maintain IP66 integrity while managing internal temperatures that can exceed 60°C from high-power drives. [almcorp]
The rapid growth of solar installations, wind farms, and battery energy storage systems has created substantial demand for IP66 wall mount enclosures. Rooftop solar inverters, wind turbine nacelle controls, and outdoor battery management systems all require protection from weather exposure and dust accumulation. [lianjer]
For energy storage applications, we often integrate IP66-rated HVAC systems and fire suppression interfaces while maintaining overall ingress protection. Battery enclosures also require precise pressure management to prevent condensation and allow safe venting of any potential battery off-gassing, which adds complexity to the IP66 seal design. [almcorp]
Pump controls, chemical dosing systems, and monitoring equipment in water treatment plants face moisture, corrosive atmospheres, and regular hose-down cleaning. IP66 stainless steel wall mount enclosures are standard specifications for these environments, often paired with NEMA 4X corrosion resistance requirements. [almcorp]
We manufacture specialized IP66 enclosures for lift stations and sewage treatment with external mounting feet that elevate the enclosure above potential flood levels and sloped tops that prevent debris accumulation. For below-grade installations in vaults or sumps, we recommend upgrading to IP68 protection. [almcorp]
The IP66 rating describes ingress protection—it says nothing about structural durability, corrosion resistance, or long-term material performance. Choosing the right enclosure material is as important as selecting the proper IP rating. [almcorp]
Type 304 and 316 stainless steel offer excellent corrosion resistance for coastal, marine, chemical processing, and food/pharmaceutical applications. We recommend 316 stainless for salt spray environments, acid exposure, or high-chloride atmospheres, while 304 stainless suffices for most industrial and outdoor installations. [almcorp]
Stainless steel IP66 enclosures cost 40-60% more than equivalent carbon steel units but provide decades of maintenance-free service in corrosive environments. Surface finishes matter: brushed, #4 polish, or electropolished finishes improve cleanability and aesthetic appearance, while also reducing microbial adhesion in sanitary applications. [almcorp]
Powder-coated or galvanized carbon steel provides excellent structural strength at lower cost than stainless steel. Modern polyester powder coatings offer good UV resistance and corrosion protection for mild outdoor environments and dry industrial settings. [almcorp]
The limitation is coating durability—any chip, scratch, or penetration that exposes bare steel will lead to rust. We recommend carbon steel IP66 enclosures for applications with minimal corrosive exposure and plan for periodic coating inspection and touch-up every 3-5 years. [almcorp]
Aluminum IP66 enclosures weigh 60-65% less than equivalent steel units, making them ideal for rooftop installations, mobile equipment, or weight-sensitive applications where structural load is a concern. Anodized aluminum offers good corrosion resistance, though not equal to stainless steel. [almcorp]
Aluminum's softer properties mean it dents more easily than steel, and some industries (particularly food/pharmaceutical) restrict aluminum use due to concerns about particulate shedding from mechanical damage. For transportation, aerospace ground support, and portable equipment applications, aluminum IP66 enclosures deliver excellent performance. [almcorp]
UV-stabilized polycarbonate and fiberglass-reinforced polyester (FRP) offer advantages in RF-transparent applications, electrically isolating installations, or highly corrosive chemical environments where even stainless steel degrades. These materials are naturally non-conductive and immune to galvanic corrosion. [okw]
Limitations include lower impact strength than metal enclosures, reduced heat dissipation capability (important for high-power electronics), and potential UV degradation over time despite stabilizers. We manufacture polycarbonate IP66 enclosures primarily for telecom antenna integration, wireless access points, and outdoor instrumentation where RF transparency is required. [almcorp]
An enclosure achieves IP66 rating in laboratory testing, but maintaining that protection in field installation requires attention to critical design details that are often overlooked.
Continuous gasket seals create the primary water and dust barrier at all opening interfaces. We use closed-cell foam, solid silicone, or EPDM gaskets depending on application requirements. Critical factors include: [almcorp]
- Compression set resistance: Gaskets must maintain sealing force after years of compression without taking permanent set that creates leak paths [almcorp]
- Temperature range: Standard gaskets fail in extreme heat or cold; silicone maintains flexibility from -40°C to +150°C [almcorp]
- Chemical resistance: Some cleaning agents, oils, or process chemicals attack standard gasket materials [almcorp]
- UV stability: Outdoor gaskets require UV inhibitors to prevent degradation from sunlight exposure [almcorp]
Gasket replacement is the single most important maintenance activity for preserving IP66 protection long-term. We recommend 5-year replacement intervals for critical applications. [almcorp]
Every cable penetration represents a potential failure point for IP66 protection. IP66-rated cable glands with proper installation are essential—standard cable glands rated IP54 or IP65 will not maintain overall enclosure integrity. [almcorp]
We design enclosures with multiple cable entry locations (top, bottom, sides) to allow field flexibility. Top entries prevent water from running down cables into the enclosure, while bottom entries provide better drainage. For installations facing driving rain, we add drip loops and weather hoods above cable entries. [almcorp]
Sealed IP66 enclosures experience internal pressure changes from temperature cycling as ambient conditions vary from day to night or across seasons. Without pressure equalization, negative internal pressure can draw moisture past seals, while positive pressure can force seals open. [almcorp]
IP66-rated pressure equalization breathers allow air exchange while blocking water and dust. Gore-Tex membrane breathers, desiccant breathers, and sintered metal breathers all serve this function. For high-power electronics generating significant internal heat, we sometimes add IP66-rated active cooling with sealed fans and filtered air paths. [almcorp]
IP66 testing assumes specific mounting orientations—typically vertical wall mounting with doors facing outward. Installing an enclosure upside-down or at odd angles can compromise drainage pathways and allow water pooling at seals. [almcorp]
We design drainage features into bottom surfaces—weep holes with drip shields that allow accumulated condensation to exit while preventing splash entry from below. These drainage paths must be kept clear of debris; we've seen field failures caused by accumulated leaves or insect nests blocking weep holes. [almcorp]
Many North American customers specify both NEMA and IP ratings without fully understanding that these systems are not directly equivalent. [almcorp]
NEMA (National Electrical Manufacturers Association) ratings describe environmental protection using type numbers—NEMA 1, 3, 4, 4X, 12, etc.. While there is functional overlap, NEMA ratings include additional criteria beyond dust and water ingress: [almcorp]
- NEMA 4 ≈ IP66 for dust and water jet protection, plus additional requirements for corrosion resistance, external icing, and physical impact resistance [almcorp]
- NEMA 4X ≈ IP66 plus explicit corrosion resistance requirements (often achieved with stainless steel construction) [almcorp]
- NEMA 12 ≈ IP54/IP55 for indoor industrial use with protection against dust, dripping liquids, and coolant splash [almcorp]
The critical difference: NEMA ratings test a broader range of environmental factors, while IP ratings focus specifically on ingress protection. An enclosure can be IP66 rated but fail NEMA 4X requirements if corrosion resistance is inadequate. For customers requiring both standards, we provide test certification demonstrating compliance with both NEMA 4X and IP66 through independent third-party testing. [almcorp]
When specifying IP66 enclosures for your application, use this checklist developed from decades of manufacturing experience:
Environmental Factors:
- Maximum and minimum ambient temperatures
- Humidity ranges and condensation risk
- Dust type and concentration (standard dust, conductive dust, explosive dust atmospheres)
- Water exposure type (rain, jets, potential immersion, chemical washdown)
- Corrosive elements (salt spray, industrial chemicals, acid rain)
- UV exposure duration and intensity
- Vibration and mechanical shock levels
Electrical Requirements:
- Internal equipment heat dissipation (watts)
- Required internal volume and layout
- Cable entry quantity, size, and location preferences
- Grounding and bonding requirements
- Internal mounting rail types (DIN rail, panel mounting, rack mounting)
Regulatory Compliance:
- Required certifications (UL, CE, IEC, ATEX, etc.)
- Industry-specific standards (FDA for food equipment, NEMA for electrical)
- Local building codes and inspection requirements
Accessibility and Maintenance:
- Door hinging preference (left, right, removable)
- Lock type (key, padlock hasp, electronic)
- Internal component access frequency
- Viewing window requirements
- Service life expectancy and planned maintenance intervals
Material and Finish:
- Structural material preference and reasoning
- Corrosion resistance requirements
- Aesthetic considerations (color, finish texture)
- Weight restrictions
- Cost targets and budget constraints
No. IP66 enclosures protect against powerful water jets but are not designed for immersion or submersion. For flood-prone installations or any application where the enclosure might be temporarily submerged, specify IP67 (temporary immersion up to 1m for 30 minutes) or IP68 (continuous immersion at specified depths). We've seen costly failures when customers installed IP66 enclosures in below-grade locations or low-lying areas subject to flooding.
For critical applications, we recommend gasket inspection every 2-3 years and replacement every 5 years, regardless of visible condition. Gaskets degrade from UV exposure, temperature cycling, and compression set even when they appear intact. Outdoor installations in extreme climates (desert heat, arctic cold, coastal salt spray) may require more frequent replacement. Always use manufacturer-specified gasket materials to maintain IP66 certification.
IP66 and NEMA 4/4X are functionally similar but not identical. Both provide dust-tight protection and resistance to water jets, but NEMA ratings test additional criteria including corrosion resistance, external icing, and physical damage resistance. NEMA 4X explicitly requires corrosion resistance (typically stainless steel construction), while IP66 makes no material specifications. For North American projects requiring both standards, request enclosures certified to both NEMA 4X and IP66 through independent testing.
Any field modification to a certified IP66 enclosure voids the original IP rating unless the modification uses IP66-rated components installed per manufacturer specifications. If you add cable glands, install them with proper torque specifications and use only IP66-rated glands. For custom cutouts (viewing windows, ventilation, additional doors), work with the manufacturer to design modifications that maintain IP66 integrity, or request third-party re-testing after modifications are complete.
IP66 tests protection against powerful water jets at ambient temperature (100 L/min at 100 kPa from 2.5-3m distance). IP69K tests against high-temperature, high-pressure close-range jets (80°C water at 80-100 bar from 10-15cm distance). IP69K is required for food processing, pharmaceutical manufacturing, dairy operations, and other environments requiring daily hot sanitation washdowns. If your equipment faces only rain, outdoor hose cleaning, or industrial process spray at normal temperatures, IP66 suffices and costs significantly less than IP69K.
