A junction box is a protective enclosure where electrical wires are joined, routed, or terminated for outlets, switches, or equipment. It keeps live conductors from being exposed, reduces fire risk, and provides a code‑approved location for inspections and maintenance. [linkwellelectrics]
In drywall installations, junction boxes are either:
- New work boxes: Fastened directly to studs before drywall is installed. [youtube]
- Old work (remodel) boxes: Designed to clamp to existing drywall when you add or move devices in finished walls. [swartzelectric]
Never bury a junction box behind drywall or other finishes; it must remain accessible via a cover or an access door for future inspections and repairs. [youtube]
Before you touch any wiring, turn off power at the breaker and verify there is no voltage using a non‑contact voltage tester. Most DIY injuries and damage come from working on energized circuits or guessing which breaker controls a circuit. [wikihow]
Key planning and code‑related considerations include:
- Local electrical code compliance: In the US, installations are guided by the National Electrical Code (NEC) and local amendments; in some multifamily buildings, DIY work may even be restricted or prohibited. [reddit]
- Junction box accessibility: Boxes must remain visible or accessible via a removable cover; do not hide splices inside walls or ceilings. [linkwellelectrics]
- Box fill limits: Boxes have volume ratings that determine how many conductors, devices, and connectors they can safely contain; overfilling can cause overheating. [wikihow]
If you are working on a critical circuit (for example, pumps, network equipment, or industrial controls), it is best to consult or hire a licensed electrician to ensure compliance with both electrical and operational safety requirements. [reddit]
Having the right tools and materials ready will make the installation smoother and safer. [youtube]
Essential tools:
- Voltage tester or multimeter to confirm power is off. [thisoldhouse]
- Drywall saw or compact hand saw for cutting the opening. [youtube]
- Screwdrivers (Phillips and flat‑head) for box clamps and cover screws. [swartzelectric]
- Wire stripper/cutter for preparing conductors. [youtube]
- Tape measure and pencil for layout and marking. [shinging]
Core materials:
- Old work electrical junction box (plastic or metal) sized for your wiring and devices. [youtube]
- Cable or conduit rated for the circuit (for example, NM‑B cable or THHN conductors in conduit). [linkwellelectrics]
- Wire connectors (e.g., twist‑on wire nuts or lever‑style connectors). [wikihow]
- Junction box cover or device plate (outlet, switch, blank cover, or access door). [youtube]
Selecting the correct box is the foundation of a safe, durable installation. [thisoldhouse]
1. Old work vs. new work
- Old work boxes have built‑in clamps or "ears" that flip out behind the drywall when you tighten the screws, pinching the box to the wall surface. [swartzelectric]
- New work boxes screw directly to studs and are used before drywall installation. [youtube]
For an existing drywall wall, you almost always want an old work (remodel) box so you don't have to open a large section of wall to access studs. [youtube]
2. Plastic vs. metal boxes
- Plastic boxes are common in residential applications; they are lightweight and often have integrated cable clamps. [swartzelectric]
- Metal boxes are typical in commercial or industrial environments where conduit, grounding requirements, or fire‑resistance standards are stricter. [thisoldhouse]
When you manufacture or specify enclosure products (such as the sheet‑metal junction box housings produced by Ningbo Bohui Electric Co., Ltd.), metal boxes are preferable for circuits exposed to mechanical stress, vibrations, or demanding environmental conditions.
3. Size and capacity
Choose a box with enough cubic inches of volume for all conductors, devices, and connectors; most modern guides and product labels specify maximum wire counts and volume ratings to help you stay within code. [linkwellelectrics]
This section walks through the installation in a finished drywall wall using an old work box. [shinging]
1. Go to your electrical panel and switch off the breaker feeding the circuit you will be modifying. [thisoldhouse]
2. Use a non‑contact voltage tester at the existing outlet or junction to confirm the wires are de‑energized. [wikihow]
3. Label the breaker and the circuit for future reference; this is a simple habit that improves safety and makes troubleshooting easier. [linkwellelectrics]
Never rely on assumptions about which breaker powers a circuit—always test before touching conductors. [wikihow]
Typical receptacles are installed with the top of the junction box about 15 inches (38 cm) above the finished floor, though this can vary by room type and local practice. For junction boxes used purely for splices, the height can be wherever access is appropriate and code‑compliant. [swartzelectric]
- Choose a location that avoids wall studs, plumbing, or other obstructions unless you plan to mount directly to a stud. [reddit]
- Use a stud finder or a small exploratory hole to confirm what's behind the drywall. [youtube]
- Think ahead about cable routes; ensure you can reach the new box from the existing circuit without sharp bends or physical damage to the cable. [shinging]
1. Hold the old work box against the wall where you want it and trace around it with a pencil to create a cutting template. [shinging]
2. Double‑check that the outline is level and aligned with other outlets or junctions in the room. [shinging]
3. Use a drywall saw or compact hand saw to cut along the traced line, keeping the edges clean and avoiding chipped drywall. [youtube]
A clean cut reduces the need for patching and helps the box's clamp ears grip the drywall more securely. [youtube]
Once the opening is cut, you can route the wiring to the box location. [swartzelectric]
- Pull the cable from the last device or junction in the circuit through the wall cavity to the new opening. [shinging]
- For conduit systems (common in commercial settings), pull THHN conductors through the conduit to reach the new box; ensure the conduit is properly supported. [reddit]
- Open a knockout or built‑in clamp on the junction box and feed the cable or conductors into the box, leaving enough length (typically 6 inches or more) for making connections. [thisoldhouse]
Make sure any sheathing or insulation is stripped only as far as necessary; you want insulation up to the connectors, not bare copper pressed against the box's metal surfaces. [wikihow]

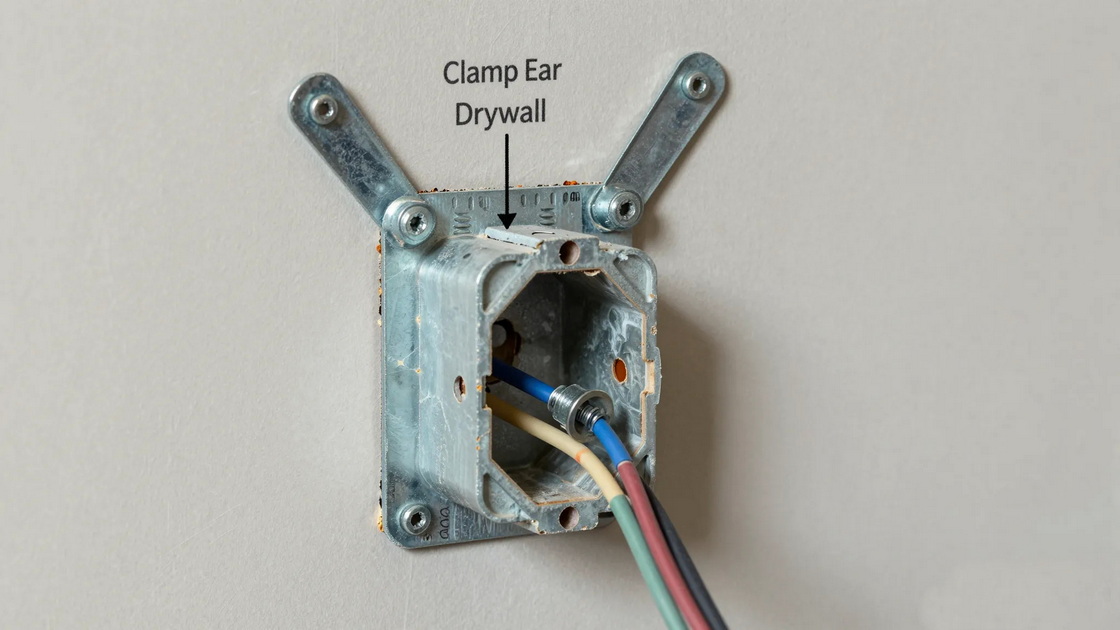

Old work boxes come with clamp ears or wings that hold the box to the drywall. [youtube]
1. Insert the box into the opening with the cable already fed through its clamp or knockout. [youtube]
2. Tighten the box's mounting screws; this causes the ears to flip out behind the drywall and clamp the box snugly against the wall surface. [youtube]
3. Tighten the screws until the box feels secure but avoid over‑tightening, which can crack the drywall or deform the box. [swartzelectric]
If you are surface‑mounting a metal junction box to drywall rather than using an old work box, fasten it directly to a stud or solid backing with appropriately sized screws; toggle bolts and drywall anchors alone may not provide long‑term strength, especially when plugs or cords are repeatedly inserted and removed. [reddit]
With the box secured, you can make the internal connections. [linkwellelectrics]
- Strip the conductors to the length recommended by your connectors or device manufacturer (often around 1/2 inch for many devices). [wikihow]
- Join conductors using approved wire connectors—twist‑on wire nuts or modern lever‑style connectors that maintain strong mechanical and electrical contact. [youtube]
- Keep splices inside the box; do not leave any exposed live conductor outside the enclosure. [thisoldhouse]
- Follow standard color coding (for example, hot to hot, neutral to neutral, equipment ground to equipment ground) based on your regional standards. [linkwellelectrics]
If the junction box will house a device like a receptacle or switch, mount the device to the box according to the manufacturer's instructions and install a cover plate. [thisoldhouse]

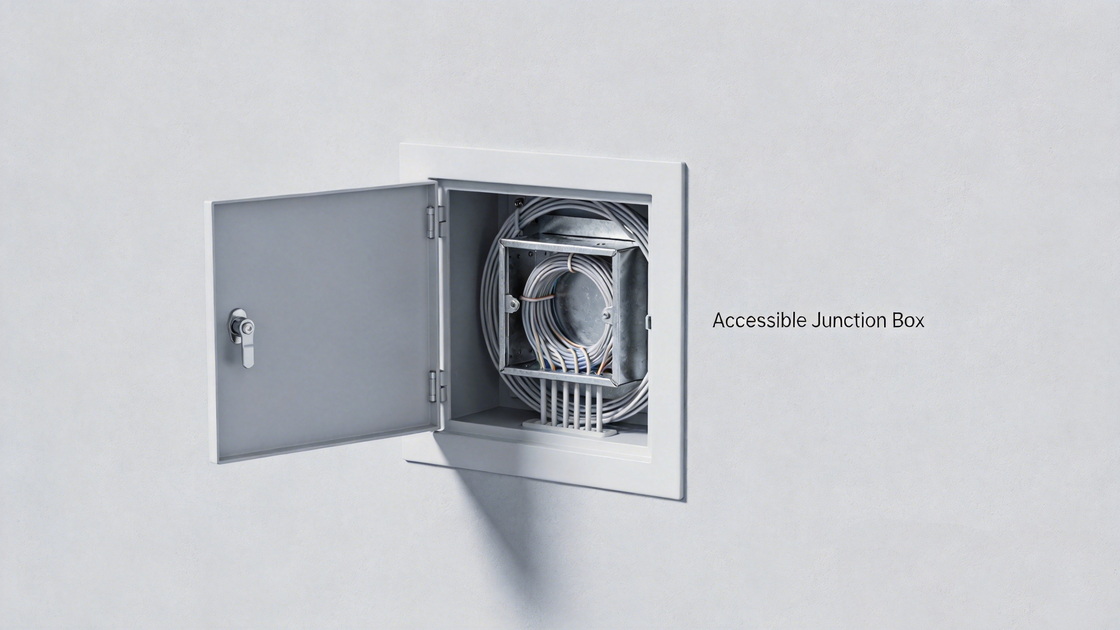

Every junction box must have a cover to protect the wiring and keep the area safe. [youtube]
- For in‑wall junctions that will be inspected or accessed, consider an access door sized to cover the box, particularly in ceilings or utility spaces where you do not want a device but need regular access. [youtube]
- For device‑based boxes (outlets, switches, smart controls), use the correct device cover plate and ensure it sits flush and tight against the drywall. [youtube]
- Tighten cover screws securely without over‑torquing; this prevents cracking the plate and keeps everything neat. [thisoldhouse]
An access door can be screwed into framing or additional backing behind the drywall, acting like a large, reinforced anchor and maintaining clean aesthetics while keeping the junction box accessible. [youtube]
Once all connections are made and the cover is installed, you can restore power. [wikihow]
1. Return to the electrical panel and turn the breaker back on. [linkwellelectrics]
2. Use a voltage tester or plug‑in receptacle tester to confirm the junction and any connected devices are working as intended. [wikihow]
3. Check that there is no heat buildup, buzzing, or flickering from any connected devices; these can indicate loose connections or other issues. [linkwellelectrics]
As a professional manufacturer of sheet‑metal electrical enclosures serving sectors such as power, communications, networking, industrial automation, building systems, new energy storage, EVs, and water pumps, you can incorporate expert‑level guidance into your content to build trust and authority with both DIY users and professionals. [linkwellelectrics]
Consider highlighting:
- Material and coating choices: Explain when to use galvanized steel, powder‑coated finishes, or stainless steel boxes for better corrosion resistance and safety in harsh environments (for example, outdoor networking, pump rooms, or EV charging stations). [linkwellelectrics]
- Thermal and mechanical performance: Discuss why robust sheet‑metal junction boxes are recommended for circuits handling higher currents, vibrations, or potential mechanical impact compared to generic plastic boxes. [linkwellelectrics]
- Integration with smart and industrial systems: Provide examples of how well‑designed junction boxes and enclosures are used in industrial smart manufacturing lines or new energy storage systems to protect sensors, control wiring, and communication cables. [linkwellelectrics]
You can also emphasize your OEM/ODM capabilities, such as custom sizes, knockouts, cable‑gland layouts, and mounting features tailored to integrators in power, communications, and EV sectors, reinforcing your brand's expertise.
Avoiding typical errors will significantly improve safety and the professional look of the installation. [youtube]
- Working on live circuits: Never start cutting, stripping, or connecting wires without verifying power is off. [thisoldhouse]
- Burying junction boxes behind drywall: Junction boxes must be accessible; if you need to hide them visually, use an access door or removable panel, not solid drywall. [youtube]
- Overfilling the box: Respect volume ratings and wire count limits; crowded boxes compromise safety and make future maintenance difficult. [wikihow]
- Improper mounting: Avoid relying solely on weak drywall anchors for heavy or frequently used boxes; aim for solid framing or proper backing where possible. [reddit]
- Inconsistent or unsafe connections: Loose wire nuts, mixed gauge wiring without correct connectors, and poor grounding practices can cause heat and failures. [youtube]
By clearly highlighting these mistakes—and showing how your junction box products help prevent them—you can provide extra value to readers and position your brand as a knowledgeable partner.
Although this guide focuses on drywall installations, many readers will be planning projects that intersect with more demanding applications. [linkwellelectrics]
Situations where a metal junction box enclosure is the better choice include:
- Pump rooms and water systems: Where moisture, mechanical vibration, and periodic maintenance are common, robust metal housings protect wiring better than basic plastic boxes. [linkwellelectrics]
- Building management and industrial smart manufacturing: Control panels for automation, sensors, and network cabling benefit from orderly metal enclosures with standardized mounting and cable entry systems. [linkwellelectrics]
- New energy storage and EV charging infrastructure: High‑current and data lines require stable, thermally suitable enclosures, often in challenging indoor/outdoor environments. [linkwellelectrics]
By weaving these cases into the article, you can connect everyday residential drywall installations with more advanced commercial and industrial scenarios where your junction box products excel.
Once readers understand how to install a junction box in drywall safely, they are ready to choose better hardware. Encourage them to:
- Select high‑quality junction boxes and sheet‑metal enclosures designed and manufactured by experienced suppliers for long‑term reliability.
- Consult your technical team when planning installations in power, communications, industrial automation, new energy storage, EVs, or pump applications.
- Request OEM/ODM solutions for customized junction box housings that match their specific project requirements and compliance standards.
By aligning your product capabilities with the practical installation guidance above, you help users complete safer DIY work and position your brand as their go‑to partner for future projects.
You can install a junction box almost anywhere on drywall as long as it remains accessible, is properly supported, and complies with local electrical codes and box‑fill limits. [youtube]
Minor residential installations can often be done by experienced DIYers, but complex circuits, high‑load wiring, or installations in multifamily or commercial buildings may require a licensed electrician and local permits. [reddit]
An outlet box houses a device like a receptacle or switch, while a junction box can simply provide a protected space for splices and cable routing; both follow similar installation principles. [thisoldhouse]
No; electrical codes require that junction boxes remain accessible via covers or access doors so inspectors and technicians can reach splices in the future. [youtube]
On drywall over block, surface‑mounted metal boxes secured with appropriate fasteners (like concrete screws) are often used instead of old work boxes, ensuring a solid mechanical connection. [reddit]
