Installing an outdoor junction box is one of those tasks that sits right at the intersection of electrical safety, long‑term reliability, and real‑world weather resistance. As someone who works with OEM/ODM junction box manufacturers and on‑site electricians, I've seen that the difference between a "quick install" and a professional job usually shows up months later—when moisture, UV and poor sealing start causing failures. This guide walks you through how to install a junction box outside step by step, with practical tips from the field and references to current best practices, while highlighting how robust sheet‑metal enclosures from manufacturers like Ningbo Bohui Electric Co., Ltd. support safe and durable installations across power, telecom, networking, and new energy applications. [polycase]
An outdoor junction box is a protective enclosure where electrical conductors are joined, branched, or transitioned, typically mounted on exterior walls, structures, or equipment. Outside, it must do more than just "hold wires"—it needs to keep out water, dust, insects, and mechanical impacts, and support future maintenance. [houstin]
From an industry perspective, metal junction boxes with IP66 / NEMA 4X ratings are widely used in power distribution, telecom cabinets, pumps, EV charging, and industrial control panels. In these scenarios, precision‑manufactured sheet‑metal enclosures with proper gaskets, hinges and cable glands play a critical role in maintaining circuit integrity under rain, UV, vibration and temperature swings. [linkedin]
For typical homeowners or facility managers, a well‑installed junction box outside:
- Protects live connections from accidental contact and weather. [jkoffset]
- Reduces risk of short circuits, corrosion, and nuisance tripping. [storageshedsoutlet]
- Makes future upgrades (adding lights, outlets, sensors) easier and safer. [youtube]
efore touching any tools, local electrical codes and standards must guide the installation. In the US, that typically means following the National Electrical Code (NEC) and local amendments; in Europe, standards like NF C 15‑100 define how exposed connections must be protected. [youtube]
From a professional standpoint:
- Always de‑energize the circuit at the main panel and verify with a voltage tester or multimeter before working. [youtube]
- Confirm whether your jurisdiction requires specific junction box ratings, mounting heights, or conduit types outdoors. [storageshedsoutlet]
- When in doubt, involve a licensed electrician for design or final inspection—especially on high‑load or critical circuits. [youtube]
electing the correct enclosure is one of the most important decisions you'll make. As manufacturers, we see three main considerations: environment, capacity, and material. [quicksheetmetal]
Key factors:
- Protection rating: For open‑air environments, aim for IP66 or NEMA 4X to ensure dust‑tight and strong water‑jet resistance. [quicksheetmetal]
- Size and space: The box must accommodate all conductors, connectors, and any terminal blocks with adequate bending radius and space for future changes. [diagramelectric]
- Material:
- Sheet‑metal (steel or stainless) provides excellent mechanical protection and fire performance in industrial, pump, and EV applications. [linkedin]
- Quality surface treatment (powder coating, anti‑corrosion finishes) helps resist rust in coastal or humid climates. [linkedin]
- Cable entry options: Boxes designed for waterproof cable glands and conduit entries simplify sealing and strain relief. [quicksheetmetal]
For sectors like power distribution, telecom, smart manufacturing, and new energy storage, OEM sheet‑metal junction boxes from companies such as Ningbo Bohui Electric Co., Ltd. are engineered to integrate with busbars, DIN‑rail components, and industrial wiring accessories. [linkedin]

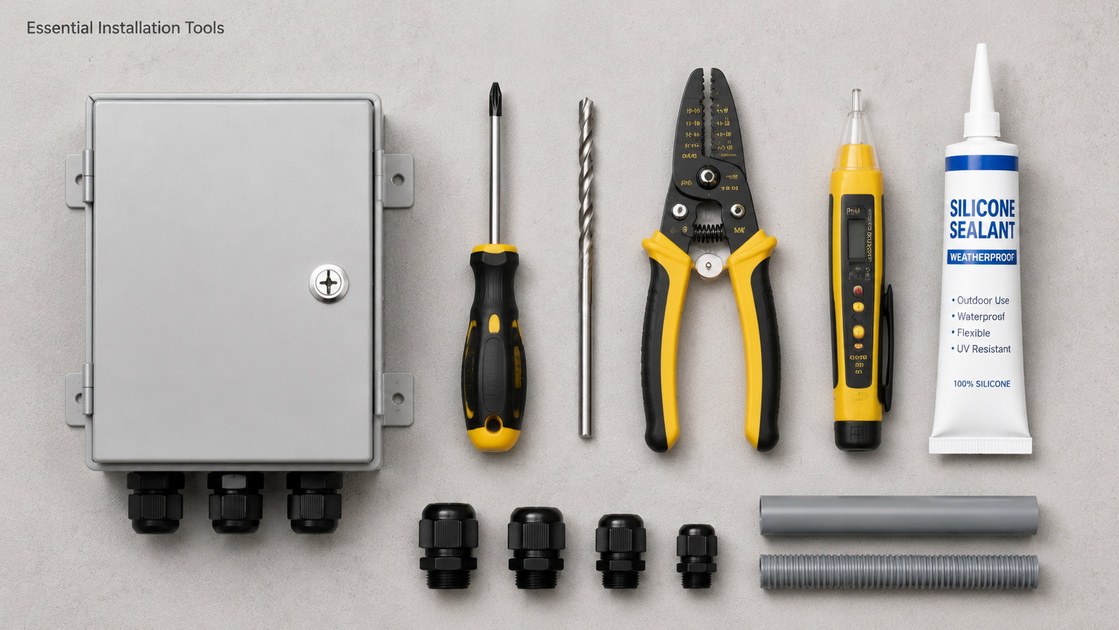

rofessional installers start by preparing all tools and materials so the work proceeds cleanly and safely. [alrouf.com]
You will typically need:
- Outdoor‑rated junction box (metal or high‑quality plastic) with appropriate IP/NEMA rating. [jkoffset]
- Conduit and fittings (PVC, metal, or flexible) sized to your cables. [alrouf.com]
- Cable glands and gaskets for waterproof entries. [quicksheetmetal]
- Screwdriver, drill, and appropriate anchors / stainless‑steel screws. [alrouf.com]
- Wire stripper, wire nuts or certified connectors, electrical tape. [houstin]
- Silicone sealant or equivalent for external sealing. [storageshedsoutlet]
- Voltage tester or multimeter. [youtube]
Personal protective equipment (PPE):
- Insulated gloves and safety goggles for protection against unexpected energization and debris. [youtube]
- Appropriate footwear and clothing that reduce the risk of shock and slips. [youtube]

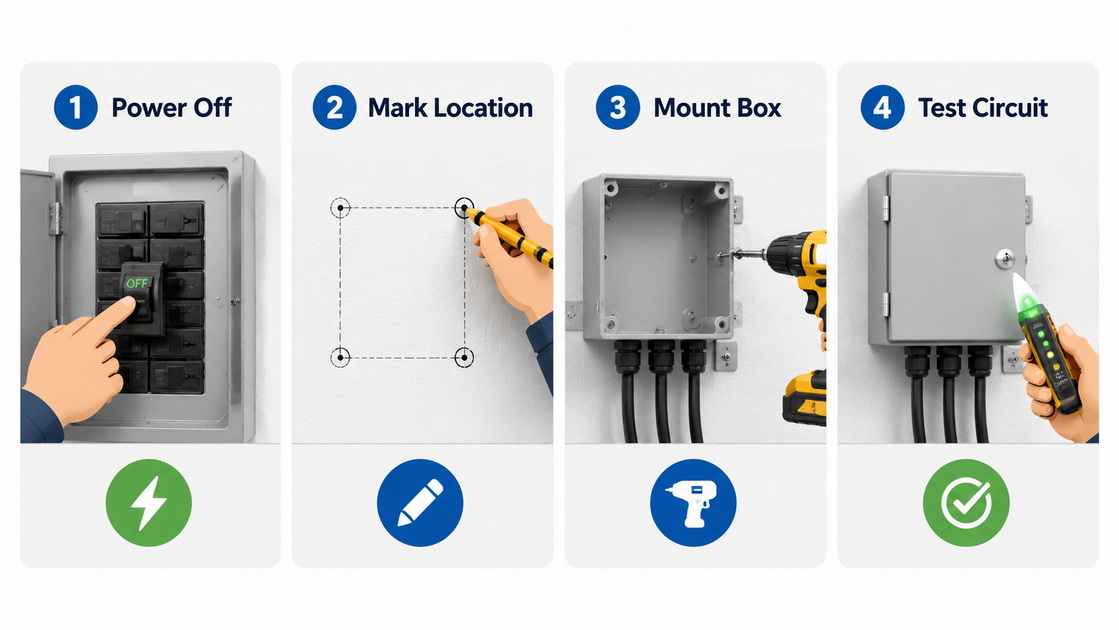

he exact method differs slightly depending on wall construction and wiring layout, but the core steps remain consistent across residential and industrial installs. [jkoffset]
1. Switch off the breaker feeding the circuit at the main panel. [houstin]
2. Use a voltage tester or multimeter to confirm there is no voltage at the existing outlet, light, or junction where you will tie in. [youtube]
3. Only proceed once the test shows the circuit is fully de‑energized. [youtube]
A good location balances accessibility, protection from the elements, and proximity to the power or control source. [alrouf.com]
- Place the box under an eave or sheltered area when possible to reduce direct rain load. [storageshedsoutlet]
- Avoid areas with water pooling, direct sprinkler spray, or intense, constant sunlight that may accelerate material aging. [storageshedsoutlet]
- Mark the outline of the box or conduit penetration with a pencil for accurate drilling and alignment. [linkedin]
For EV chargers, pump controls, or outdoor industrial panels, installers often choose a height that avoids splash zones but remains reachable for maintenance. [quicksheetmetal]
1. Drill a hole or series of holes at the marked location large enough for the conduit or cable route. [alrouf.com]
2. Where possible, cut the hole with a slight outward angle so any incidental water tends to drain outward, not inward—this is a trick some field electricians use for generator inlets and exterior boxes. [instagram]
3. Clean dust and debris to ensure the junction box or mounting plate seats flush on the surface. [diagramelectric]
On siding or metal cladding, many electricians use a mounting block and then cut the opening to match the junction box footprint. [youtube]
- Run conduit from the existing power source to the junction box location, securing it periodically with appropriate fittings. [alrouf.com]
- Fit waterproof cable glands into the junction box entries and tighten them to maintain the IP seal. [quicksheetmetal]
- Ensure each conduit or gland has a plastic bushing or smooth edge so cables are not damaged over time. [instagram]
1. Position the box over the drilled opening or aligned with the conduit. [diagramelectric]
2. Fasten it using stainless‑steel screws or anchor bolts, so it is rigid and does not move when cables are pulled. [linkedin]
3. For siding installations, ensure the front edge or cover is flush with the wall or mounting block to keep the gasket evenly compressed. [youtube]
Proper mounting is especially important for sheet‑metal boxes used in industrial and new‑energy projects, where vibration and mechanical loads can be significant. [linkedin]
- Feed cables through the conduit and into the box, respecting the required color codes: blue for neutral, green/yellow or bare copper for ground, and brown/black/red for phase in many regions. [houstin]
- Strip about 12–13 mm (around half an inch) of insulation from each conductor using a wire stripper. [houstin]
- Ensure sufficient wire length inside the box (often at least 150 mm / 6 inches) for safe connections and future rework. [youtube]
Inside the box:
- Group and connect conductors using wire nuts, terminal blocks, or certified connectors; hot to hot, neutral to neutral, ground to ground. [houstin]
- Avoid twisted, loose bundles; each conductor should be securely fixed in its connector. [houstin]
- Use electrical tape over connectors if recommended for extra mechanical security, but do not rely on tape alone. [alrouf.com]
Industrial installers often use DIN‑rail terminal blocks and markers inside sheet‑metal junction boxes to keep complex circuits organized and traceable, especially around pumps, motors, and control panels. [quicksheetmetal]
Moisture is one of the leading causes of outdoor electrical failures. [storageshedsoutlet]
- Apply silicone sealant around the junction box edges and around conduit entries where appropriate. [storageshedsoutlet]
- Inspect for any unused holes and seal them with plugs or silicone to maintain enclosure integrity. [quicksheetmetal]
- In harsh climates or direct rainfall, add a rain shield or sun cover above metal boxes to further protect the enclosure. [quicksheetmetal]
This sealing step is where well‑designed sheet‑metal junction boxes—with continuous gaskets, deep covers, and robust hinges—offer a clear advantage in long‑term reliability. [linkedin]
1. Close the junction box cover, ensuring all screws are tight and the gasket is evenly compressed. [youtube]
2. Restore power at the breaker. [youtube]
3. Use a voltage tester or appropriate device (outlet tester, clamp meter, or system diagnostics) to verify that circuits are functioning as intended and that there are no faults. [youtube]
Before considering the job complete, perform a visual and mechanical inspection: no exposed conductors, no loose wires, and a firmly mounted enclosure. [houstin]
s an industry manufacturer and content strategist, I'd highlight several pro‑level tips that make a big difference over years of operation:
- Never mount at an unintended angle that compromises the factory weatherproof seal; boxes are designed to seal correctly when installed square and level. [storageshedsoutlet]
- Maintain correct IP / NEMA rating continuity from the junction box to cable glands, conduits, and covers; one weak component can compromise the whole system. [quicksheetmetal]
- In high‑humidity regions, consider stainless‑steel enclosures and anti‑condensation measures to combat internal moisture build‑up. [houstin]
- For sensitive loads (pumps, industrial sensors, EV equipment), plan for maintenance access: adequate space around the box, clear labeling inside, and easy‑to‑reach fasteners. [linkedin]
In manufacturing, many clients in power, communications, and smart factories specify custom sheet‑metal junction boxes with reinforced doors, lockable latches, and integrated mounting plates to support heavier components and more complex wiring. [linkedin]

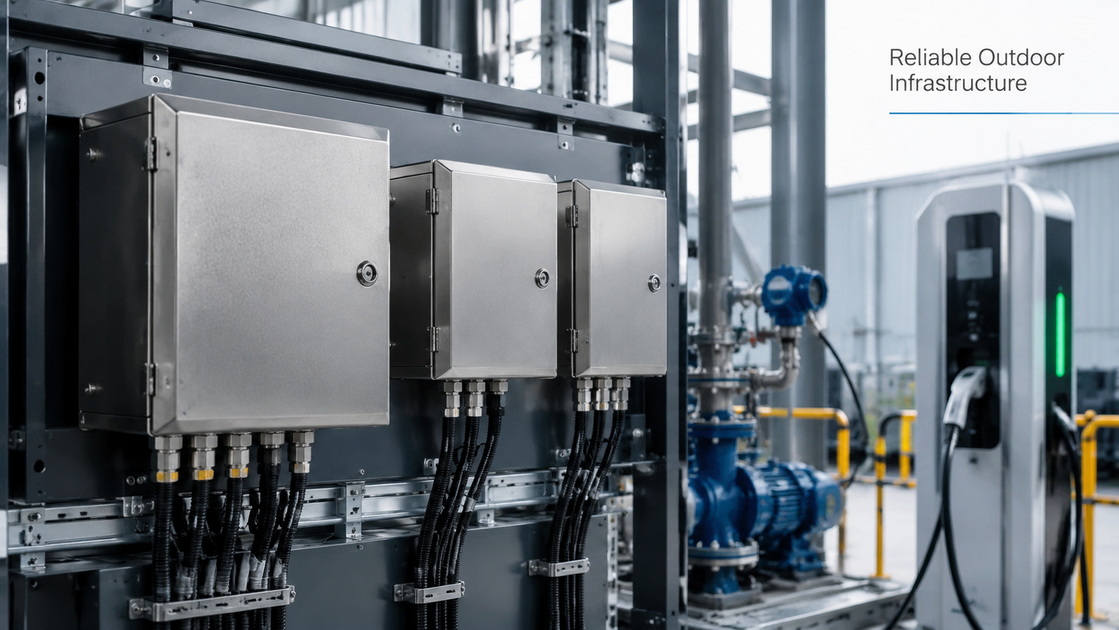

utdoor junction boxes are no longer just simple "cable junctions"—they've become small, distributed hubs in modern electrical and digital infrastructure. [linkedin]
Typical application areas include:
- Power and distribution: Branching supply for exterior lighting, HVAC, and equipment. [magnifyelectric]
- Telecommunications and networking: Housing fiber splice trays, copper terminations, and PoE components on building exteriors. [linkedin]
- Industrial smart manufacturing: Connecting sensors, actuators, and field bus networks around machines and production lines. [quicksheetmetal]
- New energy storage and EV: Protecting DC connections, monitoring systems, and auxiliary circuits for battery packs and charging infrastructure. [linkedin]
- Water pumps and utilities: Providing robust, corrosion‑resistant enclosures at wells, treatment plants, and irrigation sites. [quicksheetmetal]
Manufacturers like Ningbo Bohui Electric Co., Ltd. serve these segments with engineered sheet‑metal junction boxes designed to integrate with OEM/ODM requirements: custom sizes, knockouts, mounting patterns, and surface treatments tailored to harsh outdoor environments. [quicksheetmetal]
elow is a quick‑reference table you can use on‑site:
| Step | What To Do | Key Points |
|---|---|---|
| Power off | Turn off breaker and verify no voltage | Use a voltage tester before working. youtube |
| Location | Choose accessible, protected spot | Avoid pooling water and direct heavy spray. alrouf.com |
| Box selection | Pick outdoor‑rated IP66 / NEMA 4X box | Size for wires, connectors, and future expansion. quicksheetmetal |
| Conduit / glands | Install conduit and waterproof cable glands | Use bushings and tighten seals properly. alrouf.com |
| Mounting | Fix box securely to wall or structure | Use stainless screws / anchors; keep box level. linkedin |
| Wiring | Strip, connect, and secure conductors | Follow color codes and use certified connectors. alrouf.com |
| Sealing | Seal edges and unused openings | Silicone or plugs maintain enclosure integrity. alrouf.com |
| Testing | Restore power and verify operation | Check for loose connections or abnormal behavior. youtube |
ven for experienced DIY users, there are situations where the safest, most efficient option is to involve a licensed electrician. [youtube]
You should seek professional help if:
- You are unsure how to route or size conductors for the load. [youtube]
- The junction box will connect high‑power equipment, three‑phase circuits, or mission‑critical systems. [polycase]
- Local code requirements around exterior installations, grounding, or bonding are unclear. [youtube]
For commercial and industrial applications such as new energy storage, intelligent manufacturing, or telecom sites, involving specialists from enclosure manufacturers and electrical contractors ensures that the junction box design and installation meet both performance and regulatory requirements. [linkedin]
Yes. Any junction located outside or exposed to moisture should use a weatherproof enclosure with an appropriate IP or NEMA rating to protect connections and meet code. [jkoffset]
You can install during rainy conditions, but the finished junction box must be fully sealed and weatherproof, ideally under some form of shielding and with properly tightened cable glands and gaskets. [storageshedsoutlet]
Metal offers superior mechanical strength, fire performance, and durability for industrial and high‑duty applications, while high‑quality plastic can be adequate for light residential loads; the key is rating and build quality. [quicksheetmetal]
Installations typically avoid low splash zones and follow local code guidance, balancing accessibility for maintenance with protection from water ingress and physical damage. [alrouf.com]
Absolutely. After sealing the box and restoring power, use a voltage tester or appropriate device to confirm correct operation and check for faults or abnormal heating. [youtube]
