An electrical enclosure is made through a tightly controlled sheet‑metal fabrication process that takes raw steel or stainless steel and turns it into a sealed, tested, and certified cabinet ready to protect critical electrical components in harsh industrial environments. As a manufacturer like Ningbo Bohui Electric, we see every enclosure as both a safety device and a key part of our customers' power, automation, and energy infrastructure. [wrekinsheetmetal.co]
An electrical enclosure is a protective housing that shields electrical equipment—such as breakers, relays, PLCs, drives, and terminals—from dust, water, impact, and unauthorized access. In industrial environments, these enclosures also help ensure worker safety by preventing accidental contact with live parts and containing electrical faults. [huimfg]
For wall‑mounted industrial enclosures, manufacturers typically use mild steel, galvanized steel, or stainless steel because these materials offer the strength, machinability, and corrosion resistance required for demanding applications like power distribution, automation lines, and outdoor installations. The enclosure's design, material, finish, and rating (such as IP65 or NEMA equivalents) are all chosen to match the specific use case and environmental conditions. [alliedmoulded]
Poorly designed or poorly manufactured enclosures can lead to equipment failures, safety incidents, and unplanned downtime. In contrast, a high‑quality enclosure extends the service life of electrical equipment by protecting against corrosion, moisture, dust ingress, and mechanical impact. [atlasmfg]
For OEMs and system integrators in sectors like power, telecommunications, industrial automation, building control, new energy storage, and EV infrastructure, the enclosure also has a commercial impact. A robust, compliant, and well‑finished enclosure can be a differentiator when selling into global markets that demand documented performance and certification (for example CE and IP65). [bohuitechnology]

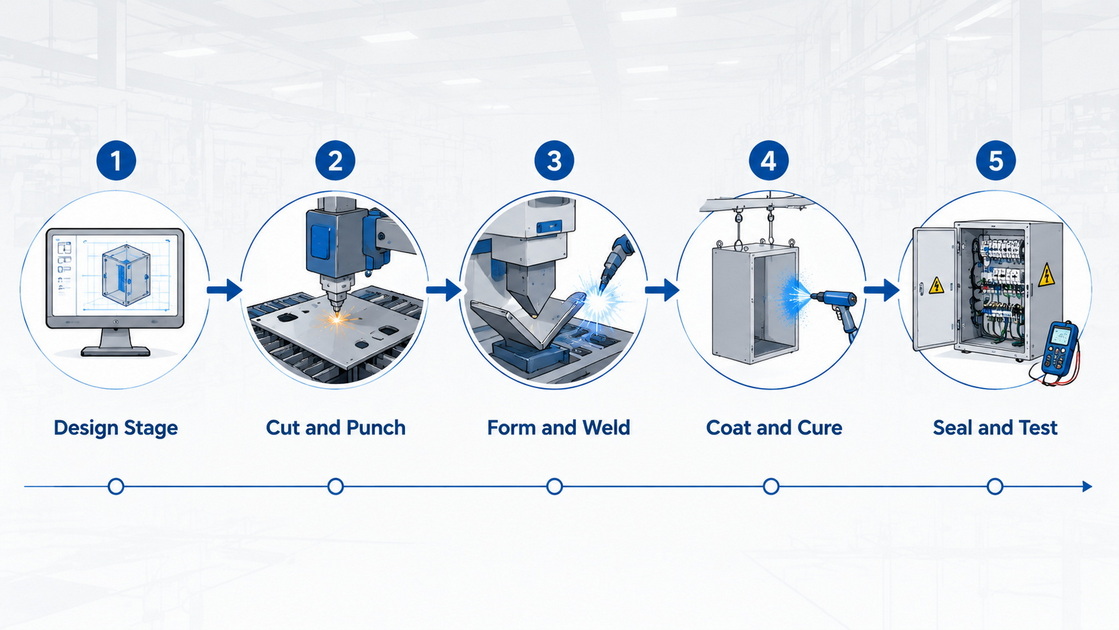

At a high level, the manufacturing of an industrial electrical enclosure follows these stages:
1. Engineering and design verification
2. Material selection and preparation
3. Sheet cutting and punching
4. Bending and forming
5. Welding and grinding
6. Surface treatment and powder coating
7. Assembly and hardware installation
8. Sealing, IP testing, and quality inspection
9. Packaging, labeling, and delivery [eabel]
Each stage is controlled with process parameters, inspection checkpoints, and documentation to ensure repeatable quality and compliance with relevant standards. [wrekinsheetmetal.co]
The process starts with engineering design, where mechanical and electrical engineers translate customer requirements into detailed CAD drawings and bills of materials. Inputs usually include enclosure dimensions, door configuration, mounting options, material type, IP or NEMA rating, and required accessories (such as gland plates, mounting plates, and locking systems). [huimfg]
At this stage, experienced manufacturers advise customers on design-for-manufacturing and design-for-installation. For example, engineers might standardize hardware across multiple enclosure sizes, recommend certain hinge or lock types for outdoor applications, or optimize sheet layout to reduce waste. This upfront collaboration reduces cost, speeds up production, and minimizes problems in the field. [atlasmfg]
Material selection directly affects mechanical strength, corrosion resistance, weight, and cost. For industrial wall‑mount enclosures, common options include: [alliedmoulded]
- Cold‑rolled mild steel: Strong, cost‑effective, easy to cut and form, typically used for indoor or sheltered applications when combined with a high‑quality coating. [wrekinsheetmetal.co]
- Galvanized steel: Mild steel with a zinc coating that provides enhanced corrosion resistance for more aggressive environments. [huimfg]
- Stainless steel (e.g., 304 or 316): High corrosion resistance and good mechanical properties, often used in outdoor, marine, food, or chemical environments. [alliedmoulded]
Manufacturers weigh factors like conductivity, corrosion resistance, tensile strength, and total lifecycle cost when recommending materials. For customers in power, new energy storage, and EV charging, stainless or galvanized options with robust sealing are often preferred due to their long service life in outdoor and coastal installations. [bohuielectric]

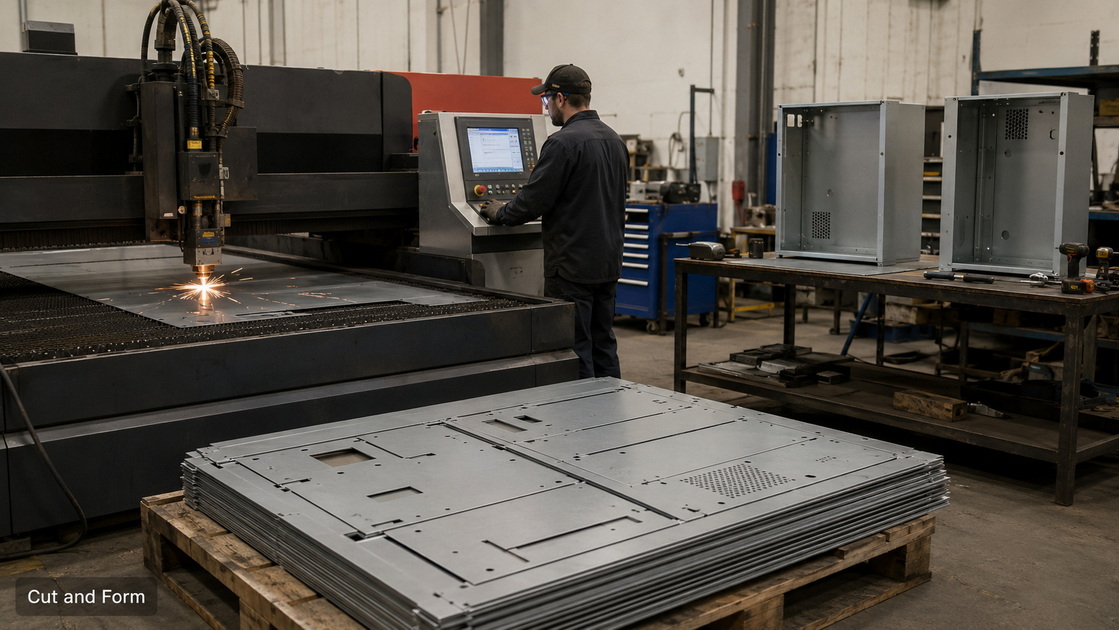

Once the design and material are locked in, the enclosure body starts as flat sheet metal. CNC laser cutting machines or turret punch presses cut panels for: [eabel]
- Back panel and side walls
- Doors and covers
- Mounting plates and gland plates
- Brackets and reinforcement ribs [eabel]
Precision in this step is critical. Tolerances affect how easily panels align in later stages and how well seals compress on doors and openings. Some manufacturers also implement nesting optimization in their cutting software to reduce waste and improve yield from every steel sheet. [wrekinsheetmetal.co]
The cut panels go to CNC press brakes or bending machines, where operators form flanges, side walls, door frames, and reinforcements according to the design. Accurate bending ensures the enclosure maintains its specified dimensions and that doors close flush against the frame. [eabel]
In modern factories, bending programs are stored and reused for standard products, which increases consistency and throughput. Skilled operators adjust bend sequences and tooling to handle varied thicknesses and complex shapes, especially when creating integrated mounting features or cable entry zones. [huimfg]
After bending, welding and mechanical joining convert individual panels into a rigid enclosure. Typical operations include: [wrekinsheetmetal.co]
- Welding corners and reinforcement ribs
- Welding hinges and brackets
- Spot welding and seam welding on critical joints [eabel]
The welds are then ground and polished to create smooth surfaces that are safe to handle and suitable for coating. Consistent weld quality helps the enclosure pass mechanical strength tests and ensures it can resist vibration and impact in industrial applications. [huimfg]
Customer feedback often highlights door alignment and opening feel—these characteristics depend heavily on precise welding and assembly. Manufacturers that invest in skilled welders and fixtures typically see fewer field complaints about doors sticking, misalignment, or leaks. [atlasmfg]
Before any coating is applied, the enclosure must go through surface preparation, which can involve:
- Degreasing to remove oils and residues
- Acid pickling or phosphating to clean and activate the surface
- Rinsing and drying to achieve a clean, uniform substrate [eabel]
This step dramatically influences coating adhesion and corrosion resistance. Some manufacturers use automated pre‑treatment lines with multiple stages to ensure consistent results, particularly for enclosures destined for outdoor environments. [eabel]
Industrial electrical enclosures are most commonly finished with powder coating, a dry powder electrostatically applied and then cured in an oven. Powder coating offers: [wrekinsheetmetal.co]
- Strong resistance to chips, scratches, and corrosion
- A smooth, uniform appearance
- A wide range of colors and textures
- Low VOC emissions and minimal waste, compared to wet paints [huimfg]
Standard colors (such as light gray or RAL options) are common, but many manufacturers offer custom colors and logos for OEMs and system integrators. The final cured film thickness and adhesion are often checked as part of quality control to ensure the enclosure meets durability expectations. [wrekinsheetmetal.co]
Once the painted enclosure cools, it moves to final assembly. Key steps include: [huimfg]
- Installing gaskets and seals around doors and removable panels
- Adding hinges, locks, handles, and viewing windows if required
- Fitting internal mounting plates, DIN rails, and brackets
- Installing gland plates and cable entry components [wrekinsheetmetal.co]
To achieve ratings such as IP65, the enclosure must pass ingress protection tests that verify resistance to dust and water spray according to IEC 60529. Manufacturers perform standardized testing, including dust chambers and water jets, to validate their designs and maintain certification. [huimfg]
High‑reliability suppliers also conduct dimensional checks, door compression tests, lock operation tests, and visual inspection at this stage to catch any defects before shipment. [wrekinsheetmetal.co]
After passing quality checks, the enclosure is carefully packaged to prevent damage during transport. Packaging may include: [huimfg]
- Protective film on painted surfaces
- Foam or corner protectors
- Sturdy cartons or wooden crates for heavier units [wrekinsheetmetal.co]
Each enclosure is labeled with product codes, rating information (e.g., IP65), manufacturing batches, and certification marks such as CE. For global customers, manufacturers coordinate sea, air, or land shipments and may provide installation instructions or mounting templates to simplify on‑site work. [bohuitechnology]

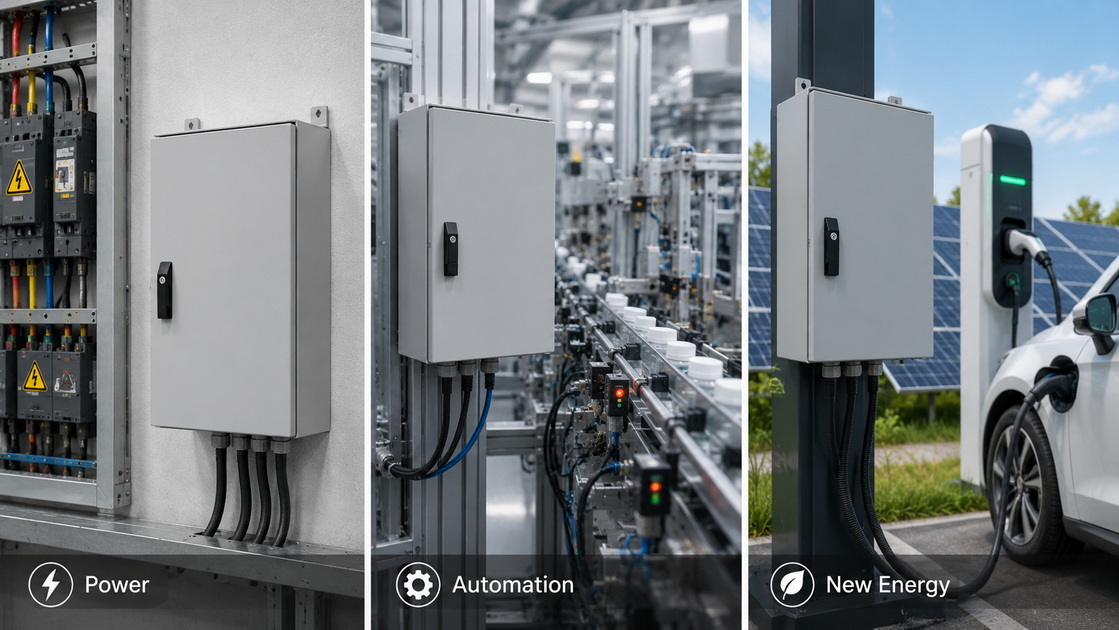

Industrial wall‑mounted enclosures manufactured through this process serve a wide range of sectors:
- Power distribution and substations
- Telecommunications and network infrastructure
- Industrial automation and smart manufacturing
- Building management systems
- New energy storage and renewable power
- EV charging and new energy vehicles
- Water pumps and water treatment systems [bohuielectric]
Customers in these sectors typically evaluate manufacturers on reliability, customization capability, delivery time, and certification coverage. Feedback from international buyers shows that consistency of IP rating, paint thickness, and door alignment are among the top factors that determine whether they repeat orders or change suppliers. [bohuitechnology]
From a manufacturing and engineering perspective, the toughest challenge is often creating enclosures that maintain their performance in harsh environments over many years. Practical design and production strategies include: [alliedmoulded]
- Selecting galvanized or stainless steel plus robust powder coating for coastal or high‑humidity regions
- Using continuous gaskets and reinforced doors for high IP ratings
- Adding drip edges, sunshades, or double‑wall designs for outdoor installations
- Carefully planning cable entry points to avoid compromising sealing [alliedmoulded]
Leading manufacturers also encourage customers to consider standardized platforms for multiple projects, which reduces complexity and simplifies maintenance while still allowing for custom internal layouts. [atlasmfg]
Electrical enclosure manufacturing is evolving in response to Industry 4.0, renewable energy, and global supply chain demands. Key trends include: [atlasmfg]
- Higher IP and NEMA ratings becoming standard for outdoor and energy applications
- Integration of smart components such as temperature sensors and monitoring modules
- Greater emphasis on modularity and scalability, allowing operators to expand systems without replacing entire cabinets
- Use of CNC automation and digital quality tracking to improve consistency and traceability [atlasmfg]
For exporters and OEMs, working with manufacturers that combine advanced fabrication equipment, robust testing, and international certifications is increasingly important to meet local compliance requirements in different markets. [bohuielectric]
When you're choosing a partner for industrial electrical enclosures, use this simple checklist:
1. Certifications and ratings: Do they offer CE, IP65 or higher, and can they provide test reports? [bohuitechnology]
2. Material options: Can they supply mild steel, galvanized steel, and stainless steel with appropriate finishes? [alliedmoulded]
3. Customization capability: Are custom dimensions, cutouts, and accessories available with reasonable lead times? [bohuitechnology]
4. Quality controls: Do they have defined processes for cutting, bending, welding, coating, and IP testing? [eabel]
5. Industry experience: Do they have references in your sector, such as power, automation, telecom, or new energy? [bohuielectric]
Understanding how an electrical enclosure is made helps buyers, engineers, and project managers make better decisions about quality, cost, and long‑term reliability. From careful material selection to precision fabrication, powder coating, sealing, and IP testing, every step in the process is designed to protect your critical electrical systems in real‑world conditions. [alliedmoulded]
If you are planning a new project in power distribution, telecommunications, industrial automation, building control, new energy storage, EV charging, or water systems, consider partnering with a specialist manufacturer that can provide customized, certified, and globally competitive electrical enclosures. A direct conversation with the engineering team can help you optimize design, reduce total cost, and ensure your enclosures perform reliably throughout their service life. [bohuitechnology]
IP ratings describe how well an enclosure protects against solid objects and liquids based on IEC 60529. IP65 specifically means the enclosure is dust‑tight and protected against water jets from any direction, making it suitable for many industrial and outdoor applications. [eabel]
For outdoor use, galvanized steel and stainless steel are commonly recommended because they offer strong corrosion resistance and mechanical durability. The final choice depends on the environment, budget, and required service life, with stainless steel often preferred in coastal or chemically aggressive locations. [alliedmoulded]
Powder coating creates a tough, uniform finish that resists chipping, scratching, and corrosion better than many traditional wet paints. It is also environmentally friendlier, producing minimal waste and low levels of volatile organic compounds. [huimfg]
Lead time depends on design complexity, material availability, and production load, but many manufacturers can deliver custom sheet‑metal enclosures within a few weeks for standard configurations. More complex projects that require special testing, certifications, or large volumes may need longer schedules that should be confirmed during the quotation stage. [bohuitechnology]
Yes, many OEMs and integrators adopt platform designs that can be reused across projects with minor variations, such as different cutouts or internal layouts. This approach reduces engineering effort, speeds up production, and simplifies maintenance and spare parts management. [atlasmfg]
