IP55 is a practical, mid‑level protection rating that makes wall mount enclosures reliable in dusty and wet environments, but not invincible against extreme weather or wash‑down conditions. As a manufacturer working with IP‑rated electrical cabinets for power, telecom, and industrial systems, I see IP55 as the "sweet spot" between cost and real‑world protection—when you know its limits and design around them. [lianjer]

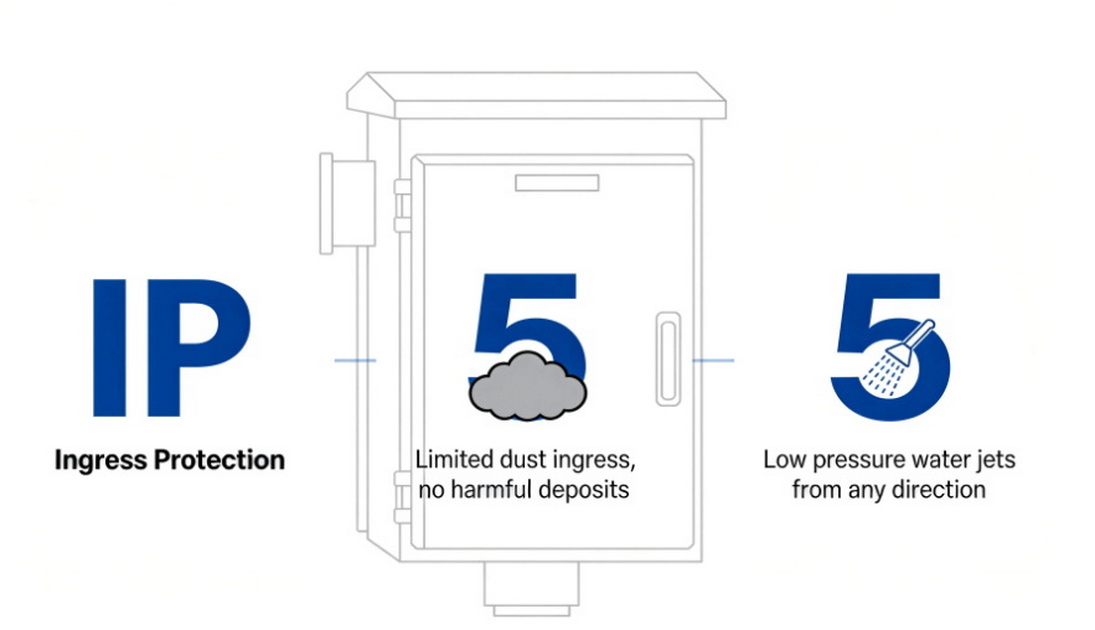

When you see "IP55" on an electrical wall mount enclosure, it tells you how well that enclosure keeps out dust and water based on IEC 60529, the global ingress protection standard. The "IP" stands for Ingress Protection, and the two digits describe separate protection levels: one for solid particles and one for liquids. [electricalcabinet]
- First digit "5" = dust‑protected, limited dust ingress allowed but not enough to interfere with normal operation. [eabel]
- Second digit "5" = protected against low‑pressure water jets from any direction. [lianjer]
In practice, that means an IP55 wall mount enclosure can safely house electrical and electronic components in moderately dusty or damp environments—such as factory workshops, pump rooms, or sheltered outdoor installations—without needing the cost of a higher IP65/IP66 cabinet. [lianjer]
Speaking as someone who works with enclosure users across power, communication, and industrial automation projects, IP55 is rarely chosen by accident; it is a risk‑versus‑cost decision. [topcabinet]
When engineers or buyers ask "Is IP55 enough?", I usually walk them through three questions:
1. How much dust is present, and how aggressive is it?
IP55 tolerates some dust inside the cabinet, but that dust must not build up to a harmful level. [eabel]
2. What kind of water exposure will the enclosure see?
IP55 handles low‑pressure water jets, like light hose spray or rain driven by wind, but not pressure‑washer cleaning or submersion. [eabel]
3. What happens if you are wrong?
If failure means short downtime in a workshop, IP55 is usually acceptable; if failure means a city‑wide telecom outage, you probably need IP65 or higher. [eabel]
From years of feedback, the most satisfied IP55 users are those who installed cabinets in semi‑outdoor or sheltered locations, combined them with good cable management and gaskets, and committed to simple periodic inspections. [electricalcabinet]
Many buyers see "IP55" in the datasheet but rarely understand how it is tested. IEC 60529 defines specific test conditions to claim this rating. [lianjer]
- The enclosure is exposed to circulating dust in a test chamber.
- Some dust is allowed to enter, but not enough to interfere with equipment operation or safety. [eabel]
- After the test, inspectors check that no harmful dust deposits accumulate on critical live parts. [eabel]
- The enclosure is sprayed with low‑pressure water jets from all directions using a 6.3 mm nozzle at a defined flow rate and distance. [lianjer]
- Water may enter in small amounts, but it must not cause damage or unsafe conditions. [lianjer]
For buyers, the key takeaway is this: IP55 is not about keeping every particle and drop out—it is about maintaining safe, reliable operation under realistic environmental exposure. [lianjer]
To reach IP55 in real deployments, enclosure design and material choices matter as much as the rating itself. [electricalcabinet]
Typical design characteristics:
- Robust housing: cold‑rolled steel, stainless steel, or aluminum with anti‑corrosion coating. [electricalcabinet]
- Sealed doors: formed doors with continuous gasket to minimize gaps.
- Protected openings: cable entries with glands, sealed knockouts, or gland plates.
- Secure locking: quarter‑turn latches or multi‑point locking to keep the door tightly closed.
- Wall mounting structure: brackets or rear plates designed to carry load while limiting vibration.
When an IP55 cabinet is installed correctly, these features work together to keep dust and water away from sensitive terminals, PLCs, inverters, communication devices, or power distribution blocks. [eabel]

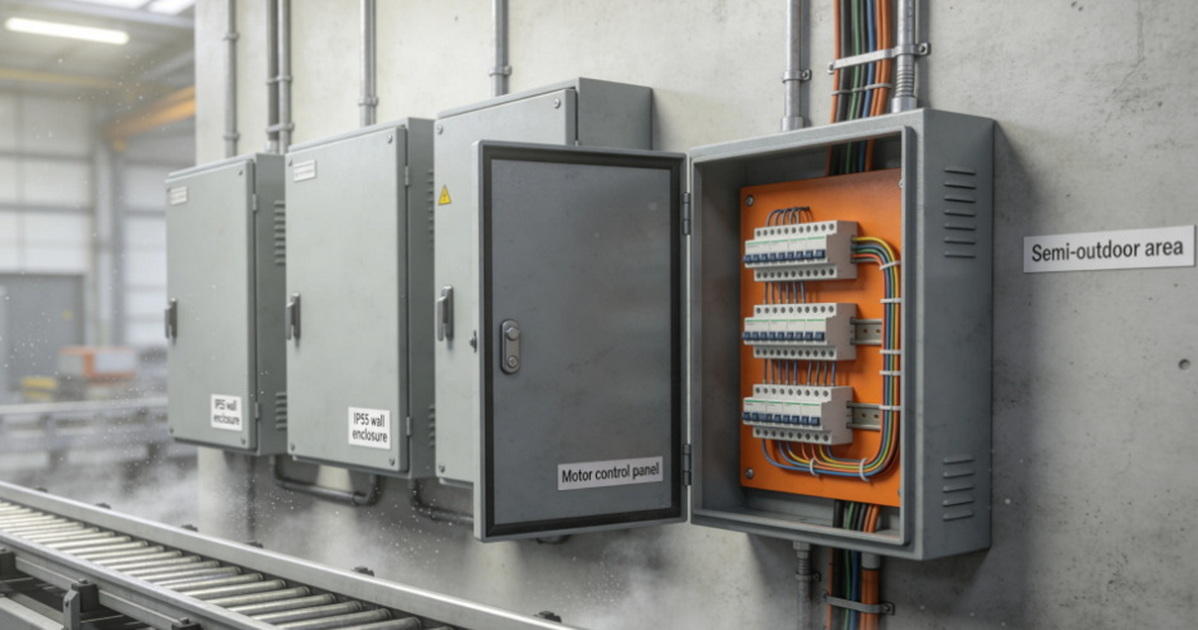

In real projects, IP55 wall mount cabinets tend to show up where you have moderate environmental stress and limited cleaning intensity. [electricalcabinet]
Typical application scenarios:
- Power distribution & control
- Indoor or semi‑outdoor LV distribution boards.
- Motor control panels in pump rooms or HVAC areas. [eabel]
- Telecom & networking
- Wall‑mounted network cabinets in equipment rooms with dust or moisture.
- Access nodes in sheltered outdoor corridors or under eaves. [azesystems]
- Industrial automation & smart manufacturing
- PLC panels, I/O enclosures, and HMI interfaces near production lines, but not in direct wash‑down zones. [lianjer]
- Building & infrastructure
- Fire alarm control boxes, security system cabinets, lighting control, and BMS panels in garages, corridors, or rooftop sheds. [eabel]
- Water pumps & utility systems
- Control panels for pumps, booster systems, or treatment skids installed in pump houses, basements, or sheltered outdoor platforms. [electricalcabinet]
In all these cases, IP55 balances protection with cost and weight, especially when you deploy multiple cabinets across a site.

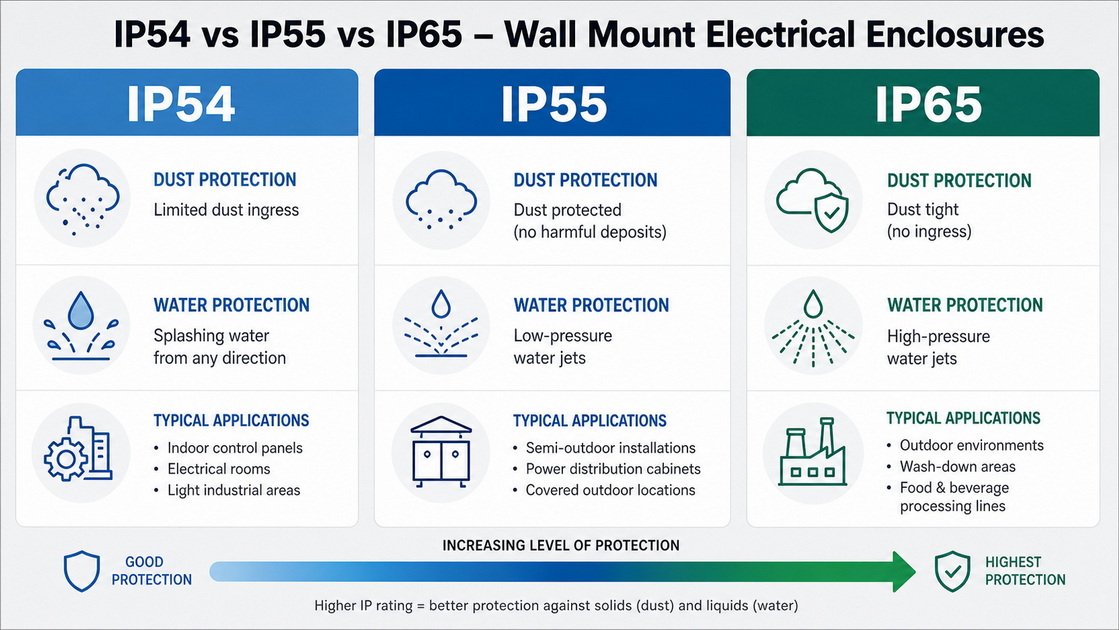

Many spec sheets list IP54, IP55, and IP65 side by side, which can be confusing. The differences are not just "one number higher"—they translate into different risk profiles and costs. [maysteel]
| Rating | Dust Protection | Water Protection | Typical Use | When To Choose |
|---|---|---|---|---|
| IP54 | Limited dust ingress, no harmful deposits eabel | Water splashes from any direction eabel | Indoor, semi‑outdoor sheltered areas eabel | Dry workshops, control rooms, light moisture only |
| IP55 | Dust‑protected; limited dust allowed eabel | Low‑pressure water jets from any direction lianjer | Light outdoor use, moderate rain, humid areas eabel | Semi‑outdoor, occasional hose spray, dusty indoor spaces |
| IP65 | Fully dust‑tight lianjer | High‑pressure water jets from any direction eabel | Harsh outdoor, wash‑down, dusty production lines eabel | Food processing, heavy industrial, exposed outdoor telecom |
From an engineering perspective, moving from IP54 to IP55 gives you more robust water jet resistance, while jumping from IP55 to IP65 gives you full dust sealing and better performance under stronger jets. The step from IP55 to IP65 often brings a noticeable increase in gasket complexity, sealing surfaces, and cost. [eabel]
Based on typical field feedback across power, telecom, and industrial clients, a few patterns appear again and again.
- Semi‑outdoor power cabinets:
Installed under building eaves or in small shelters, IP55 enclosures have operated for years with only minor internal dust, as long as doors remained closed and cable entries were properly sealed. [eabel]
- Industrial control near— but not inside—wash‑down zones:
When mounted a few meters away from direct high‑pressure cleaning, with splash‑only exposure, IP55 cabinets protected PLCs and drives reliably. [lianjer]
- Telecom/network wall cabinets in utility rooms:
In spaces with humidity and occasional condensation, IP55 plus internal heaters or ventilation minimized corrosion and contact oxidation. [exicom]
- Direct pressure‑washer cleaning:
In food plants and some outdoor facilities, cabinets directly hit by high‑pressure jets tended to require IP65/IP66 to avoid seepage at hinges and locks. [eabel]
- Unshaded, storm‑exposed outdoor poles:
Persistent driving rain, UV, and temperature cycling can stress gaskets, so higher IP or additional shielding is recommended for long‑term reliability. [exicom]
- Heavy dust environments:
Cement, grain, or fine metallic dust environments usually justify IP65 or specialized designs due to abrasive dust and safety requirements. [lianjer]
These patterns highlight a simple rule: IP55 is excellent in controlled or semi‑protected environments, but you should avoid it for the harshest outdoor or wash‑down locations. [eabel]
To decide whether an IP55 wall mount enclosure is a good fit, I often guide customers through a short checklist.
Ask these questions:
1. Is the enclosure fully indoor, semi‑outdoor, or fully outdoor?
2. Is dust light, moderate, or heavy and abrasive?
3. Is water exposure limited to rain, splashes, or low‑pressure hose, or do you use pressure‑washers or steam cleaning? [eabel]
If your environment is indoor or semi‑outdoor, with moderate dust and only low‑pressure spray or rain, IP55 is usually appropriate. [eabel]
- Can your team inspect and clean the enclosure internally at scheduled intervals?
- Will someone regularly check gaskets, cable entries, and door alignment?
Because IP55 allows limited dust ingress, a basic inspection and maintenance routine significantly extends the life of both the enclosure and the equipment inside. [exicom]
- Low risk of catastrophic downtime → IP55 often adequate.
- High financial or safety impact from failure → consider moving to IP65 or adding extra shielding even if IP55 might pass the test in theory. [lianjer]
Even the best‑designed IP55 cabinet can fail if installed poorly. Based on project feedback, these practices make the biggest difference.
- Mount in a sheltered position when possible.
Use building structures, canopies, or partial covers to reduce direct sun and rain, especially in outdoor applications. [exicom]
- Use proper cable glands and seal unused entries.
Open knockouts or poorly sealed glands are among the most common sources of dust and water ingress. [eabel]
- Avoid direct wash‑down zones.
Even if the rating technically allows jets, repeated high‑pressure cleaning can accelerate gasket wear. [lianjer]
- Maintain correct wall clearances and support.
Proper spacing supports heat dissipation and prevents vibration from loosening doors or fasteners.

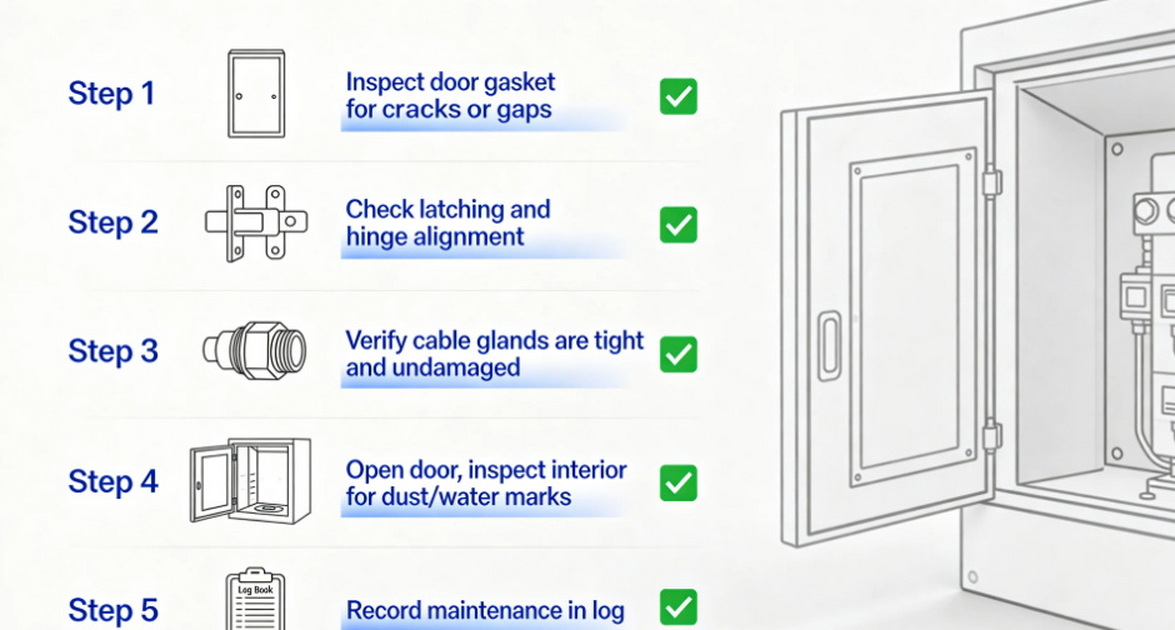

Set a basic schedule, for example once or twice per year, and check:
1. Door gasket integrity: no cracks, hardening, or gaps.
2. Latching force: door closes evenly and firmly.
3. Cable glands: no looseness, damage, or missing seals.
4. Interior: moderate dust only, no signs of water staining or corrosion.
These simple actions are often enough to keep IP55 wall mount enclosures performing reliably over many years. [exicom]
For a manufacturer serving power, communication, industrial automation, building, new energy storage, EV charging, and pump systems, IP55 is a strategic rating.
- It allows us to offer cost‑effective cabinets that still meet the demands of most non‑wash‑down, non‑immersion environments. [electricalcabinet]
- It gives engineering teams a reliable baseline protection level when they standardize enclosure specifications across multiple projects and sites. [eabel]
- It can be combined with industry‑specific features, such as internal mounting plates, cable management, cooling options, and customized cutouts, without sacrificing ingress protection when designed carefully. [electricalcabinet]
In other words, IP55 isn't just a label: it shapes how we design, seal, and test wall mount enclosures so they perform consistently in real‑world installations.
If you are unsure whether IP55 is right for your next project—especially in borderline environments like coastal installations, high‑humidity plants, or partially exposed rooftops—it is worth reviewing your conditions with an enclosure specialist.
A good enclosure partner can:
- Analyze your environmental risks and regulatory requirements.
- Suggest IP55, IP65, or higher designs based on your risk tolerance.
- Customize wall mount enclosures for specific industries, from telecom and data networks to water treatment, EV infrastructure, and industrial automation.
If you are planning a new project or upgrading existing cabinets, now is the ideal time to standardize your IP ratings and enclosure designs across sites to simplify maintenance and spare parts.
Call to action:
Evaluate your key electrical and control cabinets today. If you plan to deploy or upgrade wall mount enclosures in dusty or humid environments, talk with our team about IP55 solutions tailored to your power, communication, industrial, building, new energy, EV, and pump applications.
No. IP55 is water‑resistant against low‑pressure water jets and rain but not fully waterproof. It should not be used for immersion or direct high‑pressure wash‑down. [lianjer]
Yes, for light outdoor or semi‑outdoor applications, especially under shelters or eaves, IP55 can perform well, provided you avoid extreme weather exposure and follow good installation practices. [eabel]
IP55 allows limited dust ingress and resists low‑pressure water jets, while IP65 is completely dust‑tight and withstands higher‑pressure jets, making it more suitable for harsh outdoor or wash‑down environments. [maysteel]
Yes. Because IP55 allows some dust ingress, periodic internal inspection and cleaning, plus gasket and gland checks, are essential to maintain long‑term reliability. [exicom]
Usually not in direct wash‑down areas. These environments typically require IP65 or higher due to frequent high‑pressure cleaning and strict hygiene standards. [lianjer]
1. Lianjie – "What Does IP55 Mean? Rating, Protection & Typical Uses" – overview of IP55 rating and applications. [lianjer]
2. Eabel – "IP54 vs IP55 vs IP65: How to Choose the Right Electrical Enclosure" – comparison of IP ratings for enclosures. [eabel]
3. Lianjie – "IP55 vs IP65 Enclosures: Key Differences, Uses & How to Choose" – detailed comparison of IP55 and IP65. [lianjer]
4. Exicom – "What Are IP55 and IP65 Ratings? Protection Standards Explained" – insights on IP rating performance and maintenance. [exicom]
5. ElectricalCabinet – "IP55 电气外壳等级：针对灰尘和水射流的持久保护" – IP55 enclosure characteristics and typical uses. [electricalcabinet]
6. Maysteel – "Understanding NEMA & IP Enclosure Ratings" – explanation of IP vs NEMA and meaning of IP55. [maysteel]
7. AZE – "Outdoor Wall‑Mounted Cabinets | Weatherproof & IP55 Rack" – examples of outdoor IP55 cabinet applications. [azesystems]
8. General industry sources comparing IP55, IP65, and IP66 enclosure performance in various environments. [itiseterna]
