As an electrical enclosure manufacturer who has spent years inside factories, construction sites, and testing labs, I can tell you this: a well‑designed terminal box (junction / terminal enclosure) is often the quiet reason a system runs safely for 10+ years without a single electrical incident. From power distribution and industrial automation to 5G communication, EV charging, and energy storage, the humble terminal box is where reliability either starts—or quietly fails. [servicetitan]
A terminal box (often called a junction box in standards and design documents) is an enclosed housing that protects wire terminations, cable transitions, and control or monitoring components in an electrical system. It keeps live connections away from accidental touch, shields them from dust and moisture, and provides a structured space for safe installation and maintenance. [servicetitan]
In real projects—from pump stations to smart factories—terminal boxes are not just "metal boxes." They are engineered safety interfaces where:
- Incoming and outgoing circuits are terminated and labeled. [servicetitan]
- Protective devices and control terminals are mounted. [servicetitan]
- Standards like NEC, IEC, NEMA, or IP ratings are enforced in practice, not just on drawings. [thermaledge]
When these enclosures are undersized, incorrectly rated, or poorly installed, you typically see the same problems: overheating, corrosion, loose terminations, unplanned downtime, or failed inspections. [kunlonghardware]
Many engineers and buyers use "junction box" and "terminal box" interchangeably, but there is a practical difference in how they are usually applied in projects. [servicetitan]
| Term | Typical Use Case | Inside the Box |
|---|---|---|
| Junction box | General wire splicing, branch circuits, distribution transitions | Splices, connectors, wire nuts, sometimes terminals (servicetitan) |
| Terminal box | Organized termination points for field cables, signals, control and power wiring | Terminal blocks, markers, cable glands, accessories |
In modern applications—especially industrial automation, communications, and energy storage—the terminal box tends to be more structured: you expect clear terminal layouts, labeling, earthing bars, and interface components rather than random splices. [thermaledge]
A compliant, well‑designed terminal box delivers four critical functions. [spep]
1. Electrical safety
- Prevents accidental contact with live parts
- Reduces risk of short circuits and electrical fires
- Provides correct clearances, creepage distances, and grounding points
2. Environmental protection
- Blocks dust, water, and chemicals according to NEMA/IP ratings
- Maintains integrity under UV, temperature cycling, and vibration in harsh sites
3. Maintainability and access
- Provides accessible, code‑compliant locations for inspection and modification [servicetitan]
- Supports neat wiring, routing, and labeling for faster troubleshooting
4. System integration
- Acts as the physical interface between field devices, power supplies, and control systems in sectors like power, communication, EV, and water systems. [kunlonghardware]
For example, in a smart pump station, the field cables from pumps, sensors, and level switches typically terminate in a pump terminal box, which then connects via multicore or bus cables to the main control panel. A failure in this box affects the entire station's reliability.
Metallic enclosures—usually steel or aluminum—are the backbone of industrial and outdoor installations where durability and mechanical protection are non‑negotiable. [servicetitan]
Key characteristics:
- High impact and heat resistance, ideal for industrial plants and mechanical rooms. [servicetitan]
- Excellent EMC shielding when properly designed and grounded.
- Compatible with a variety of mounting and cooling solutions for more complex assemblies. [thermaledge]
Common applications: industrial automation cabinets, power distribution risers, EV charging infrastructure backplates, and external building services. [kunlonghardware]
Non‑metallic enclosures (typically high‑grade PVC, polycarbonate, or fiberglass) shine where corrosion is a long‑term concern and weight matters. [kunlonghardware]
They offer:
- Corrosion resistance in mildly aggressive environments
- Electrical insulation (no conductive housing)
- Lower weight for ceiling or pole‑mounted applications
They are widely used in residential, light commercial, and some low‑risk indoor industrial applications. [servicetitan]
Weatherproof terminal boxes are engineered to protect against rain, dust, and wide temperature swings, with IP or NEMA ratings clearly specified. [spep]
Typical design elements:
- Gasketed doors or covers
- Stainless or powder‑coated hardware
- Cable glands or sealed conduit entries
- UV‑resistant materials
These are common in outdoor lighting, façade systems, rooftop equipment, photovoltaic arrays, and external communications infrastructure. [kunlonghardware]
In environments with explosive gases, vapors, or combustible dusts (oil and gas, chemical plants, grain silos), explosion‑proof junction or terminal boxes are designed to contain an internal explosion without igniting the surrounding atmosphere. [spep]
They must:
- Meet specific hazardous‑area standards (e.g., ATEX / IECEx / NEC Class/Division)
- Use certified glands, gaskets, and hardware
- Provide defined flame paths and robust construction
Choice of such boxes is never a guess; it is tightly controlled by standards and engineering risk assessments. [thermaledge]
Regardless of type or rating, a practical terminal box is more than just a shell. [servicetitan]
1. Enclosure body
- Provides mechanical protection and environmental sealing. [servicetitan]
- Chosen for material, thickness, and rating based on the project environment. [spep]
2. Cover or door
- Prevents contact with live parts while allowing access. [servicetitan]
- May be screw‑fixed or hinged, often with options for locks or seals.
3. Knockouts / cable entry points
- Pre‑scored or machined entry points for conduits or cable glands. [servicetitan]
- Enable flexible cable routing without compromising enclosure integrity.
4. Mounting brackets and internal rails
- Secure enclosure to walls, ceilings, machines, or frames. [kunlonghardware]
- Provide DIN rails or backplates for terminal blocks and accessories.
5. Grounding points
- Grounding screws or bars ensure enclosure and circuit bonding. [servicetitan]
- Critical for fault clearing and EMC performance. [thermaledge]
6. Terminal blocks and accessories
- Where actual wire terminations and signal transitions occur.
- May include disconnect terminals, fuse terminals, surge protection, and signal conditioners depending on the application. [thermaledge]
In residential and light commercial buildings, junction boxes protect connections for lighting, outlets, and small equipment. [servicetitan]
Typical roles:
- Safely containing wire splices in walls and ceilings
- Providing inspection points for inspectors and electricians [servicetitan]
- Supporting future modifications without opening large portions of the building structure
In offices, malls, and public buildings, terminal boxes support more complex power and low‑voltage systems. [servicetitan]
Examples:
- Power distribution branch points for lighting and HVAC
- Structured cabling transitions for network and communication systems
- Integration nodes for building management systems and smart controls
In industrial automation, terminal boxes are used extensively to organize and protect I/O wiring, power branches, and field devices. [thermaledge]
They are typically used to:
- Terminate sensor and actuator cables near equipment
- Provide clean interfaces between machine wiring and control cabinets
- Allow segmented isolation of production lines and equipment for maintenance
Modern energy projects rely heavily on robust terminal and junction boxes. [spep]
Common roles include:
- DC and AC combiner boxes for PV arrays
- HV and LV terminal enclosures in battery energy storage systems
- EV charger connection boxes for distribution, control, and communication
From municipal pump stations to building booster sets, terminal boxes provide protected termination points for motors, level sensors, and control wiring. [servicetitan]
This improves:
- On‑site troubleshooting speed
- Ease of motor replacement or pump skid upgrades
- Overall uptime of critical water infrastructure

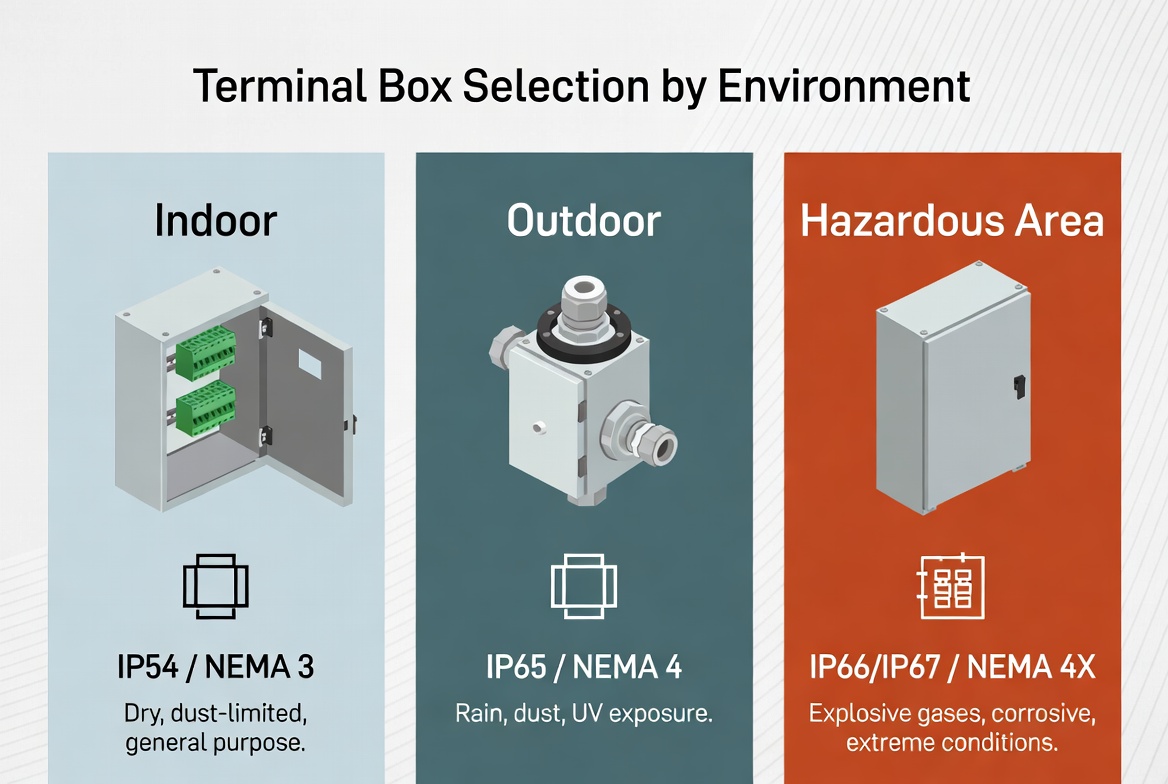

The installation environment is the first filter for enclosure selection. [spep]
Ask:
- Indoor or outdoor?
- Exposure to rain, snow, UV, dust, or washdown?
- Presence of corrosive agents or chemicals?
- Risk of explosion or flammable atmosphere?
For example, in a coastal energy‑storage site, we typically recommend a corrosion‑resistant metallic enclosure with high IP rating, UV‑stable coating, and stainless hardware to ensure long‑term performance. [kunlonghardware]
Correct box sizing is not just a comfort issue—it is a safety requirement. The NEC and related standards define minimum internal volumes based on conductor count and size. [servicetitan]
You must consider:
- Number and size of conductors and terminals
- Minimum bending radius of cables
- Space for components, labeling, and future expansion [kunlonghardware]
Overcrowded boxes increase heat, strain terminations, and make maintenance risky. [servicetitan]
Choosing between metallic and non‑metallic is often a balance between mechanical protection, corrosion resistance, weight, and electromagnetic considerations. [spep]
- Use metallic where impact risk, temperature, or EMC are critical.
- Use non‑metallic where corrosion and weight dominate, provided standards allow.
Always verify that the terminal box meets the relevant standards for your region and industry. [thermaledge]
Key points:
- NEMA / IP rating appropriate for location
- NEC / IEC installation rules, including accessibility and grounding [servicetitan]
- UL or other third‑party listings where required by local code or client

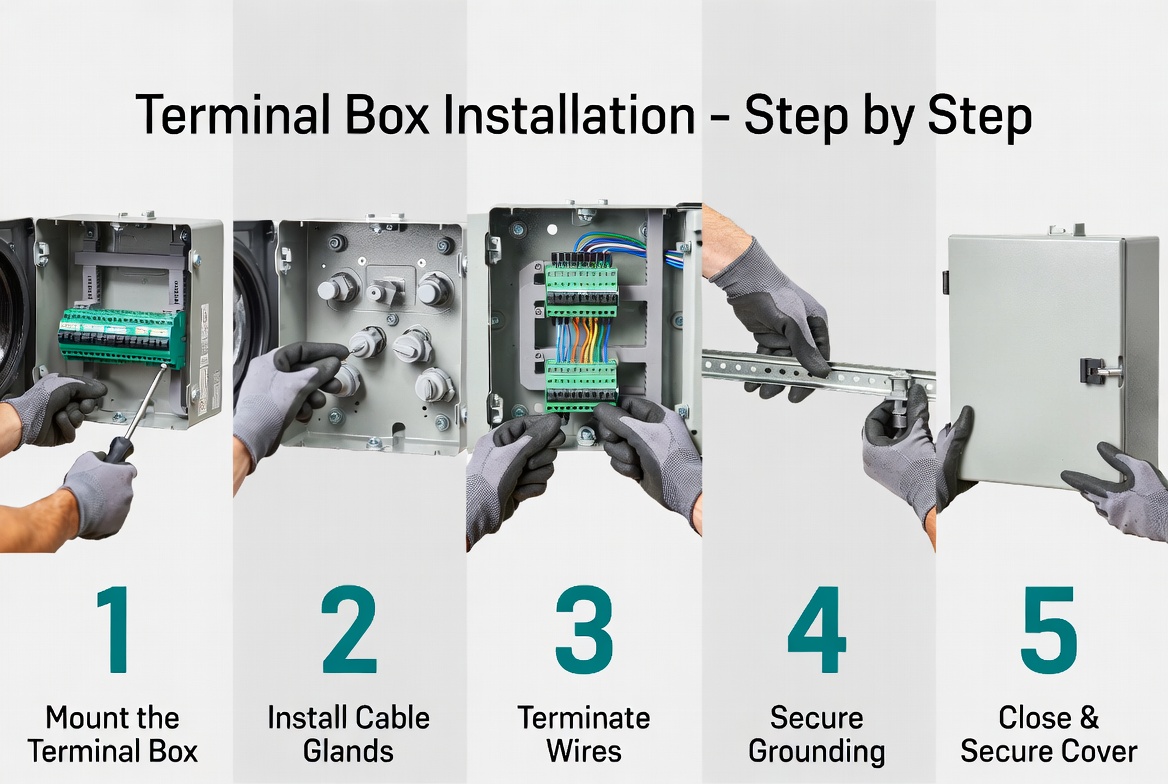

Drawing from both code guidance and real project practice, a safe installation typically follows this workflow. [spep]
1. Plan and de‑energize
- Identify circuits and confirm all relevant power sources are switched off at the main panel. [servicetitan]
- Verify with a suitable testing device.
2. Choose the mounting location
- Ensure the terminal box will be accessible and compliant with clearance requirements. [servicetitan]
- Avoid locations prone to flooding, direct mechanical impact, or impossible cable routing.
3. Mount the enclosure
- Secure the box to solid structure (wall, frame, or machine) using appropriate fixings and mounting brackets. [servicetitan]
- Make sure the front face is level and aligned for easy sealing.
4. Prepare cable entries
- Remove knockouts or drill entries carefully and install approved cable glands or conduit fittings. [servicetitan]
- Maintain rating integrity (IP/NEMA) when making openings. [thermaledge]
5. Terminate and ground
- Strip insulation to the correct length and terminate per manufacturer instructions. [servicetitan]
- Connect protective earth / ground conductors first and bond to enclosure grounding points. [servicetitan]
6. Inspect and label
- Check torque, pull test critical terminations, and ensure no copper is exposed. [servicetitan]
- Label terminals and cables clearly to support future diagnostics.
7. Seal, test, and document
- Close and secure the cover, verify gasket seating, and restore power. [servicetitan]
- Function‑test circuits and update drawings or asset records.
Experienced electricians and engineers share a few non‑negotiables when working with terminal and junction boxes: [kunlonghardware]
- Grounding must be continuous and reliable
A broken or poorly connected earth can be as dangerous as no earth at all.
- Overcurrent protection must match conductor and load
Do not use the box as a place to "hide" overloaded circuits or questionable repairs.
- Accessibility is a code and safety requirement
Boxes buried behind finishes are slower to service, more expensive to troubleshoot, and often non‑compliant. [servicetitan]
- Standards are a minimum, not a maximum
Good engineering practice often goes beyond the letter of the code when risk and lifecycle cost are considered. [spep]
Sustainability is no longer a buzzword; it is a specification item. Forward‑looking designs now consider both material choice and lifecycle impact of terminal boxes. [kunlonghardware]
1. Eco‑friendly materials and recycled plastics
Certain modern junction box lines incorporate high percentages of post‑consumer plastic while maintaining performance and safety. [servicetitan]
2. Recycling and re‑use
Retired terminal boxes can often be stripped, with metals and some plastics recovered and re‑used in manufacturing. [servicetitan]
3. Energy efficiency and renewable integration
Efficient wiring layouts and robust connections reduce losses and failures, while terminal boxes are key components in solar and storage systems that support overall energy conservation strategies. [kunlonghardware]
As a dedicated manufacturer of electrical sheet‑metal enclosures and terminal boxes, companies like Ningbo Bohui Electric Co., Ltd. can support project teams beyond basic product supply by: [thermaledge]
- Co‑engineering enclosure solutions tailored to power, communication, industrial automation, and energy‑storage scenarios.
- Advising on material selection, rating choices, and layout best practices based on thousands of delivered projects.
- Providing consistent quality, documentation, and test reports that simplify approval, inspection, and international certification processes.
For engineers, OEMs, and system integrators, partnering with a specialist reduces design risk and speeds up deployment.
If you are designing or upgrading electrical systems in power distribution, communications, smart manufacturing, new energy, EV infrastructure, or water systems, the terminal box design is not the place to cut corners. [spep]
Work with an experienced enclosure manufacturer to:
- Specify the correct ratings and materials for your environment
- Optimize box size, layout, and cable management
- Standardize terminal box designs across projects to simplify maintenance and spare‑parts management
You can share your application details (industry, environment, rough cable count, and standards you must follow), and we can help you define a terminal box solution that aligns with both safety codes and your long‑term operational needs.
1. What is the main difference between a junction box and a terminal box?
In practice, a junction box often focuses on wire splicing and branching, while a terminal box is more structured, with dedicated terminal blocks and accessories for organized connections and maintenance. [kunlonghardware]
2. How do I know what IP or NEMA rating I need for my terminal box?
You match the rating to environmental exposure: indoor dry areas can use lower ratings, while outdoor, washdown, or dusty sites require higher IP or NEMA classes defined in relevant standards and installation guides. [thermaledge]
3. Why is grounding inside a terminal box so important?
Grounding provides a controlled path for fault currents and stabilizes exposed metal parts at earth potential, significantly reducing shock and fire risks in case of insulation failure. [spep]
4. Can I re‑use an existing terminal box when upgrading equipment?
Yes, but only after verifying that its size, condition, rating, and compliance remain suitable for the new circuits and environmental conditions, and that it passes inspection or applicable testing. [spep]
5. What documentation should I keep for my terminal box installations?
Maintain updated single‑line diagrams, wiring diagrams, enclosure datasheets, certification records, and any project‑specific test or inspection reports to support maintenance and compliance audits. [thermaledge]
