If you care about long‑term reliability, safety, and easy maintenance of your electrical system, choosing the right electrical box or wall mount enclosure is not a minor decision—it is the backbone of your entire installation. As an engineer who has spent years specifying metal wall‑mount enclosures for power, communications, and industrial automation projects, I've seen how the right enclosure can dramatically reduce downtime, failures, and safety incidents in the field. [mscdirect]
Electrical boxes are protective housings that contain wiring, connections, switches, outlets, and fixtures so that live parts are not exposed to people or the environment. They are required by electrical codes to prevent fire, shock, and mechanical damage to conductors. [statx]
Wall mount enclosures are a specific class of electrical enclosures designed to be mounted on a wall surface and to protect more complex assemblies: switchgear, control components, PLCs, communication equipment, power supplies, and terminal blocks. In industrial projects, the "box" may be as small as a single‑gang outlet box or as large as a multi‑door steel cabinet hosting complete control systems. [chintglobal]
From a practical engineering standpoint:
- Small electrical boxes are used for outlets, switches, and simple junctions. [homedepot]
- Wall mount enclosures are used when you need structured internal layouts, DIN rails, equipment mounting plates, and higher‑grade protection (NEMA/IP). [nema]
> Image suggestion: A simple diagram showing a small outlet box vs a larger wall‑mounted steel enclosure with door and lock (place near this section).
Rectangular boxes are the standard for wall outlets and light switches in residential and commercial buildings. They are typically single‑gang or multi‑gang, installed flush within walls. [mscdirect]
Typical uses include:
- Standard receptacles and GFCI outlets
- Light and fan switches
- Smart switches and wall controls
They are your default choice when installing one or more devices on a flat wall surface where aesthetics and flush mounting matter. [homedepot]
Round and octagon boxes are primarily used for ceiling‑mounted devices. [industrialupdating.wordpress]
Common applications:
- Ceiling light fixtures and pendants
- Smoke detectors and alarms
- Fan‑rated versions for ceiling fans
Octagon designs offer more mounting points and internal room, which helps when you must support heavier fixtures or manage more conductors. [industrialupdating.wordpress]
Square boxes provide extra volume for wire splicing and branching, making them popular in commercial and industrial installations with higher wiring density. [leaderful-tech]
Engineers prefer square boxes when:
- Multiple circuits intersect in one location
- You need more room for neat routing and future expansion
- You're using conduits in exposed or industrial environments
In factories or plants, these boxes often evolve into surface‑mounted junction boxes or small wall‑mount enclosures that are easy to access for maintenance. [leaderful-tech]
Device boxes are optimized for hosting a specific electrical device: a receptacle, a switch, a dimmer, or a combination unit. Correct device‑specific sizing is critical for safe "box fill" and code compliance. [statx]
Key considerations:
- Match gang size (single, double, triple) to the number of devices
- Ensure sufficient depth for conductors, connectors, and the device body
- Choose metal boxes where conduit or grounding requirements demand it [nema]
Junction boxes are designed not to host devices, but to protect wire splices wherever circuits branch, extend, or transition between cable types. [mscdirect]
They are essential because they:
- Contain heat and sparks from poor or aging connections
- Provide safe access for inspection, testing, and future modifications
- Keep conductors supported and mechanically protected [statx]
For industrial users, junction boxes often evolve into sealed, metal, or explosion‑proof units, especially in areas with vibration, moisture, or flammable atmospheres. [leaderful-tech]
Low‑voltage boxes manage signal and control circuits rather than mains power. [mscdirect]
Typical systems:
- Data and network outlets
- Thermostats and sensors
- Doorbells, access control, and intercoms
- Smart home and building automation
They help separate low‑voltage wiring from power circuits and keep installations organized for troubleshooting and upgrades. [statx]
When you move outdoors or into damp, dusty, or wash‑down environments, standard indoor boxes are simply not enough. This is where true weatherproof electrical boxes and wall mount enclosures come in. [nema]
A genuinely weatherproof box is designed to block water, dust, and contamination even under harsh conditions. [qc-solar]
Typical features include:
- Gaskets between cover and body to create a tight seal [qc-solar]
- Sealed seams and knockouts designed for watertight cable glands [chintglobal]
- Robust latches, hinges, and door compression to maintain sealing over time [budind]
- Drain or vent options to manage condensation in outdoor or temperature‑cycling environments [budind]
Choosing the right material directly affects lifespan, corrosion resistance, and total cost of ownership. [homedepot]
Common materials:
- Aluminum: Lightweight, corrosion‑resistant, widely used outdoors, easy to machine. [nema]
- Stainless steel: Very strong and highly corrosion‑resistant, ideal for coastal, chemical, and food processing environments. [chintglobal]
- Carbon or galvanized steel: Cost‑effective, strong; usually powder‑coated for improved corrosion resistance. [budind]
- Polycarbonate / rigid plastic: Non‑conductive, UV‑resistant, good where chemicals or moisture are present and mechanical abuse is moderate. [qc-solar]
Ningbo Bohui Electric focuses on metal wall mount enclosures (typically carbon or stainless steel with surface treatment) for industrial, power, and new energy projects, where impact strength and grounding are crucial. [nema]
You will find outdoor boxes and wall‑mount enclosures in:
- Building facades for lighting, outlets, and control panels
- Pump and water treatment stations for motor starters and sensors
- Solar, ESS, and EV charging infrastructure for DC junctions and AC distribution [kenclozer]
- Factory perimeters and remote stations for networking and SCADA panels
In these contexts, getting the NEMA or IP rating, material, and construction quality right is far more important than saving a few dollars on the box. [nema]

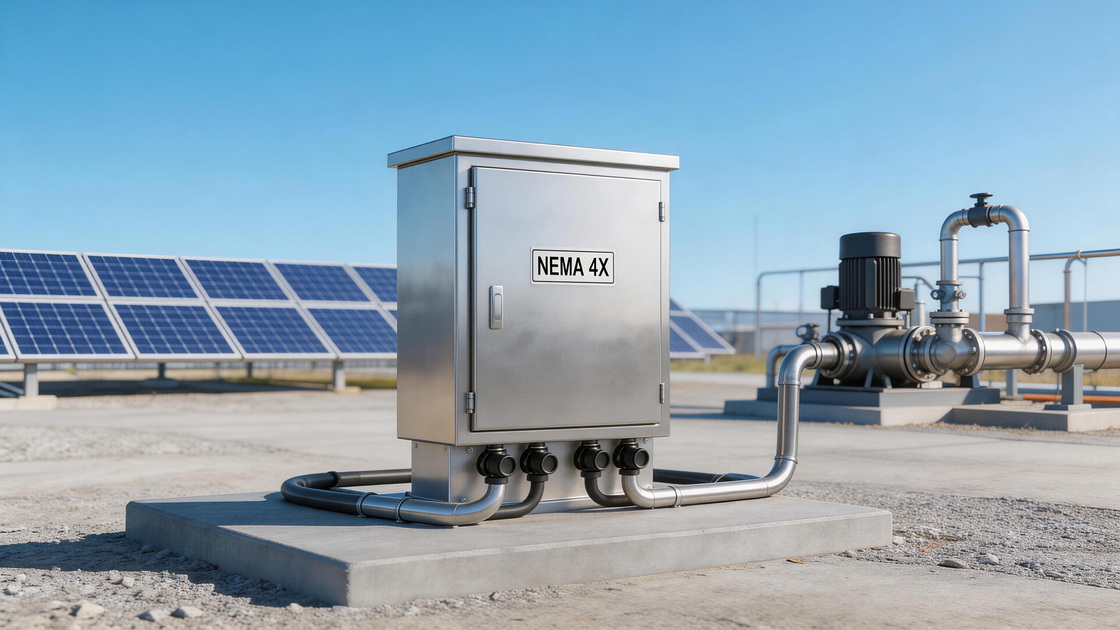

> Image suggestion: Photo or render of an outdoor stainless steel wall mount enclosure installed at a solar or pump station, with visible cable glands.
Wall mount enclosures are where simple boxes end and real system engineering begins. They are metal or plastic cabinets fixed to a wall surface, designed to house complete assemblies: switchgear, automation, communication, or power conversion equipment. [chintglobal]
As a wall mount enclosure manufacturer, the most frequent application areas we see include:
- Power & electrical distribution: Distribution boards, control panels, motor starters, and protection devices for LV systems.
- Industrial automation & smart manufacturing: PLCs, I/O modules, drives, sensors, and local HMI panels on production lines.
- Communication & networking: Switches, routers, gateways, and field network nodes in factories or buildings.
- New energy and EV: Solar combiner boxes, BESS control cabinets, EV charging controller enclosures. [kenclozer]
- Water & pumps: Pump control panels, level and flow control systems, and remote telemetry.
In all of these, the enclosure is not just a box—it is a mechanical, thermal, and safety platform for the embedded system.

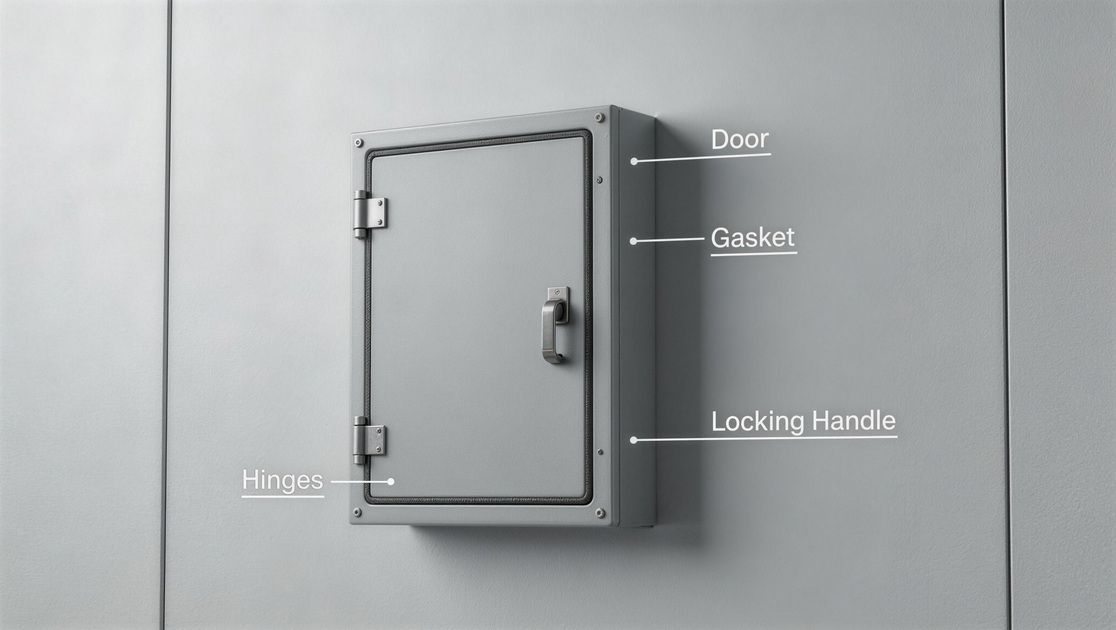

From field experience, the following features significantly improve installation and maintenance:
- Single‑door vs double‑door: Double‑door designs solve space constraints and allow better access to densely packed equipment, especially for wide panels. [chintglobal]
- Integrated rain hoods and canopies: Very effective when you must install outdoors with direct rain or sun exposure. [budind]
- Filter fans and ventilation: Critical for heat‑generating equipment like drives, power supplies, and chargers. [budind]
- Strong hinges, handles, and locks: Daily operation, vibration, and repeated maintenance cycles quickly expose weak mechanical components. [chintglobal]
- Mounting plates and DIN rails: Save installation time and enforce consistent layout and cable routing.
Well‑designed enclosures also include grounding studs, protective powder coating, door seals, and flexible mounting brackets for a secure and compliant installation. [nema]

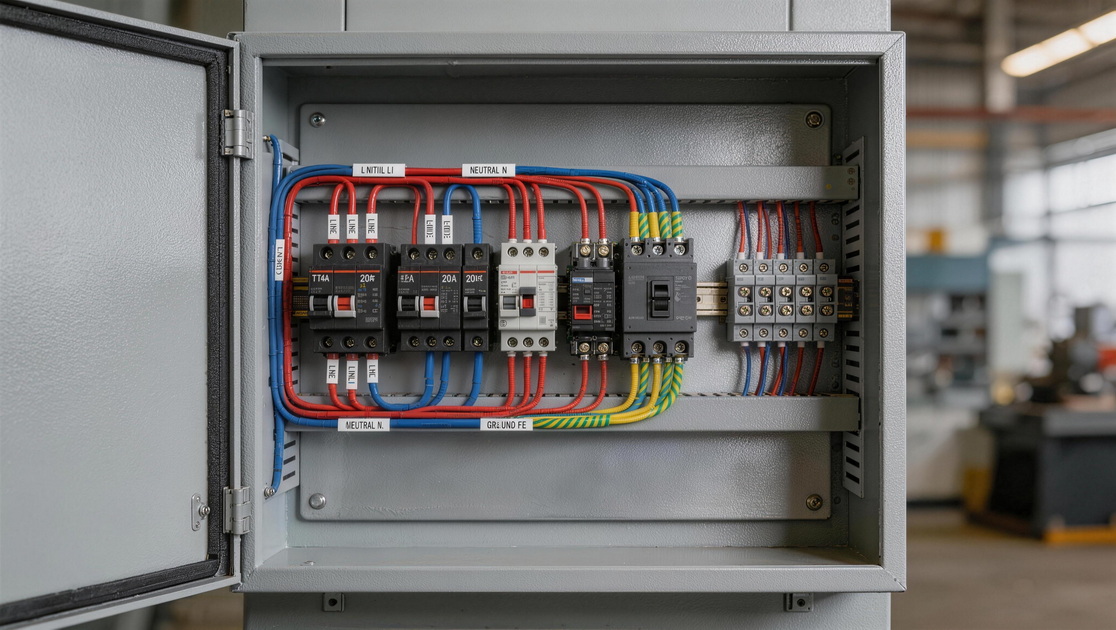

> Image suggestion: Interior view of a wall mount enclosure with DIN rails, terminal blocks, and neatly routed cables, placed in this section.

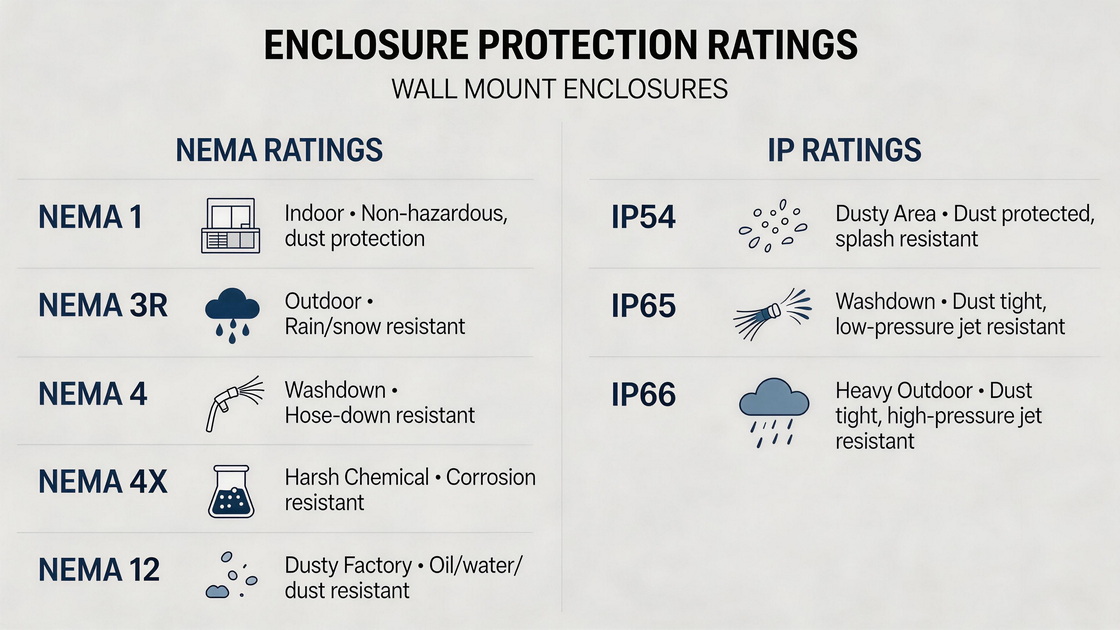

NEMA enclosure types are widely used in North America to express how well an enclosure protects against environmental conditions such as dust, water, and corrosion. [nema]
Key NEMA types for wall mount enclosures:
- NEMA 1: General indoor use; basic protection against contact and light dirt; not dust‑tight; not suitable outdoors. [nema]
- NEMA 2: Indoor use with limited protection against falling dirt and light splashing. [nema]
- NEMA 3R: Indoor/outdoor; protects against rain, snow, and sleet; widely used for utility and building exteriors. [chintglobal]
- NEMA 4 / 4X: High protection against windblown dust and water, including hose‑directed water; 4X adds corrosion resistance, ideal for aggressive atmospheres. [budind]
- NEMA 12: Indoor; protects against circulating dust, lint, and dripping water; common in industrial interiors. [nema]
- NEMA 13: Indoor; similar to NEMA 12 but also offers protection against oil and non‑corrosive coolants. [chintglobal]
For outdoor industrial panels or energy systems, engineers often select NEMA 4 or 4X enclosures, especially when exposed to weather, wash‑down, or corrosive environments. [budind]
Outside North America, IP ratings (e.g., IP54, IP65, IP66) define protection against dust and water using a two‑digit code. [nema]
In many industrial and renewable applications, IP65 or IP66 wall mount enclosures are typical for outdoor installations where both dust and water jets must be resisted. Always verify the rating against the site conditions you expect over the full service life of the installation. [qc-solar]
Before you look at catalogs, define:
1. What will the box hold?
Outlet, switch, small splice, or a full control system?
2. Where will it be installed?
Indoor office, factory floor, outdoor wall, rooftop, or underground vault?
3. What environment will it face?
Dust, vibration, chemicals, UV, rain, wash‑down, or risk of explosion? [kenclozer]
These three answers immediately narrow the list of suitable box types and enclosure ratings.
Overfilled boxes are a common failure point and frequent reason for inspection failures. [kenclozer]
Practical habits that work:
- Calculate box fill based on conductors, devices, and connectors.
- Leave extra space for future additions or cable replacements.
- For junction boxes and wall mount enclosures, plan for at least 20–30% spare space for future modifications.
As a rule of thumb, choose the next larger size if you are very close to the limit—it pays back during commissioning and maintenance.
Use the environment and equipment sensitivity to pick a suitable material and NEMA/IP rating. [mscdirect]
Typical choices:
- Indoor office/light commercial: Plastic or steel, NEMA 1 or 2.
- Factory interior with dust and oil: Metal NEMA 12 or 13.
- Outdoor industrial or renewable energy: NEMA 3R, 4, or 4X, or IP65/66, in coated steel, stainless steel, or aluminum. [nema]
For industrial users, the real cost is often in installation time and downtime, not just purchase price.
Checklist:
- Is the box easy to mount on wall, frame, or pole?
- Do doors open fully without hitting obstacles? (Single vs double door)
- Are hinges and locks robust enough for daily operation and security?
- Are grounding points and cable entry positions appropriately designed?
Thoughtful design here saves hours during commissioning and makes every future service visit safer and faster.
| Type | Typical Material | Environment | Main Use Case |
|---|---|---|---|
| Rectangular outlet box | Plastic or metal | Indoor | Wall outlets and switches |
| Round / octagon box | Metal or plastic | Indoor / light outdoor | Ceiling lights and light fixtures |
| Square / junction box | Metal | Indoor / industrial | Branch circuits, multi‑circuit junctions |
| Low‑voltage box | Plastic | Indoor | Data, control, and communication wiring |
| Weatherproof box | Aluminum, PVC, steel | Outdoor / damp | Exterior outlets, lights, small terminations |
| Wall mount enclosure | Steel, stainless, polycarb | Indoor / outdoor | Control panels, automation, power distribution |
| NEMA 4X enclosure | Stainless / coated metal | Harsh outdoor / wash‑down | Corrosive, marine, food, and chemical environments |
From working with electrical designers and maintenance teams across power, water, and new energy projects, a consistent pattern appears: for mission‑critical installations, engineers overwhelmingly choose metal wall mount enclosures. [nema]
Reasons include:
- Superior mechanical strength against impact, vandalism, and heavy cable loads
- Reliable grounding paths through the enclosure structure itself [nema]
- Better dimensional stability under temperature swings and UV exposure
- Long life after powder coating or using stainless steel in harsh environments [budind]
Manufacturers such as Ningbo Bohui Electric focus on optimizing door structure, sealing, and mounting options to meet evolving demands from sectors like renewable energy storage, EV charging, and smart factories, where enclosure failure can stop entire systems. [chintglobal]
> Image suggestion: Multi‑sector montage (power plant, solar farm, EV charger, factory line) all using wall‑mount enclosures.
In my experience, you should step up from a standard commodity box to a dedicated wall mount enclosure when:
- You have multiple devices (breakers, relays, PLCs, network switches) in one location.
- You need more than one door, viewing windows, or operator interfaces.
- You require a specific combination of cutouts, gland plates, or mounting accessories.
- The environment is so harsh that only high‑grade metal and sealing are acceptable. [nema]
At that point, working with a specialist manufacturer to define enclosure size, material, surface treatment, door style, and accessories is usually the most reliable way to protect equipment and ensure compliance.
If you are designing power distribution, industrial automation, water treatment, or new energy systems, the electrical box or wall mount enclosure is your first safety barrier and your long‑term reliability insurance policy. [statx]
Whether you need compact junction boxes or engineered wall mount cabinets with customized dimensions, Ningbo Bohui Electric can help you match:
- Device layout
- Environmental rating (NEMA / IP)
- Material and surface treatment
- Mounting method and accessories
Contact our engineering team with your single‑line diagram or device list, and we will recommend a wall mount enclosure solution that fits your project and budget while staying compliant with modern standards.
An electrical box usually refers to small boxes for outlets, switches, and simple junctions, while a wall mount enclosure is a larger cabinet designed to host complete assemblies such as control panels or communication equipment. [mscdirect]
Only boxes with proper outdoor or weatherproof ratings should be used outside; standard indoor plastic boxes are not designed to withstand rain, UV exposure, or harsh environments. [homedepot]
For most outdoor industrial or energy applications, NEMA 3R is a baseline, but NEMA 4 or 4X is often recommended when you expect heavy rain, wash‑down, or corrosive environments. [nema]
You must check the box volume and apply code‑based box fill rules, counting each conductor, device, and connector; if you are close to the limit, it is safer to upsize the box. [kenclozer]
You should consider a custom or engineered enclosure when you host multiple devices in one place, face harsh environmental conditions, require specific cutouts or accessories, or need better access and maintainability than a standard box can offer. [nema]
1. Lianjie – "Types of Electrical Boxes: Complete Guide & Uses 2026" (accessed 2026). [mscdirect]
2. Chint Global – "What are the Considerations for Outdoor Wall Mount Enclosures?" (2026). [chintglobal]
3. Home Depot – "Types of Electrical Boxes – The Home Depot" (2024). [homedepot]
4. NEMA – "Enclosures – NEMA" and "NEMA Enclosure Types" (official documents). [nema]
5. Bud Industries – "How to Select the Right Enclosures for Energy Applications" (2024). [budind]
6. Industrial Updating – "The Different Types of Electrical Boxes" (2021). [industrialupdating.wordpress]
7. QC Solar – "Mastering Solar Junction Box Selection for Your Renewable Energy" (2025). [qc-solar]
8. Kenclozer – "How to Choose the Right Junction Box for Your Solar or Industrial Setup" (2025). [kenclozer]
9. Leaderful Tech – "Types of Electrical Boxes and Their Uses in the Industrial Field" (2025). [leaderful-tech]
10. Stat‑X – "What are the types of industrial electrical cabinets?" (2024). [statx]
