NEC Junction Box Compliance: A Practical Guide From the Field (and Why Your Choice of Terminal Box Matters)

As someone who has spent years working alongside electricians, panel builders, and OEM engineers, I have seen one pattern repeat over and over: projects fail inspection not because of major design flaws, but because of basic junction box and terminal box mistakes—wrong size, poor accessibility, or non‑compliant enclosures in harsh environments. When you align your junction box design with the NEC and choose robust terminal boxes that fit the application, you not only pass inspection—you reduce downtime, extend equipment life, and protect people. [cje-group]

What the NEC Really Says About Junction Boxes

The core NEC rules for junction boxes live in Article 314, supported by general installation requirements in Article 110. For most projects, three sections dominate discussions in the field: sizing, support, and accessibility. [saipwell]

- 314.16 – Box fill and sizing: The box must provide enough internal volume for all conductors, devices, and fittings, calculated using specific cubic‑inch allowances per conductor size. [viox]

- 314.23 – Support and mounting: Boxes must be securely fastened to the building structure or independently supported; they cannot rely on drywall or other weak materials. [viox]

- 314.29 – Accessibility: Boxes must be *readily accessible*, meaning you do not need tools, do not remove finishes (like drywall), and you have safe working space to inspect and maintain them. [electricallicenserenewal]

- 110.12 and 110.14 – Workmanship and terminations: The NEC expects neat, mechanically and electrically secure connections, with proper torque and compatible materials. [electricaltechnology]

- 110.26 – Working space: Sufficient clearance must be maintained in front of equipment for safe operation and maintenance. [electricaltechnology]

In practice, I see inspections fail not because the designer never read the code, but because small details—like counting device volumes or planning access panels—were left to the last minute. [saipwell]

NEC Junction Box Requirements At a Glance

Below is a concise view of key NEC requirements you'll deal with on almost every project. [partmfg]

Tip: When I review designs for industrial customers, I always start with these sections before looking at anything else, because most field issues trace back to one of them. [saipwell]

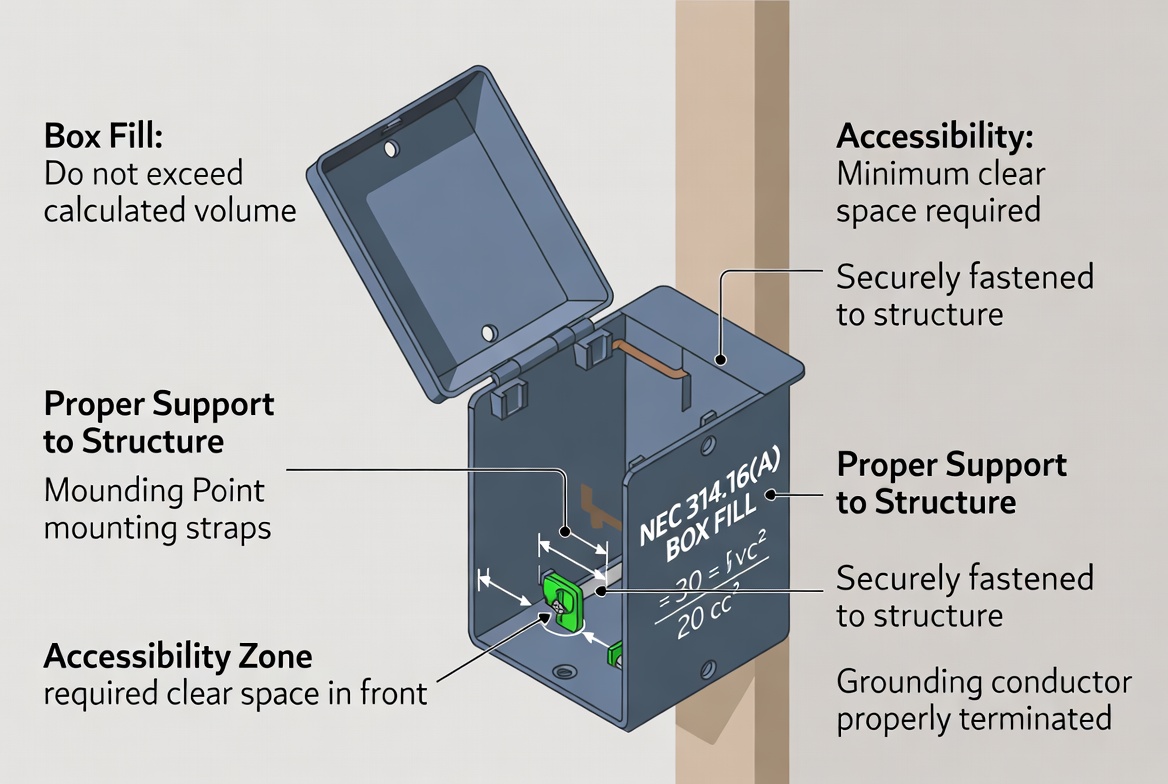

Consider adding a simple diagram or code summary table here that visually maps each NEC clause to a graphic representation of a junction box (highlighting volume, access panel, supports, etc.).

How to Size a Junction Box Correctly (NEC 314.16)

From an installer's perspective, box sizing is where reality meets the codebook. If you guess the volume, you will eventually face overheating, difficult maintenance, or a red tag from the inspector. [viox]

Typical internal volumes per conductor size (NEC 314.16): [saipwell]

- 14 AWG: 2.00 cubic inches per conductor

- 12 AWG: 2.25 cubic inches per conductor

- 10 AWG: 2.50 cubic inches per conductor

- 8 AWG: 3.00 cubic inches per conductor

You must also count: [viox]

- Each insulated conductor entering or leaving the box.

- All equipment grounding conductors (counted together as one conductor of the largest size).

- Each device (switch, receptacle, etc.) as two conductor volumes of the largest wire connected.

- Internal clamps or fittings that occupy space.

Example from the field:

- 6 conductors of 12 AWG.

- 1 device using 12 AWG.

- Equipment grounding conductors present.

Volume calculation:

- 6 conductors × 2.25 in⊃3; = 13.5 in⊃3;

- 1 device × 2 × 2.25 in⊃3; = 4.5 in⊃3;

- Grounds (all) = 2.25 in⊃3;

Required volume = 20.25 in⊃3;. [saipwell]

In this case, a 4″ × 4″ × 1.5″ metal box (around 21 in⊃3;) barely meets the requirement, but many electricians in industrial settings will still step up to a deeper box or a terminal box enclosure for better working space and future expansion. [cnsyelectronics]

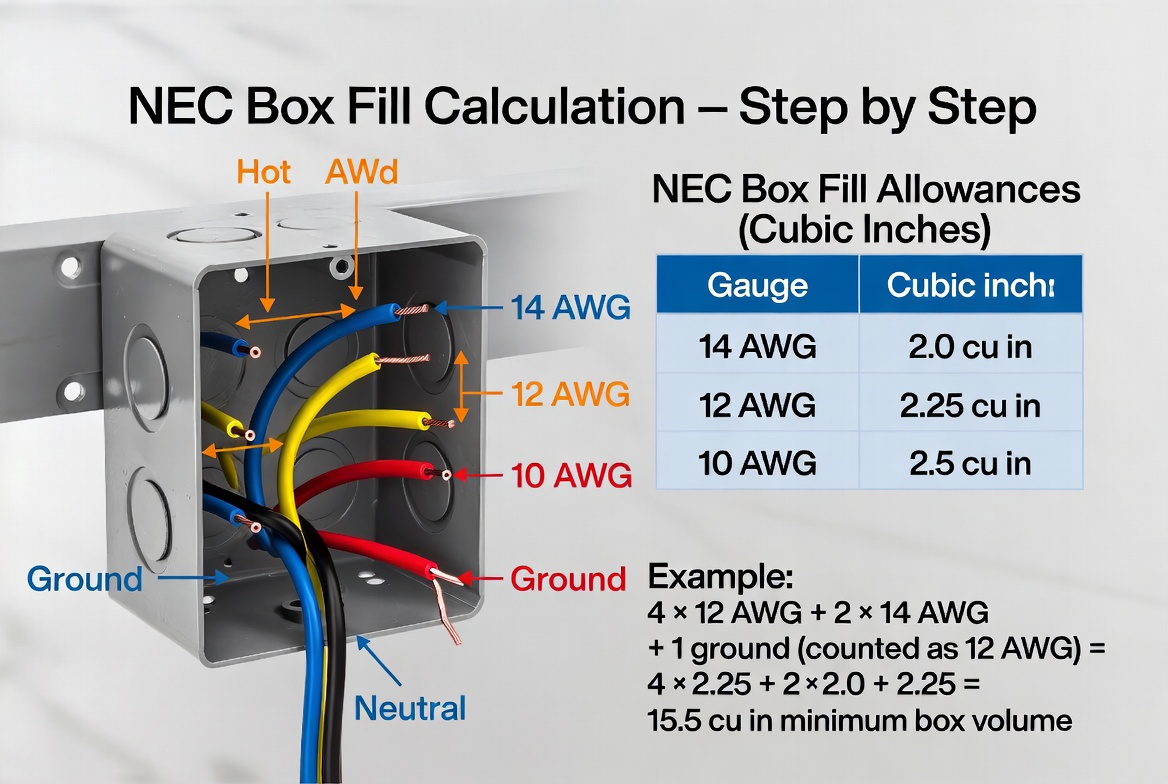

A simple box fill illustration or infographic would work well here to show how conductor count translates into volume.

Accessibility: Why Inspectors Focus on NEC 314.29

NEC 314.29 is straightforward but often ignored during architectural coordination. A box must be readily accessible, which the NEC interprets as: [electricallicenserenewal]

- No tools required to get to the box. [electricallicenserenewal]

- No removal of building finishes such as drywall, plaster, or fixed ceiling panels. [electricallicenserenewal]

- Clear working space in front of the box (referencing 110.26). [electricaltechnology]

Common violations I see on job sites: [electricallicenserenewal]

- Junction boxes hidden behind new drywall after a renovation.

- Boxes located above fixed ceilings that require tools to remove panels.

- Boxes blocked by permanently installed equipment or shelving.

Compliant approaches: [viox]

- Using clearly marked access panels in ceilings or walls.

- Locating boxes in service corridors, utility rooms, or accessible attic/roof spaces.

- Mounting terminal boxes on accessible wall areas with proper clearance.

Support and Mounting: When a Box Becomes a Structural Problem

Under NEC 314.23, junction boxes must be properly secured to framing or an approved support system. In real‑world terms, this means you never rely on drywall screws or cable tension to hold an enclosure in place. [viox]

Typical field expectations: [ecmag]

- Surface‑mounted boxes: fastened directly to structural members or dedicated mounting brackets.

- Flush‑mounted boxes: attached to studs or masonry with specified hardware.

- Ceiling boxes supporting luminaires or fans: rated for the load and often requiring special fan‑rated boxes or independent support.

From a manufacturer's perspective, we design terminal boxes and electrical enclosures with multiple mounting options—wall brackets, DIN‑rail plates, back plates—so installers can comply with NEC support requirements while meeting their layout needs. [cje-group]

This section is ideal for an exploded mounting diagram of a terminal box showing bracket options, recommended fastener locations, and load ratings.

Choosing the Right Terminal Box for NEC‑Compliant Installations

While the NEC focuses on safety and wiring rules, it implicitly relies on the right choice of enclosure for the environment and application. In our experience working with power, telecom, industrial automation, building, and energy storage projects, the junction box is increasingly implemented as an integrated terminal box solution rather than a bare commodity box. [altechcorp]

Key selection factors that directly affect compliance and reliability: [altechcorp]

- Material and protection rating: Stainless steel or coated steel for corrosion resistance, appropriate IP / NEMA rating for dust and water, and compliance with ATEX/IECEx where explosive atmospheres exist. [altechcorp]

- Internal space for terminals: Sufficient depth and layout to meet box fill and ensure safe bending radius for conductors and cables. [cnsyelectronics]

- Cable entry design: Gland plates, knockouts, and strain‑relief features that support proper conductor entry as required by NEC 314.17. [cje-group]

- Grounding and bonding: Dedicated grounding studs, copper bars, or pre‑installed earthing accessories consistent with NEC 314.40 and 110.14. [cnsyelectronics]

- Labeling and documentation: Clear identification of circuits, ratings, and hazards, which is increasingly important in smart manufacturing and energy systems. [altechcorp]

When you match NEC requirements with a well‑designed terminal box, you reduce site work, minimize panel rework, and give inspectors the confidence that the installation is engineered rather than improvised. [cje-group]

Industry Use Cases: From Power Systems to EV and Energy Storage

Because our customers operate in diverse sectors, I frequently see the same NEC principles applied very differently depending on the environment. [cnsyelectronics]

- Power distribution and water pumps: Outdoor terminal boxes with high IP or NEMA ratings, corrosion‑resistant materials, and ample space for motor connection terminals; weatherproof design is critical to prevent moisture ingress and long‑term corrosion. [altechcorp]

- Telecom and networking: Junction/terminal boxes often combine power and low‑voltage signal wiring, so separation, labeling, and EMC considerations become important alongside NEC wiring rules. [cje-group]

- Industrial automation and smart manufacturing: DIN‑rail terminal boxes consolidate multiple I/O modules, relays, and terminal blocks; proper box size and clear cable routing are essential for maintenance and expansion. [cnsyelectronics]

- New energy storage and EV infrastructure: High‑current connections, DC wiring, and battery management systems demand robust enclosures, careful clearance and creepage distances, and, in some cases, certification for hazardous or high‑fault‑current environments. [expertce]

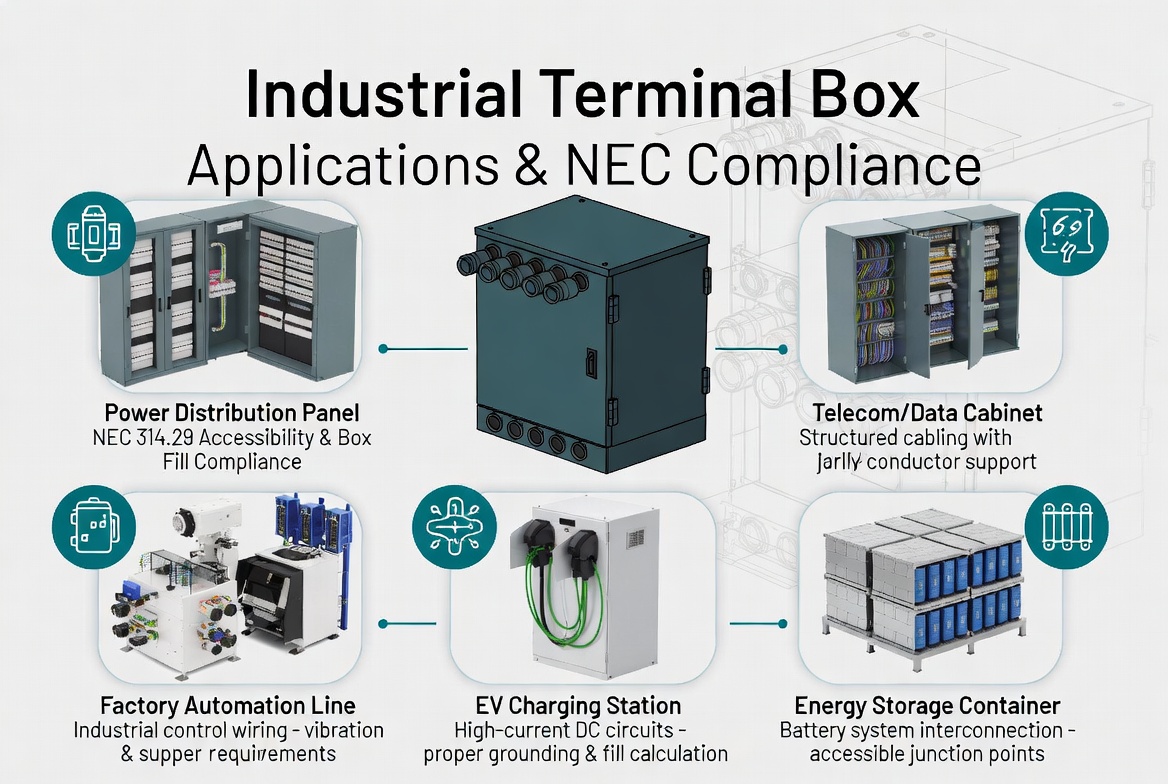

Including a case‑style diagram or photo of a terminal box in a renewable energy or EV charging application would strengthen this section for readers in emerging sectors.

Expert Checklist: Designing and Installing NEC‑Compliant Terminal Boxes

Over time, we have distilled the code and field experience into a simple step‑by‑step process that works across most commercial and industrial projects. [saipwell]

1. Define the environment and standards.

- Indoor, outdoor, corrosive, high‑temperature, or hazardous location.

- Determine if additional standards (ATEX, IECEx, UL, CSA) apply. [altechcorp]

2. Select enclosure material and IP/NEMA rating.

- Steel or stainless steel for mechanical strength and grounding.

- Appropriate protection rating for dust, water, and cleaning methods. [cje-group]

3. Calculate box fill and internal layout.

- Use NEC 314.16 conductor volumes and device allowances. [saipwell]

- Verify room for terminal blocks, cable bending radius, and future expansions. [cnsyelectronics]

4. Plan cable entries and strain relief.

- Define gland locations, knockout sizes, and entry orientation. [cje-group]

- Ensure compliance with 314.17 and avoid sharp edges or improper clamps. [viox]

5. Design grounding and bonding.

- Provide a clear path for equipment grounding conductors. [electricaltechnology]

- Use listed grounding screws, bars, or jumpers consistent with 314.40 and 110.14. [electricaltechnology]

6. Verify accessibility and working space.

- Coordinate with architects and mechanical designers to guarantee access panels and clearances. [electricallicenserenewal]

- Confirm you will not cover boxes with permanent finishes or equipment. [electricallicenserenewal]

7. Document and label.

- Label box functions, circuits, and any isolation or safety requirements. [altechcorp]

- Provide as‑built wiring diagrams and enclosure drawings for maintenance teams. [cnsyelectronics]

A downloadable checklist or one‑page PDF linked from this section would be a valuable UX upgrade for both contractors and engineers.

Common NEC Violations – And How to Avoid Them

From customer feedback and inspection reports, a handful of repeated mistakes stand out. Addressing these early can save days of rework. [partmfg]

- Overcrowded boxes

- *Problem*: Too many conductors, connectors, or devices crammed into a small box. [saipwell]

- *Fix*: Perform formal box fill calculations and choose a larger junction/terminal box with additional depth and width. [cje-group]

- Inaccessible installations

- *Problem*: Box buried behind drywall, above fixed ceilings, or blocked by equipment. [electricallicenserenewal]

- *Fix*: Use access panels, relocate boxes to serviceable areas, and plan accessibility during design. [viox]

- Improper support and mounting

- *Problem*: Box attached only to drywall or suspended by cables. [ecmag]

- *Fix*: Always mount to structural framing, dedicated brackets, or independent support systems. [ecmag]

- Incomplete grounding / bonding

- *Problem*: Metal boxes not bonded, or grounding conductors loosely terminated. [electricaltechnology]

- *Fix*: Follow 314.40 and 110.14, using listed grounding hardware and verifying continuity. [electricaltechnology]

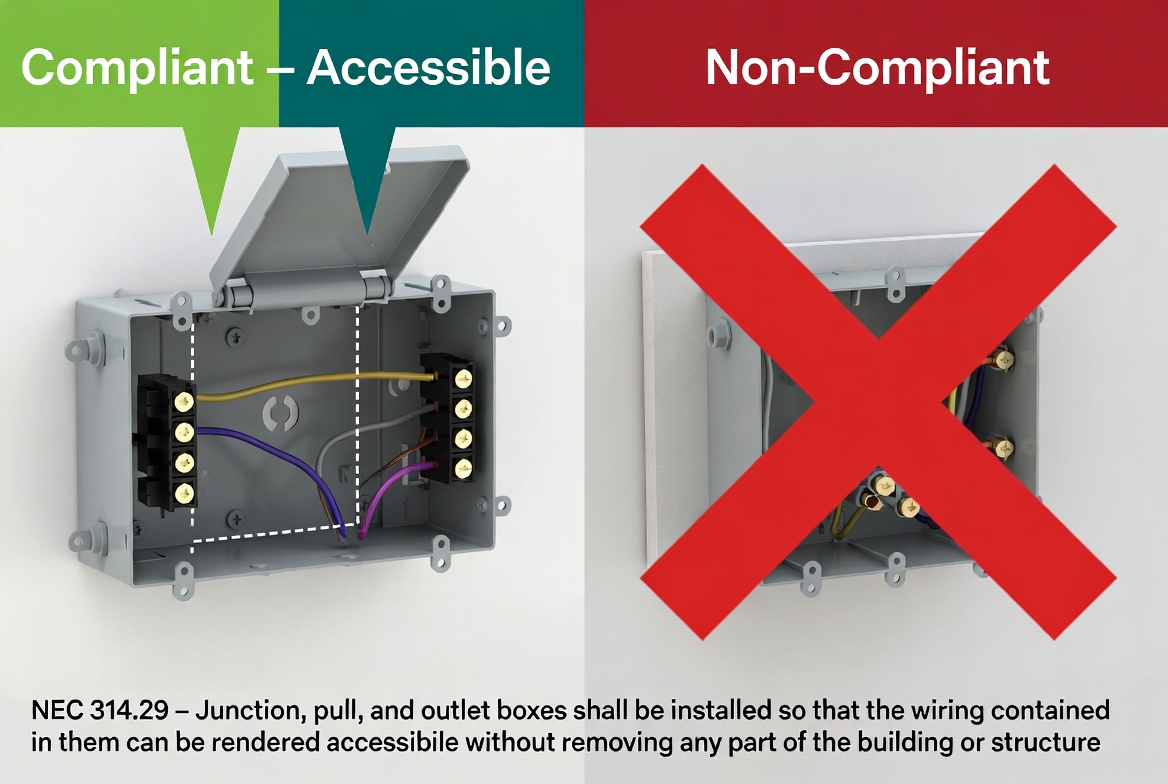

A before‑and‑after photo pair here (non‑compliant vs. compliant installation) would be a strong visual for this section.

When You Need a Licensed Electrician

In many jurisdictions, commercial, industrial, and hazardous location work must be performed or supervised by a licensed electrician. Even where homeowner or maintenance staff work is allowed, NEC‑compliant junction box design is rarely a good place to experiment. [expertce]

You should always involve qualified professionals when: [expertce]

- Working on service equipment, main panelboards, or high‑fault‑current systems.

- Installing terminal boxes in classified hazardous locations (explosive gas or dust).

- Modifying factory wiring in complex industrial machines or process lines.

- Handling high‑voltage or high‑energy storage systems.

From a manufacturer's standpoint, we recommend involving both a professional designer (who understands system architecture and enclosure selection) and a licensed installer (who knows local code practices and inspection expectations). [altechcorp]

Call to Action: Design Your Next NEC‑Ready Terminal Box

If your project involves power distribution, telecom, industrial automation, building systems, water pumps, EV, or energy storage equipment, the junction box is no longer an afterthought—it is a critical safety and reliability component. [cnsyelectronics]

By combining a clear understanding of NEC Article 314 and Article 110 with a purpose‑built terminal box enclosure, you can simplify installation, reduce risk, and extend the lifetime of your equipment. [electricaltechnology]

Consider reviewing your upcoming project's junction box requirements together with an enclosure specialist, so that sizing, material selection, and installation details are aligned with NEC requirements from day one. [cje-group]

FAQ

1. What is the main NEC article for junction boxes?

The primary NEC rules for junction boxes are in Article 314, which covers sizing (314.16), support (314.23), and accessibility (314.29). [electricallicenserenewal]

2. How do I know if my junction box is large enough?

You must perform a box fill calculation using NEC 314.16, counting conductors, devices, internal clamps, and grounds, and matching the total to the box's cubic‑inch rating. [saipwell]

3. Can I bury a junction box behind drywall or a fixed ceiling?

No. NEC 314.29 requires junction boxes to be readily accessible, which excludes locations where building finishes must be removed to reach them. [viox]

4. Do metal terminal boxes always need to be grounded?

Yes. Metal enclosures must be grounded and bonded in accordance with NEC 314.40 and 110.14 to ensure a safe fault path and prevent shock hazards. [electricaltechnology]

5. What should I look for when choosing a terminal box for industrial use?

Focus on material and protection rating, internal space for terminals and wiring, cable entry options, grounding provisions, and relevant standards (NEC, ATEX, IECEx, etc.). [altechcorp]
