Designing an electrical enclosure in Revit is not just a modeling task—it is about translating real-world enclosure performance and standards into a digital model that your project team can trust. As a manufacturer focused on junction box and electrical sheet-metal housings, Ningbo Bohui Electric Co., Ltd. can help Revit users bridge the gap between generic geometry and buildable, code‑ready enclosures that match actual products. [bohuielectric]
In Revit, an electrical enclosure is typically modeled as electrical equipment or a generic model family with connectors, parameters, and classification that allow it to participate in electrical systems, schedules, clash detection, and coordination views. This includes junction boxes, control cabinets, wall‑mounted enclosures, floor‑standing cabinets, and stainless steel housings used across power, communications, industrial automation, new energy storage, and building systems. [bohuitechnology]
A realistic enclosure family should capture dimensions, mounting type, protection rating (e.g., IP / NEMA), material, and connection points, so that it can be reused across projects and easily swapped for equivalent SKUs. From a UX standpoint, the family must be simple enough for designers to place in seconds, yet detailed enough to provide credible information to owners, builders, and facility teams. [static.au-uw2-prd.autodesk]
For context, Bohui produces stainless-steel and sheet-metal electrical enclosures for power, communication, networking, industrial intelligent manufacturing, construction, new energy storage, NEV charging, and water pump systems—exactly the applications where accurate Revit content prevents mis‑coordination on site. [bohuielectric]
Before you start "drawing a box," you need a structured approach that reflects both Revit best practices and manufacturer data. [youtube]
1. Clarify the enclosure use case
- Power distribution panel or junction box for low-voltage power. [help.autodesk]
- Network / communication box with terminals, routers, or switches. [bohuielectric]
- Industrial control cabinet for intelligent manufacturing or pumps. [bohuitechnology]
- New energy storage or EV‑related enclosure (e.g., BESS, charging). [bohuitechnology]
Each application may require different connector types, load parameters, and clearance zones in your Revit family. [static.au-uw2-prd.autodesk]
2. Collect manufacturer data
From a manufacturer like Bohui Electric, you should gather: [bohuielectric]
- Exact dimensions (H×W×D) and door opening direction.
- Mounting type (wall‑mounted, floor‑standing, pole‑mounted, roof‑mounted).
- Material and finish (stainless steel grade, sheet metal, coating).
- IP/NEMA rating and environmental suitability (indoor, outdoor, corrosive).
- Typical accessories (gland plates, DIN rails, mounting panels).
3. Prepare your Revit project
- Confirm project units, levels, and grids so the enclosure aligns with architectural and structural models. [youtube]
- Link architectural and structural Revit models for coordination, particularly in electrical rooms and corridors. [youtube]
- Decide whether you'll host enclosures on walls, floors, or non‑hosted (for equipment rooms and skids). [static.au-uw2-prd.autodesk]

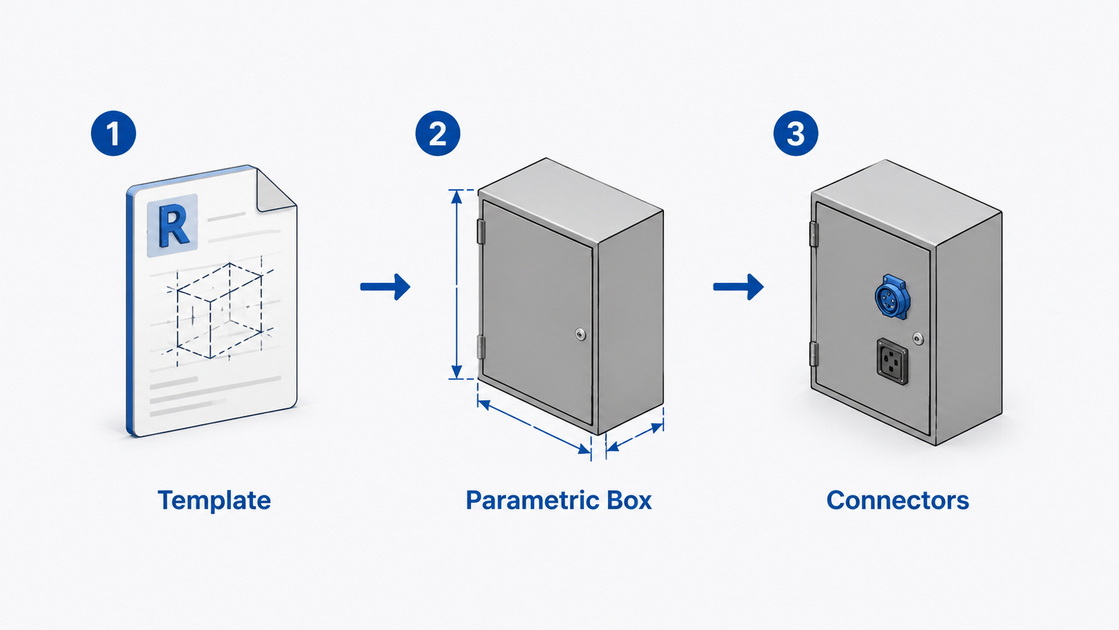

Below is a pragmatic workflow that electrical engineers and BIM coordinators can follow to create a reusable enclosure family and then place it in a project. [help.autodesk]
1. Open Revit and create a new family using Electrical Equipment or Generic Model as the base template, depending on your office standards. [static.au-uw2-prd.autodesk]
2. For enclosures that must be part of electrical distribution systems and schedules, Electrical Equipment is usually preferred. [help.autodesk]
3. Set the family category and parameters to ensure it appears in the correct views and schedules. [static.au-uw2-prd.autodesk]
For junction boxes used purely as coordination geometry, a Generic Model with shared parameters can still support tagging, filtering, and clash detection, but it will not automatically connect to circuits. [help.autodesk]
1. Define reference planes for width, height, and depth so the enclosure can be resized through parameters. [static.au-uw2-prd.autodesk]
2. Use simple extrusions to create the cabinet body and door; keep geometry efficient to maintain model performance. [static.au-uw2-prd.autodesk]
3. Add constraints and labeled dimensions (e.g., *Width*, *Height*, *Depth*) tied to type parameters, allowing multiple sizes in one family. [static.au-uw2-prd.autodesk]
From a UX perspective, resisting the temptation to model every screw and hinge keeps the family lightweight and responsive, especially in large electrical rooms or industrial plants with dozens of enclosures. [static.au-uw2-prd.autodesk]
1. Place electrical connectors (power, control, communication) on the appropriate faces, aligning them with realistic cable entry locations (top, bottom, side). [help.autodesk]
2. Set electrical parameters such as system type (Power, Data, Fire Alarm), voltage, apparent load, and load classification to support panel schedules and load calculations. [help.autodesk]
3. Configure visibility settings so connectors don't clutter plan views but remain visible in detailed or coordination views. [static.au-uw2-prd.autodesk]
Autodesk's guidance emphasizes that correct connector configuration is critical for accurate panel connections, load estimates, and system diagrams. [help.autodesk]
1. Define type parameters for standard Bohui enclosure sizes—for example, several popular stainless steel junction box dimensions. [bohuielectric]
2. Include parameters for IP rating, material, door type, and mounting method, so specifiers can filter or schedule by performance characteristics. [bohuielectric]
3. Test each type in a sample project to ensure the family flexes correctly and connectors stay in the right place as sizes change. [static.au-uw2-prd.autodesk]
This is where a manufacturer adds real value: instead of generic sizes, you provide ready‑to‑use Revit types that map directly to actual SKUs, reducing errors and RFIs in the field. [bohuitechnology]
1. In your electrical project, confirm that levels and views are set for electrical coordination (e.g., dedicated electrical plan views and 3D views). [youtube]
2. Load the enclosure family and place it in the desired locations: electrical rooms, corridors, substations, or plant floors. [youtube]
3. Rotate and align enclosures using grids and alignment tools to maintain clearance and consistency. [youtube]
Revit's workflows for electrical system design then allow you to connect compatible devices and circuits to the enclosure or associated panels. [help.autodesk]
Over multiple Revit projects in power, industrial, and new energy environments, certain practices consistently improve both model quality and user experience. [youtube]
Keep linework and detail views clean
- Use dedicated coordination or design views for electrical equipment placement instead of cluttering sheet views. [static.au-uw2-prd.autodesk]
- Apply grid lines and masking regions strategically to show complex enclosure arrays clearly without confusing overlapping lines. [static.au-uw2-prd.autodesk]

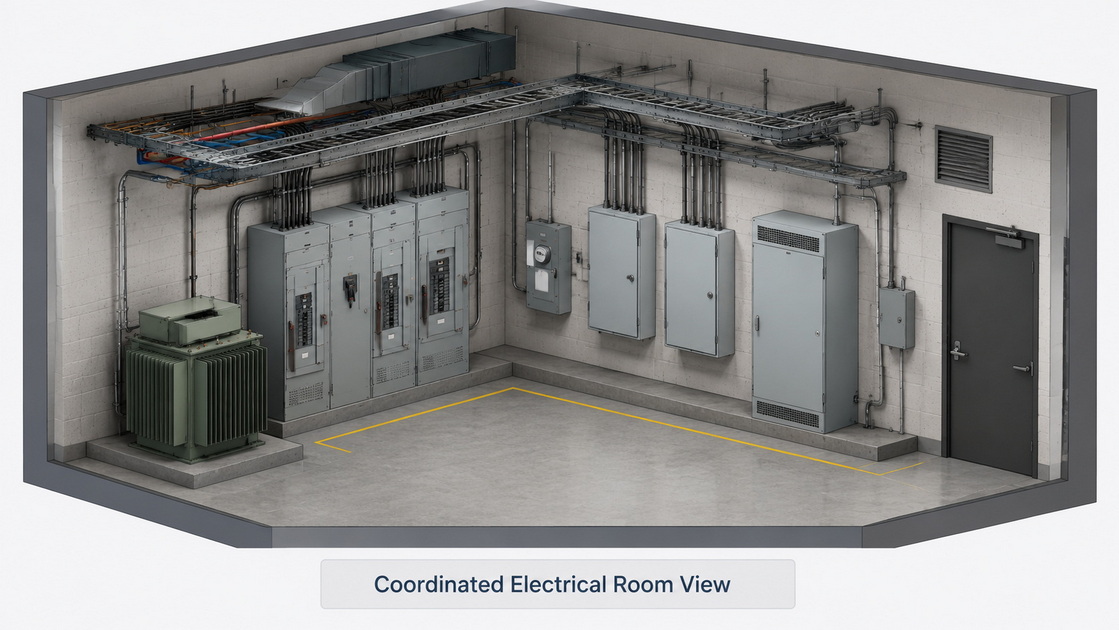

Align with electrical room design workflows
- As shown in Revit electrical room tutorials, planning load calculations and clear equipment layouts early reduces changes later. [youtube]
- Combine 2D plans with 3D views and sections to validate that enclosures, cable trays, and switchgear align correctly and respect clearance zones. [youtube]
Test family behavior thoroughly
- Autodesk's guidance highlights the need to test all parameters, connectors, and visibility options once the family is loaded in a project. [static.au-uw2-prd.autodesk]
- Designers should verify that the family behaves logically when mirrored, copied to different levels, or placed in linked architectural models. [youtube]
This testing aligns with an E‑E‑A‑T approach: you demonstrate experience (testing under real project conditions), expertise (understanding electrical connectors and loads), authoritativeness (aligning with Autodesk documentation), and trustworthiness (reducing surprises in construction). [youtube]
From the manufacturer side, the value is not only in producing metal enclosures, but also in delivering high‑quality digital twins of those products. [bohuitechnology]
Why manufacturer‑grade families matter
- Electrical designers can select exact Bohui stainless steel or sheet‑metal enclosures from a type catalog instead of approximating. [bohuielectric]
- BIM managers can standardize on families with vetted parameters for power, communication, and industrial systems, ensuring consistency across projects. [bohuielectric]
- Owners and EPC contractors benefit from schedules that list real product names, ratings, and materials, streamlining procurement and maintenance. [bohuitechnology]
Domains where accurate Revit enclosures are critical
- Power distribution and substation panels. [bohuielectric]
- Communication and networking racks and boxes for data centers and infrastructure. [bohuielectric]
- Industrial intelligent manufacturing cells and lines where cabinets host PLCs and drives. [bohuitechnology]
- New energy storage (BESS), EV charging infrastructure, and water pump control stations. [bohuitechnology]
By providing Revit‑ready content for these domains, a manufacturer like Bohui can become a go‑to reference for electrical engineers and BIM teams, strengthening both search visibility and real‑world specification rates. [bohuitechnology]
Creating an enclosure is only half the story; connecting it into the project's electrical distribution is where Revit's engineering value emerges. [autodesk]
Define electrical distribution systems
- Use Revit's electrical analysis workflows to define distribution systems and load estimating early in design. [autodesk]
- Connect panels, transformers, and enclosures into coherent systems with defined voltages and fault levels, improving decision‑making at concept and detailed design stages. [autodesk]
Circuiting devices to enclosures
- From the Systems / Electrical tools, assign branch circuits from receptacles, motors, and equipment to panels or distribution boards associated with your enclosures. [youtube]
- Ensure that enclosure‑hosted terminals or control devices are connected to the appropriate circuits so that schedules and load calculations remain accurate. [youtube]
Tutorial series on Revit MEP electrical emphasize that proper project setup, panel creation, and circuit definition are essential to harness the full power of system modeling—not just drawing symbols. [youtube]
To go beyond generic "how to model a box" tutorials, you can embed manufacturer and field expertise directly into your Revit content and marketing: [bohuitechnology]
- Provide recommended clearances and mounting heights for typical applications (industrial cabinets vs. junction boxes in corridors).
- Highlight common failure modes observed in the field (wrong IP rating, undersized cabinet, lack of spare space for future devices) and show how Revit parameter sets can prevent them.
- Share case examples where accurate enclosure modeling improved coordination in power plants, EV charging sites, or water treatment stations.
This kind of content not only helps users answer "How do I create an electrical enclosure in Revit?" but also "How do I make sure this enclosure is safe, compliant, and buildable?"—which is exactly what Google's E‑E‑A‑T guidelines reward. [autodesk]
Once your enclosure family is ready, you can follow this practical workflow inside a real Revit project: [youtube]
1. Set up electrical project
- Import or link the architectural model, create levels and grids, and configure electrical plan views. [youtube]
2. Place enclosures in key locations
- Position enclosures in electrical rooms, corridors, rooftops, and plant areas based on the one‑line diagrams and layout guidelines. [youtube]
3. Review in 3D and sections
- Use section views and 3D camera views to confirm access, clearances, and cable routing feasibility. [youtube]
4. Create circuits and connect to panels
- Define circuits for downstream devices and connect them through panels and distribution boards associated with the enclosures. [youtube]
5. Generate schedules and documentation
- Produce equipment schedules listing enclosure sizes, ratings, materials, and manufacturers such as Bohui, ready for procurement and construction. [bohuielectric]
By standardizing this workflow—and providing downloadable Bohui Revit families—you help engineers consistently meet both technical and documentation requirements on projects. [bohuitechnology]
To convert readers into users and specifiers, include an explicit CTA in your article and product pages:
- Invite readers to download a free Revit family pack of Bohui stainless steel and sheet‑metal electrical enclosures, with common sizes for power, communication, and industrial control. [bohuielectric]
- Offer a short Revit implementation guide that walks users through loading the families, adjusting parameters, and connecting enclosures to electrical systems, based on Autodesk's recommended workflows. [youtube]
- Encourage BIM managers and electrical engineers to contact Bohui for custom family development tailored to specific national standards or large projects. [bohuitechnology]
A clear CTA like "Download Bohui's Revit Enclosure Library" not only improves UX and lead generation, but also demonstrates that you stand behind your content with concrete, usable tools. [bohuielectric]
In most engineering workflows, electrical enclosures are modeled as Electrical Equipment so they can participate in distribution systems, schedules, and electrical analysis. However, some teams use Generic Models for purely geometric coordination with shared parameters to support tagging and filtering. [help.autodesk]
Focus on correct dimensions, connectors, and parameters rather than overly detailed geometry. Industry guidance recommends families that are lightweight but parametric, using reference planes and simple extrusions, which improves performance in large projects. [youtube]
Yes. Revit provides electrical load estimating workflows that support early decision‑making and detailed design, as long as devices and panels are placed, connected, and configured correctly. Accurate connectors and system definitions are essential to obtain trustworthy results. [autodesk]
You should link architectural and structural models, define levels and grids, and then place enclosures using alignment tools and coordination views. Tutorials on electrical project setup and room design in Revit highlight the use of 2D plans, sections, and 3D views to validate clearances and accessibility. [youtube]
Manufacturer families, like those based on Bohui stainless steel and sheet-metal enclosures, provide real sizes, IP ratings, materials, and accessories that align directly with purchaseable products. This minimizes RFIs, reduces on‑site clashes, and supports accurate procurement and maintenance documentation. [bohuitechnology]
