As someone who has spent years working with wall mount enclosures for power, telecom, and industrial automation projects, I see IP54 misused almost as often as it is chosen correctly. In this guide, I'll walk you through what IP54 means in real engineering terms, how it performs in the field, and how to decide when IP54 wall mount enclosures are the right choice for your application. [konstructdigital]

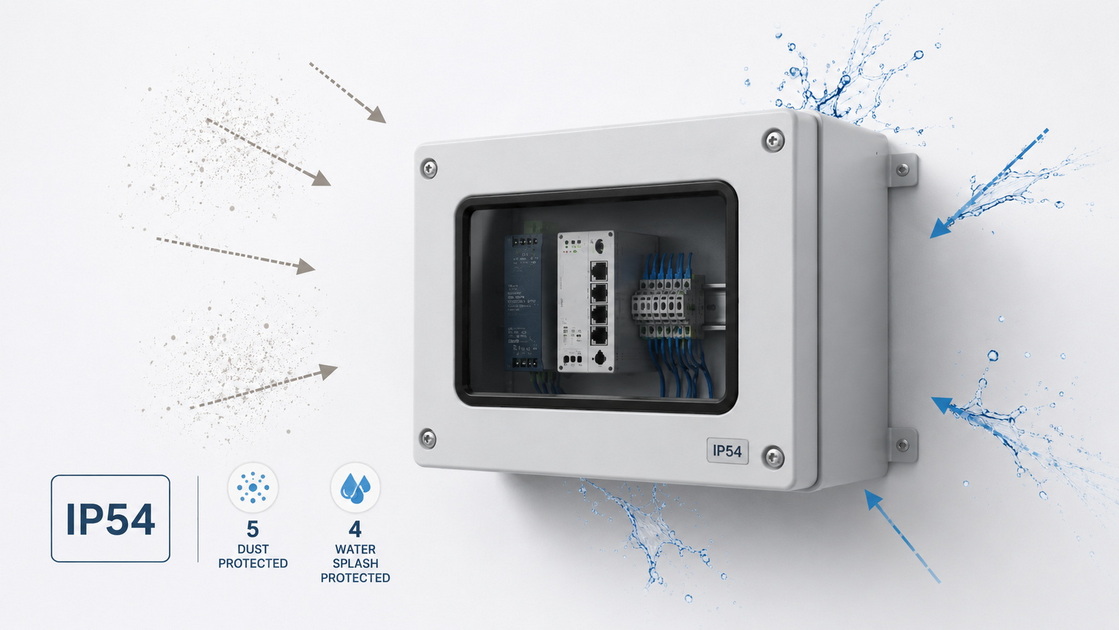

IP54 is an ingress protection rating defined by IEC 60529 that tells you how well an enclosure resists dust and water splashes in realistic operating conditions. [eabel]
- The "5" means the enclosure is dust-protected: limited dust can enter, but not enough to interfere with normal operation. [konstructdigital]
- The "4" means it is splash-proof, resisting water splashes from any direction, such as light rain, spills, or occasional cleaning. [konstructdigital]
In practice, IP54 sits in the "reliably protected, but not extreme" category: ideal for indoor and semi‑outdoor environments where there is some dust and occasional moisture, but not continuous heavy rain, high‑pressure washdown, or immersion. [eabel]
Primary SEO keywords to target in this article:
- IP54
- IP54 enclosure
- IP54 wall mount enclosure
- IP54 electrical enclosure
- IP54 vs IP65 / IP66 / IP67
- IP54 protection rating
From a standards perspective, IP54 is not "marketing language"; it is tied to specific lab tests defined by IEC 60529. [eabel]
- Dust test (first digit 5): The enclosure is exposed to circulating dust; a limited amount may enter, but not enough to impair safety or performance. [konstructdigital]
- Water test (second digit 4): The enclosure is sprayed with water from all directions at defined flow and distance to confirm it resists splashes. [konstructdigital]
In real projects, I've learned to treat IP54 as "everyday industrial protection," not a guarantee against aggressive cleaning or harsh outdoor exposure. When a maintenance team switches from wiping enclosures with a damp cloth to using a pressure washer, IP54 quickly becomes insufficient and you start seeing failures at doors, hinges, and cable entries. [eabel]
Well‑designed IP54 wall mount enclosures are widely used across power distribution, telecom, industrial automation, and building management systems. [linkedin]
IP54 is a strong fit for:
- Control panels in factories and workshops with airborne dust or oil mist but no direct hose‑down.
- Building automation devices: lighting controllers, access control panels, HVAC controllers, and sensor hubs.
- Commercial and public buildings where panels are mounted in corridors, plant rooms, or above ceiling spaces with occasional dust and moisture. [eabel]
From my experience with OEM customers, IP54 often gives the best balance of cost, protection, and ease of installation for low‑voltage control and signal circuits in these environments.
IP54 wall mount enclosures also perform well in semi‑outdoor locations, as long as they are physically sheltered:
- Covered entrances and loading docks
- Balconies, canopies, and under‑roof installations
- Outdoor digital signage or metering panels located under awnings [konstructdigital]
The key is indirect exposure: IP54 will handle wind‑blown rain and splashes, but not constant direct rainfall or high wind‑driven storms. [eabel]

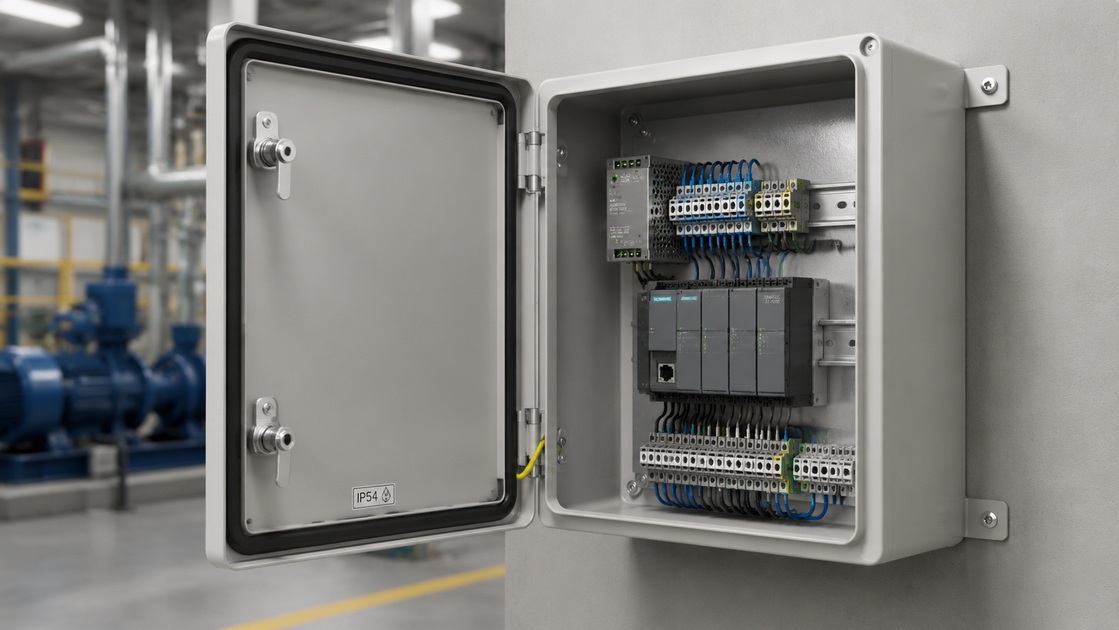

In industrial smart manufacturing, IP54 wall mount enclosures are often used for:
- Local operator panels beside production lines
- Junction boxes for sensors, actuators, and small PLCs
- Auxiliary control panels near pumps, compressors, or conveyors [linkedin]
In these cases, IP54 avoids over‑engineering: the enclosure is robust enough for dust and occasional splashes, but you don't pay the premium for fully dust‑tight or wash‑down designs that are not actually required.
- Cost‑effective protection – Compared with IP65, IP66, or IP67, IP54 enclosures are significantly more economical, especially in large volumes and large panel sizes. [konstructdigital]
- Adequate for most indoor use – IP54 protects against the majority of dust and splash scenarios you encounter in workshops, plant rooms, and commercial buildings. [eabel]
- Lightweight and easy to install – Many IP54 wall mount enclosures use polycarbonate, ABS, or thinner‑gauge metal, reducing weight and making wall mounting much easier for installers. [konstructdigital]
- Broad cross‑industry applicability – From power distribution to telecom, network, building, and new energy systems, IP54 neatly covers many "standard environment" projects without customization. [linkedin]
- Not fully dust‑tight – In very dusty environments (cement plants, grain handling, woodworking with fine dust), some dust will find its way in over time. [konstructdigital]
- Not suitable for wash‑down or immersion – IP54 simply is not designed for high‑pressure jets, steam cleaning, or immersion; for that you need IP65–IP69K depending on the risk. [eabel]
- Outdoor use requires shelter – When customers mount IP54 boxes fully exposed to sun, rain, and snow, field failure rates increase sharply, especially at doors and cable glands. [eabel]

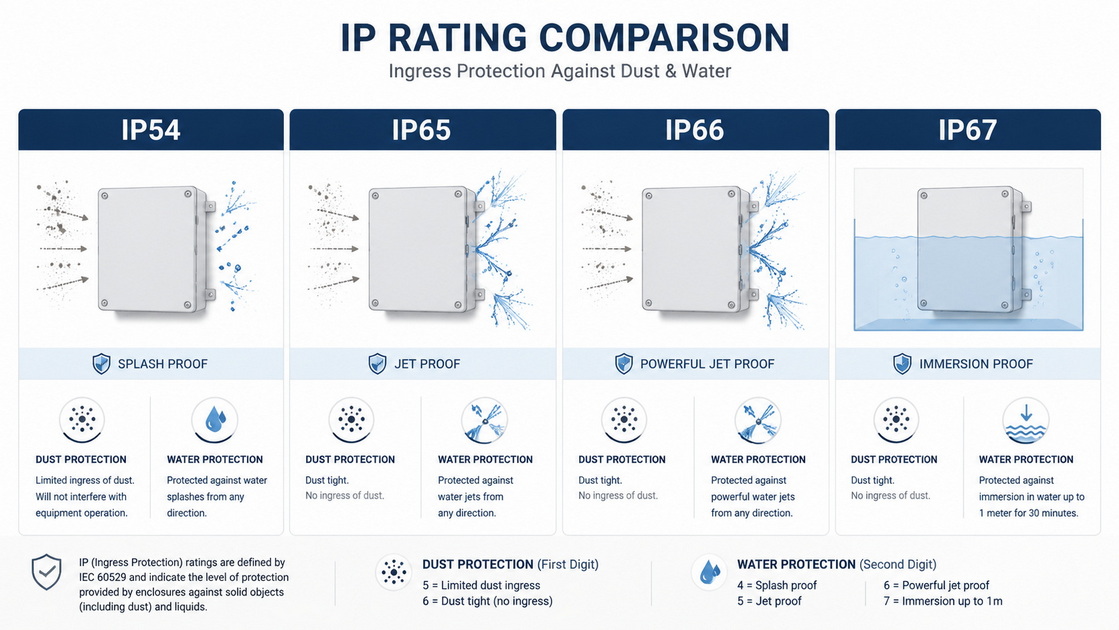

A common question from electrical designers is: "Is IP54 enough, or should I upgrade to IP65 or higher?" The answer depends on dust level, water exposure, and cleaning method.
| Feature / rating | IP54 | IP65 | IP66 | IP67 |
|---|---|---|---|---|
| Dust protection | Limited (dust‑protected) konstructdigital | Dust‑tight konstructdigital | Dust‑tight konstructdigital | Dust‑tight konstructdigital |
| Water protection | Splash‑proof, all directions konstructdigital | Low‑pressure water jets konstructdigital | Powerful water jets konstructdigital | Temporary immersion konstructdigital |
| Typical location | Indoor, semi‑outdoor, sheltered konstructdigital | Outdoor, industrial, wash‑down‑light konstructdigital | Harsh weather, marine, frequent hose‑down konstructdigital | Flood‑prone areas, pits, tunnels konstructdigital |
- Choose IP54 when you have normal dust and occasional splashes only.
- Step up to IP65 or IP66 if you expect frequent cleaning with hoses or heavy industrial spray.
- Use IP67 or higher for temporary immersion risks or very harsh outdoor conditions.
This structured, scenario‑based approach aligns with how professional specifiers and standards bodies recommend selecting enclosure ratings. [konstructdigital]
In North America, many engineers think in NEMA types rather than IP ratings. While IP54 is roughly comparable to NEMA Type 3 or Type 12 in certain use cases, there is no exact equivalence. [konstructdigital]
| IP rating | Approximate NEMA type | Typical environment |
|---|---|---|
| IP54 | Type 3 or Type 12 (depending on application) konstructdigital | Light outdoor or indoor industrial use |
| IP65 | Type 4 | Outdoor and wash‑down areas |
| IP66 | Type 4X (if corrosion‑resistant) konstructdigital | Marine or chemical exposure |
Why IP ≠ NEMA:
- NEMA covers dust, water, corrosion, oil, and mechanical damage.
- IP is focused only on dust and water ingress, under strict lab test conditions. [eabel]
If you are working under U.S. or Canadian codes, you should always confirm both the required NEMA type and the IP rating instead of assuming one rating covers all aspects. [konstructdigital]
From a manufacturing standpoint, achieving a genuinely reliable IP54 enclosure is about balancing gasket design, material choice, and precision manufacturing. [konstructdigital]
- Polycarbonate or ABS plastic – Lightweight, corrosion‑resistant, ideal for indoor and semi‑sheltered outdoor use in power, telecom, and building control projects. [eabel]
- Powder‑coated steel – More rigid and impact‑resistant, suitable for industrial workshops and mechanical rooms where panels may be bumped or exposed to tool contact. [konstructdigital]
- Aluminum – Good thermal performance and corrosion resistance, often preferred in new energy, EV charging, and pump control applications. [linkedin]
The right material depends on your environment: corrosive air, temperature, required mechanical strength, and visual appearance all play a role.
In my experience, most IP54 failures in the field do not come from the sheet metal itself, but from gasket issues:
- Aging rubber or silicone gaskets that crack or harden over time
- Over‑tightened screws or latches that warp the door and create uneven compression
- Poorly aligned doors or mis‑punched holes that leave micro‑gaps around the seal [konstructdigital]
Smart enclosure designs use:
- High‑quality rubber or silicone gaskets with good compression‑set resistance
- Replaceable gasket strips so maintenance teams can restore protection in the field
- Rigid three‑point locking or compression latches that apply even pressure on the seal [konstructdigital]
Even the best‑designed IP54 wall mount enclosure will degrade if it is not maintained. A simple, consistent maintenance routine dramatically extends service life and keeps the IP54 protection rating meaningful, not just a label. [konstructdigital]
1. Surface cleaning
- Wipe with a damp, lint‑free cloth.
- Avoid abrasive pads or scouring sponges that can damage paint or plastic. [konstructdigital]
2. Seal and gasket inspection
- Look for cracks, warping, or flattening of the gasket.
- Check for dust tracks or water marks near door edges and hinges. [konstructdigital]
3. Vent and filter cleaning
- If your IP54 box includes vents or filters, clear them of dust and debris regularly to prevent overheating. [konstructdigital]
4. Mechanical integrity check
- Confirm the enclosure is still firmly mounted and not vibrating loose.
- Inspect corners and doors for deformation that could compromise the seal. [konstructdigital]
Aggressive chemicals such as acetone, ammonia, or strong degreasers can attack plastics and gasket materials, reducing flexibility and sealing performance. [konstructdigital]
Safer options include:
- Mild soap with water
- Diluted alcohol cleaners approved for the specific material [konstructdigital]
For specifiers and project engineers, the key question is: "Is IP54 sufficient, or should we specify a higher rating?" Here is a simple decision flow you can apply on every project.
1. Define environment type
- Clean indoor, light dust, or heavy dust?
- No water, occasional splash, frequent wash‑down, or immersion?
2. Map environment to minimum IP rating
- Clean or lightly dusty indoor with occasional splash → IP54 is typically adequate. [eabel]
- Heavy industrial dust or powder handling → IP5X or IP6X, consider IP65 or IP66.
- Regular hose‑down or food processing → IP65–IP69K depending on jet pressure. [eabel]
3. Consider lifetime maintenance behavior
- If you expect end users to "upgrade" cleaning from wiping to pressure washing, specify IP65 or above from the start to avoid early failures.
4. Cross‑check standards and local codes
- Verify whether your industry standard (e.g., for EV charging, water pumps, or outdoor switchgear) demands a specific minimum IP or NEMA rating.
This structured assessment helps you justify IP54 in your documentation and clarifies when you should move to a higher protection level.

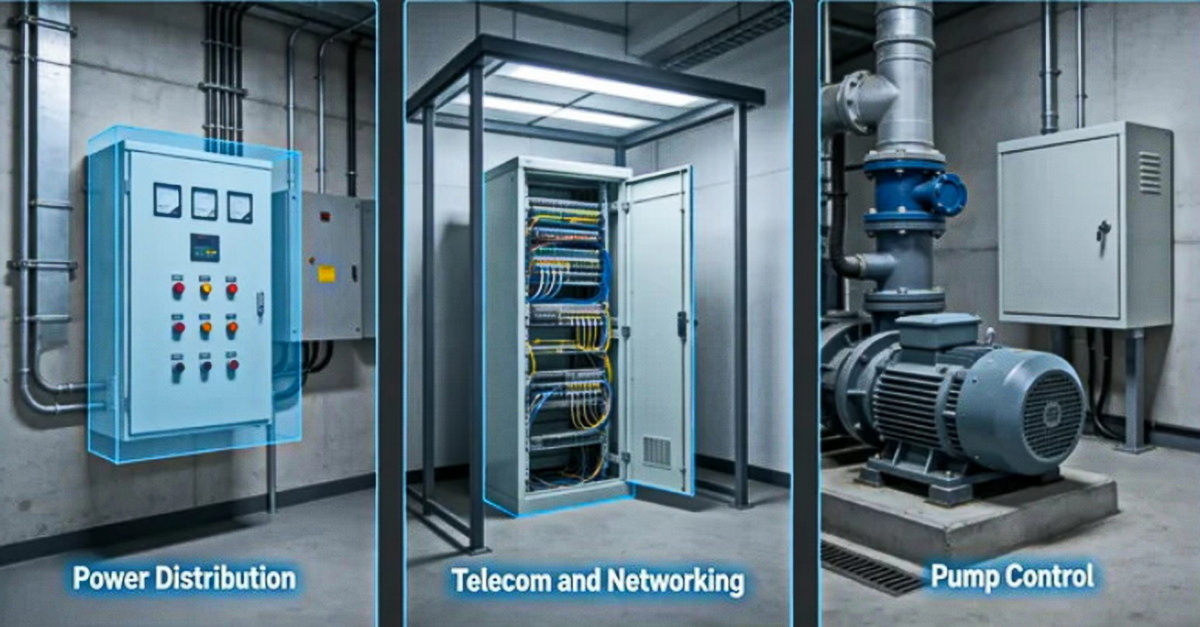

To make the rating more tangible, consider how IP54 performs in different industries that commonly use wall mount enclosures.
- Power distribution and metering – Indoor LV distribution boards, sub‑switchboards, and metering panels in utility rooms where dust and humidity exist but no direct water jets are used. IP54 provides sufficient dust and splash resistance without over‑engineering. [eabel]
- Telecom and networking – Wall‑mounted cabinets for routers, switches, and fiber termination in technical rooms or sheltered outdoor cabinets. IP54 keeps airborne dust and occasional drips from condensate or roof leaks away from sensitive electronics. [linkedin]
- Industrial smart manufacturing – Local control boxes connected to sensors, drives, and PLC modules on production lines. IP54 protects against airborne oil mist and incidental splashes from coolant, as long as the box is not in the direct spray zone. [linkedin]
- New energy and EV systems – For battery management and auxiliary control cabinets installed indoors or in containerized systems, IP54 provides a good baseline for dust and moisture protection when combined with proper thermal management. [linkedin]
- Water pump and HVAC control – Pump control panels in plant rooms and mechanical spaces often use IP54 metal enclosures mounted on walls away from direct spray. This offers reliable service life when combined with regular inspection of gaskets and cable entries. [konstructdigital]
These scenarios mirror how engineers and installers actually deploy IP54 enclosures—highlighting both their strengths and boundaries.
If you are responsible for specifying or selling IP54 wall mount enclosures, how you explain the rating to customers strongly influences correct product selection and long‑term satisfaction. Research on technical content UX shows that clear, structured explanations and examples significantly improve user comprehension and trust. [getdx]
Practical best practices include:
- Use plain language first, then add the formal definition from IEC 60529.
- Combine short paragraphs, bullets, tables, and diagrams rather than large text blocks. [getdx]
- Provide side‑by‑side comparisons (e.g., IP54 vs IP65 vs IP67) so buyers can quickly match ratings to their environment. [eabel]
- Add visuals: a simple diagram showing typical dust and splash directions helps non‑engineers understand the protection level faster. [getdx]
Well‑structured, readable content with clear headings and examples is also explicitly recommended in E‑E‑A‑T‑oriented SEO guidelines. [wellows]
If your application involves indoor or semi‑sheltered environments with moderate dust and occasional splashes, a well‑designed IP54 wall mount enclosure is often the most efficient, cost‑effective choice. It provides meaningful dust and water protection, avoids unnecessary cost, and remains easy to install and maintain throughout the equipment lifecycle. [eabel]
When you plan your next project, review your environment, cleaning methods, and local standards, then align them with the correct IP rating. If you are unsure whether IP54 is enough for your specific power, telecom, network, new energy, or pump control application, it is wise to consult an experienced enclosure manufacturer who can review your requirements and suggest the most suitable protection level. [almcorp]
IP54 can be used outdoors only in sheltered locations, such as under roofs, canopies, or awnings, where the enclosure is not exposed to direct heavy rain or high‑pressure jets. For fully exposed outdoor environments, higher ratings like IP65 or IP66 are usually recommended. [eabel]
No. IP54 is splash‑proof, not jet‑proof. High‑pressure water can force moisture past gaskets and seals, leading to corrosion and electrical faults. For areas subject to frequent wash‑down, choose at least IP65 and follow the cleaning guidelines specified by the enclosure manufacturer. [eabel]
IP54 and IP55 share the same dust protection level, but IP55 provides a higher water protection level, resisting low‑pressure water jets rather than just splashes. If your equipment is occasionally hosed down, IP55 or higher is safer than IP54, especially over a long service life. [eabel]
Inspection frequency depends on ambient temperature, UV exposure, and contamination, but a practical best practice in industrial environments is to check at least once per year, or during each major maintenance interval. Look for cracks, hardening, or compression set in the gasket material, and replace it if any of these signs appear. [konstructdigital]
No. IP54 only covers ingress protection against dust and water as defined by IEC 60529. Local electrical codes may impose additional requirements related to NEMA types, corrosion resistance, insulation, short‑circuit performance, and other safety aspects. Always verify local code requirements and standards for your specific project. [eabel]
