After nearly a decade working with installers and OEMs in power distribution, EV charging, and industrial automation, I've learned that low voltage boxes are often treated as an afterthought—until something goes wrong. A poorly chosen or installed low voltage enclosure might not trip a breaker, but it can silently damage critical data, weaken signals, or shorten the life of sensitive electronics. [scorpion]
In this guide, I'll walk you through what a low voltage box is, how it differs from standard electrical boxes, and how professionals in sectors like power, telecom, industrial automation, and new energy storage select and install these enclosures for long‑term reliability. I'll also share practical lessons from our own manufacturing experience with wall‑mounted junction boxes and sheet‑metal electrical enclosures, so you can make decisions that hold up in real‑world conditions, not just on paper. [alliedmoulded]
A low voltage box is a specialized enclosure designed to protect and organize electrical connections for devices operating at 50 volts or less. You'll find these enclosures behind TVs, in structured media panels, next to network racks, and inside industrial control cabinets where they keep communication, control, and signal wiring safe and accessible. [blvs]
Typical low‑voltage systems use voltages such as 12V, 24V, or 48V for applications like audio/video, networking, security, access control, and smart building systems. Because the voltage is lower, the risk of severe electric shock and fire is reduced, but the wiring and terminations are far more sensitive to mechanical damage, interference, and moisture—which is exactly what a good low voltage box is designed to mitigate. [scorpion]
Before you select an enclosure, it helps to understand the wiring you're trying to protect. Low voltage wiring generally refers to circuits carrying 50 volts or less, using smaller conductors and different insulation standards than mains wiring. These cables are optimized for data, signal integrity, and low‑power loads instead of high current. [alliedmoulded]
Common low‑voltage applications include: [scorpion]
- Telecom and networking: Ethernet, phone lines, IP intercoms, and fiber entry points.
- Security systems: Cameras, motion sensors, access control readers, alarm loops.
- Smart home & building automation: Thermostats, smart switches, fieldbus wiring.
- Audio/Video: HDMI extenders, speaker wiring, control lines, AV wall plates.
- Low‑voltage lighting: Landscape lighting, architectural accent lighting, signage.
Even though these circuits are safer than high‑voltage wiring, poor routing or unprotected junctions can cause intermittent faults, signal drop, corrosion, or even localized overheating if power wiring shares space with poorly managed low‑voltage conductors. [blvs]
From an engineer's perspective, a good low voltage box does much more than "hold some cables." It delivers four critical functions: [scorpion]
1. Protection
It shields connectors, terminations, and splices from accidental contact, physical damage, and environmental contaminants such as dust or moisture. [alliedmoulded]
2. Organization
It provides a defined space for cable routing, slack storage, labeling, and device mounting so that maintenance and troubleshooting become faster and safer. [scorpion]
3. Safety Risk Reduction
By separating low‑voltage terminations from mains power and containing potential hot spots, a well‑designed box helps reduce short circuits, shock risk, and localized overheating. [scorpion]
4. Serviceability
Technicians should be able to open a cover, identify circuits, and perform work without disturbing unrelated systems—a key consideration in industrial sites and high‑density telecom rooms. [blvs]
In practice, when a project does not perform well over time, it's often because these four aspects were not considered together at the specification stage.
Low‑voltage boxes are everywhere, even if you rarely see them directly. Based on field projects and customer feedback, some of the most frequent use cases include: [alibaba]
- Residential and commercial AV: Behind TVs and projectors to route HDMI, speaker wires, and control cables cleanly through walls.
- Structured cabling & IT networks: Enclosures that centralize Ethernet, fiber, and patch panels for small offices, data drops, and edge devices.
- Security & surveillance: Junctions for camera power, PoE injectors, sensor loops, and access control panel terminations.
- Telecommunications: Transition points between external carrier cables and internal building wiring.
- Lighting control and low‑voltage lighting: Distribution points for landscape or architectural LED systems.
- Industrial and energy applications: Signal, I/O, and communication wiring in control panels, water pump stations, EV charging infrastructure, and energy‑storage systems, often using wall‑mounted junction boxes. [cadcrowd]
In heavy‑duty environments—such as new energy storage, water treatment, and industrial manufacturing—engineers usually integrate low‑voltage boxes inside larger sheet‑metal enclosures or wall‑mounted cabinets to meet higher IP ratings and mechanical protection requirements. [cadcrowd]
Different applications demand different physical formats. At a high level, you will typically see three main categories in the field. [alliedmoulded]
Single‑gang low voltage boxes are thinner than standard electrical boxes and can be mounted horizontally or vertically, often behind wall plates. They're ideal for individual AV or data outlets and can be combined into multi‑gang configurations when several low‑voltage functions share a single wall location. [scorpion]
Recessed boxes sit deeper into the wall so plugs, connectors, and cable bends don't protrude. Professionals often use these behind wall‑mounted displays or in tight furniture integrations to keep installations visually clean and compliant with bend radius requirements. [blvs]
Low voltage junction boxes bring multiple low‑voltage circuits together safely in a single, protected space. In industrial and commercial projects, these are frequently sheet‑metal, wall‑mounted junction boxes that provide enough volume, cable entry options, and mounting surfaces for terminal blocks, DIN‑rail devices, or small controllers. [cadcrowd]
A typical pattern we see with OEM and integrator customers is: low‑voltage junctions and I/O wiring are consolidated in a dedicated steel junction box, then that box is mounted close to field equipment such as pumps, robots, or EV chargers to simplify field commissioning and service. [cadcrowd]

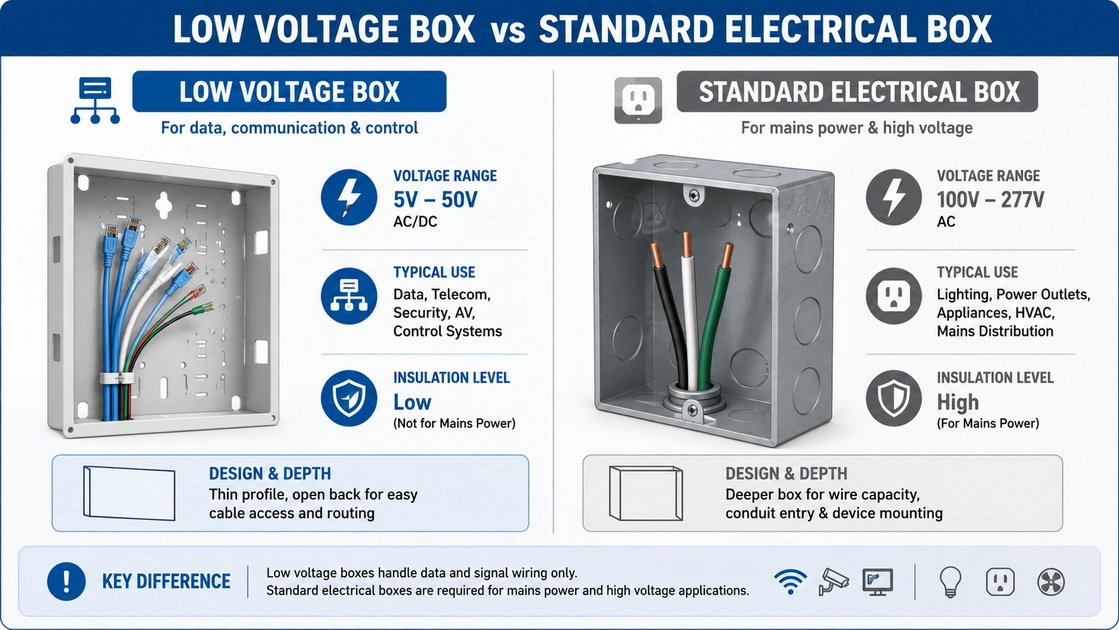

Understanding the key differences between low‑voltage boxes and standard mains electrical boxes helps ensure code compliance and system reliability. [scorpion]
| Feature | Low Voltage Box | Standard Electrical Box |
|---|---|---|
| Typical voltage | ≤ 50 V scorpion | 120–480 V (region dependent) |
| Design & depth | Often thinner, sometimes backless scorpion | Fully enclosed, robust back and sides |
| Primary purpose | Signal, data, low‑power devices scorpion | Power distribution for outlets, switches |
| Insulation requirements | Lower, but must protect terminations scorpion | High, must contain arcs and faults |
| Installation requirements | Often does not require electrician scorpion | Generally requires licensed electrician |
| Typical applications | AV, data, security, control scorpion | General power circuits |
Because low‑voltage boxes are optimized for signal and control wiring, they do not need the same level of heavy insulation as high‑voltage boxes, but they do require good cable management, strain relief, and clear separation from mains circuits. [blvs]
From a safety and compliance standpoint, a well‑designed low voltage enclosure should include: [alliedmoulded]
- Insulation and containment: Adequate creepage distances, protection against accidental contact, and safe separation from higher‑voltage circuits.
- Structural rigidity: Robust construction that does not deform under installation stress, cable strain, or thermal cycling.
- Ventilation and heat dissipation: Slots, vents, or thermal design that prevent heat buildup around powered devices like PoE switches or DC power supplies.
- Ingress protection: For industrial, outdoor, or humid environments, IP‑rated designs to prevent dust and water ingress.
- Service accessibility: Clear door openings, removable covers, and enough internal working space to safely terminate and test circuits.

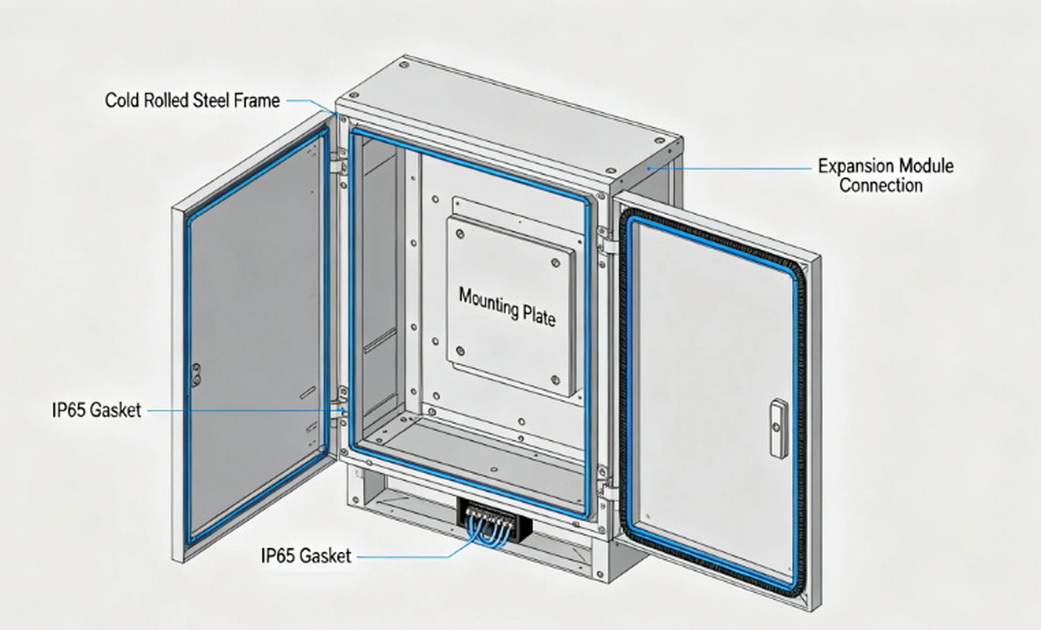

In sectors such as new energy vehicles, energy storage, and pumping systems, engineers often specify metal junction boxes with appropriate IP and IK ratings, corrosion resistance, and optional coatings to match demanding environments. [cadcrowd]
Selecting the right low voltage box is less about brand and more about matching environment, capacity, and future maintenance needs. From manufacturer experience, we recommend working through these steps: [alliedmoulded]
1. Define the environment
- Indoor office, residential, industrial workshop, outdoor, or corrosive.
- Consider dust levels, humidity, vibration, and possible chemical exposure. [cadcrowd]
2. Clarify circuits and devices
- List all low‑voltage functions: data, AV, security, controls, low‑voltage power.
- Estimate present and future cable count so the box isn't undersized. [scorpion]
3. Select materials and enclosure type
- Plastic or composite for light‑duty indoor use. [alliedmoulded]
- Steel or stainless steel sheet‑metal junction boxes for industrial, outdoor, or high‑risk areas. [cadcrowd]
4. Check safety and standards
- Verify applicable standards in your region (for example, NEC/IEC categories for separation of low‑voltage and mains wiring). [stellarcontent]
- Confirm IP rating, impact resistance, and cabling accessories. [alliedmoulded]
5. Plan for installation and maintenance
- Ensure mounting points align with wall, rack, or equipment layout. [blvs]
- Include space for labeling, future devices, and safe working clearance. [blvs]
Professionals in power distribution and industrial automation will often choose wall‑mounted sheet‑metal junction boxes precisely because they offer flexibility on cable entries, internal mounting, and upgrades as systems evolve. [cadcrowd]

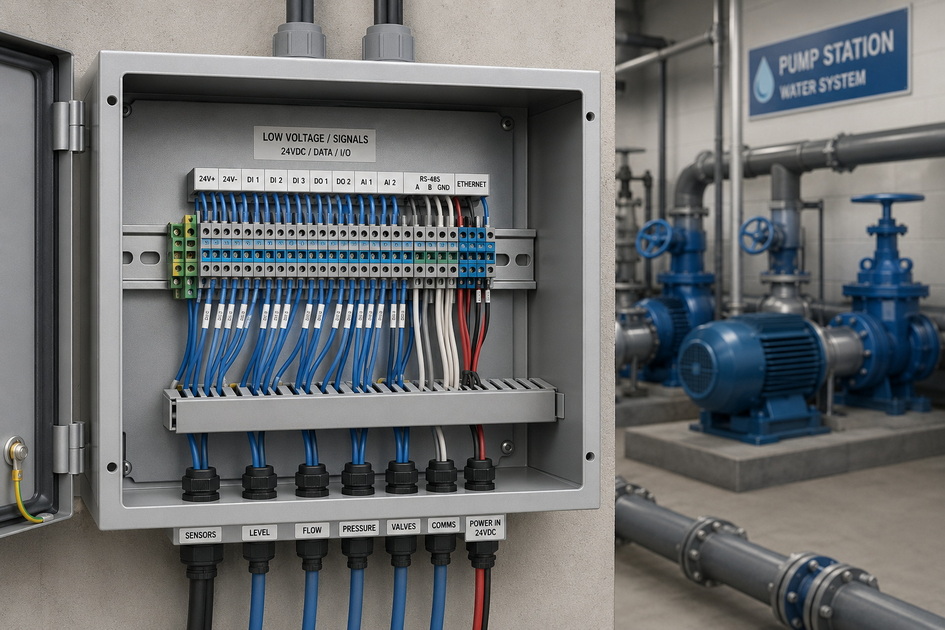

To illustrate how this works in practice, consider a water pump station integrating pressure sensors, flow meters, and remote monitoring. Low‑voltage signals from field devices must travel tens of meters back to a control panel under sometimes harsh outdoor conditions. [alliedmoulded]
A typical engineering solution would be to:
- Install metal low‑voltage junction boxes near groups of pumps to terminate sensor cables.
- Provide internal DIN rail and terminals for signal wiring, plus space for surge protection and isolators.
- Use gland plates and cable glands to maintain enclosure sealing and strain relief.
- Route multi‑pair or fieldbus cables back to the main control cabinet, keeping low‑voltage terminations neatly organized.
This approach reduces installation time, simplifies troubleshooting, and minimizes the risk of water ingress, cable damage, or untracked field modifications—problems that often surface years after commissioning if enclosures were underspecified. [blvs]

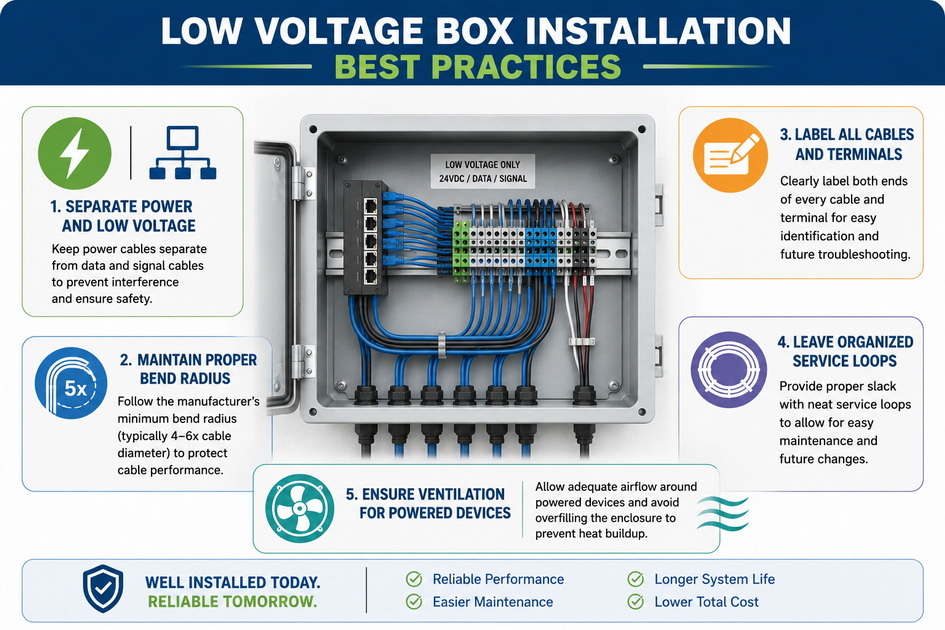

Based on installation feedback from electricians, system integrators, and maintenance teams, here is a field‑tested checklist to improve your next low‑voltage enclosure project: [blvs]
1. Separate power and low voltage clearly
Never mix mains voltage and low‑voltage circuits in the same enclosure without proper separation and compliance with local codes.
2. Respect bend radius and cable strain
Avoid sharp bends on data, fiber, and control cables; use cable management accessories to relieve strain on terminations.
3. Label everything
Use durable labels on terminals, cables, and enclosures. Clear identification saves hours during fault finding and upgrades.
4. Leave service loops, not tangles
Allow enough slack for future re‑terminations, but keep it organized with ties or management accessories so boxes stay serviceable.
5. Plan ventilation for powered devices
When placing PoE switches, power supplies, or converters in low‑voltage boxes, ensure sufficient airflow or thermal margin.
6. Document and photograph
Capture wiring diagrams and photos once the box is fully wired. This is invaluable when teams or contractors change.
These habits have a direct impact on uptime, especially in complex sites like factories, data rooms, and distributed energy storage systems. [alliedmoulded]

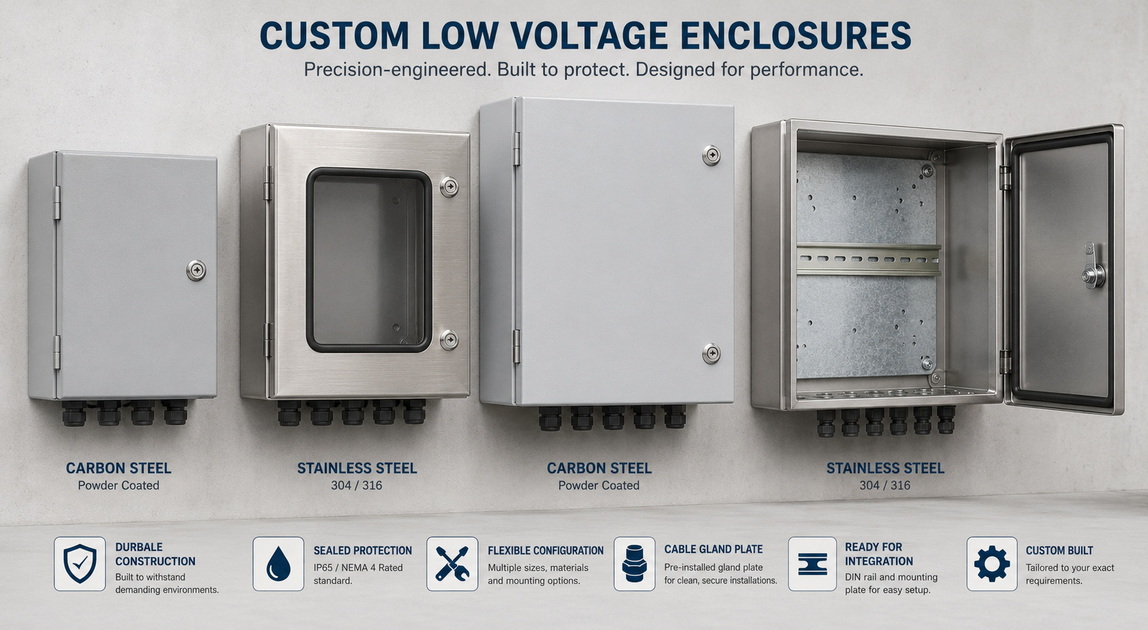

Off‑the‑shelf plastic low‑voltage boxes work well for simple residential and light commercial installations, but many industrial and new energy projects benefit from customized sheet‑metal junction boxes. [cadcrowd]
Engineers typically move to custom metal enclosures when they need:
- Specific dimensions to fit constrained wall, rack, or equipment spaces.
- Pre‑punched or laser‑cut knockouts for glands, conduit, cable trays, or busbars.
- Material upgrades (for example, stainless steel or coated steel) for corrosion resistance. [cadcrowd]
- Internal mounting plates, DIN rails, or brackets tailored to their terminal layout.
- Higher ingress and impact protection ratings for demanding environments.
For OEMs and system integrators, standardizing on a set of optimized wall‑mounted junction boxes across projects can simplify design, procurement, and maintenance while ensuring consistent appearance and quality. [alliedmoulded]
You can also enhance user experience at the panel‑builder level by specifying hinged doors, clear windows, ergonomic latches, and interior lighting, all of which make day‑to‑day work safer and more efficient. [cadcrowd]
If you are planning a new project—or troubleshooting an existing one—now is the ideal moment to re‑evaluate how you specify and install your low‑voltage boxes. Robust, well‑designed enclosures protect your signal integrity, reduce maintenance headaches, and extend the life of critical systems. [scorpion]
Whether you work in power distribution, telecom, industrial automation, new energy storage, EV charging, or water pumping, consider partnering with a specialized wall‑mounted junction box manufacturer that can support you from enclosure selection through customization and long‑term supply. A brief technical consultation can often uncover simple changes in box size, material, or layout that deliver a disproportionate improvement in reliability and total cost of ownership. [wellows]
Low voltage for these enclosures typically means circuits operating at 50 volts or less, using wiring optimized for signal and control rather than high‑power loads. [scorpion]
In most cases, low‑voltage and mains circuits must be separated or properly partitioned, and local electrical codes may prohibit mixing them in the same enclosure without barriers. Always follow regional standards and consult a qualified professional. [stellarcontent]
Many jurisdictions allow competent technicians to install low‑voltage boxes because the associated shock and fire risks are lower, but you must still follow applicable codes and manufacturer instructions. When in doubt, involve a licensed electrician. [scorpion]
For harsh or industrial environments, steel or stainless‑steel sheet‑metal enclosures are often preferred because they offer better mechanical strength, impact resistance, and enclosure flexibility than standard plastic boxes. [alliedmoulded]
Choose an enclosure with extra space for additional cables and devices, use structured cable management, label thoroughly, and keep updated documentation and photos. This minimizes rework when systems expand or standards change. [blvs]
